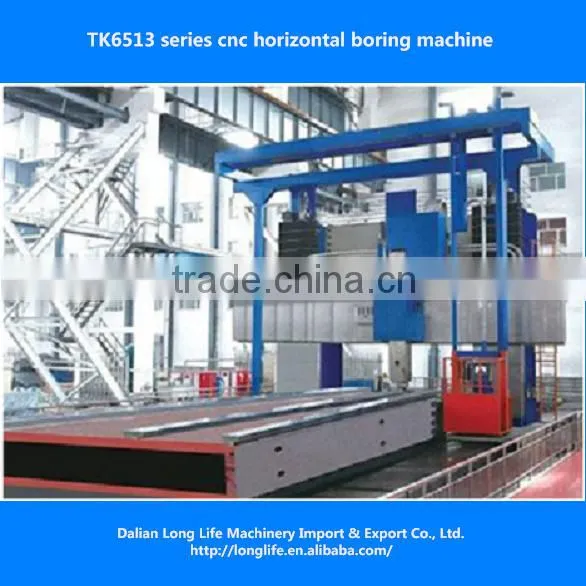

TK6513 Series Cnc Horizontal Boring Machine for Sale

TK6513 Series Cnc Horizontal Boring Machine for Sale thumbnail-1
TK6513 Series Cnc Horizontal Boring Machine for Sale photo-1
US$ 541,000 - 545,878 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Production Capacity:
spindle
Contact Supplier Request Quote Chat Now
Long Life Machinery Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian/Tianjing/Shanghai/Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Production Capacity spindle
Place of Origin Liaoning, China
Brand Name LFM
Model Number TK6513 cnc horizontal boring machine
Voltage 220V/380V/400V/415V/440V/480V
Power(W) 22 kW
Dimension(L*W*H) depends
Weight 11 tons
Certification ISO9001:2008; GB/T19001:2008;
After-sales Service Provided Engineers available to service machinery overseas

 TK6513 cnc horizontal boring and milling Machine

Main Features

Such cnc horizontal boring and milling machine has following features:

1. horizontal boring and milling machines are universal machine tools which can be adapted to machine casting, steel, and nonferrous word- places.

2. Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes.

3. CE Standard and CE Certificate;

Main Technical Data

Specifications

Unit

Parameter

Rotary worktable size

mm

2000×2000

Max.load capacity

kg

10000

T-slot (Numbers * Width * Distance) (b / t slots)

mm

18×100×5

Table load Max

kg

10000

Spindle-box travel(Y-axis)

mm

2000

Spindle travel(Z-axis)

mm

700

Square ram travel(U-axis)

mm

900

Rotary worktable travel(V-axis)



360°

Dia.of spindle

mm

130

Spindle taper



BT50

Spindle speed rage

r/min

20~1200

Spindle motor power

kW

11~22

Linear guideway



HIWIN

Bearing



NSK

Positioning accuracy



±0.01/300

Weight of machine

kg

11000

CNC system



Fagor 8055
FAQ

Payment Term:

1. 30% down payment, 70% by T/T before shipment;

2. 100% LC at sight(optional and shall be discussed before placing order);

Minimum Order Quantity:

1. 1 Set;

2. ≥2 sets, there will be much discounts.

Warranty:

1. Normally, 12 months for parts as of delivery of the machines;

Shipment:

1. For machine itself, by sea or train(inland countries).

2. For documents, by international express. eg DHL, TNT or EMS.
