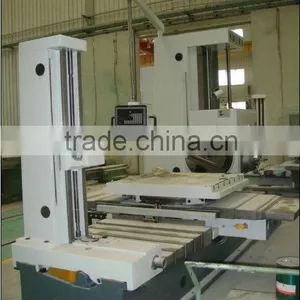

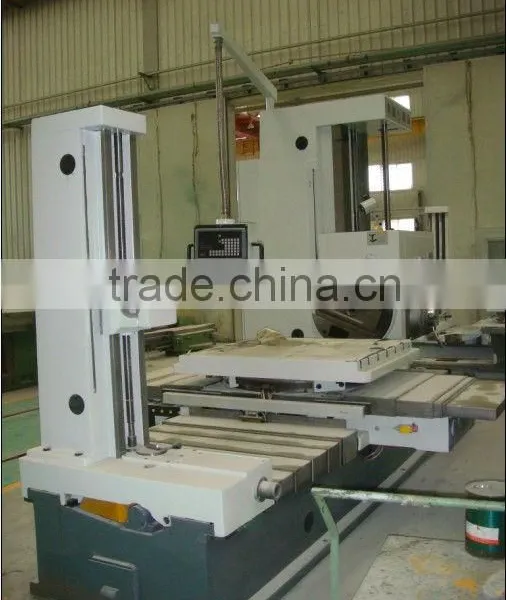

Help CenterTPX61 Series Horizontal Boring and Milling Machine
Related Products
-
TPX61 Series Horizontal Boring Machine With DROUS$ 47,500 - 145,878MOQ: 1 Set -
TPX61 Series Horizontal Boring and Milling Machine With DROUS$ 50,500 - 145,878MOQ: 1 Set
-
TK6513 Series Cnc Horizontal Boring Machine for SaleUS$ 541,000 - 545,878MOQ: 1 Set
-
TPX62 Series Floor Type Boring and Milling MachineUS$ 171,442 - 393,750MOQ: 1 Set
-
Catalogue of TPX62 Series Floor Type Boring MachineUS$ 171,742 - 393,750MOQ: 1 Set
Boring and Milling Machine Technical Specification
To: export(at)longlife-machinery(dot)com
Boring Machine:
1. TPX61 series digital readout horizontal boring and milling machines are universal machine tools which can be adapted to machine casting, steel, and nonferrous word- places.
2. Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes.
3. The faceplate slide can be fed radically, which enables the machine to bore large size holes, turning outside diameters, and grooving.
4. This series of machine can be used in the industries of energy, metallurgy, mining, machinery, military, etc it is a reliable choice for machining box- type part.
5. Spindle of better rigidity, stronger cutting force, higher efficiency.
7. Optical sensor available for higher table locating accuracy
8. DRO available for both X and Z axes;
9. Automatic tool loading and unloading available as optional with spindle of ISO7:24 at 50 taper;

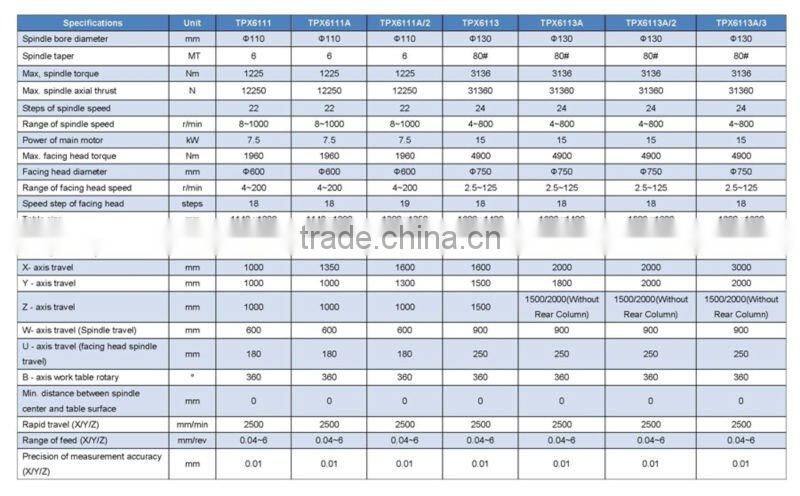

Specifications |
Unit |
TPX6111 |
TPX6111A |
TPX6111A/2 |
TPX6113 |
TPX6113A |
TPX6113A/2 |
TPX6113A/3 |
Spindle bore diameter |
mm |
Φ110 |
Φ110 |
Φ110 |
Φ130 |
Φ130 |
Φ130 |
Φ130 |
Spindle taper |
MT |
6 |
6 |
6 |
80# |
80# |
80# |
80# |
Max, spindle torque |
Nm |
1225 |
1225 |
1225 |
3136 |
3136 |
3136 |
3136 |
Max. spindle axial thrust |
N |
12250 |
12250 |
12250 |
31360 |
31360 |
31360 |
31360 |
Steps of spindle speed |
|
22 |
22 |
22 |
24 |
24 |
24 |
24 |
Range of spindle speed |
r/min |
8~1000 |
8~1000 |
8~1000 |
4~800 |
4~800 |
4~800 |
4~800 |
Power of main motor |
kW |
7.5 |
7.5 |
7.5 |
15 |
15 |
15 |
15 |
Max. facing head torque |
Nm |
1960 |
1960 |
1960 |
4900 |
4900 |
4900 |
4900 |
Facing head diameter |
mm |
Φ600 |
Φ600 |
Φ600 |
Φ750 |
Φ750 |
Φ750 |
Φ750 |
Range of facing head speed |
r/min |
4~200 |
4~200 |
4~200 |
2.5~125 |
2.5~125 |
2.5~125 |
2.5~125 |
Speed step of facing head |
steps |
18 |
18 |
19 |
18 |
18 |
18 |
18 |
Table size |
mm |
1140 x1000 |
1140 x1000 |
1300 x1250 |
1600 x1400 |
1600 x1400 |
1800 x1600 |
1800 x1600 |
