Home > Manufacturing & Processing Machinery > Machine Tools > Boring Machine > TPX Series Horizontal Boring/Milling Machine

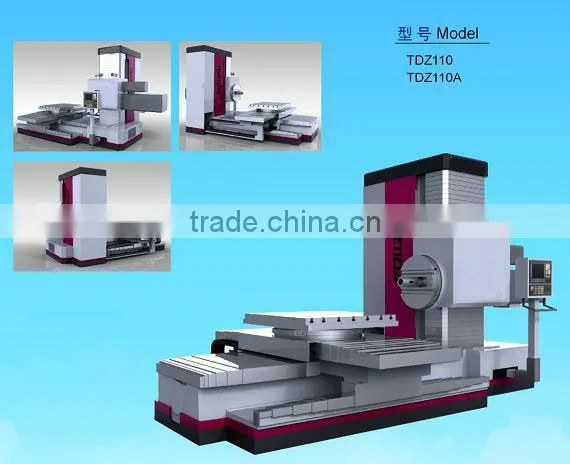

TPX Series Horizontal Boring/Milling Machine

US$ 51,500 - 393,750 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

CNC

Place of Origin:

Liaoning, China

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not CNC

Place of Origin Liaoning, China

Voltage 220V/380V/400V/415V/440V/480V

Certification ISO9001:2008; GB/T19001:2008;

After-sales Service Provided Engineers available to service machinery overseas

TPX61 series Technical Data

TPX6111 series digital readout horizontal boring and milling machines are universal machine tools which can be adapted to machine casting, steel, and nonferrous word- places. Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes. The faceplate slide can be fed radically, which enables the machine to bore large size holes, turning outside diameters, and grooving. This series of machine can be used in the industries of energy, metallurgy, mining, machinery, military, etc it is a reliable choice for machining box- type part.

Spindle of better rigidity, stronger cutting force, higher efficiency

Convenient hydraulic pre-select gear change system

Optical sensor available for higher table locating accuracy

DRO available for both X and Z axes

Automatic tool loading and unloading available as optional with spindle of ISO7:24 at 50 taper

Specifications	Unit	TPX6111	TPX6111A	TPX6111A/2	TPX6113	TPX6113A	TPX6113A/2
Spindle bore diameter	mm	Φ110	Φ110	Φ110	Φ130	Φ130	Φ130
Spindle taper	MT	6	6	6	80#	80#	80#
Max, spindle torque	Nm	1225	1225	1225	3136	3136	3136
Max. spindle axial thrust	N	12250	12250	12250	31360	31360	31360
Steps of spindle speed		22	22	22	24	24	24
Range of spindle speed	r/min	8~1000	8~1000	8~1000	4~800	4~800	4~800
Power of main motor	kW	7.5	7.5	7.5	15	15	15
Max. facing head torque	Nm	1960	1960	1960	4900	4900	4900
Facing head diameter	mm	Φ600	Φ600	Φ600	Φ750	Φ750	Φ750
Range of facing head speed	r/min	4~200	4~200	4~200	2.5~125	2.5~125	2.5~125
Speed step of facing head	steps	18	18	19	18	18	18
Table size	mm	1140 x1000	1140 x1000	1300 x1250	1600 x1400	1600 x1400	1800 x1600
Max. permissible load on table	kg	2500	2500	2500	8000	8000	8000
T- slot (width x No.)	mm	22x 7	22x 7	22 x 7	28 x 9	28 x 9	28 x 9
X- axis travel	mm	1000	1350	1600	1600	2000	2000
Y - axis travel	mm	1000	1000	1300	1500	1800	2000
Z - axis travel	mm	1000	1000	1000	1500	1500/2000(Without Rear Column)	1500/2000(Without Rear Column)
W- axis travel (Spindle travel)	mm	600	600	600	900	900	900
