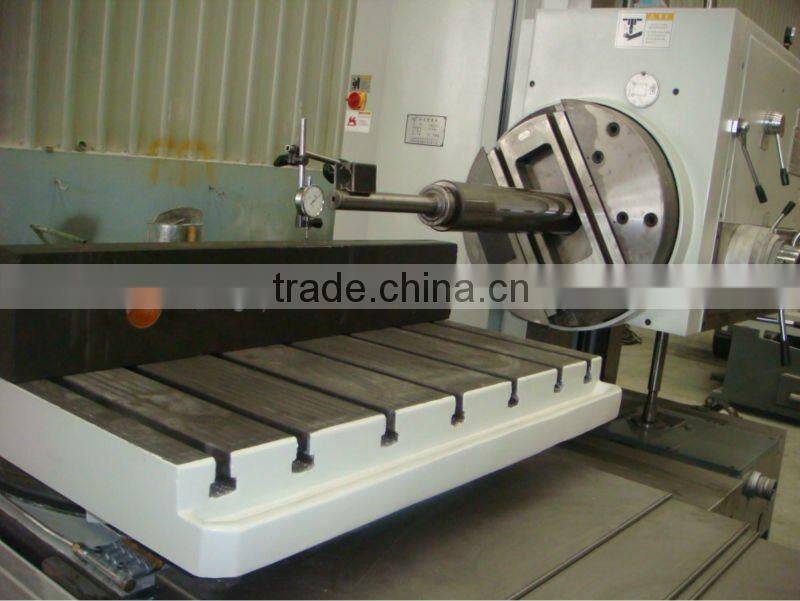

TK61 Series CNC Horizontal Boring Machine

Name: TK61 Series CNC Horizontal Boring Machine
Brand: DALIAN
SKU: 102713189
Availability: InStock

US$ 1,451,000 - 2,145,878 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Liaoning, China

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number TK6916(160mm)

After-sales Service Provided Engineers available to service machinery overseas

CNC Boring and Milling Machine Boring and Milling Machine

Boring Machine:

1. horizontal boring and milling machines are universal machine tools which can be adapted to machine casting, steel, and nonferrous word- places.

2. Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes.

3. Spindle of better rigidity, stronger cutting force, higher efficiency.

4. Automatic tool loading and unloading available as optional with spindle of ISO7:24 at 50 taper;

Specifications	Unit	Parameter
Boring Spindle Diameter	mm	160
Milling Spindle End Diameter	mm	320
Spindle Taper		ISO50
Ram Section	mm	480×520
Column Travel (Axis X)	mm	12000
Headstock Travel (Axis Y)	mm	4000
Boring Spindle Travel (Axis Z)	mm	1200
Ram Travel (Axis W)	mm	1200
Total Travel Of Boring Spindle And Ram (Z+W)	mm	2400
Spindle Speed (Infinitely Variable)	r/min	3.15-800
Feed Rate Of Boring Spindle And Ram	mm/min	1~3000
Feed Rate Of Headstock And Column	mm/min	1~6000
Distance From Main Spindle Center To The Surface Of Working Table		560~3560
Main Motor Power	kW	55
Feed Motor Of Boring Spindle And Ram	r/min	41N.m, 1500
Headstock Feed Motor	r/min	62N.m, 1500
Column Feed Motor	r/min	62N.m, 2000
CNC system		Siemens 840D
