Quality products,Yingfeng JZK40 automatic soil brick making machine in india
Product introduction of JZK40 soil brick making machine in india :

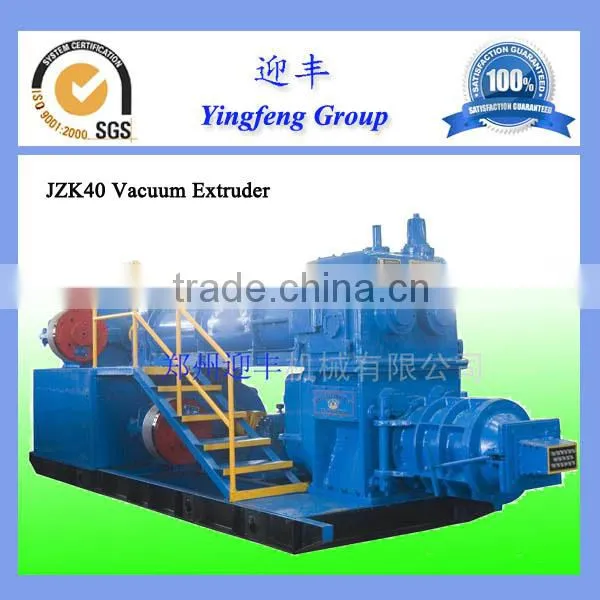

JZK40 Yingfeng brand vacuum clay brick machine is one of our hot sale medium models vacuum extruders.It is
widely used in medium budget brick owners. Also,we added another mixer on the upper stage of extruder so that
the brick quality is much better than traditonal brick extruder. we are selling at least 56 sets per year to over 16
countries
JZK40 soil brick making machine in india has the following advantage:
1. Strong applicability, high output. Good choice for medium clay project.
2. The raw material for making bricks can be clay, fly ash, coal gangue, shale, urban construction waste, gangue
waste, inferior soil, etc.
3. High vacuum and pressure extrusion and it is good to make strong solid bricks and hollow bricks with small
holes. The size of solid brick and the holes of hollow bricks can be changed according to your needs.
More main specification and technical parameters for your reference:
Model |
Auger diameter (mm) |
Capacity |
Extruder Power (KW) |
Whole production line power(KW) |
JZK35/35-2.0 |
350 |
7000-9000(pcs/h) |
37/75 |
200-220 |
JZK40/40-2.5 |
400 |
9000-11000pcs/h |
90+45 |
210-230 |
JZK45/45-3.5 |
450 |
12000-13000pcs/h |
45+110 |
255-275 |
JZK50/50-3.5 |
500 |
13000-15000pcs/h |
45+132 |
295-320 |
JZK55/55-4.0 |
550 |
16000-18000pcs/h |
90+160 |
360-400 |
Note: The above capacity is based on Chinese brick size : 240X115X53 mm, if your brick size is different from our brick size, then the capacity will differ .We would send different brick capacity list and different brick machine price list to you once we get your mail to us.

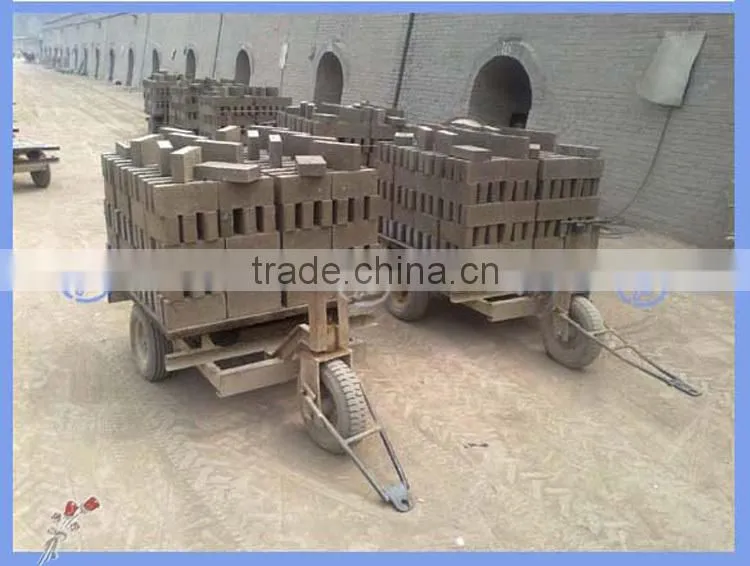

The following is part of brick sample which JZK40 soil brick making machine in india can produce .
Note: We can provide other different brick mould with different mould sizes according to your requirements.

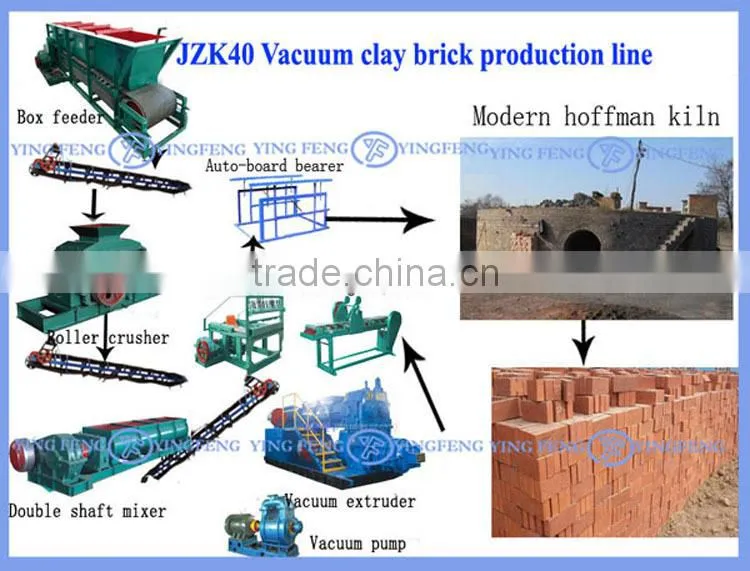

JZK40 soil brick making machine in india production line:
Note:The above production line is based on soft clay,mud,soil.If your material is shale,fly ash,coal Gangue,or with big stones,grass roots,etc,or you want to buy brick carrying cars or robot ,brick stacker, the above line will be adjusted after we get your feedback for your material condition.
| After brick cutting how to do brick drying and firing | |||||||||||
| Item | Drying method | Firing method | Advantage and disadvantage | ||||||||
| 1 | Natural drying | Buyer Local kiln | Very low investment, but may take more labors | ||||||||
| 2 | Natural drying | Hoffman kiln | A little high investment, but may take more labors | ||||||||
| 3 | Natural drying | Tunnel kiln | High investment, but takes less labors than Item 2 | ||||||||
| 4 | Small tunnel dryer | Hoffman kiln | High investment, but takes less labors than Item 2 | ||||||||
| 5 | Small tunnel dryer | Tunnel kiln | Higher investment, but takes less labors than Item 4 | ||||||||
| 6 | Big Tunnel dryer | Tunnel kiln | Highest investment, but takes least labors | ||||||||

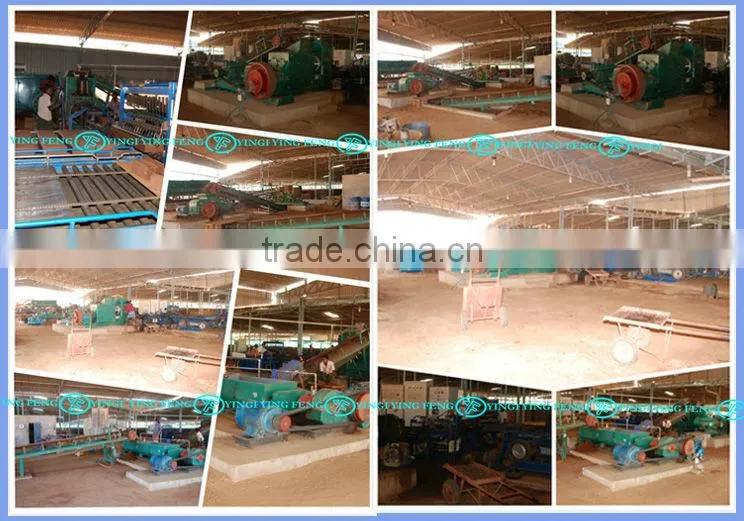

Yingfeng technology soil brick making machine in india running plant :
Tunnel Kiln for soil brick making machine in india :
Yingfeng supply the following brick making machine and brick making equipment,you can choose what you need:
1. Belt type box feeder
2. Roller crusher, jaw crusher , hammer crusher
3. Double shaft mixer, double shaft mixer and extruder
4. Brick vacuum extruder, vacuum brick making machine
5. Automatic brick cutter system
6. Bricks separation machine
7. belt conveyor
8. Brick dryer
9. Brick tunnel kil
10. Brick kiln equipment
11. Automatic brick loading and unloading machine
12. Automatic brick packaging machine
13. Automatuc robot brick setting machine
14. Auotmatic brick stacking machine
15. Brick dryer and tunnel kiln design and construcion
16. Technical provide and technical supervision
17. Turn-key project
18. Full automatic brick project clay floor tile making machine
21. Full automatic clay brick making machine and brick making equipment
1.)Quality: Yingfeng focusing on quality and precision, we dedicated to producing brick machine
with high quality to meet our customers' requirements;
2.)Cost:We have been committed to finding a good joint point of the price and quality,We always
offer you more competitive price;
3.)Lead Time:We can provide our customers high quality products within short lead time;
4.)Experience: Our engineers have rich experiences in brick making machine designing & manufacturing. We can
provide you valuable suggestion and technical support for kiln.
Q: How many kinds of Brick machine can you supply?
A: We can supply more than 30 kinds of Brick machine with different capacity from 2000 to 30000 bricks per hour (based on Chinese brick size)
Non-vacuum brick machine series are: JZ250.300, 350,400.
Single Stage Vacuum brick machine: DZK26, 28, 30,35,40,45
Compact Double stage vacuum brick machine:
JKR series: JKR30, 35,40,45,50
JKRL series: JKRL35, 40, 45, 50
Double stage vacuum brick machine:
JZK series: JZK35, 40,45,50,55
JKY series: JKY50, 55, 60, 70
Q: How long can you delivery the machine?
A: Generally, we can deliver the machine in 25 days.
Q: How much land area and how much investment do we need to open on clay brick plant:
A: Different daily capacity need different area and investment, we would give you suggestions after
getting your message to us.
Q: How about your machine quality?
A: We have running brick plant in several countries, Before our machine is sent to buyer, we would
make trial for our each machine 48 hours to ensure each machine quality is perfect no bug,you can
completely trust our quality.
Q: Are your products qualified?
A: All of our machines hold the ISO, QC certificate, and each set of machine must pass a great number
of strict testing ensure to offer the best quality to our customers.
Q: Are you trading company or manufacturer?
A: We are professional manufacturer of brick making machine,our products have been exported to
more than 18 countries of Asia, South Africa, and get a good reputation in the world.
Q: Can you guarantee the capacity as you mentioned ?
A: Yes, we have set running plants abroad,the facts proved that they can achieve the desired output.
Q: How our brick machine works? Can you supply video?
A: Yes,the following are video links, please refer to them and let us know if you have any confusion.
JZ300 Non-vacuum clay brick producing line:
http://youtu.be/sjg7GsfcYfk
JKR30 Vacuum clay brick production line with brick separator:
http://youtu.be/TBgEnsWOGyM
JKRL35 Vacuum brick production line with unloader and brick loading cars:
http://youtu.be/IQtzh_pjcxA
JKR40 Vacuum Clay block making machine:
http://youtu.be/jZmoW49xtF8 http://youtu.be/qOCe79N43ns
JKRL45 Vacuum Clay brick production line with auto brick loading cars:
http://youtu.be/3DCR2rR_wYA
JZK50 Vacuum Clay brick producing line with dryer and hoffman kiln:
http://youtu.be/h-m4Vnq8v3c
JKY60 Auto brick production line with tunnel kiln and dryer:
http://youtu.be/8R_XzKkDySU
Contact us:
China Mobile Number ( Whatsapp, Wechat ,Viber): 0086 18638712391
or 008615039963315
Email: kai(at) skype: fanchen588
Web:
How to visit us or check clay brick making machine quality
If you want to visit our Chinese factory, please note our city name, Zhengzhou city.
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
You can also visit our brick plant in your local places
