China best quality cheap brick making machines,Yingfeng JZ500 automatic low price brick making machine
What's the advantages of JZ500 cheap brick making machine?

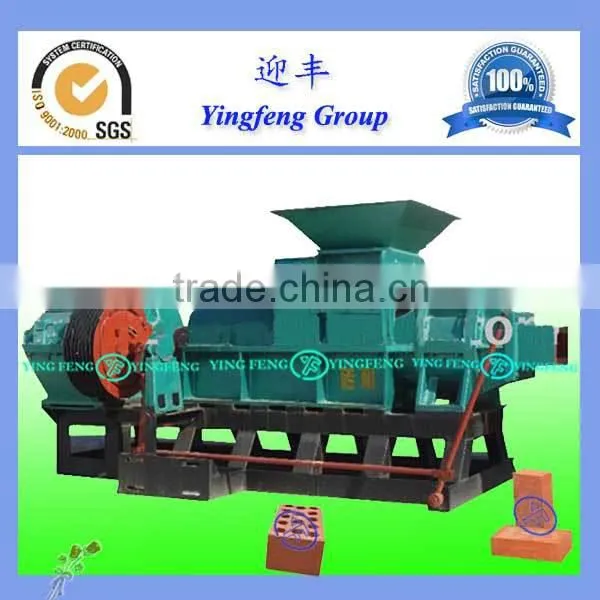

JZ series Non-Vacuum brick extruder is the earliest and mature product. It usually takes one motor.
1.Simple constructure and easy operation;
2.Perfect machine for producing solid bricks;
3.Lowelectricity consumption
What's the features of JZ500 cheap brick making machine?
1. Having limited electric power and very limited budget and not much demand for bricks amount
2. In buyers’ brick market, no much requirements on brick quality
3. Only wants to produce solid bricks (small hole brick is also possible if your raw material is fine
enough for above 30 model extruder)
More technical parameters for your reference:
Type |
Capacity(pcs/h) |
Auger Diameter (mm) |
Extruding Pressure (Mpa) |
Extruder Power (KW) |
Whole production line power KW) |
JZ250 |
2000-3000 |
250mm |
0 |
15 |
15-47 |
JZ280 |
3000-4000 |
280mm |
0 |
22 |
50-70 |
JZ300 |
4000-6000 |
300mm |
0 |
30 |
70-80 |
JZ350 |
6000-7000 |
350mm |
0 |
40 |
80-95 |
JZ400 |
8000-10000 |
400mm |
0 |
55 |
120-140 |
JZ500 |
13000-16000 |
500mm |
0 |
90 |
150-180 |
Note: The above capacity is based on Chinese brick size : 240X115X53 mm, if your brick size is different from our brick size, then the capacity will differ .We would send different brick capacity list and different brick machine price list to you once we get your mail to us.

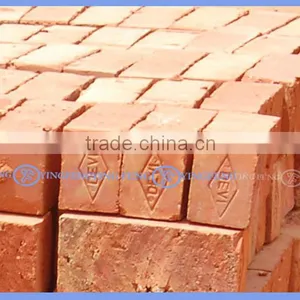

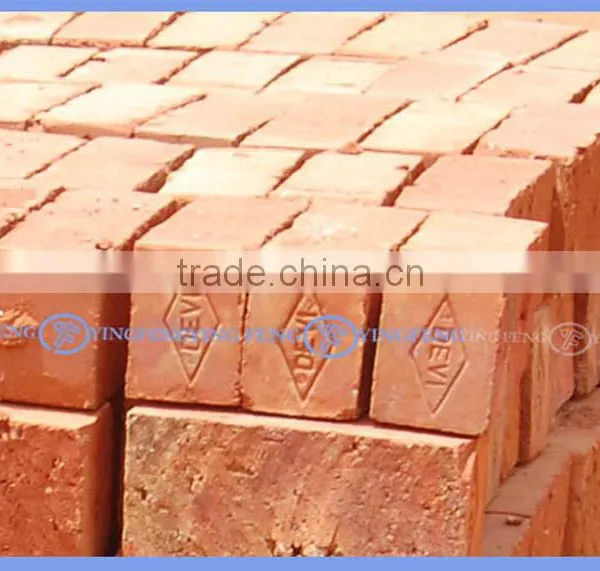

The following is part of brick sample which our low price clay brick machine can produce .
Note: We can provide other different brick mould with different mould sizes according to your requirements.

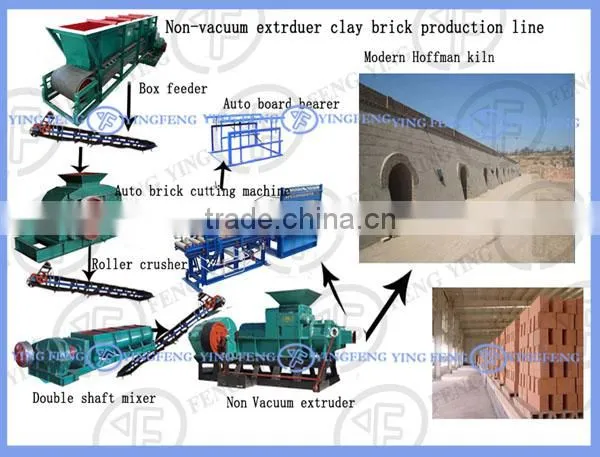

Yingfeng JZ cheap brick making machine production line:
Note:The above production line is based on soft clay,mud,soil.If your material is shale,fly ash,coal Gangue,or with big stones,grass roots,etc,or you want to buy brick carrying cars or robot ,brick stacker, the above line will be adjusted after we get your feedback for your material condition.
| After brick cutting how to do brick drying and firing | |||||||||||
| Item | Drying method | Firing method | Advantage and disadvantage | ||||||||
| 1 | Natural drying | Buyer Local kiln | Very low investment, but may take more labors | ||||||||
| 2 | Natural drying | Hoffman kiln | A little high investment, but may take more labors | ||||||||
| 3 | Natural drying | Tunnel kiln | High investment, but takes less labors than Item 2 | ||||||||
| 4 | Small tunnel dryer | Hoffman kiln | High investment, but takes less labors than Item 2 | ||||||||
| 5 | Small tunnel dryer | Tunnel kiln | Higher investment, but takes less labors than Item 4 | ||||||||
| 6 | Big Tunnel dryer | Tunnel kiln | Highest investment, but takes least labors | ||||||||
Low price brick making machine workshop:
Brick making machine with low price raw material:
Our Certificate

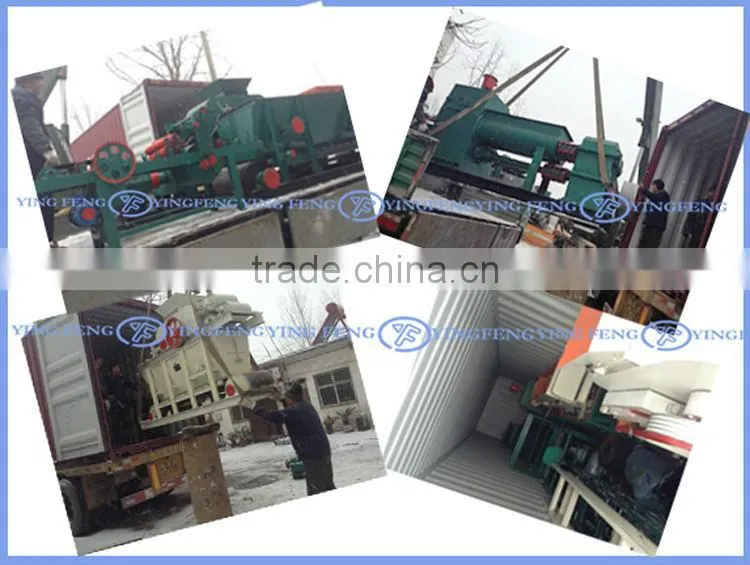

Low price brick making machine delivery for our clients :
1.Each small part of machine would be packed well, also we would arrange engineer to check each machine parts before delivery, so we can ensure buyer can get complete clay brick machine parts. .
2. Some parts will be given soft protection before feeding in the container to make sure all the machine will
be new when arriving at customer hand.
3. Inside the container, we will fix the machine with steel wire,to make sure all the machine will be fixed safety.
We have sold auto clay brick machine to more than 30 countries.
Our brick making machine Service :
Aftersale service is an important part in our brick machine industry, after more than 20 years, we have much
more experience to support our buyer of brick machine.
We provide the following service:
1. Provide customers with various brick making equipments,
2. provide services like process design, kiln design, workshop design
3. Also, we have a professional team of engineers to do clay brick machine installation, training workers,
imparting technical instruction to our buyers,
4. After brick machine running, we have special aftersale service department to provide spare parts, machine
problem fixing.
Q: How many kinds of Brick machine can you supply?
A: We can supply more than 30 kinds of Brick machine with different capacity from 2000 to 30000 bricks per hour (based on Chinese brick size)
Non-vacuum brick machine series are: JZ250.300, 350,400.
Single Stage Vacuum brick machine: DZK26, 28, 30,35,40,45
Compact Double stage vacuum brick machine:
JKR series: JKR30, 35,40,45,50
JKRL series: JKRL35, 40, 45, 50
Double stage vacuum brick machine:
JZK series: JZK35, 40,45,50,55
JKY series: JKY50, 55, 60, 70
Q: How long can you delivery the machine?
A: Generally, we can deliver the machine in 25 days.
Q: How much land area and how much investment do we need to open on clay brick plant:
A: Different daily capacity need different area and investment, we would give you suggestions after
getting your message to us.
Q: How about your machine quality?
A: We have running brick plant in several countries, Before our machine is sent to buyer, we would
make trial for our each machine 48 hours to ensure each machine quality is perfect no bug,you can
completely trust our quality.
Q: Are your products qualified?
A: All of our machines hold the ISO, QC certificate, and each set of machine must pass a great number
of strict testing ensure to offer the best quality to our customers.
Q: Are you trading company or manufacturer?
A: We are professional manufacturer of brick making machine,our products have been exported to
more than 18 countries of Asia, South Africa, and get a good reputation in the world.
Q: Can you guarantee the capacity as you mentioned ?
A: Yes, we have set running plants abroad,the facts proved that they can achieve the desired output.
Q: How our brick machine works? Can you supply video?
A: Yes,the following are video links, please refer to them and let us know if you have any confusion.
JZ300 Non-vacuum clay brick producing line:
http://youtu.be/sjg7GsfcYfk
JKR30 Vacuum clay brick production line with brick separator:
http://youtu.be/TBgEnsWOGyM
JKRL35 Vacuum brick production line with unloader and brick loading cars:
http://youtu.be/IQtzh_pjcxA
JKR40 Vacuum Clay block making machine:
http://youtu.be/jZmoW49xtF8 http://youtu.be/qOCe79N43ns
JKRL45 Vacuum Clay brick production line with auto brick loading cars:
http://youtu.be/3DCR2rR_wYA
JZK50 Vacuum Clay brick producing line with dryer and hoffman kiln:
http://youtu.be/h-m4Vnq8v3c
JKY60 Auto brick production line with tunnel kiln and dryer:
http://youtu.be/8R_XzKkDySU
Contact us:
China Mobile Number ( Whatsapp, Wechat ,Viber): 0086 18638712391
or 008615039963315
Email: kai(at) skype: fanchen588
Web:
How to visit us or check clay brick making machine quality
If you want to visit our Chinese factory, please note our city name, Zhengzhou city.
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
You can also visit our brick plant in your local places
