New Products,JZK35 compressed earth block machine with high demand in india
Product introduction for JZK compressed earth block machine machine :
JZK series double stage vacuum block machine uses two electric motors with up-down body structure which draw advance experience from the developed and domestic technology.They are mainly made of high quality steel with features of reasonable structure and durability.
Product introduction of JZK35 auto earth block machine :

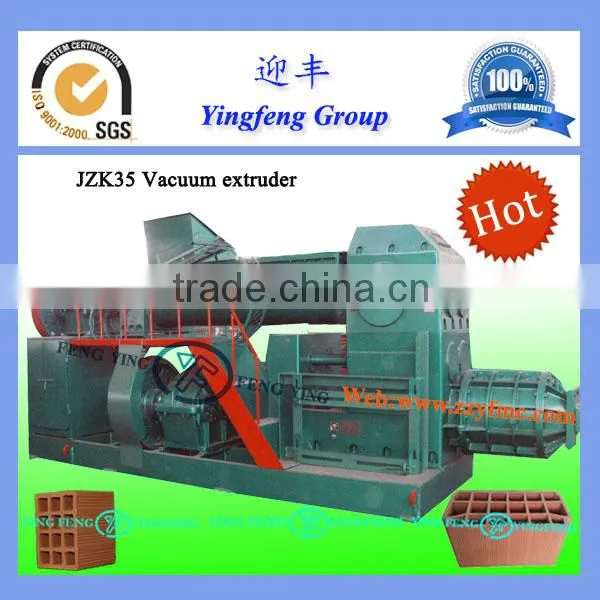

JZK35 Yingfeng brand vacuum clay brick machine is one of our hot sale medium models vacuum extruders.It is
widely used in medium budget brick owners. Also,we added another mixer on the upper stage of extruder so that
the brick quality is much better than traditonal brick extruder. we are selling at least 42 sets per year to over 16
countries
If buyers have the following requirement or condition, then they can choose JZK model brick extruder:
1. Want to open middle and big size brick factories. No much limitation on electricity power and budget
2. In buyers’ brick market, have very high requirements on brick quality
3. Want to produce all kinds of solid and hollow bricks (especially big hole or thin wall bricks)
What's the advantage of Yingfeng compressed earth block machine?
1. Strong applicability, high output. Good choice for medium clay project.
2. The raw material for making bricks can be clay, fly ash, coal gangue, shale, urban construction waste, gangue
waste, inferior soil, etc.
3. High vacuum and pressure extrusion and it is good to make strong solid bricks and hollow bricks with small holes.
The size of solid brick and the holes of hollow bricks can be changed according to your needsMore main specification and technical parameters for your reference:
Model |
Auger diameter (mm) |
Capacity |
Extruder Power (KW) |
Whole production line power(KW) |
JZK35/35-2.0 |
350 |
7000-9000(pcs/h) |
37/75 |
200-220 |
JZK40/40-2.5 |
400 |
9000-11000pcs/h |
90+45 |
210-230 |
JZK45/45-3.5 |
450 |
12000-13000pcs/h |
45+110 |
255-275 |
JZK50/50-3.5 |
500 |
13000-15000pcs/h |
45+132 |
295-320 |
JZK55/55-4.0 |
550 |
16000-18000pcs/h |
90+160 |
360-400 |
Note: The above capacity is based on Chinese brick size : 240X115X53 mm, if your brick size is different from our brick size, then the capacity will differ .We would send different brick capacity list and different brick machine price list to you once we get your mail to us.
The following is part of brick sample which compressed earth block machine can produce .
Note: We can provide other different brick mould with different mould sizes according to your requirements.

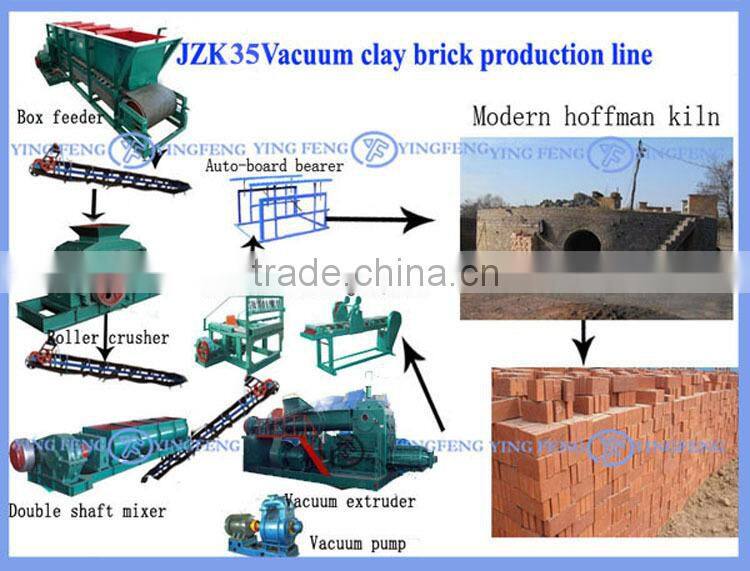

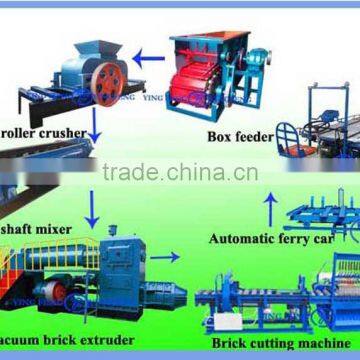

JZK35 compressed earth block machine production line:
Note:The above production line is based on soft clay,mud,soil.If your material is shale,fly ash,coal Gangue,or with big stones,grass roots,etc,or you want to buy brick carrying cars or robot ,brick stacker, the above line will be adjusted after we get your feedback for your material condition.
| After brick cutting how to do brick drying and firing | |||||||||||
| Item | Drying method | Firing method | Advantage and disadvantage | ||||||||
| 1 | Natural drying | Buyer Local kiln | Very low investment, but may take more labors | ||||||||
| 2 | Natural drying | Hoffman kiln | A little high investment, but may take more labors | ||||||||
| 3 | Natural drying | Tunnel kiln | High investment, but takes less labors than Item 2 | ||||||||
| 4 | Small tunnel dryer | Hoffman kiln | High investment, but takes less labors than Item 2 | ||||||||
| 5 | Small tunnel dryer | Tunnel kiln | Higher investment, but takes less labors than Item 4 | ||||||||
| 6 | Big Tunnel dryer | Tunnel kiln | Highest investment, but takes least labors | ||||||||
Yingfeng compressed earth block machine workshop:
Yingfeng compressed earth block machine raw material:
Note: we are responsible for our clients when we choose raw material for our clients,
1. For doubles shaft mixer blades, we choose 45 Carbon steel.
2. For roller crusher ,we use high manganese
3. Steel axles, gear and other important spare parts which are made by carbon steel and alloy steel through
modulation or quench’s heat treatment procession so as to extend the service life.
Our Certificate

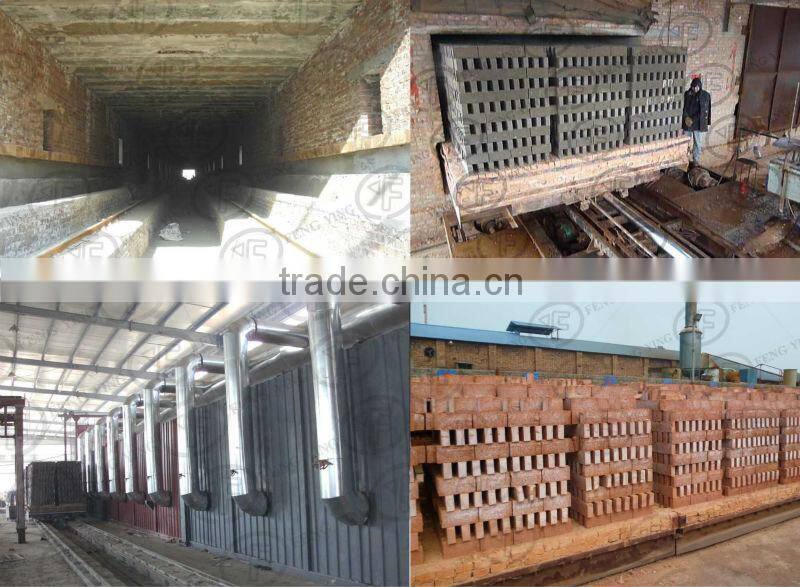

Modern kiln for JZK35 compressed earth block machine :
There are two kinds of kiln for you to choose: tunnel kiln, hoffman kiln. Hoffman kiln with tunnel dryer is also good for
this production line. (cost less than tunnel kiln and more efficient than hoffman kiln)
The above is tunnel kiln ,below is hoffman kiln. For more details,do contact us,
Zhengzhou Yingfeng Machinery Co.,Ltd. Is a high-tech enterprise in brick making machinery field, which
integrating the science,industry and trading.Our company has more than 30 brands, hundreds of specifications
for brick and tile machinery.
Now we have built more than 2000 brick production line in China and we also have sold auto clay brick making
machine to more than 30 countries,like India, Bangladesh,Indonesia,Myanmar,Kazakhstan,Uzbekistan,Russia,
Turkmenistan,Mongolia,Nepal,Sudan,South Africa,Uganda,Mozambique,Zimbabwe,Congo,Peru,Brazil, Iraq ,Bolivia
Mexico,etc. and have won great fame and popularity.
Our company not only provides customers with various brick making equipment, block making machine,but also
provides services including process design,kiln design, workshop design and project contract.In addition, we have
a professional team of engineers to offer the best after-sales services, such as training workers, imparting technical
Instruction and fixing problems
1.)Quality: Yingfeng focusing on quality and precision, we dedicated to producing brick machine
with high quality to meet our customers' requirements;
2.)Cost:We have been committed to finding a good joint point of the price and quality,We always
offer you more competitive price;
3.)Lead Time:We can provide our customers high quality products within short lead time;
4.)Experience: Our engineers have rich experiences in brick making machine designing & manufacturing. We can
provide you valuable suggestion and technical support for kiln.
Contact us:
China Mobile Number ( Whatsapp, Wechat ,Viber): 0086 18638712391
or 008615039963315
Email: kai(at) skype: fanchen588
Web:
How to visit us or check clay brick making machine quality
If you want to visit our Chinese factory, please note our city name, Zhengzhou city.
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
You can also visit our brick plant in your local places
