Yingfeng brand JKR30 automatic block making machine,hollow block making machine for sale
What's the features of JKR series clay brick making machine?
JKR series compact double stage automatic block making machine is composed of mixing part,extruding part,and vacuum system.
The above mixing stage is to add and mix raw material;the lower stage is for conveying,squeezing,extruding; The two stage using same one motor to work, such extruder is called Compact double stage vacuum extruder.To ensure the extruder working properly, the raw material must be sent to extruder’s mixing part continuously and evenly.If raw material is sent too much at one time, the vacuum chamber may be blocked.
The theory of vacuum extruder is ,once soil is sent to vacuum chamber,the air in the soil will be escaped at low pressure,using vacuum pump to absorb air into Atmosphere.Degassed soil would be collected and extruded again, then coming out from extruder mouth.The vacuum pump takes air and moisture out of soil, so the soil brick is with better shape and compact.Advantages of JKR mud brick making machine:
1.Strong applicability, lower energy consumption, only use one motor.
2.The raw material for making bricks can be clay, coal gangue.
3.It can produce solid,multi-holes and hollow bricks.
Model |
Auger diameter(mm) |
Capacity |
Extruder Power (KW) |
Whole production line power(KW) |
JKR30/30-2.0 |
300 |
4000-6000(pcs/h) |
55 |
110-120 |
JKR35/35-2.0 |
350 |
7000-8000(pcs/h) |
75 |
120-140 |
JKR40/40-2.5 |
400 |
8000-10000pcs/h |
90 |
175-190 |
JKR45/45-2.5 |
450 |
11000-12000pcs/h |
110 |
210-230 |
JKR50/50-3.5 |
500 |
13000-16000pcs/h |
160 |
260-280 |
Note: The above capacity is based on Chinese brick size : 240X115X53 mm, if your brick size is different from our brick size, then the capacity will differ .We would send different brick capacity list and different brick machine price list to you once we get your mail to us.

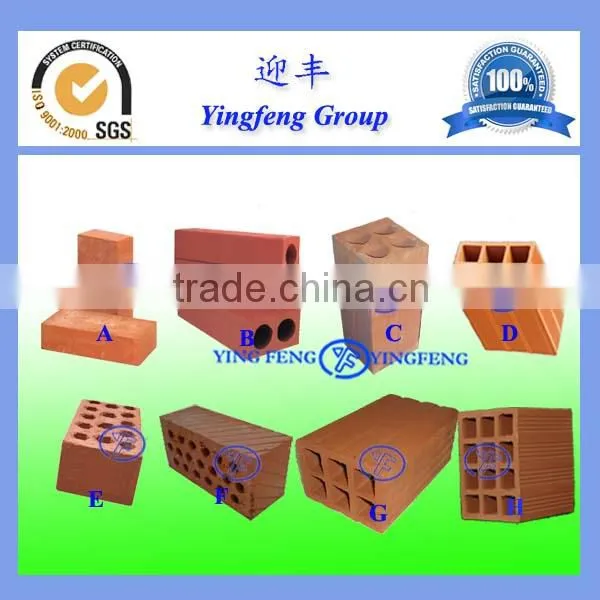

The following is part of brick sample which clay block making machine can produce .
Note: We can provide other different brick mould with different mould sizes according to your requirements.

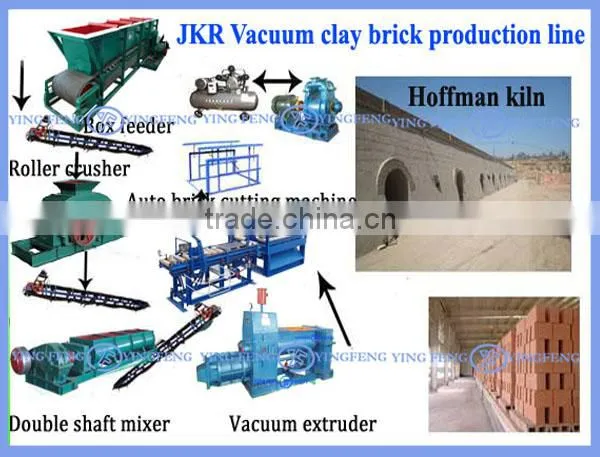

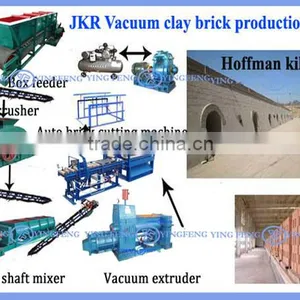

JKR30 block making machine production line:
Notice: the above production line is standard, some machines will be added or deleted according to your soil
condition.So we suggest you can inform us your soil condition when you contact us or when you visit our
Yingfeng Machinery Co.,Ltd. you can bring your soil sample ..
| After brick cutting how to do brick drying and firing | |||||||||||
| Item | Drying method | Firing method | Advantage and disadvantage | ||||||||
| 1 | Natural drying | Buyer Local kiln | Very low investment, but may take more labors | ||||||||
| 2 | Natural drying | Hoffman kiln | A little high investment, but may take more labors | ||||||||
| 3 | Natural drying | Tunnel kiln | High investment, but takes less labors than Item 2 | ||||||||
| 4 | Small tunnel dryer | Hoffman kiln | High investment, but takes less labors than Item 2 | ||||||||
| 5 | Small tunnel dryer | Tunnel kiln | Higher investment, but takes less labors than Item 4 | ||||||||
| 6 | Big Tunnel dryer | Tunnel kiln | Highest investment, but takes least labors | ||||||||
Yingfeng supply the following brick making machine and brick making equipment,you can choose what you need:
1. Belt type box feeder
2. Roller crusher, jaw crusher , hammer crusher
3. Double shaft mixer, double shaft mixer and extruder
4. Brick vacuum extruder, vacuum brick making machine
5. Automatic brick cutter system
6. Bricks separation machine
7. belt conveyor
8. Brick dryer
9. Brick tunnel kil
10. Brick kiln equipment
11. Automatic brick loading and unloading machine
12. Automatic brick packaging machine
13. Automatuc robot brick setting machine
14. Auotmatic brick stacking machine
15. Brick dryer and tunnel kiln design and construcion
16. Technical provide and technical supervision
17. Turn-key project
18. Full automatic brick project clay floor tile making machine
21. Full automatic clay brick making machine and brick making equipment

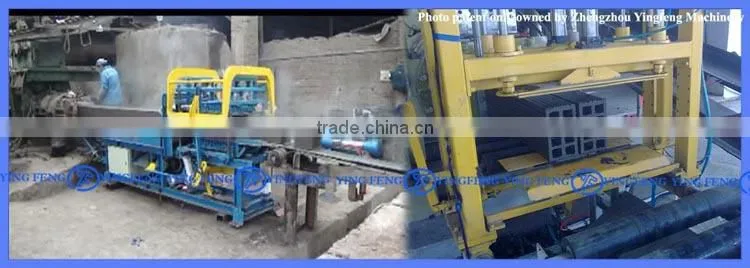

JKR30 block making machine workshop:
Automatic block making machine delivery for our clients :
1.Each small part of machine would be packed well, also we would arrange engineer to check each machine parts before delivery,so we can ensure buyer can get complete clay brick machine parts. .
2. Some parts will be given soft protection before feeding in the container to make sure all the machine will be new
when arriving at customer hand.
3. Inside the container, we will fix the machine with steel wire,to make sure all the machine will be fixed safety.
Yingfeng brand block making machine Service :
Aftersale service is an important part in our brick machine industry, after more than 20 years, we have much more
experience to support our buyer of brick machine.
We provide the following service:
1. Provide customers with various brick making equipments,
2. provide services like process design, kiln design, workshop design
3. Also, we have a professional team of engineers to do clay brick machine installation, training workers, imparting
technical instruction to our buyers,
4. After brick machine running, we have special aftersale service department to provide spare parts, machine
problem fixing.
1.What is the raw material for making fired brick?
Clay,red soil, mud,shale, coal, etc.
2.What’s the difference between Vacuum extruder and non-vacuum extruder?
>>Vacuum brick extruder can make three kinds of brick:solid brick, porous brick and hollow bricks. To produce
different kinds of bricks by changing the different brick die.
>>Another type is the common clay brick machine, non vacuum brick extruder, can only produce solid bricks.
Vacuum brick is extruded out of the vacuum extruder. And non-vacuum extruder has no extraction equipment,
so the brick hardness is lower than vacuum brick.
>>The vacuum brick machine is first extracted with air and water and then fired, the production time and firing time
is shorter, rapid prototyping.Greatly reducing the production cycle time.
3.How much calories for sintering a brick?
Generally, every 1 kg of calcined product, needs to consume about 1088 ~ 1388 kJ of energy
4.No matter what kind of soil can be used for making bricks?
Most of soil can be used for making bricks, but soil plasticity must be between 5 to 17. If the soil plasticity
is too big or too small, you need to add additional material in the soil.
5.What percentage of water contained in the brick can be sintered?
Less than 8% of dry brick can be sintered, if the water moisture is too large, the brick will be easy to crack at
the sintering time.
