High profit machinery,JZK50 red soil brick making machine,hot selling soil brick making machine in india

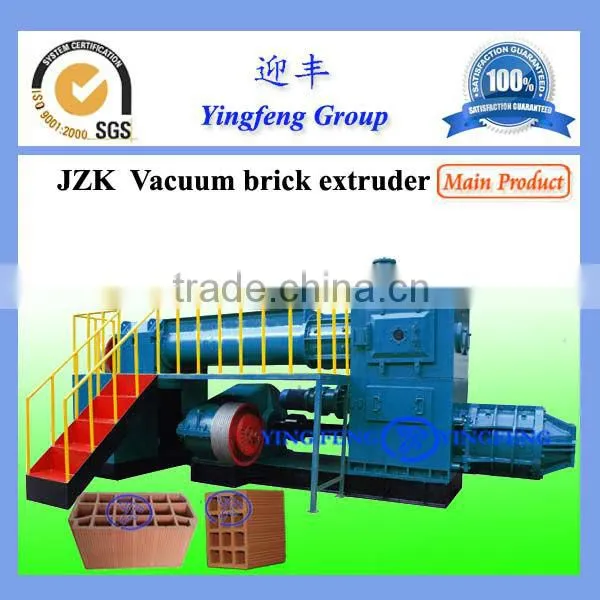

JZK series Split Double stage soil brick making machine is composed of mixing part,extruding part,and vacuum system. The above mixing stage is to add and mix raw material;the lower stage is for conveying, squeezing, Such extruder takes two motors,or we can say each stage takes one motor, such extruder is called split double stage vacuum extruder.Compared with compact double stage vacuum extruder, it has more vacuum pressure, with less adobe moisture, but with higher electricity consumption due to working with two motors.
The advantages of JZK50 soil brick making machine:
1.Strong applicability, higher capacity,lower forming brick moisture content
2.The raw material for making bricks can be clay,coal gangue,shale powder.
3.It can produce solid,multi-holes and hollow bricks.
Buyers who have the following requirement or condition can choose JZK model red soil brick making machine:
1. Want to open middle and big size brick factories. No much limitation on electricity power and budget;
2. In buyers’ brick market, have very high requirements on brick quality;
3. Want to produce all kinds of solid and hollow bricks (especially big hole or thin wall bricks).
You can refer to the parmeters for more details about the JZK series soil brick making machine.
| Type | Capacity | Auger diameter | Extruding pressure | Power | Molding moisture content | Dimension |
| JZK55/55-4.0 | 16000-18000 pcs/h | 550 mm | 4 Mpa | 75/185 KW | 16~18% | 6.8X1.9X2.5 |
| JZK50/50-3.5 | 13000-16000 pcs/h | 500 mm | 3.5 Mpa | 55/132 KW | 16~18% | 6.5X1.8X2.5 |
| JZK45/45-3.5 | 11000-13000 pcs/h | 450 mm | 3.5 Mpa | 45/110 KW | 16~18% | 6.1X1.6X2.3 |
| JZK40/40-3.0 | 9000-11000 pcs/h | 400 mm | 3 Mpa | 45/90 KW | 16~18% | 5.6X1.4X2.2 |

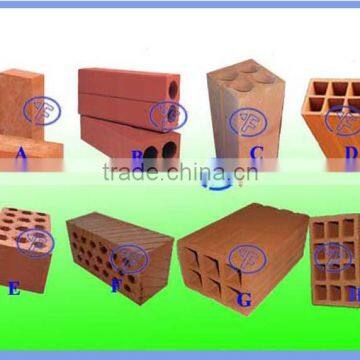

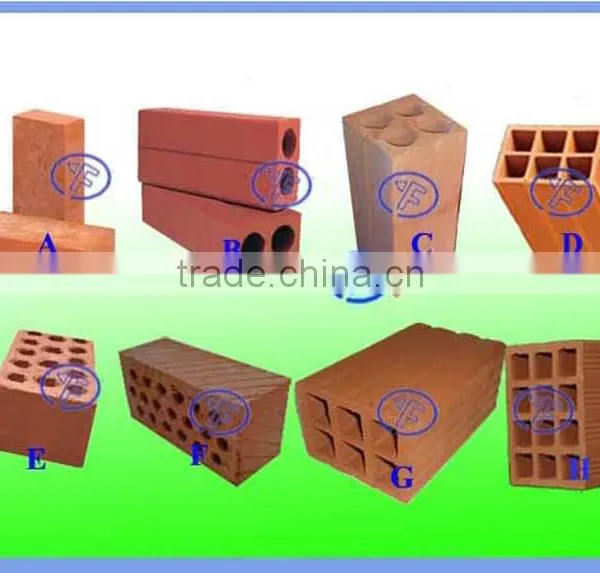

The following is part of brick sample which JZK soil brick making machine can produce:
Note: We can provide other different brick mould with different mould sizes according to your requirements.

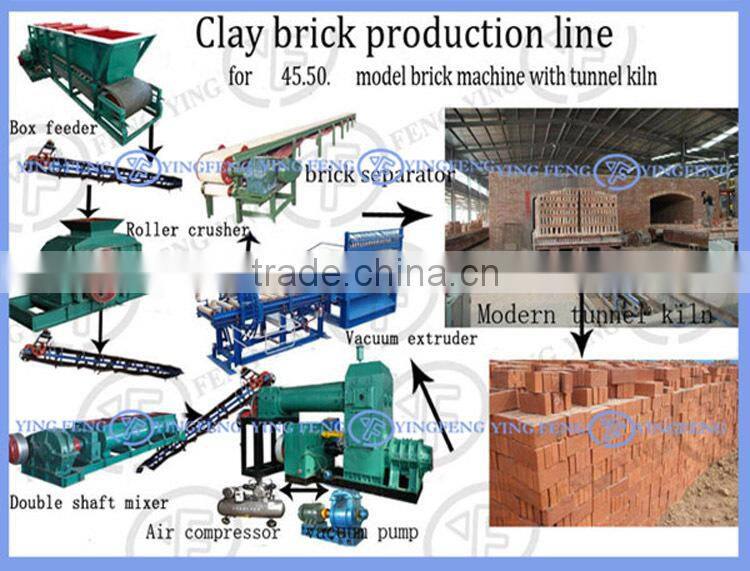

Yingfeng soil brick making machine production line:
Clay--Box feeder ---Belt conveyor----Double shaft mixer---Belt conveyor--
series Double stage vacuum extruder(can be chosen according to your annual capacity)---
Full-automatic brick cutting machine ---Auto-unloader(brick separator, or brick stacking machine )-Hoffman kiln or tunnel kiln
Note:The above production line is based on soft clay,mud,soil.If your material is shale,fly ash,coal Gangue,or with big stones,grass roots,etc,or you want to buy brick carrying cars or robot ,brick stacker, the above line will be adjusted after we get your feedback for your material condition.
| After brick cutting how to do brick drying and firing | |||||||||||
| Item | Drying method | Firing method | Advantage and disadvantage | ||||||||
| 1 | Natural drying | Buyer Local kiln | Very low investment, but may take more labors | ||||||||
| 2 | Natural drying | Hoffman kiln | A little high investment, but may take more labors | ||||||||
| 3 | Natural drying | Tunnel kiln | High investment, but takes less labors than Item 2 | ||||||||
| 4 | Small tunnel dryer | Hoffman kiln | High investment, but takes less labors than Item 2 | ||||||||
| 5 | Small tunnel dryer | Tunnel kiln | Higher investment, but takes less labors than Item 4 | ||||||||
| 6 | Big Tunnel dryer | Tunnel kiln | Highest investment, but takes least labors | ||||||||

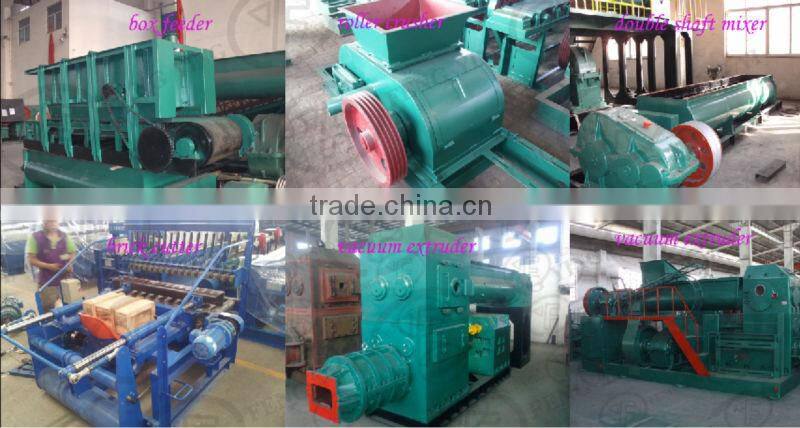

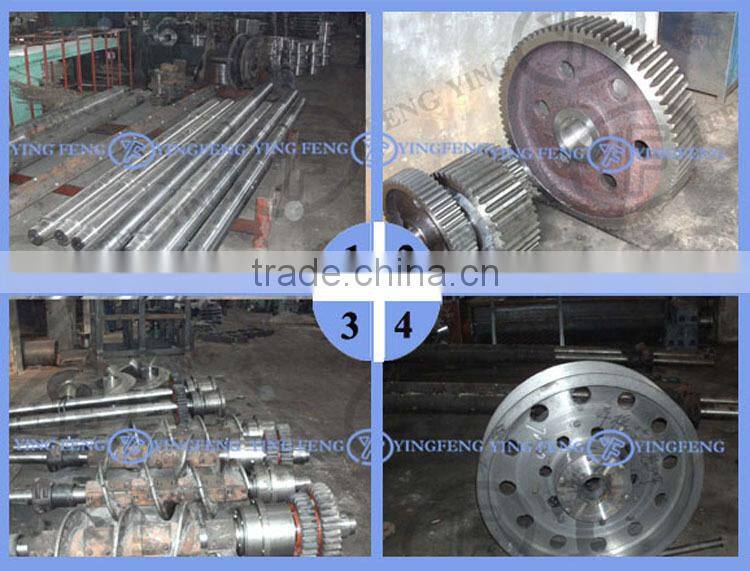

Yingfeng soil brick making machine in workshop:
Yingfeng low cost brick making machine raw material:
Yingfeng supply the following brick making machine and brick making equipment,you can choose what you need:
1. Belt type box feeder
2. Roller crusher, jaw crusher , hammer crusher
3. Double shaft mixer, double shaft mixer and extruder
4. Brick vacuum extruder, vacuum brick making machine
5. Automatic brick cutter system
6. Bricks separation machine
7. belt conveyor
8. Brick dryer
9. Brick tunnel kil
10. Brick kiln equipment
11. Automatic brick loading and unloading machine
12. Automatic brick packaging machine
13. Automatuc robot brick setting machine
14. Auotmatic brick stacking machine
15. Brick dryer and tunnel kiln design and construcion
16. Technical provide and technical supervision
17. Turn-key project
18. Full automatic brick project clay floor tile making machine
21. Full automatic clay brick making machine and brick making equipment
Q: How many kinds of Brick machine can you supply?
A: We can supply more than 30 kinds of Brick machine with different capacity from 2000 to 30000 bricks per hour (based on Chinese brick size)
Non-vacuum brick machine series are: JZ250.300, 350,400.
Single Stage Vacuum brick machine: DZK26, 28, 30,35,40,45
Compact Double stage vacuum brick machine:
JKR series: JKR30, 35,40,45,50
JKRL series: JKRL35, 40, 45, 50
Double stage vacuum brick machine:
JZK series: JZK35, 40,45,50,55
JKY series: JKY50, 55, 60, 70
Q: How long can you delivery the machine?
A: Generally, we can deliver the machine in 25 days.
Q: How much land area and how much investment do we need to open on clay brick plant:
A: Different daily capacity need different area and investment, we would give you suggestions after
getting your message to us.
Q: How about your machine quality?
A: We have running brick plant in several countries, Before our machine is sent to buyer, we would
make trial for our each machine 48 hours to ensure each machine quality is perfect no bug,you can
completely trust our quality.
Q: Are your products qualified?
A: All of our machines hold the ISO, QC certificate, and each set of machine must pass a great number
of strict testing ensure to offer the best quality to our customers.
Q: Are you trading company or manufacturer?
A: We are professional manufacturer of brick making machine,our products have been exported to
more than 18 countries of Asia, South Africa, and get a good reputation in the world.
Q: Can you guarantee the capacity as you mentioned ?
A: Yes, we have set running plants abroad,the facts proved that they can achieve the desired output.
Q: How our brick machine works? Can you supply video?
A: Yes,the following are video links, please refer to them and let us know if you have any confusion.
JZ300 Non-vacuum clay brick producing line:
http://youtu.be/sjg7GsfcYfk
JKR30 Vacuum clay brick production line with brick separator:
http://youtu.be/TBgEnsWOGyM
JKRL35 Vacuum brick production line with unloader and brick loading cars:
http://youtu.be/IQtzh_pjcxA
JKR40 Vacuum Clay block making machine:
http://youtu.be/jZmoW49xtF8 http://youtu.be/qOCe79N43ns
JKRL45 Vacuum Clay brick production line with auto brick loading cars:
http://youtu.be/3DCR2rR_wYA
JZK50 Vacuum Clay brick producing line with dryer and hoffman kiln:
http://youtu.be/h-m4Vnq8v3c
JKY60 Auto brick production line with tunnel kiln and dryer:
http://youtu.be/8R_XzKkDySU
Contact us:
China Mobile Number ( Whatsapp, Wechat ,Viber): 0086 18638712391
or 008615039963315
Email: kai(at) skype: fanchen588
Web:
How to visit us or check clay brick making machine quality
If you want to visit our Chinese factory, please note our city name, Zhengzhou city.
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
You can also visit our brick plant in your local places
