New technology brick machine! Yingfeng JKB50 hollow automatic block making machine
We are a high-tech enterprise, integrating science, industry and trade for brick and tile machinery with our brand more than 30 varieties and over 100 specifications. Now we have built more than 2000 brick production line in China and abroad.
JKB series double stage automatic block making machine uses one electric motor with compact structure,
energy saving.If buyers have the following requirement or condition, then they can choose JKB model
brick extruder:
1.Want to open middle and small size brick factories.
2.Wants to save electricity.
3.In buyers brick market, have high requirements on brick quality
4.Only wants to produce solid bricks or hollow bricks.
Type |
Capacity(pcs/h) |
Auger dia.(mm) |
Power(kw) |
JKY75/75-4.0 |
30,000-35,000 |
750 |
90/280(315) |
JKY60/60-4.0 |
18,000-20,000 |
600 |
90/250 |
JZK55/55-4.0 |
16,000-18,000 |
550 |
75/160 |
JZK50/50-3.5 |
13,000-16,000 |
500 |
75/132 |
JZK45/45-3.5 |
11,000-13,000 |
450 |
45/110 |
JZK40/40-3.0 |
9,000-11,000 |
400 |
45/90 |
JKRL45/45-3.0 |
11,000-13,000 |
450 |
110 |
JKRL40/40-3.0 |
9,000-11,000 |
400 |
90 |
JKRL35/35-2.0 |
7,000-9,000 |
350 |
75 |
JKR30/30-2.0 |
4,000-6,000 |
300 |
55 |
JZ350 |
7,000-8,000 |
350 |
40 |
JZ300 |
4,000-6,000 |
300 |
30 |
JZ280 |
3,000-4,000 |
280 |
26 |
JZ250 |
1,000-2,000 |
250 |
15 |
Note: The above capacity is based on Chinese brick size : 240X115X53 mm, if your brick size is different from our brick size, then the capacity will differ .We would send different brick capacity list and different brick machine price list to you once we get your mail to us.

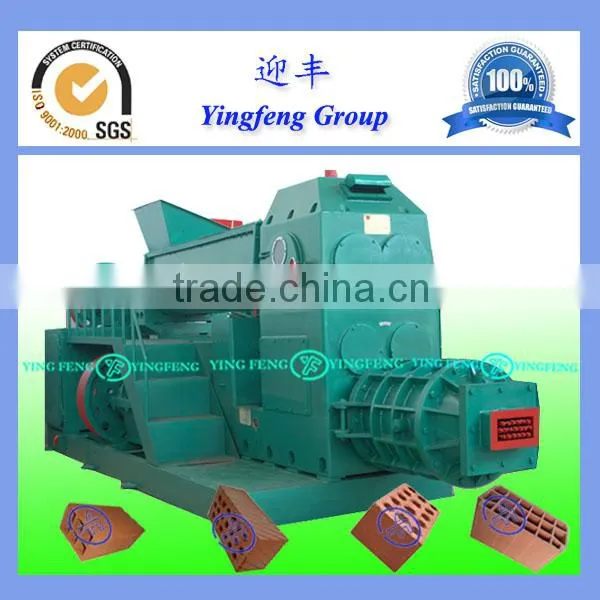

The following is some part of brick mould sample which automatic block making machine can produce:
Note: We can provide other different brick mould with different mould sizes according to your requirements.

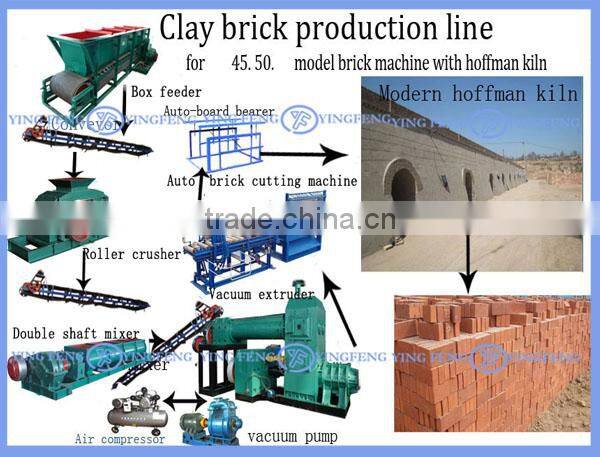

JKB50 automatic block making machine production line:

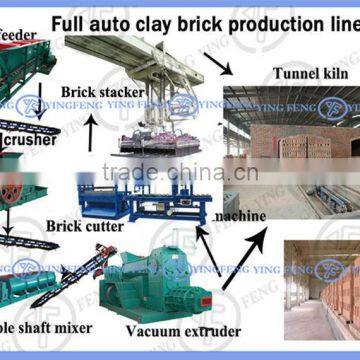

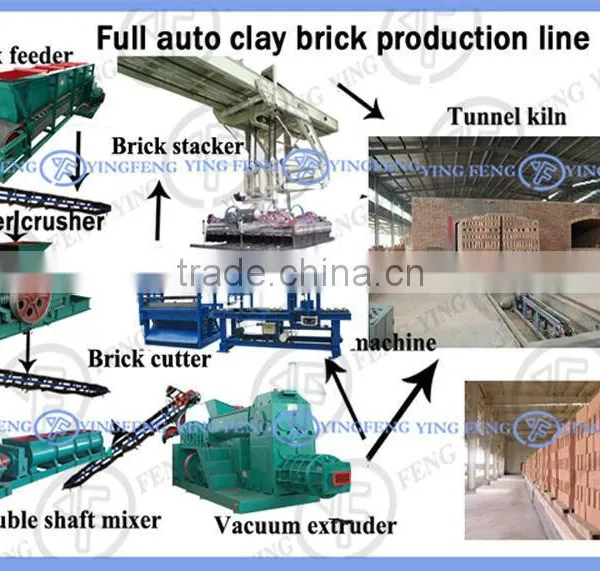

Clay--Box feeder ---Belt conveyor----Double shaft mixer---Belt conveyor--series Double stage vacuum extruder(can be chosen according to your annual capacity)--- Full-automatic brick cutting machine ---Auto-unloader(brick separator, or brick stacking machine )-Hoffman kiln or tunnel kiln
Note:The above production line is based on soft clay,mud,soil.If your material is shale,fly ash,coal Gangue,or with big stones,grass roots,etc,or you want to buy brick carrying cars or robot ,brick stacker, the above line will be adjusted after we get your feedback for your material condition.
| After brick cutting how to do brick drying and firing | |||||||||||
| Item | Drying method | Firing method | Advantage and disadvantage | ||||||||
| 1 | Natural drying | Buyer Local kiln | Very low investment, but may take more labors | ||||||||
| 2 | Natural drying | Hoffman kiln | A little high investment, but may take more labors | ||||||||
| 3 | Natural drying | Tunnel kiln | High investment, but takes less labors than Item 2 | ||||||||
| 4 | Small tunnel dryer | Hoffman kiln | High investment, but takes less labors than Item 2 | ||||||||
| 5 | Small tunnel dryer | Tunnel kiln | Higher investment, but takes less labors than Item 4 | ||||||||
| 6 | Big Tunnel dryer | Tunnel kiln | Highest investment, but takes least labors | ||||||||

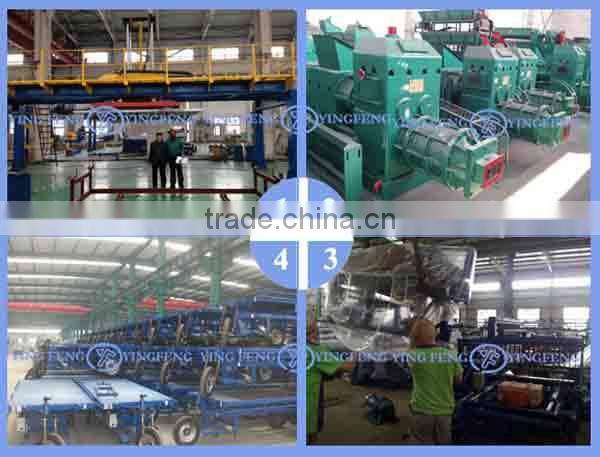

JKB50 automatic block making machine workshop
JKB50 automatic block making machine raw material:
Note: we are responsible for our clients when we choose raw material for our clients,
1. auto oil lubricating system can save labors and it's easy to lubricate extruder's gears and bearings automatically. On the other hand, the lubricating oil can be recycled and to use again, so it can save oils too.
2..For doubles shaft mixer blades, we choose 45 Carbon steel.
3..For roller crusher ,we use high manganese
4.steel.axles, gear and other important spare parts which are made by carbon steel and alloy steel through modulation or quench’s heat treatment procession so as to extend the service life.
5. For hollow brick mould, we use wear resistance ceramic material as core to ensure longer mould service life.
Our Certificate
JKB50 automatic block making machine service :
Aftersale service is an important part in our brick machine industry, after more than 20 years, we have much
more experience to support our buyer of brick machine.
We provide the following service:
1. Provide customers with various brick making equipments,
2. provide services like process design, kiln design, workshop design
3. Also, we have a professional team of engineers to do clay brick machine installation, training workers,
imparting technical instruction to our buyers,
4. After brick machine running,we have special aftersale service department to provide spare parts, machine
problem fixing.
Our automatic block making machine delivery for our clients:
Our clay brick machine have been exported to countries such as India, Bangladesh ,Indonesia, Myanmar,
Kazakhstan,Uzbekistan, Russia, Turkmenistan, Mongolia, Nepal, Sudan, South Africa, Uganda, Mozambique,
Zimbabwe, Congo,Peru, Brazil, Iraq ,Bolivia Mexico, etc. and have won great fame and popularity.

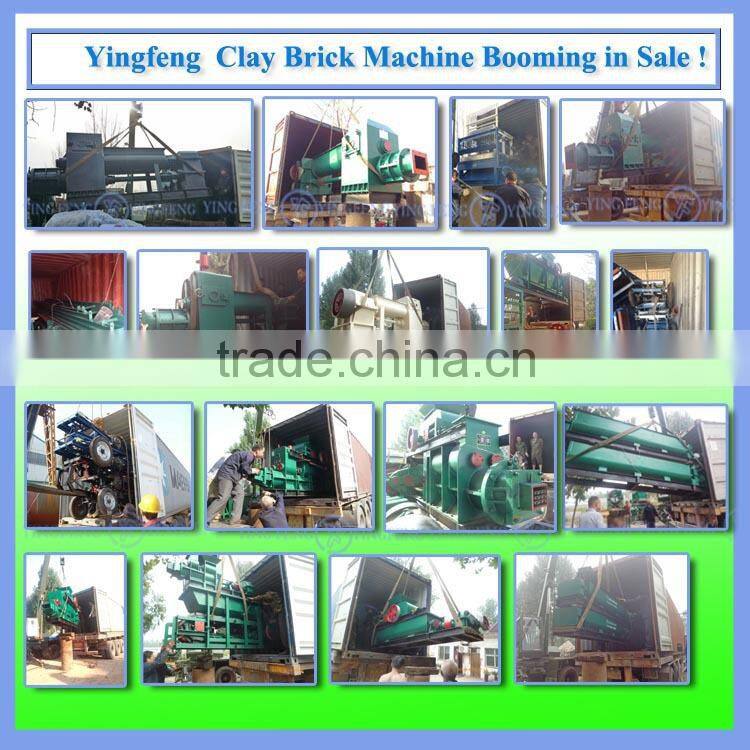

Below is part of our delivery photos for our clients from different countries.
JZ300 Non-vacuum clay brick producing line:
http://youtu.be/sjg7GsfcYfk
JKR30 Vacuum clay brick production line with brick separator:
http://youtu.be/TBgEnsWOGyM
JKRL35 Vacuum brick production line with unloader and brick loading cars:
http://youtu.be/IQtzh_pjcxA
JKR40 Vacuum Clay block making machine:
http://youtu.be/jZmoW49xtF8 http://youtu.be/qOCe79N43ns
JKRL45 Vacuum Clay brick production line with auto brick loading cars:
http://youtu.be/3DCR2rR_wYA
JZK50 Vacuum Clay brick producing line with dryer and hoffman kiln:
http://youtu.be/h-m4Vnq8v3c
JKY60 Auto brick production line with tunnel kiln and dryer:
http://youtu.be/8R_XzKkDySU
Contact us:
China Mobile Number ( Whatsapp, Wechat ,Viber): 0086 18638712391 or 008615039963315
Email: kai(at) skype: fanchen588
Web:
How to visit us or check clay brick making machine quality
If you want to visit our Chinese factory, please note our city name, Zhengzhou city.
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
