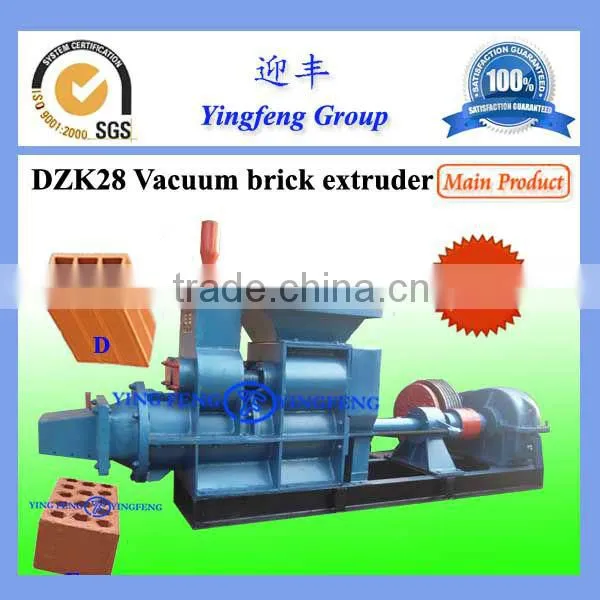

Machinary of small industries, DZK28 automatic block making machine
Product introduction for DZK28 automatic block making machine :
DZK series automatic block making machine adopts energy saving single extruding stage, taking one
only motor.The design of DZK series brick making machine is more compact and the simple structure makes operation more conveniently. Also it can produce solid brick and hollow bricks.
If buyers have the following requirement or condition, then they can choose DZK model brick extruder
1.Having limited electric power and limited budget but need to get higher capacity.
2.In buyers’ brick market, have requirement on brick quality, but no limited requirements on brick pressure.
3.Wants to get solid bricks and small hole bricks
( Big hole with thin wall bricks is also possible ,but we recommend double stage vacuum)
What's the advantage of Yingfeng automatic block making machine ?
1.Compact and simple structure;
2.Easy operation;
3.Energy and labor saving;
4.Can make solid and hollow bricks;
5.Perfect performance
More main specification and technical parameters for your reference:
Type |
Capacity(pcs/h) |
Auger Diameter (mm) |
Extruding Pressure (Mpa) |
Extruder Power (KW) |
Whole production line power(KW) |
DZK26 |
2000-3000 |
260mm |
2 |
22 |
42-70 |
DZK28 |
3000-4000 |
280mm |
2 |
30 |
50-80 |
DZK30 |
4000-6000 |
300mm |
2 |
37 |
90-100 |
DZK35 |
6000-7000 |
350mm |
2 |
55 |
120-140 |
DZK40 |
8000-10000 |
400mm |
2 |
75 |
140-160 |
DZK45 |
10000-12000 |
450mm |
2 |
90 |
160-180 |
Note: The above capacity is based on Chinese brick size : 240X115X53 mm, if your brick size is different from our brick size, then the capacity will differ .We would send different brick capacity list and different brick machine price list to you once we get your mail to us.

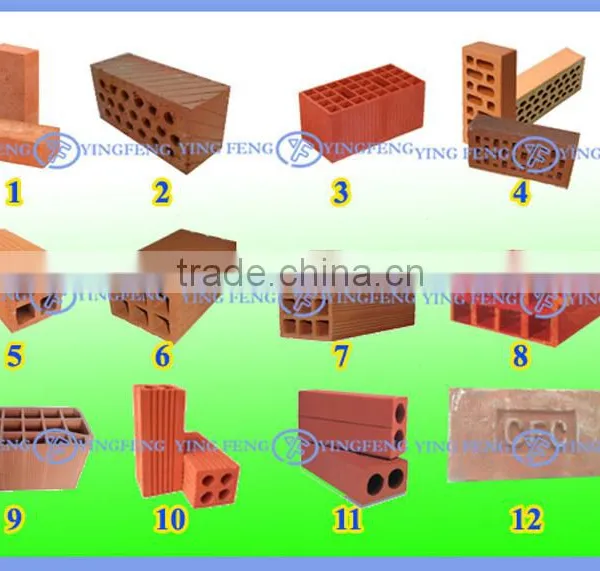

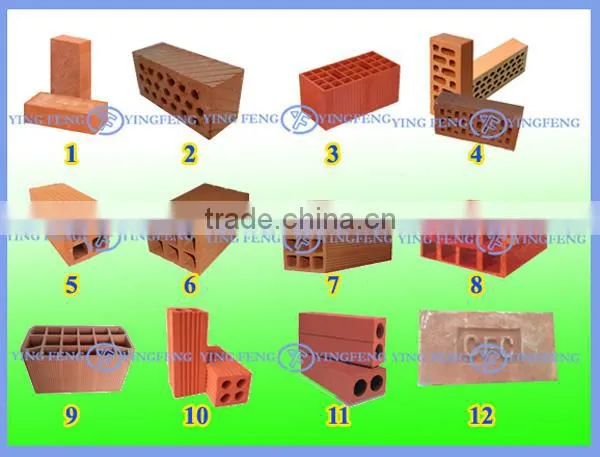

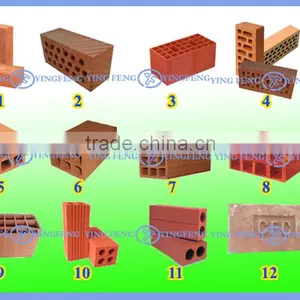

The following is part of brick sample which DZK28 automatic block making machine can produce
Note: We can provide other different brick mould with different mould sizes according to your requirements.

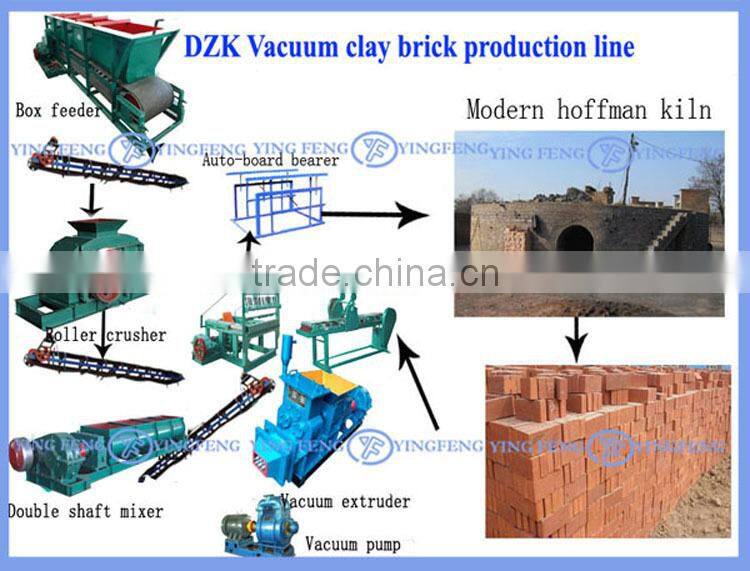

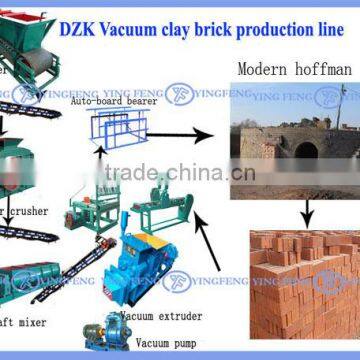

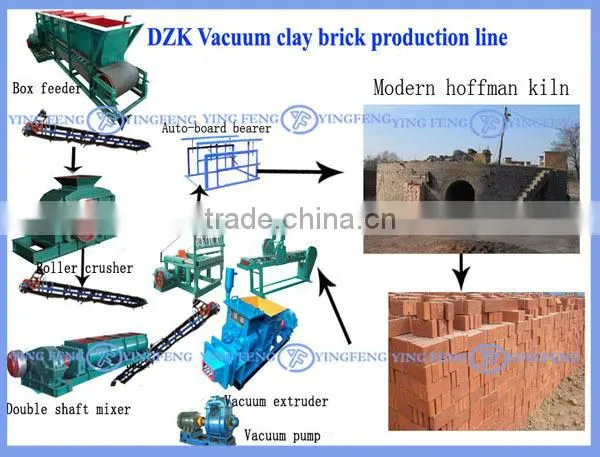

DZK28 automatic block making machine production line:
| After brick cutting how to do brick drying and firing | |||||||||||
| Item | Drying method | Firing method | Advantage and disadvantage | ||||||||
| 1 | Natural drying | Buyer Local kiln | Very low investment, but may take more labors | ||||||||
| 2 | Natural drying | Hoffman kiln | A little high investment, but may take more labors | ||||||||
| 3 | Natural drying | Tunnel kiln | High investment, but takes less labors than Item 2 | ||||||||
| 4 | Small tunnel dryer | Hoffman kiln | High investment, but takes less labors than Item 2 | ||||||||
| 5 | Small tunnel dryer | Tunnel kiln | Higher investment, but takes less labors than Item 4 | ||||||||
| 6 | Big Tunnel dryer | Tunnel kiln | Highest investment, but takes least labors | ||||||||
Notice: the above production line is standard, some machines will be added or deleted according to your soil condition.So we suggest you can inform us your soil condition when you contact us or when you visit our Yingfeng Machinery Co.,Ltd. you can bring your soil sample .

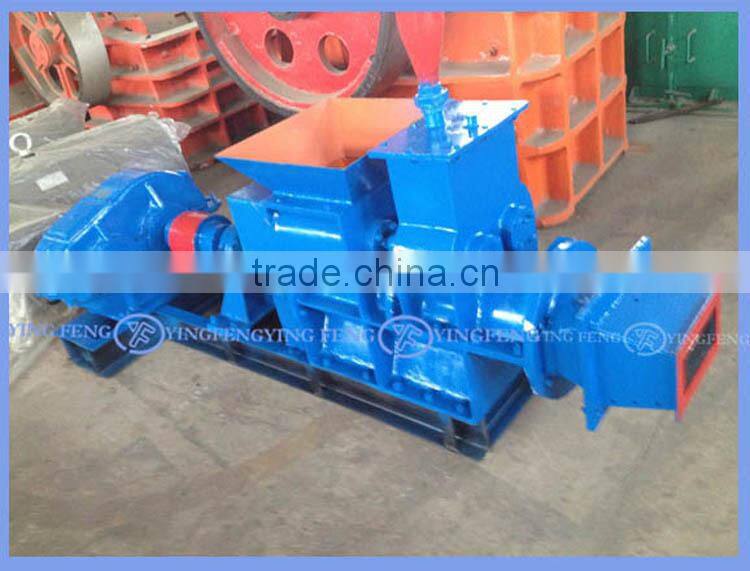

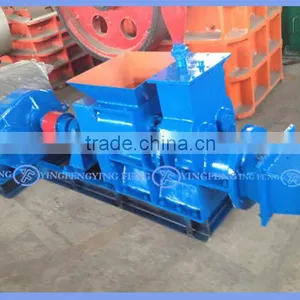

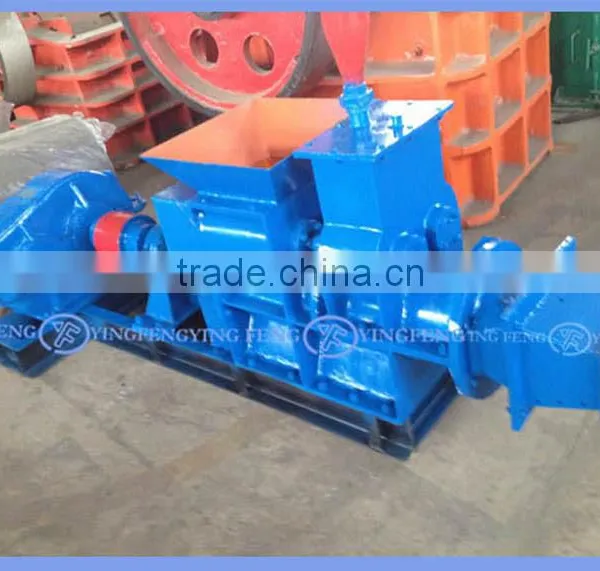

DZK28 automatic block making machine in workshop:

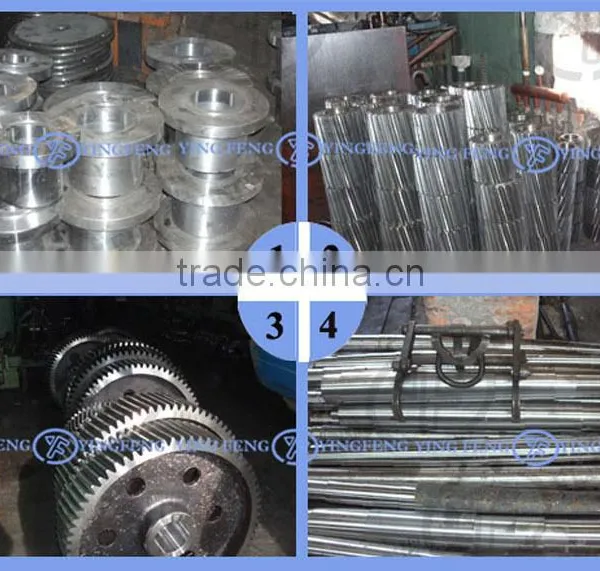

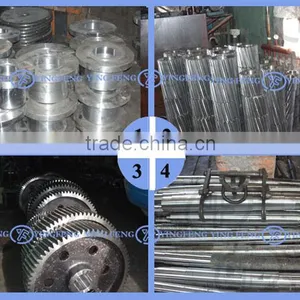

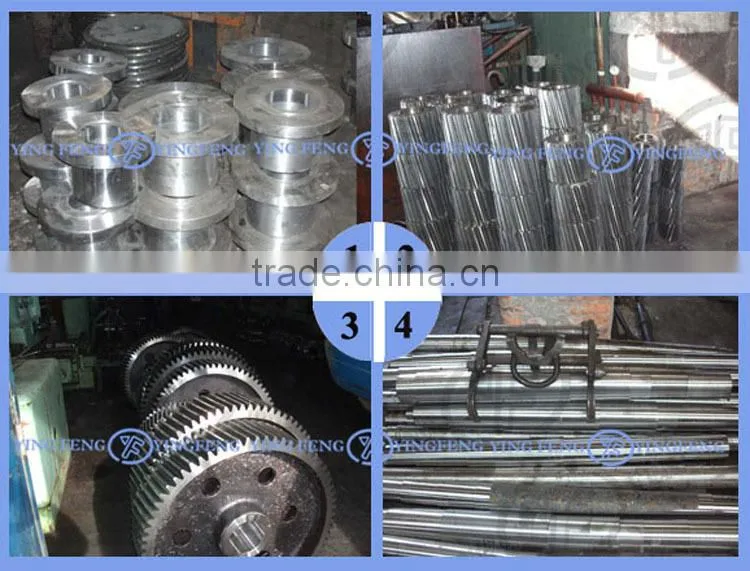

DZK28 automatic block making machine raw material
Note:we are responsible for our clients when we choose raw material for our clients,Rollers.steel.axles,
gear and other important spare parts which are made by carbon steel and alloy steel through modulation or quench’s heat treatment procession so as to extend the service life.
Our Certificate

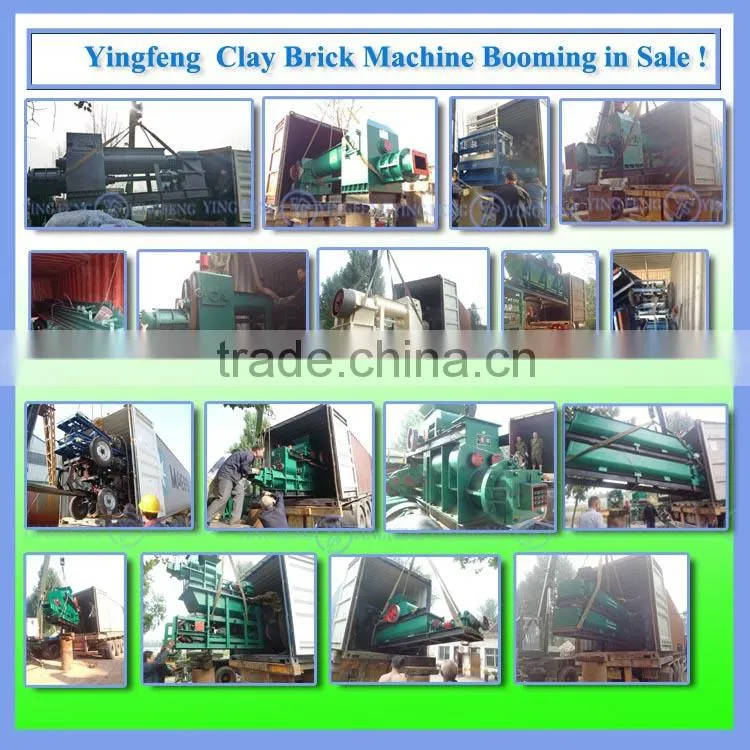

Yingfeng technology automatic block making machine delivery for our clients:
1.Each small part of machine would be packed well, also we would arrange engineer to check each machine parts before delivery, so wecan ensure buyer can get complete clay brick machine parts. .
2. Some parts will be given soft protection before feeding in the container to make sure all the machine will
be new when arriving at customer hand.
3. Inside the container, we will fix the machine with steel wire,to make sure all the machine will be fixed safety.
Clay brick machine Delivery for our clients :
Our clay brick machine have been exported to countries such as India, Bangladesh ,Indonesia, Myanmar,Kazakhstan, Uzbekistan, Russia,Turkmenistan, Mongolia, Nepal, Sudan, South Africa, Uganda, Mozambique, Zimbabwe,Congo,Peru, Brazil, Iraq ,Bolivia Mexico,etc. and have won great fame and
popularity..Below is part of our delivery photos for our clients from different countries.
1.)Quality: Yingfeng focusing on quality and precision, we dedicated to producing brick machine
with high quality to meet our customers' requirements;
2.)Cost:We have been committed to finding a good joint point of the price and quality,We always
offer you more competitive price;
3.)Lead Time:We can provide our customers high quality products within short lead time;
4.)Experience: Our engineers have rich experiences in brick making machine designing & manufacturing. We can
provide you valuable suggestion and technical support for kiln.
Q: How many kinds of Brick machine can you supply?
A: We can supply more than 30 kinds of Brick machine with different capacity from 2000 to 30000 bricks per hour (based on Chinese brick size)
Non-vacuum brick machine series are: JZ250.300, 350,400.
Single Stage Vacuum brick machine: DZK26, 28, 30,35,40,45
Compact Double stage vacuum brick machine:
JKR series: JKR30, 35,40,45,50
JKRL series: JKRL35, 40, 45, 50
Double stage vacuum brick machine:
JZK series: JZK35, 40,45,50,55
JKY series: JKY50, 55, 60, 70
Q: How long can you delivery the machine?
A: Generally, we can deliver the machine in 25 days.
Q: How much land area and how much investment do we need to open on clay brick plant:
A: Different daily capacity need different area and investment, we would give you suggestions after
getting your message to us.
Q: How about your machine quality?
A: We have running brick plant in several countries, Before our machine is sent to buyer, we would
make trial for our each machine 48 hours to ensure each machine quality is perfect no bug,you can
completely trust our quality.
Q: Are your products qualified?
A: All of our machines hold the ISO, QC certificate, and each set of machine must pass a great number
of strict testing ensure to offer the best quality to our customers.
Q: Are you trading company or manufacturer?
A: We are professional manufacturer of brick making machine,our products have been exported to
more than 18 countries of Asia, South Africa, and get a good reputation in the world.
Q: Can you guarantee the capacity as you mentioned ?
A: Yes, we have set running plants abroad,the facts proved that they can achieve the desired output.
Q: How our brick machine works? Can you supply video?
A: Yes,the following are video links, please refer to them and let us know if you have any confusion.
JZ300 Non-vacuum clay brick producing line:
http://youtu.be/sjg7GsfcYfk
JKR30 Vacuum clay brick production line with brick separator:
http://youtu.be/TBgEnsWOGyM
JKRL35 Vacuum brick production line with unloader and brick loading cars:
http://youtu.be/IQtzh_pjcxA
JKR40 Vacuum Clay block making machine:
http://youtu.be/jZmoW49xtF8 http://youtu.be/qOCe79N43ns
JKRL45 Vacuum Clay brick production line with auto brick loading cars:
http://youtu.be/3DCR2rR_wYA
JZK50 Vacuum Clay brick producing line with dryer and hoffman kiln:
http://youtu.be/h-m4Vnq8v3c
JKY60 Auto brick production line with tunnel kiln and dryer:
http://youtu.be/8R_XzKkDySU
