Hot sale in myanmar,JZK50 big model clay brick machine for myanmar
Product introduction for JZK50 clay brick machine for myanmar :

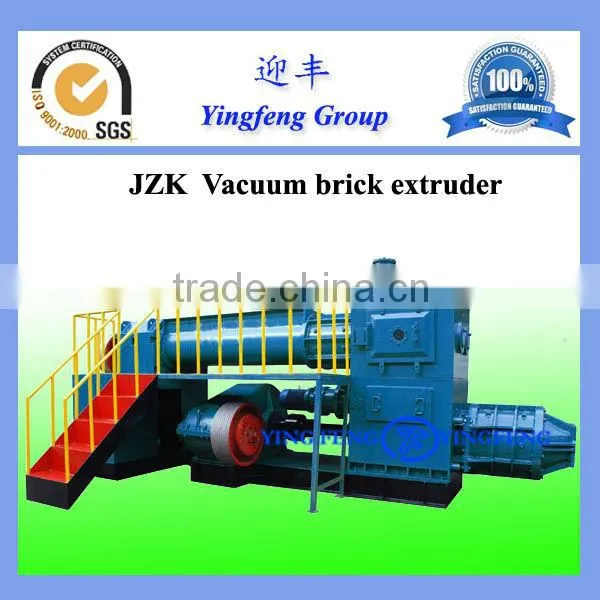

JZK series double stage vacuum brick extruder uses two electric motors with up-down body structure which draw advance experience from the developed and domestic technology.They are mainly made of high quality steel with features of reasonable structure and durability.
If buyers have the following requirement or condition, then they can choose JZK clay brick machine for myanmar :
1. Want to open middle and big size brick factories. No much limitation on electricity power and budget
2. In buyers’ brick market, have very high requirements on brick quality
3. Want to produce all kinds of solid and hollow bricks (especially big hole or thin wall bricks)
What's the advantage of Yingfeng clay brick machine for myanmar ?
1.Strong applicability,high efficiency;
2.Easy maintenance and operation;
3.Energy ana labor saving.
More main specification and technical parameters for your reference:
Model |
Auger diameter (mm) |
Capacity |
Extruder Power (KW) |
Whole production line power(KW) |
JZK35/35-2.0 |
350 |
7000-9000(pcs/h) |
37/75 |
200-220 |
JZK40/40-2.5 |
400 |
9000-11000pcs/h |
90+45 |
210-230 |
JZK45/45-3.5 |
450 |
12000-13000pcs/h |
45+110 |
255-275 |
JZK50/50-3.5 |
500 |
13000-15000pcs/h |
45+132 |
295-320 |
JZK55/55-4.0 |
550 |
16000-18000pcs/h |
90+160 |
360-400 |
Note: The above capacity is based on Chinese brick size : 240X115X53 mm, if your brick size is different from our brick size, then the capacity will differ .We would send different brick capacity list and different brick machine price list to you once we get your mail to us.
The following is part of brick sample which JZK50 clay brick machine for myanmar can produce .
Note: We can provide other different brick mould with different mould sizes according to your requirements.
JZK50 clay brick machine for myanmar production line:
Clay--Box feeder ---Belt conveyor----Double shaft mixer---Belt conveyor--series Double stage vacuum extruder(can be chosen according to your annual capacity)--- Full-automatic brick cutting machine ---Auto-unloader(brick separator, or brick stacking machine )-Hoffman kiln or tunnel kiln
Note:The above production line is based on soft clay,mud,soil.If your material is shale,fly ash,coal Gangue,or with big stones,grass roots,etc,or you want to buy brick carrying cars or robot ,brick stacker, the above line will be adjusted after we get your feedback for your material condition.
| After brick cutting how to do brick drying and firing | |||||||||||
| Item | Drying method | Firing method | Advantage and disadvantage | ||||||||
| 1 | Natural drying | Buyer Local kiln | Very low investment, but may take more labors | ||||||||
| 2 | Natural drying | Hoffman kiln | A little high investment, but may take more labors | ||||||||
| 3 | Natural drying | Tunnel kiln | High investment, but takes less labors than Item 2 | ||||||||
| 4 | Small tunnel dryer | Hoffman kiln | High investment, but takes less labors than Item 2 | ||||||||
| 5 | Small tunnel dryer | Tunnel kiln | Higher investment, but takes less labors than Item 4 | ||||||||
| 6 | Big Tunnel dryer | Tunnel kiln | Highest investment, but takes least labors | ||||||||
Yingfeng supply the following brick making machine and brick making equipment,you can choose what you need:
1. Belt type box feeder
2. Roller crusher, jaw crusher , hammer crusher
3. Double shaft mixer, double shaft mixer and extruder
4. Brick vacuum extruder, vacuum brick making machine
5. Automatic brick cutter system
6. Bricks separation machine
7. belt conveyor
8. Brick dryer
9. Brick tunnel kil
10. Brick kiln equipment
11. Automatic brick loading and unloading machine
12. Automatic brick packaging machine
13. Automatuc robot brick setting machine
14. Auotmatic brick stacking machine
15. Brick dryer and tunnel kiln design and construcion
16. Technical provide and technical supervision
17. Turn-key project
18. Full automatic brick project clay floor tile making machine
21. Full automatic clay brick making machine and brick making equipment
Yingfeng clay brick machine for myanmar workshop:
Yingfeng clay brick machine for myanmar raw material:
Our Certificate
Our clay brick machine for myanmar Service :
Aftersale service is an important part in our brick machine industry, after more than 20 years, we have much
more experience to support our buyer of brick machine.
We provide the following service:
1. Provide customers with various brick making equipments,
2. provide services like process design, kiln design, workshop design
3. Also, we have a professional team of engineers to do clay brick machine installation, training workers,
imparting technical instruction to our buyers,
4. After brick machine running, we have special aftersale service department to provide spare parts, machine
problem fixing.
Our Running brick production video link
JZ300 Non-vacuum clay brick producing line:
http://youtu.be/sjg7GsfcYfk
JKR30 Vacuum clay brick production line with brick separator:
http://youtu.be/TBgEnsWOGyM
JKRL35 Vacuum brick production line with unloader and brick loading cars:
http://youtu.be/IQtzh_pjcxA
JKR40 Vacuum Clay block making machine:
http://youtu.be/jZmoW49xtF8 http://youtu.be/qOCe79N43ns
JKRL45 Vacuum Clay brick production line with auto brick loading cars:
http://youtu.be/3DCR2rR_wYA
JZK50 Vacuum Clay brick producing line with dryer and hoffman kiln:
http://youtu.be/h-m4Vnq8v3c
JKY60 Auto brick production line with tunnel kiln and dryer:
http://youtu.be/8R_XzKkDySU
Contact us:
China Mobile Number ( Whatsapp, Wechat ,Viber): 0086 18638712391
or 008615039963315
Email: kai(at) skype: fanchen588
Web:
How to visit us or check clay brick making machine quality
If you want to visit our Chinese factory, please note our city name, Zhengzhou city.
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
You can also visit our brick plant in your local places
