Best Selling Products JKRL35 Brick Making Machine in Dubai

Best Selling Products JKRL35 Brick Making Machine in Dubai photo-1
Best Selling Products JKRL35 Brick Making Machine in Dubai photo-2
Best Selling Products JKRL35 Brick Making Machine in Dubai photo-3
Best Selling Products JKRL35 Brick Making Machine in Dubai photo-4
Best Selling Products JKRL35 Brick Making Machine in Dubai photo-5
Best Selling Products JKRL35 Brick Making Machine in Dubai photo-6
US$ 8,000 - 18,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Interlock Block Making Machine
Brick Raw Material:
Clay
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Interlock Block Making Machine
Brick Raw Material Clay
Processing Brick Production Line
Method Vacuum Extruder
Automatic Yes
Capacity 7,000-9,000 pcs/h
Place of Origin Henan, China
Brand Name Yingfeng
Model Number JKRL35
Voltage customized
Power 75kw
Dimension(L*W*H) 4.5x1.4x1.5 m
Certification ISO9001
Warranty 2years
After-sales Service Provided Engineers available to service machinery overseas

Best selling products JKRL35 brick making machine in dubai

Best selling products JKRL35 brick making machine in dubai

JKRL Brick Machine

The features of  JKRL35 brick making machine in dubai :

JKRL series double stage vacuum brick extruder uses one electric motor with compact structure, energy saving.

1.Simple and compact structure,easy maintenance;

2.Strong applicability,lower energy consumption;

3.Suitable for various materials such as coal gangue,fly ash,mud or soil.

If buyers have the following requirement or condition, then they can choose JKRL model brick extruder:

1.Want to open middle and small size brick factories.

2.Wants to save electricity.

3. In buyers’ brick market, have high requirements on brick quality

4. Only wants to produce solid bricks or hollow bricks.

More technical parameters for your reference:

       Model

Auger diameter

       (mm)

           Capacity

Power(KW)

  Whole production line

         power(KW)

JKRL35/35-2.0

350

7000-8000(pcs/h)

Y6-75

120-140

JKRL40/40-2.5

400

8000-10000pcs/h

Y6-90

175-190

JKRL45/45-2.5

450

11000-12000pcs/h

Y6-110

210-230

JKRL50/50-3.0

500

13000~15000 pcs/h

Y6-150

260-280

Note: The above capacity is based on Chinese brick size : 240X115X53 mm, if your brick size is different from our brick size, then the capacity will differ .We would send different brick capacity list and different brick machine price list to you once we get your mail to us.

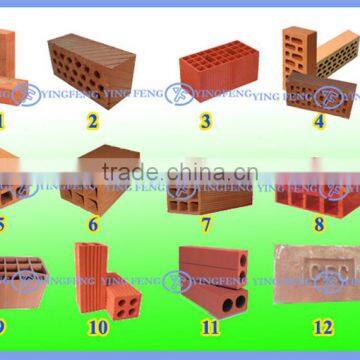

The following is part of brick sample which  brick making machine in dubai can produce .

Best selling products JKRL35 brick making machine in dubai

Note: We can provide other different brick mould with different mould sizes according to your requirements.

Production Line

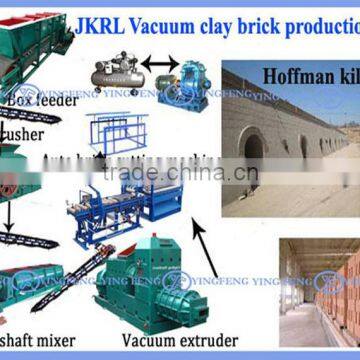

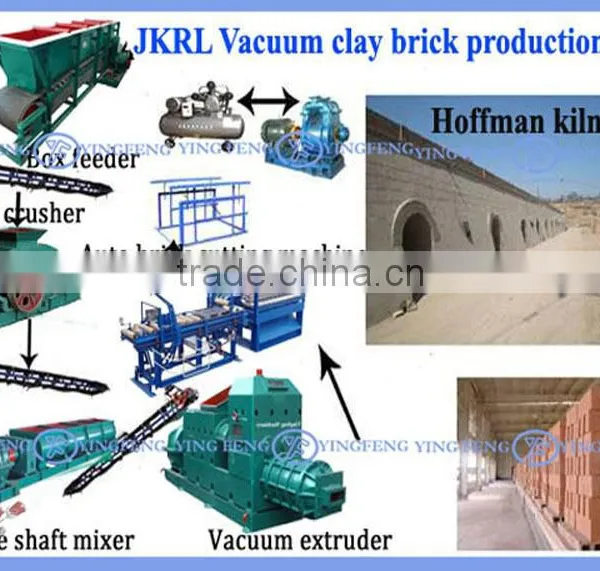

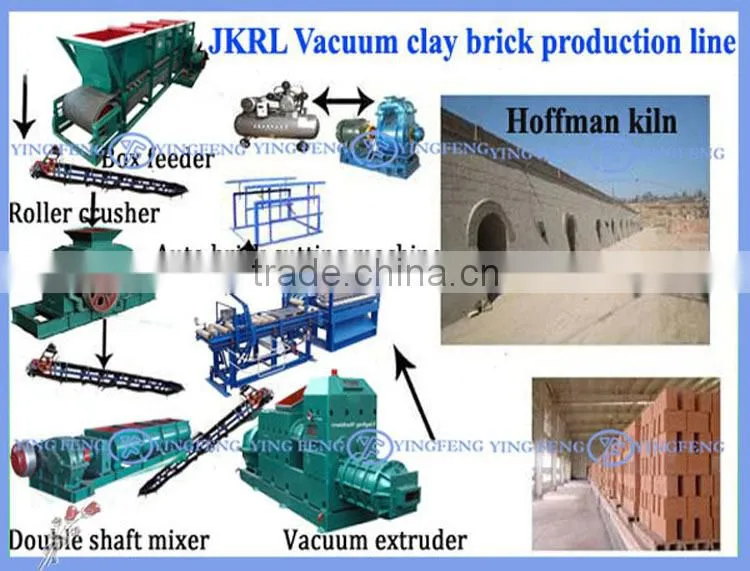

JKRL35 brick making machine in dubai production line:

Best selling products JKRL35 brick making machine in dubai

Note:The above production line is based on soft clay,mud,soil.If your material is shale,fly ash,coal Gangue,or with big stones,grass roots,etc,or you want to buy brick carrying cars or robot ,brick stacker, the above line will be adjusted after we get your feedback for your material condition.

                                                   After brick cutting  how to do brick drying and firing
Item Drying method  Firing method Advantage and disadvantage
1 Natural drying Buyer Local kiln  Very low investment, but may take more labors
2 Natural drying Hoffman kiln  A little high investment, but may take more labors
3 Natural drying Tunnel kiln High investment, but takes less labors than Item 2
4 Small tunnel dryer Hoffman kiln  High investment, but takes less labors than Item 2
5 Small tunnel dryer Tunnel kiln Higher investment, but takes less labors than Item 4
6 Big Tunnel dryer Tunnel kiln Highest investment, but takes least labors



Workshop&Certificate

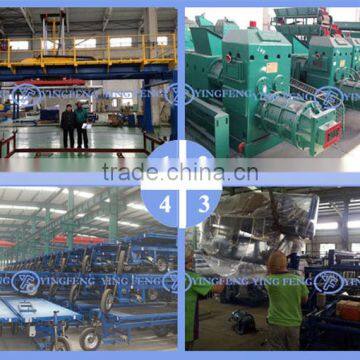

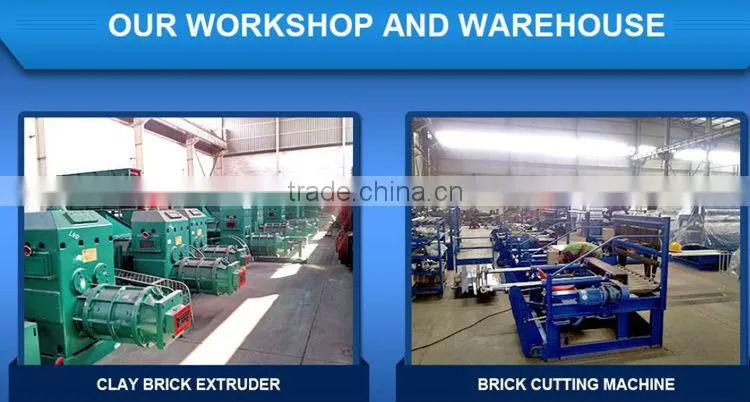

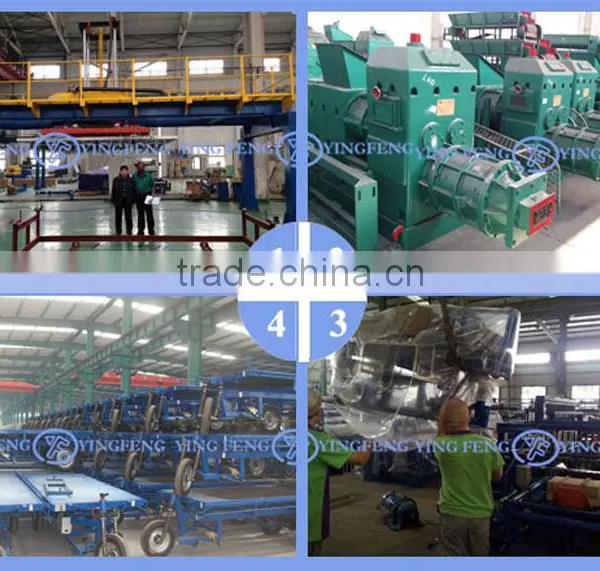

Yingfeng JKRL35 brick making machine in dubai workshop:

Best selling products JKRL35 brick making machine in dubai

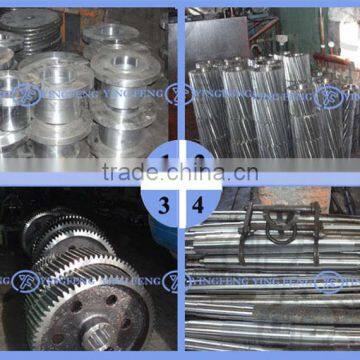

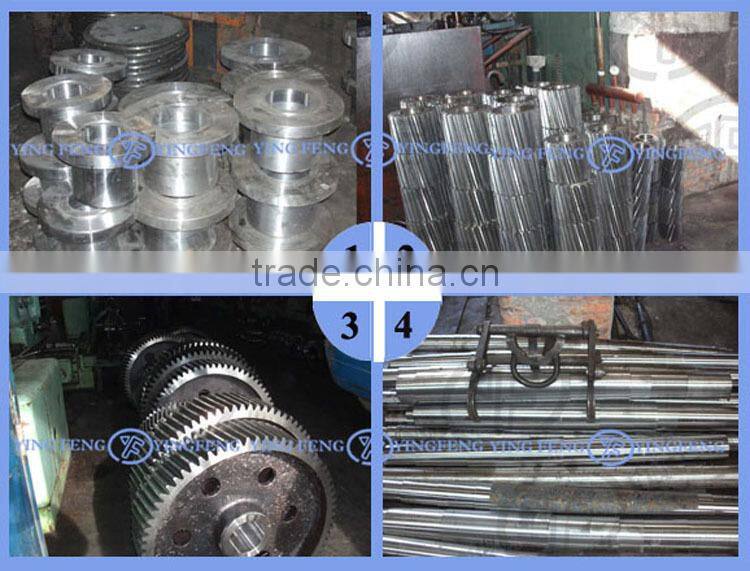

Yingfeng JKRL35 brick making machine in dubai raw material:

Best selling products JKRL35 brick making machine in dubai

Note: we are responsible for our clients when we choose raw material for our clients,

Rollers.steel.axles, gear and other important spare parts which are made by carbon steel and alloy steel

through modulation or quench’s heat treatment procession so as to extend the service life.

Our Certificate

Modern Hoffman kiln for JKRL35 brick making machine in dubai :

From the the below photos ,you can see hoffman kiln drawings, inside and outside of hoffman kiln.

Such hoffman kiln investment is very less. But capacity is bigger.

If you want to know how it works, then please contact us, we would provide you detailed video,

also you are welcome to visit our brick plant.Then you can better understand the theory of hoffman kiln.

Also, we can design different sizes of hoffman kiln according to your budget or land condtion.



Best selling products JKRL35 brick making machine in dubai



Company Products

Yingfeng supply the following brick making machine and brick making equipment,you can choose what you need:

1. Belt type box feeder

2. Roller crusher, jaw crusher , hammer crusher

3. Double shaft mixer, double shaft mixer and extruder

4. Brick vacuum extruder, vacuum brick making machine

5. Automatic brick cutter system

6. Bricks separation machine

7. belt conveyor

8. Brick dryer

9. Brick tunnel kil

10. Brick kiln equipment

11. Automatic brick loading and unloading machine

12. Automatic brick packaging machine

13. Automatuc robot brick setting machine

14. Auotmatic brick stacking machine

15. Brick dryer and tunnel kiln design and construcion

16. Technical provide and technical supervision

17. Turn-key project

18. Full automatic brick project clay floor tile making machine

21. Full automatic clay brick making machine and brick making equipment

Why Choose Us

1.)Quality: Yingfeng focusing on quality and precision, we dedicated to producing brick machine

 with high quality to meet our customers' requirements;

2.)Cost:We have been committed to finding a good joint point of the price and quality,We always

offer you more competitive price;

3.)Lead Time:We can provide our customers high quality products within short lead time;

4.)Experience: Our engineers have rich experiences in brick making machine designing & manufacturing. We can

provide you valuable suggestion and technical support for kiln.

Best selling products JKRL35 brick making machine in dubai

Packaging & Shipping

JKRL35 brick making machine in dubai delivery for our clients:

1.Each small part of machine would be packed well, also we would arrange engineer to check each machine parts before delivery, so we can ensure buyer can get complete clay brick machine parts.

2. Some parts will be given soft protection before feeding in the container to make sure all the machine will be new when arriving at customer hand.

3. Inside the container, we will fix the machine with steel wire,to make sure all the machine will be fixed safety.

We have sold auto clay brick machine to more than 30 countries,like

Best selling products JKRL35 brick making machine in dubai

Our clay brick making machine delivery photos for our clients:

FAQ

Our Running brick production video link

JZ300 Non-vacuum clay brick producing line:

http://youtu.be/sjg7GsfcYfk

JKR30 Vacuum clay brick production line with brick separator:

http://youtu.be/TBgEnsWOGyM

JKRL35 Vacuum brick production line with unloader and brick loading cars:

http://youtu.be/IQtzh_pjcxA

JKR40 Vacuum Clay block making machine:

http://youtu.be/jZmoW49xtF8          http://youtu.be/qOCe79N43ns

JKRL45 Vacuum Clay brick production line with auto brick loading cars:

http://youtu.be/3DCR2rR_wYA

JZK50 Vacuum Clay brick producing line with dryer and hoffman kiln:

http://youtu.be/h-m4Vnq8v3c

JKY60 Auto brick production line with tunnel kiln and dryer:

http://youtu.be/8R_XzKkDySU
