240x128 alphanumeric lcd display panel with led backlight ,STN cob

FOB Price

USD $21 - $23 / Piece

1 Piece(Min.Order)

Supply Ability 30000 Piece / Pieces per Month
Port Shenzhen Port
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Caijing	Model Number:	CM7401-1
Type:	COB

Product Description

240x128 alphanumeric lcd display panel with led backlight ,STN cob

Product Description

display content: 240x128 dots matrix

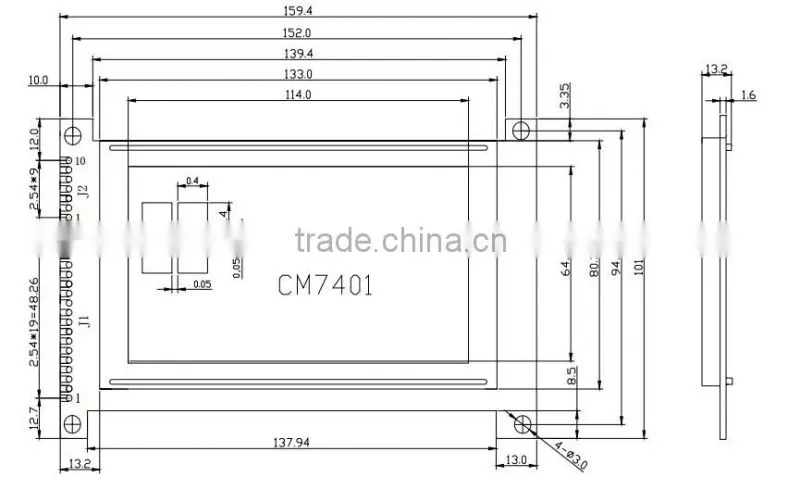

Module size: 159.4x101x9.5/13.2mm

V.A: 114x64mm

Drive method: 1/128duty,1/12BIAS

Backlight: led/EL

controller: t6963c/HD61830

Voltage:3V/5V

Certifications

Our factory pass ISO9001 and all products can pass CE,ROHS,SGS.

Company Advantages

14 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free samples are available for some styles

Related Products

About graphical lcd module ,we have 120x32 dots matrix lcd module ,122x32 graphical lcd module,128x32 stn lcd display module ,128x64 monochrome lcd module,128x128 lcd display module,160x128 dots matrix lcd display,160x160 stn lcd,

192x64 graphical lcd display module,240x64 lcd,240x128,240x160 and 320x240 lcd module display .

Display Content	Product No.	Outline size(mm)	V.A(mm)	Dot size(mm)	Controller	Supply Voltage	Interface
120x32	CM12032-1	98×50×14	76×26	0.55×0.6	1520	5V/3V	parallel
122x32	CM12232-1	84×44×13	60×18	0.36×0.41	1520	5V/3V	parallel
122x32	CM12232-4	67.2×27.2×8.7	54.8×18.8	0.36×0.41	1520	5V	parallel
122x32	CM12232-5	76.5×29×7	60.5×20.5	0.36×0.41	1520	5V/3V	parallel
122x32	CM12232-7	76×32.5×13	60×18	0.36×0.41	1520	5V/3V	parallel
122x32	CM12232-10	87×29×13	60×18	0.36×0.41	1520	5V/3V	parallel
122x32	CM12232-11	80.9×29×13	60×18	0.36×0.41	1520	5V/3V	parallel
122x32	CM12232-12	93×29.3×13	60×18	0.36×0.41	1520	5V/3V	parallel
122x32	CM12232-13	84×44×13	60×18	0.36×0.41	1520	5V/3V	parallel
122x32	CM12232-17	66×36×13	60×18	0.36×0.41	1520	5V	parallel
122x32	CM12232-18	84×44×13	60×18	0.36×0.41	1520	5V	parallel
122x32	CM12232-20	84×44×13	60×18	0.36×0.41	1520	5V/3V	parallel
122x32	CM12232-21	84×44×13	60×18	0.36×0.41	1520	5V/3V	parallel
122x32	CM12232-26	65.4×28.8×5.5	54.8×18.3	0.36×0.41	1520	5V	parallel
122x32	CM12232-27	75.9×31.6×10	59.1×16.7	0.44×0.42	ST7565R	3V	serial/parallel
128x32	CM12832-1	110×65×14	76×25	0.52×0.52	KS0108	5V/3V	parallel
128x32	CM12832-3	110×65×14	76×25	0.52×0.52	KS0108	5V/3V	parallel
128x64	CM12864-1	113×65×12.5	73.5×39	0.458×0.458	KS0108	5V/3V	parallel
128x64	CM12864-2	93×70×14	70.8×38.8	0.48×0.48	KS0108	5V/3V	parallel
128x64	CM12864-3	78×70×12	62×44	0.39×0.55	T6963C	5V/3V	parallel
128x64	CM12864-5	106×69×12	62×44	0.39×0.55	T6963C	5V/3V	parallel
128x64	CM12864-6	106×69×12	62×44	0.39×0.55	KS0108	5V/3V	parallel
128x64	CM12864-7	107×85×9.5	88×60	0.6×0.8	KS0108	5V/3V	parallel
128x64	CM12864-8	78×70×12	62×44	0.39×0.55	KS0108	5V/3V	parallel
128x64	CM12864-10	78×70×12	62×44	0.39×0.55	T6963C	5V/3V	parallel
128x64	CM12864-11	93×70×13	73×39	0.48×0.48	KS0108	5V/3V	parallel
128x64	CM12864-16	54×50×6.5	43.5×29	0.28×0.35	KS0108	5V/3V	parallel
128x64	CM12864-17	86×61×13.2	70.6×38.8	0.48×0.48	KS0108	5V/3V	parallel
128x64	CM12864-18	75×52×12	60×32.6	0.4×0.4	KS0108	5V/3V	parallel
128x64	CM12864-26	78×70×12	62×44	0.39×0.55	KS0108	5V/3V	parallel
128x64	CM12864-28	93×70×14	70.8×38.8	0.48×0.48	KS0108	5V/3V	parallel
128x64	CM12864-30	93×70×13	73×39	0.48×0.48	KS0108	5V/3V	parallel
128x64	CM12864-31	54×50×7.5	40.5×28.8	0.29×0.36	IST3004	3V	serial/parallel
128x64	CM12864-32	93×70×10.2	70.5×38.6	0.48×0.48	ST7565P	3V	serial/parallel
128x128	CM128128-1	106×92×14	73×73	0.49×0.49	T6963C	5V	serial/parallel
128x128	CM128128-4	106×92×14	73×73	0.49×0.49	T6963C	5V	serial/parallel
128x128	CM128128-6	72.1×65×8.3	48×48	0.33×0.33	ST7541	3V	parallel
128x128	CM128128-8	50.0×45.8×7.7	31×30	0.19×0.19	ST7541	3V	serial/parallel
160x128	CM16064-1	87×60×12.5	61.5×26	0.33×0.33	T6963C	5V/3V	parallel
160x128	CM160128-2	129×102×12	101×82	0.54×0.54	T6963C	5V/3V	serial/parallel
160x160	CM160160-1	67×63×7.5	46×46	0.245×0.245	320A	3V	parallel
160x160	CM160160-3	77×73.5×7.8	58×58	0.32×0.32	UC1698	3V	parallel
192x64	CM19264-1	130×65×12.2	104×39	0.458×0.458	KS0108	5V/3V	parallel
192x64	CM19264-4	120×62×12.2	104×39	0.458×0.458	KS0108	5V/3V	parallel
192x64	CM19264-6	100×60×13	84×31	0.36×0.36	KS0108	5V/3V	parallel
To be continue ---------
