Product Details
Place of Origin: | Guangdong, China | Brand Name: | Caijing | Model Number: | CM240160-2SLDAA-5 |
Type: | COB |
Product Description
240x160 STN graphical LCM with ST7529 controller and LED backlight ,yellow green
Display type: COG STN/FSTN, blue/gray/yellow green, and negative/positive
Dot matrix: 240 x 160
Duty: 1/160
Bias: 1/12
Input voltages: 3.0V DC
Controller: ST7529
LED backlight color: white, blue, and yellow green
Operating temperatures: 0 to 50 or -20 to 70℃
Store temperatures: -10 to 60 or -30 to 80℃

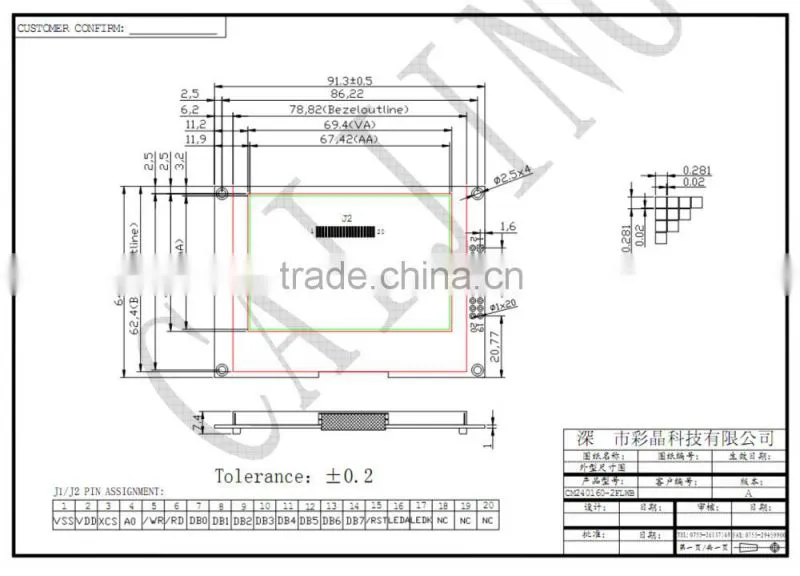

Module dimensions: 91.2 x 64.4 x 7.4mm
VA: 69.4 x 47.0mm
AA: 67.42 x 44.94mm
Dot size: 0.281 x 0.281mm
Dot pitch: 0.02 x 0.02mm
Our factory pass ISO9001 and all products can pass CE,ROHS,SGS.
14 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance
Free samples are available for some styles
About graphical lcd module ,we have 120x32 dots matrix lcd module ,122x32 graphical lcd module,128x32 stn lcd display module ,128x64 monochrome lcd module,128x128 lcd display module,160x128 dots matrix lcd display,160x160 stn lcd,
192x64 graphical lcd display module,240x64 lcd,240x128,240x160 and 320x240 lcd module display .
Display Content | Product No. | Outline size(mm) | V.A(mm) | Dot size(mm) | Controller | Supply Voltage | Interface |
120x32 | CM12032-1 | 98×50×14 | 76×26 | 0.55×0.6 | 1520 | 5V/3V | parallel |
122x32 | CM12232-1 | 84×44×13 | 60×18 | 0.36×0.41 | 1520 | 5V/3V | parallel |
122x32 | CM12232-4 | 67.2×27.2×8.7 | 54.8×18.8 | 0.36×0.41 | 1520 | 5V | parallel |
122x32 | CM12232-5 | 76.5×29×7 | 60.5×20.5 | 0.36×0.41 | 1520 | 5V/3V | parallel |
122x32 | CM12232-7 | 76×32.5×13 | 60×18 | 0.36×0.41 | 1520 | 5V/3V | parallel |
122x32 | CM12232-10 | 87×29×13 | 60×18 | 0.36×0.41 | 1520 | 5V/3V | parallel |
122x32 | CM12232-11 | 80.9×29×13 | 60×18 | 0.36×0.41 | 1520 | 5V/3V | parallel |
122x32 | CM12232-12 | 93×29.3×13 | 60×18 | 0.36×0.41 | 1520 | 5V/3V | parallel |
122x32 | CM12232-13 | 84×44×13 | 60×18 | 0.36×0.41 | 1520 | 5V/3V | parallel |
122x32 | CM12232-17 | 66×36×13 | 60×18 | 0.36×0.41 | 1520 | 5V | parallel |
122x32 | CM12232-18 | 84×44×13 | 60×18 | 0.36×0.41 | 1520 | 5V | parallel |
122x32 | CM12232-20 | 84×44×13 | 60×18 | 0.36×0.41 | 1520 | 5V/3V | parallel |
122x32 | CM12232-21 | 84×44×13 | 60×18 | 0.36×0.41 | 1520 | 5V/3V | parallel |
122x32 | CM12232-26 | 65.4×28.8×5.5 | 54.8×18.3 | 0.36×0.41 | 1520 | 5V | parallel |
122x32 | CM12232-27 | 75.9×31.6×10 | 59.1×16.7 | 0.44×0.42 | ST7565R | 3V | serial/parallel |
128x32 | CM12832-1 | 110×65×14 | 76×25 | 0.52×0.52 | KS0108 | 5V/3V | parallel |
128x32 | CM12832-3 | 110×65×14 | 76×25 | 0.52×0.52 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-1 | 113×65×12.5 | 73.5×39 | 0.458×0.458 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-2 | 93×70×14 | 70.8×38.8 | 0.48×0.48 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-3 | 78×70×12 | 62×44 | 0.39×0.55 | T6963C | 5V/3V | parallel |
128x64 | CM12864-5 | 106×69×12 | 62×44 | 0.39×0.55 | T6963C | 5V/3V | parallel |
128x64 | CM12864-6 | 106×69×12 | 62×44 | 0.39×0.55 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-7 | 107×85×9.5 | 88×60 | 0.6×0.8 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-8 | 78×70×12 | 62×44 | 0.39×0.55 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-10 | 78×70×12 | 62×44 | 0.39×0.55 | T6963C | 5V/3V | parallel |
128x64 | CM12864-11 | 93×70×13 | 73×39 | 0.48×0.48 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-16 | 54×50×6.5 | 43.5×29 | 0.28×0.35 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-17 | 86×61×13.2 | 70.6×38.8 | 0.48×0.48 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-18 | 75×52×12 | 60×32.6 | 0.4×0.4 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-26 | 78×70×12 | 62×44 | 0.39×0.55 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-28 | 93×70×14 | 70.8×38.8 | 0.48×0.48 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-30 | 93×70×13 | 73×39 | 0.48×0.48 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-31 | 54×50×7.5 | 40.5×28.8 | 0.29×0.36 | IST3004 | 3V | serial/parallel |
128x64 | CM12864-32 | 93×70×10.2 | 70.5×38.6 | 0.48×0.48 | ST7565P | 3V | serial/parallel |
128x128 | CM128128-1 | 106×92×14 | 73×73 | 0.49×0.49 | T6963C | 5V | serial/parallel |
128x128 | CM128128-4 | 106×92×14 | 73×73 | 0.49×0.49 | T6963C | 5V | serial/parallel |
128x128 | CM128128-6 | 72.1×65×8.3 | 48×48 | 0.33×0.33 | ST7541 | 3V | parallel |
128x128 | CM128128-8 | 50.0×45.8×7.7 | 31×30 | 0.19×0.19 | ST7541 | 3V | serial/parallel |
160x128 | CM16064-1 | 87×60×12.5 | 61.5×26 | 0.33×0.33 | T6963C | 5V/3V | parallel |
160x128 | CM160128-2 | 129×102×12 | 101×82 | 0.54×0.54 | T6963C | 5V/3V | serial/parallel |
160x160 | CM160160-1 | 67×63×7.5 | 46×46 | 0.245×0.245 | 320A | 3V | parallel |
160x160 | CM160160-3 | 77×73.5×7.8 | 58×58 | 0.32×0.32 | UC1698 | 3V | parallel |
192x64 | CM19264-1 | 130×65×12.2 | 104×39 | 0.458×0.458 | KS0108 | 5V/3V | parallel |
192x64 | CM19264-4 | 120×62×12.2 | 104×39 | 0.458×0.458 | KS0108 | 5V/3V | parallel |
192x64 | CM19264-6 | 100×60×13 | 84×31 | 0.36×0.36 | KS0108 | 5V/3V | parallel |
To be continue --------- |
