Home > Products > LCD > 192x64 dots matrix lcd module display with yellow green led backlight and pins connection

192x64 dots matrix lcd module display with yellow green led backlight and pins connection

FOB Price

USD $9 - $12 / Piece

1 Piece(Min.Order)

Port Shenzhen Port
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Caijing
Model Number	CM19264-4SLDAA		Type	COB

Product Description

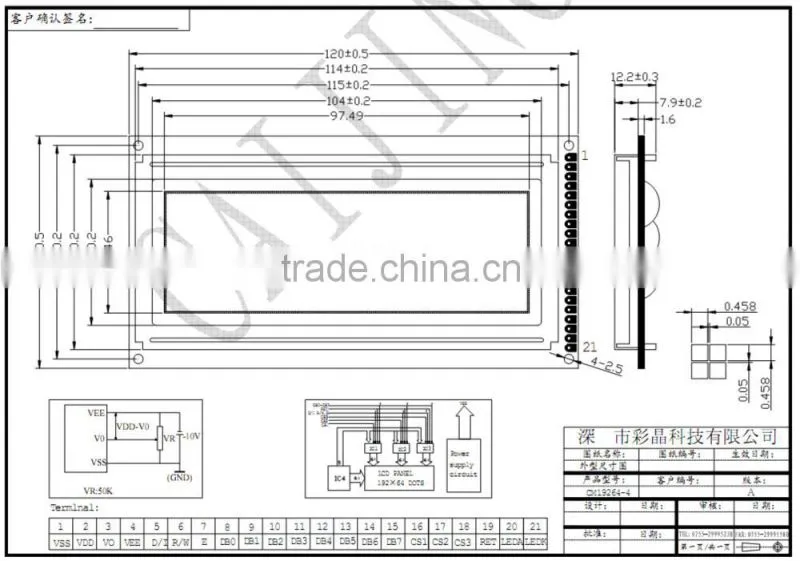

192x64 dots matrix lcd module display with yellow green led backlight and pins connection

Product Description

Specifications
Module size: 120 x 62 x 12.2mm
VA: 104 x 39mm
Drive method: 1/64 duty, 1/9 bias
Viewing angle: 6 degrees
Input voltage: 5 or 3.3V
LED backlight: Y/g or white
Driver: KS0108
Operating temperatures: -20 to +70 degrees Celsius
Storage temperatures: -30 to +80 degrees Celsius

Certifications

Our factory pass ISO9001 and all products can pass CE,ROHS,SGS.

Company Advantages

14 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free samples are available for some styles

Related Products

About graphical lcd module ,we have 120x32 dots matrix lcd module ,122x32 graphical lcd module,128x32 stn lcd display module ,128x64 monochrome lcd module,128x128 lcd display module,160x128 dots matrix lcd display,160x160 stn lcd,

192x64 graphical lcd display module,240x64 lcd,240x128,240x160 and 320x240 lcd module display .

Display Content	Product No.	Outline size(mm)	V.A(mm)	Dot size(mm)	Controller	Supply Voltage	Interface
120x32	CM12032-1	98×50×14	76×26	0.55×0.6	1520	5V/3V	parallel
122x32	CM12232-1	84×44×13	60×18	0.36×0.41	1520	5V/3V	parallel
122x32	CM12232-4	67.2×27.2×8.7	54.8×18.8	0.36×0.41	1520	5V	parallel
122x32	CM12232-5	76.5×29×7	60.5×20.5	0.36×0.41	1520	5V/3V	parallel
122x32	CM12232-7	76×32.5×13	60×18	0.36×0.41	1520	5V/3V	parallel
122x32	CM12232-10	87×29×13	60×18	0.36×0.41	1520	5V/3V	parallel
122x32	CM12232-11	80.9×29×13	60×18	0.36×0.41	1520	5V/3V	parallel
122x32	CM12232-12	93×29.3×13	60×18	0.36×0.41	1520	5V/3V	parallel
122x32	CM12232-13	84×44×13	60×18	0.36×0.41	1520	5V/3V	parallel
122x32	CM12232-17	66×36×13	60×18	0.36×0.41	1520	5V	parallel
122x32	CM12232-18	84×44×13	60×18	0.36×0.41	1520	5V	parallel
122x32	CM12232-20	84×44×13	60×18	0.36×0.41	1520	5V/3V	parallel
122x32	CM12232-21	84×44×13	60×18	0.36×0.41	1520	5V/3V	parallel
122x32	CM12232-26	65.4×28.8×5.5	54.8×18.3	0.36×0.41	1520	5V	parallel
122x32	CM12232-27	75.9×31.6×10	59.1×16.7	0.44×0.42	ST7565R	3V	serial/parallel
128x32	CM12832-1	110×65×14	76×25	0.52×0.52	KS0108	5V/3V	parallel
128x32	CM12832-3	110×65×14	76×25	0.52×0.52	KS0108	5V/3V	parallel
128x64	CM12864-1	113×65×12.5	73.5×39	0.458×0.458	KS0108	5V/3V	parallel
128x64	CM12864-2	93×70×14	70.8×38.8	0.48×0.48	KS0108	5V/3V	parallel
128x64	CM12864-3	78×70×12	62×44	0.39×0.55	T6963C	5V/3V	parallel
128x64	CM12864-5	106×69×12	62×44	0.39×0.55	T6963C	5V/3V	parallel
128x64	CM12864-6	106×69×12	62×44	0.39×0.55	KS0108	5V/3V	parallel
128x64	CM12864-7	107×85×9.5	88×60	0.6×0.8	KS0108	5V/3V	parallel
128x64	CM12864-8	78×70×12	62×44	0.39×0.55	KS0108	5V/3V	parallel
128x64	CM12864-10	78×70×12	62×44	0.39×0.55	T6963C	5V/3V	parallel
128x64	CM12864-11	93×70×13	73×39	0.48×0.48	KS0108	5V/3V	parallel
128x64	CM12864-16	54×50×6.5	43.5×29	0.28×0.35	KS0108	5V/3V	parallel
128x64	CM12864-17	86×61×13.2	70.6×38.8	0.48×0.48	KS0108	5V/3V	parallel
128x64	CM12864-18	75×52×12	60×32.6	0.4×0.4	KS0108	5V/3V	parallel
128x64	CM12864-26	78×70×12	62×44	0.39×0.55	KS0108	5V/3V	parallel
128x64	CM12864-28	93×70×14	70.8×38.8	0.48×0.48	KS0108	5V/3V	parallel
128x64	CM12864-30	93×70×13	73×39	0.48×0.48	KS0108	5V/3V	parallel
128x64	CM12864-31	54×50×7.5	40.5×28.8	0.29×0.36	IST3004	3V	serial/parallel
128x64	CM12864-32	93×70×10.2	70.5×38.6	0.48×0.48	ST7565P	3V	serial/parallel
128x128	CM128128-1	106×92×14	73×73	0.49×0.49	T6963C	5V	serial/parallel
128x128	CM128128-4	106×92×14	73×73	0.49×0.49	T6963C	5V	serial/parallel
128x128	CM128128-6	72.1×65×8.3	48×48	0.33×0.33	ST7541	3V	parallel
128x128	CM128128-8	50.0×45.8×7.7	31×30	0.19×0.19	ST7541	3V	serial/parallel
160x128	CM16064-1	87×60×12.5	61.5×26	0.33×0.33	T6963C	5V/3V	parallel
160x128	CM160128-2	129×102×12	101×82	0.54×0.54	T6963C	5V/3V	serial/parallel
160x160	CM160160-1	67×63×7.5	46×46	0.245×0.245	320A	3V	parallel
160x160	CM160160-3	77×73.5×7.8	58×58	0.32×0.32	UC1698	3V	parallel
192x64	CM19264-1	130×65×12.2	104×39	0.458×0.458	KS0108	5V/3V	parallel
192x64	CM19264-4	120×62×12.2	104×39	0.458×0.458	KS0108	5V/3V	parallel
192x64	CM19264-6	100×60×13	84×31	0.36×0.36	KS0108	5V/3V	parallel
To be continue ---------
