192x64 STN Graphic LCM With Built-in Chinese Character

192x64 STN Graphic LCM With Built-in Chinese Character thumbnail-1
192x64 STN Graphic LCM With Built-in Chinese Character photo-1
US$ 8.6 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Caijing
Model Number:
CM19264-7BLWAA
Contact Supplier Request Quote Chat Now
Shenzhen AOSZX Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Caijing
Model Number CM19264-7BLWAA
Type COB

192x64 STN graphic LCM with built-in Chinese character

Product Description

Display type: COB STN/FSTN, blue/gray/yellow/green
Dot matrix: 192 x 64mm
Duty: 1/64 inches
Bias: 1/9 inches
Input voltage: 5.0/3.3V DC
Controller: ST7920 or equation
Connector: zebra
LED back-light colors: white/blue/yellow/green
Operating temperatures: 0 to 50/-20 to 70 degrees Celsius
Store temperatures: -10 to 60/-30 to 80 degrees Celsius

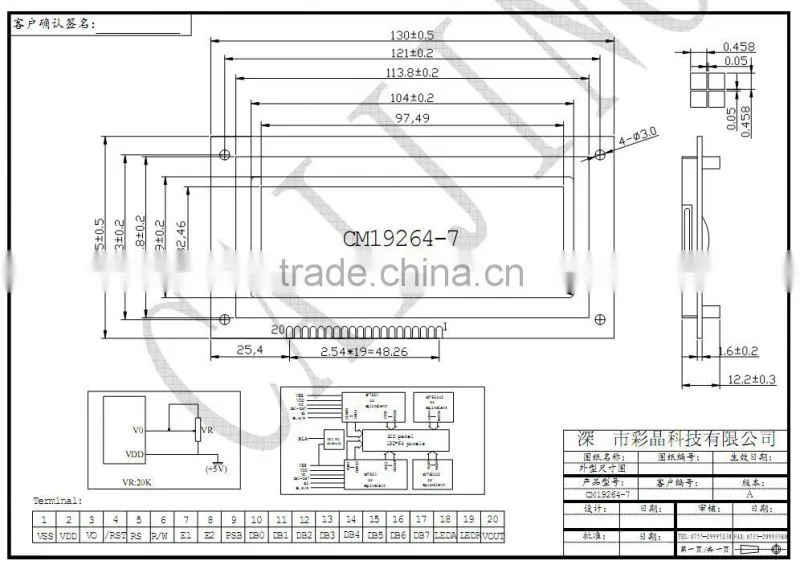

Module dimension:
Size (W x H x T): 130 x 65.0 x 12.2mm
VA (W x H): 104.0 x 39.0mm
AA (W x H): 97.49 x 32.46mm
Dot size (W x H): 0.458 x 0.458mm
Dot pitch (W x H): 0.05 x 0.05mm

192x64 STN graphic LCM with built-in Chinese character

Certifications

 Our factory pass ISO9001 and all products can pass CE,ROHS,SGS.



192x64 STN graphic LCM with built-in Chinese character192x64 STN graphic LCM with built-in Chinese character192x64 STN graphic LCM with built-in Chinese character192x64 STN graphic LCM with built-in Chinese character





Company Advantages



14 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free samples are available for some styles



Related Products

 About graphical lcd module ,we have 120x32 dots matrix lcd module ,122x32 graphical lcd module,128x32 stn lcd display module ,128x64 monochrome lcd module,128x128 lcd display module,160x128 dots matrix lcd display,160x160 stn lcd,

192x64 graphical lcd display module,240x64 lcd,240x128,240x160 and 320x240 lcd module display .

Display Content  Product No. Outline size(mm) V.A(mm) Dot size(mm) Controller Supply Voltage Interface
120x32 CM12032-1 98×50×14 76×26 0.55×0.6 1520 5V/3V parallel
122x32 CM12232-1 84×44×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-4 67.2×27.2×8.7 54.8×18.8 0.36×0.41 1520 5V parallel
122x32 CM12232-5 76.5×29×7 60.5×20.5 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-7 76×32.5×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-10 87×29×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-11 80.9×29×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-12 93×29.3×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-13 84×44×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-17 66×36×13 60×18 0.36×0.41 1520 5V parallel
122x32 CM12232-18 84×44×13 60×18 0.36×0.41 1520 5V parallel
122x32 CM12232-20 84×44×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-21 84×44×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-26 65.4×28.8×5.5 54.8×18.3 0.36×0.41 1520 5V parallel
122x32 CM12232-27 75.9×31.6×10 59.1×16.7 0.44×0.42 ST7565R 3V serial/parallel
128x32 CM12832-1 110×65×14 76×25 0.52×0.52 KS0108 5V/3V parallel
128x32 CM12832-3 110×65×14 76×25 0.52×0.52 KS0108 5V/3V parallel
128x64 CM12864-1 113×65×12.5 73.5×39 0.458×0.458 KS0108 5V/3V parallel
128x64 CM12864-2 93×70×14 70.8×38.8 0.48×0.48 KS0108 5V/3V parallel
128x64 CM12864-3 78×70×12 62×44 0.39×0.55 T6963C 5V/3V parallel
128x64 CM12864-5 106×69×12 62×44 0.39×0.55 T6963C 5V/3V parallel
128x64 CM12864-6 106×69×12 62×44 0.39×0.55 KS0108 5V/3V parallel
128x64 CM12864-7 107×85×9.5 88×60 0.6×0.8 KS0108 5V/3V parallel
128x64 CM12864-8 78×70×12 62×44 0.39×0.55 KS0108 5V/3V parallel
128x64 CM12864-10 78×70×12 62×44 0.39×0.55 T6963C 5V/3V parallel
128x64 CM12864-11 93×70×13 73×39 0.48×0.48 KS0108 5V/3V parallel
128x64 CM12864-16 54×50×6.5 43.5×29 0.28×0.35 KS0108 5V/3V parallel
128x64 CM12864-17 86×61×13.2 70.6×38.8 0.48×0.48 KS0108 5V/3V parallel
128x64 CM12864-18 75×52×12 60×32.6 0.4×0.4 KS0108 5V/3V parallel
128x64 CM12864-26 78×70×12 62×44 0.39×0.55 KS0108 5V/3V parallel
128x64 CM12864-28 93×70×14 70.8×38.8 0.48×0.48 KS0108 5V/3V parallel
128x64 CM12864-30 93×70×13 73×39 0.48×0.48 KS0108 5V/3V parallel
128x64 CM12864-31 54×50×7.5 40.5×28.8 0.29×0.36 IST3004 3V serial/parallel
128x64 CM12864-32 93×70×10.2 70.5×38.6 0.48×0.48 ST7565P 3V serial/parallel
128x128 CM128128-1 106×92×14 73×73 0.49×0.49 T6963C 5V serial/parallel
128x128 CM128128-4 106×92×14 73×73 0.49×0.49 T6963C 5V serial/parallel
128x128 CM128128-6 72.1×65×8.3 48×48 0.33×0.33 ST7541 3V parallel
128x128 CM128128-8 50.0×45.8×7.7 31×30 0.19×0.19 ST7541 3V serial/parallel
160x128 CM16064-1 87×60×12.5 61.5×26 0.33×0.33 T6963C 5V/3V parallel
160x128 CM160128-2 129×102×12 101×82 0.54×0.54 T6963C 5V/3V serial/parallel
160x160 CM160160-1 67×63×7.5 46×46 0.245×0.245 320A 3V parallel
160x160 CM160160-3 77×73.5×7.8 58×58 0.32×0.32 UC1698 3V parallel
192x64 CM19264-1 130×65×12.2 104×39 0.458×0.458 KS0108 5V/3V parallel
192x64 CM19264-4 120×62×12.2 104×39 0.458×0.458 KS0108 5V/3V parallel
192x64 CM19264-6 100×60×13 84×31 0.36×0.36 KS0108 5V/3V parallel
To be continue ---------
