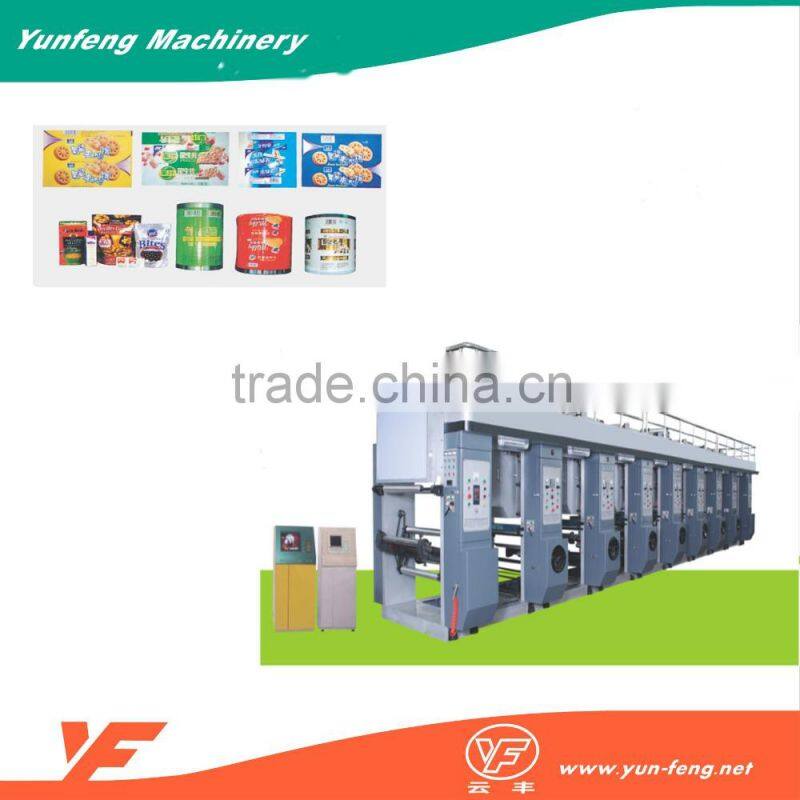

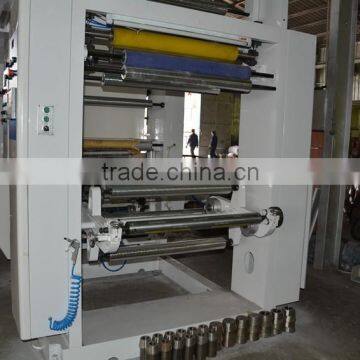

Roto gravure printing machine
1. It’s suitable for BOPP, PET, PVC, PE and combined film and paper with the same properties, its printing speed is 50m/min, while the mechanical speed is 60/min.
2. The main transmission system adopts speed-adjusting motor to control the speed .
3. It can realize printing in single-side, dual-side, muti-colors, and has function of meter counting.
4. The material receiving , the traction of material receiving and feeding adopt moment motor, while material feeding adopts magnetic powder braker.
5. The ink circulates automatically with the ink pump.
6. The dry system adopts dual oven tunnel. The up-and down oven of each printing unit adopts centrifugal blower to bring in the air. It is of cast iron chassis and to dry the materials 50 per minute. The temperature of oven can be adjusted and controlled automatically.
7. the position of ink scraper can be adjusted freely up and down, pre and post. And it adopts horizontal movement repeatedly.
8. The material receiving and material feeding device adopt reversal dual station to realize feeding and receiving materials without stopping the machine.
9. The rubber roller adopts manual pressure.
10. Printing cylinder correcting adopts differential transmission device. The printing cylinder can be adjusted in 360 degrees vertically freely. Its horizontal adjustment scope is 30mm.
Main technical parameter:
Type |
YF-P600A |
YF-P800A |
YF-P1100A |
Printing Width |
600mm |
800mm |
1100mm |
Printing Length |
240-850mm |
240-850mm |
240-850mm |
Max.Printing Speed |
50m/min |
50m/min |
50m/min |
Format Precision |
0.2mm |
0.2mm |
0.2mm |
Total Power |
37kw |
48kw |
57kw |
Printing cylinder diameter |
90-300mm |
90-300mm |
90-300mm |
Rolling material Dia |
600mm |
600mm |
600 |
Overall Dimension |
9300x1980x2400 |
9300x2180x2400 |
9300x2480x2400 |
Weight |
4300kgs |
4800kgs |
5300kgs |
MOQ |
1 set (more than 3 sets, please ask us for discount) |
Delivery time |
20-50 days after receipt of deposit |
Delivery Clause |
FOB Ningbo Port |
Terms of payment |
T/T, L/C at sight |
Installation |
If need our engineer go to your country to install, please repare the material and bulid machine firstly. Also buyer should take charge the tickets go and back, live, food and salary of our engineer. |
Guarantee |
One year, machine trouble is caused by nature not by human force from delivery time . Easily wear parts also is one year |
After sale service |
Free service of machine warranty by one year from the date of delivery; paid service after service period,the labor and parts costs are charged. |
1. Q: Are you a factory or trading company?
A:We are factory .we are film extrusion machines,printing machines,bag making machines,slitting machines and other related machines manufacturer nearly 20 years.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Rui'an City, Zhejiang Province, China.The nearest airport is Wenzhou airport,From Shanghai to Wenzhou by air about 1 hour.we can go Wenzhou airport pick you.
3. Q: How about you to keep the quality and th after—sales service?
A:Our idea is“QUALITY IS THE FIRST IS THE MAOST IMPORTANT".We insit for the long time business, not once time business. From beginning to end, we will reply and try to solve within 12 hours.
4. Q: How about the payment term?
A: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
5. What about warranty and do the engineers available to overseas?
A: One year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.But buyer need provided the ticket,food,hotel cost etc.
6.What about the service after sale?
A: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12 hours and help you to slove the problem.
7.How about machine testing?
A: If you come,we will test machine with you toghther,If you need special material to test,please take it.If you can’t come.we will test it by ourselves and send the video to you for your reference.
