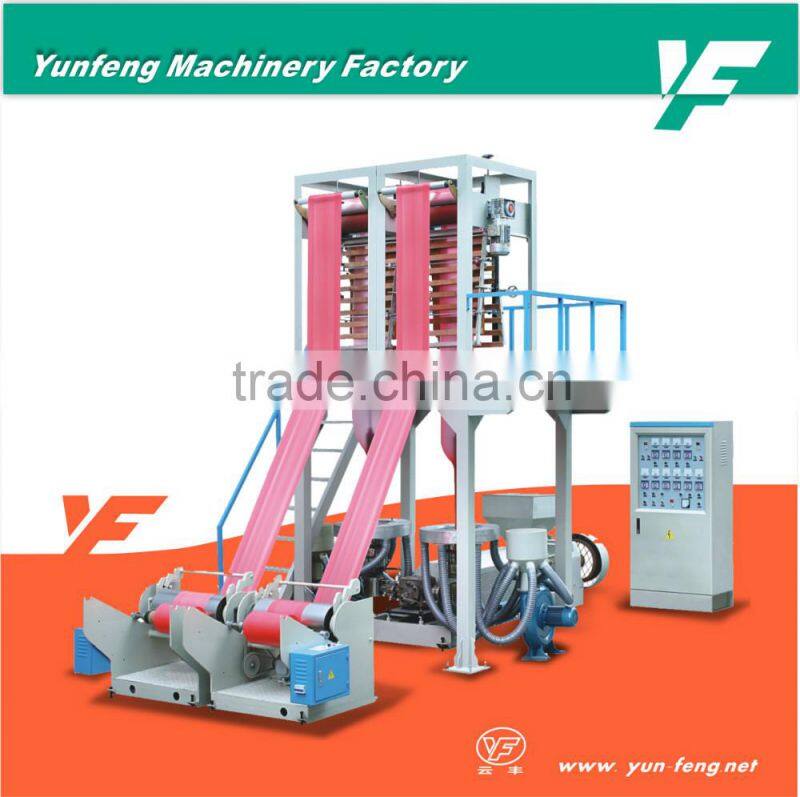

YF TWO DIE HEAD FILM EXTRUDER MACHINE
Advantages:
1.All machines before shipment, we will examin and test it.(if customer come, we will waiting for you coming).
2.Our after-sale service is perfect. We have some engineer to test machine in foreign all over year. If you need engineer to test, we can arrange it.
3.Prompt Reply Within 12 Hours.
4.Production quantity about 200-300sets each year.

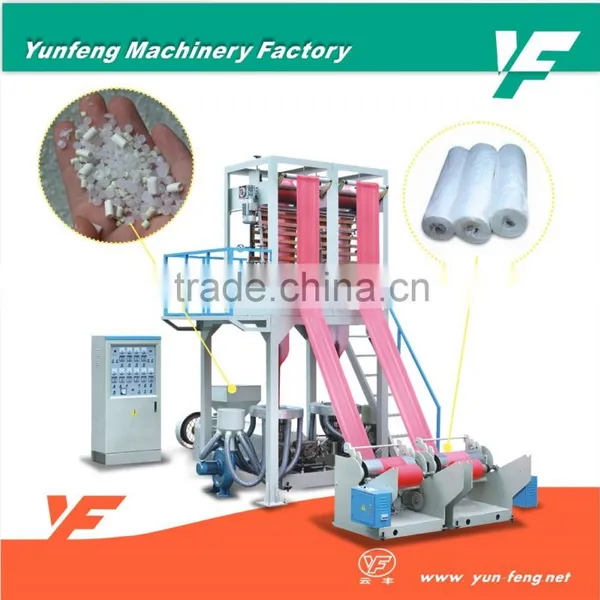

The cylinders and screw rods of extruders are all made from high-quality alloy steel through nitriding and precision machining, ensuring optimal harness and corrosion resistance. The machine unit is provided with one set of extruders and two pairs of machine heads according to scientific design, has the advantages of improving productivity and saving energy, labor force and factories, and is used to blow low-density polyethylene (LDPE) and high-density polyethylene (HDPE) plastic films. The plastic films can be made into various vest bags and flat bags widely used in packaging for food, apparel, textiles and industry.
Model |
YF-50 |
YF-55 |
YF-60 |
YF-65 |
Screw Diameter |
50mm |
55mm |
60mm |
65mm |
Screw Ratio(L/D) |
28:1 |
28:1 |
28:1 |
28:1 |
Screw Speed |
10-100r/min |
10-100r/min |
10-100r/min |
10-100r/min |
Power of Main Motor Max Output |
11Kw 35kg/h |
15Kw 50kg/h |
15-18.5Kw 65kg/h |
18.5-22Kw 80kg/h |
Max.Folding Width of Film |
600mm |
800mm |
1000mm |
1200mm |
Single-sided Thickness of Film |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
Total Power |
22Kw |
26Kw |
30Kw |
36Kw |
Weight of Machine |
2T |
2.3T |
2.6T |
3T |
Overall Dimensions |
4000 x 1800 x 4600mm |
4200 x 2000 x 4900mm |
4600 x 2300 x 5600mm |
4800 x 2500 x 5800mm |
Payment:T/T 30% with the order,70% before the shipment
Delivery time:30-40 days
Packing:By standard export packing.
Installation: If need our engineer go to your country to install, please repare the material and bulid machine firstly. Also buyer should take charge the tickets go and back, live, food and salary of our engineer.
Guarantee:One year, machine trouble is caused by nature not by human force from delivery time . Easily wear parts also is one year. after sale service for all life.
Add:Baixiang Industrial Zone,Ruian Wenzhou Zhejiang China.
Tel:+86-0577-65595931
Fax:+86-0577-65056335
Skype:miaoyuwei1205
Mob:86-13780172923
1. Q: Are you a factory or trading company?
A:We are factory .we are film extrusion machines,printing machines,bag making machines,slitting machines and other related machines manufacturer nearly 20 years.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Rui'an City, Zhejiang Province, China.The nearest airport is Wenzhou airport,From Shanghai to Wenzhou by air about 1 hour.we can go Wenzhou airport pick you.
3. Q: How about you to keep the quality and th after—sales service?
A:Our idea is“QUALITY IS THE FIRST IS THE MAOST IMPORTANT".We insit for the long time business, not once time business. From beginning to end, we will reply and try to solve within 12 hours.
4. Q: How about the payment term?
A: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
5. What about warranty and do the engineers available to overseas?
A: One year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.But buyer need provided the ticket,food,hotel cost etc.
6.What about the service after sale?
A: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12 hours and help you to slove the problem.
7.How about machine testing?
A: If you come,we will test machine with you toghther,If you need special material to test,please take it.If you can’t come.we will test it by ourselves and send the video to you for your reference.
