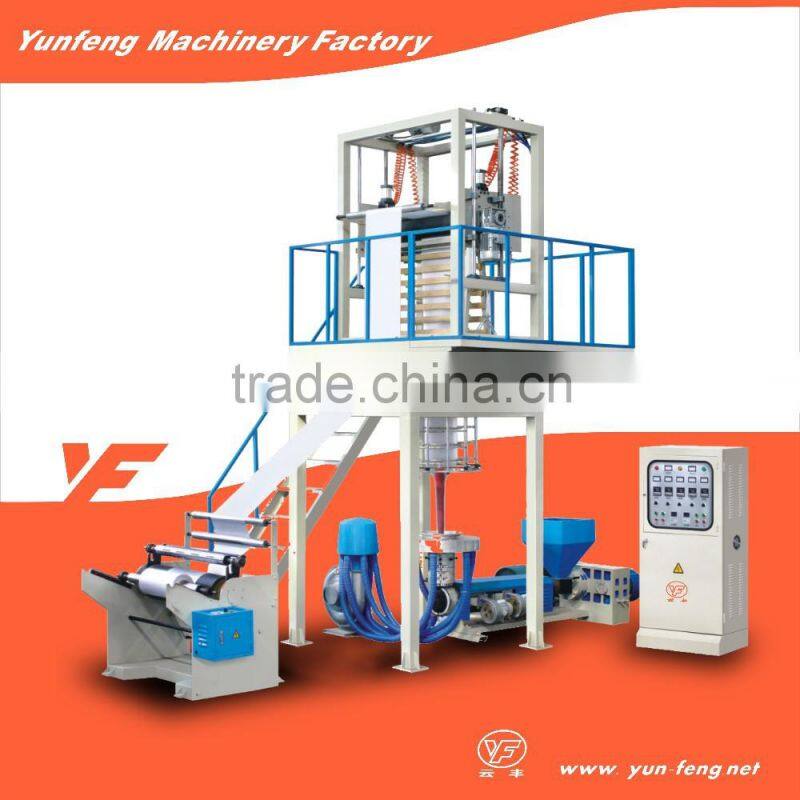

YF Film Blowing Extrusion Machine
Advantages:
1.All machines before shipment, we will examin and test it.(if customer come, we will waiting for you coming).
2.Our after-sale service is perfect. We have some engineer to test machine in foreign all over year. If you need engineer to test, we can arrange it.
3.Prompt Reply Within 12 Hours.
4.Production quantity about 200-300sets each year.
High and low-pressure polyethylene dual-purpose film blowing machine unit is used to blow various plastic films such as low-density polyethylene (LDPE), high-density polyethylene (HDPE) and linear low-density polyethylene (LLDPE). The films can be widely applied to packaging for industrial products, textiles, apparel and food and agricultural coverage. The cylinders and screw rods of extruders in mentioned models are all made from high-quality alloy steel through precision machining and nitriding, so as to ensure optimal hardness and corrosion resistance. The auxiliary extruder is provided with a platform rail worktable to be operated more conveniently. The winding device adopts torque motor as the power to keep suitable tension, orderly winding and convenient roll replacement.
Model |
YF-45 |
YF-55 |
YF-65 |
screw diameter |
Φ45 |
Φ55 |
Φ65 |
screw ratio L/D |
28:1 |
28:1 |
28:1 |
Suitable Material |
HDPE/LDPE |
||
main motor power |
11kw |
18.5kw |
30kw |
Max.extrusion output |
55kg/h |
70kg/h |
90kg/h |
range of die |
Φ60 Φ80 |
Φ100 Φ150 |
Φ120 Φ250 |
Film thickness |
0.009-0.05mm |
0.009-0.05mm |
0.009-0.05mm |
max folding width of film |
600mm |
800mm |
1000mm |
Average Power-consume |
18kw |
31kw |
45kw |
overall dimension |
3000×2800×4200 |
3500×3500×4800 |
4000×4000×6000 |
weight of machint |
3.5T |
4.0T |
4.5T |
MOQ |
1 set (more than 3 sets, please ask us for discount) |
Delivery time |
20-50 days after receipt of deposit |
Packing |
By standard export packing |
Terms of payment |
T/T, L/C at sight, |
Installation |
If need our engineer go to your country to install, please repare the material and bulid machine firstly. Also buyer should take charge the tickets go and back, live, food and salary of our engineer. |
Guarantee |
One year, machine trouble is caused by nature not by human force from delivery time . Easily wear parts also is one year |
After sale service |
Free service of machine warranty by one year from the date of delivery;paid service after service period,the labor and parts costs are charged. |
Payment |
T/T 30%with the order,70%before the shipment |
Add:Baixiang Industrial Zone,Ruian Wenzhou Zhejiang China.
Tel:+86-0577-65595931
Fax:+86-0577-65056335
Skype:miaoyuwei1205
Mob:86-13780172923
1. Q: Are you a factory or trading company?
A:We are factory .we are film extrusion machines,printing machines,bag making machines,slitting machines and other related machines manufacturer nearly 20 years.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Rui'an City, Zhejiang Province, China.The nearest airport is Wenzhou airport,From Shanghai to Wenzhou by air about 1 hour.we can go Wenzhou airport pick you.
3. Q: How about you to keep the quality and th after—sales service?
A:Our idea is“QUALITY IS THE FIRST IS THE MAOST IMPORTANT".We insit for the long time business, not once time business. From beginning to end, we will reply and try to solve within 12 hours.
4. Q: How about the payment term?
A: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
5. What about warranty and do the engineers available to overseas?
A: One year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.But buyer need provided the ticket,food,hotel cost etc.
6.What about the service after sale?
A: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12 hours and help you to slove the problem.
7.How about machine testing?
A: If you come,we will test machine with you toghther,If you need special material to test,please take it.If you can’t come.we will test it by ourselves and send the video to you for your reference.
