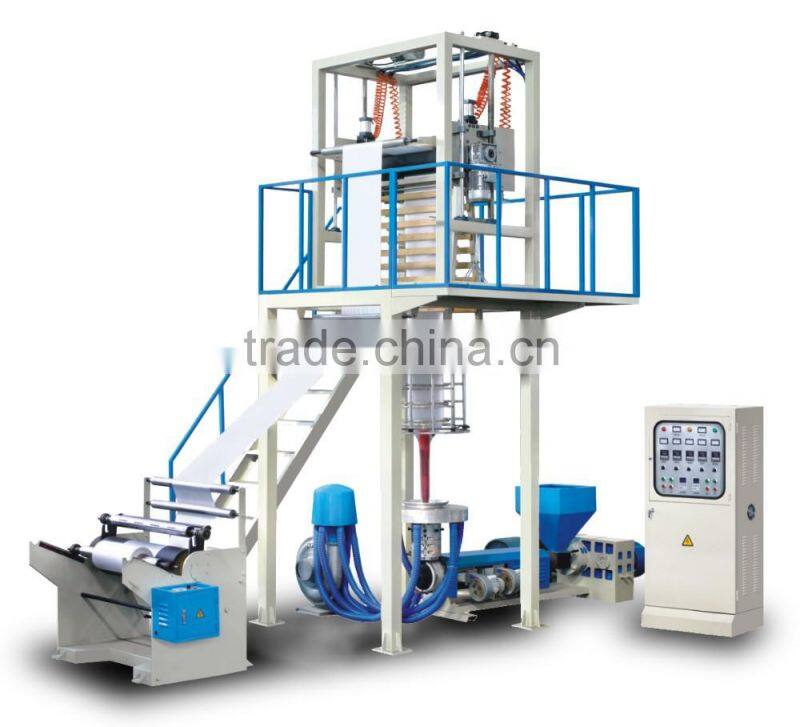

Rotary Head HDPE /LDPE T-shirt Plastic Film Extruding Blowing Machine
Specifications
1. object: LDPE, HDPE, LLDPE
2. capacity: 35-55kg/h
3. high quality, reasonable price
4. low noise
LDPE/HDPE/LLDPE Rotary-head Film Extruding Machine(PE Extruder ,PE film blowing machine ) is used for manufactoring film of LDPE, HDPE, LLDPE. which widely apply for Liquid package, print materials, industrial wrapping,etc
Main specification:
Model |
SJ-55 |
SJ-65 |
SJ-80 |
SJ-100 |
Screw Diameter(mm) |
55mm |
65mm |
80mm |
100mm |
Length to diameter of the screw |
28:1(L/D) |
28:1(L/D) |
28:1(L/D) |
28:1(L/D) |
Rotational speed of screw stem |
10-100r/min |
10-100r/min |
10-100r/min |
10-100r/min |
Max output |
50kg/h |
70kg/h |
86kg/h |
140kg/h |
Main motor power |
15KW |
22KW |
30KW |
37KW |
Specification of die head |
φ100-φ150mm |
φ120-φ220mm |
φ150-φ300mm |
φ500mm |
Head-rotated style |
uninterrupted rotary |
uninterrupted rotary |
uninterrupted rotary |
uninterrupted rotary |
Film thickness |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
Max folding diameter |
800mm |
1200mm |
1500mm |
2000mm |
Total volume |
26kw |
42kw |
56kw |
88kw |
Dimension(m) |
6.0x2.0x4.0 |
4.8x2.4x4.8 |
7.0x2.7x5.5 |
8.0x3.2x7.6 |
Weight(kg) |
2300 |
3800 |
4600 |
6000 |
MOQ |
1 set (more than 3 sets, please ask us for discount) |
Delivery time |
20-50 days after receipt of deposit |
Packing |
By standard export packing |
Terms of payment |
T/T, L/C at sight, |
Installation |
If need our engineer go to your country to install, please repare the material and bulid machine firstly. Also buyer should take charge the tickets go and back, live, food and salary of our engineer. |
Guarantee |
One year, machine trouble is caused by nature not by human force from delivery time . Easily wear parts also is one year |
After sale service |
Free service of machine warranty by one year from the date of delivery;paid service after service period,the labor and parts costs are charged. |
Payment |
T/T 30%with the order,70%before the shipment |
1. Q: Are you a factory or trading company?

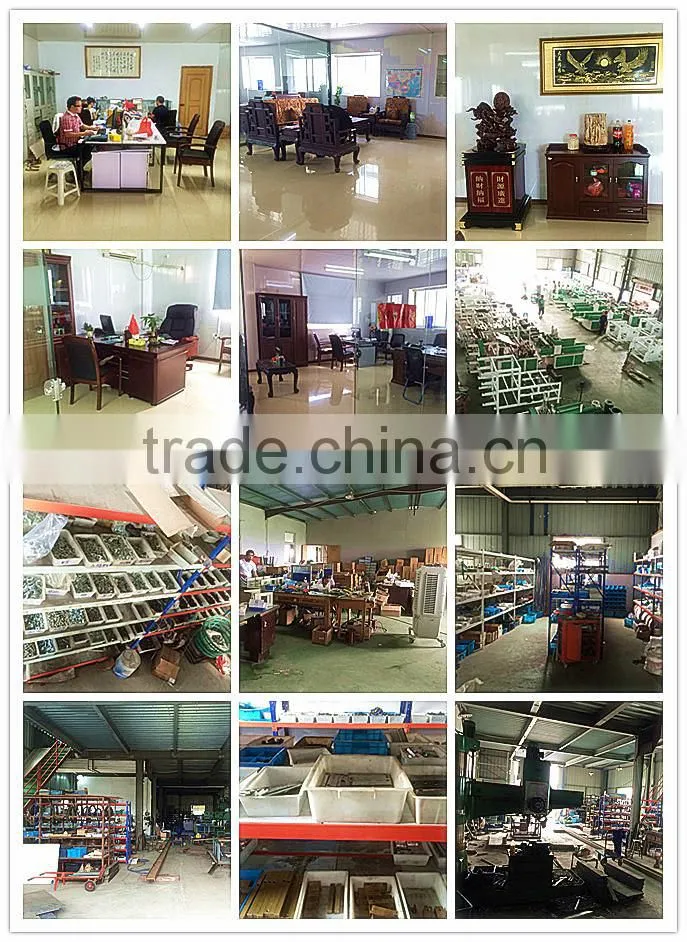

A:We are factory .we are film extrusion machines,printing machines,bag making machines,slitting machines and other related machines manufacturer nearly 20 years.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Rui'an City, Zhejiang Province, China.The nearest airport is Wenzhou airport,From Shanghai to Wenzhou by air about 1 hour.we can go Wenzhou airport pick you.
3. Q: How about you to keep the quality and th after—sales service?
A:Our idea is“QUALITY IS THE FIRST IS THE MAOST IMPORTANT".We insit for the long time business, not once time business. From beginning to end, we will reply and try to solve within 12 hours.
4. Q: How about the payment term?
A: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
5. What about warranty and do the engineers available to overseas?
A: One year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.But buyer need provided the ticket,food,hotel cost etc.
6.What about the service after sale?
A: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12 hours and help you to slove the problem.
7.How about machine testing?
A: If you come,we will test machine with you toghther,If you need special material to test,please take it.If you can’t come.we will test it by ourselves and send the video to you for your reference.
