Home > Lights & Lighting > LED Encapsulation Series > High Power LED > Max Brightness 150lm/w 50W COB Epistar LED Chip Source

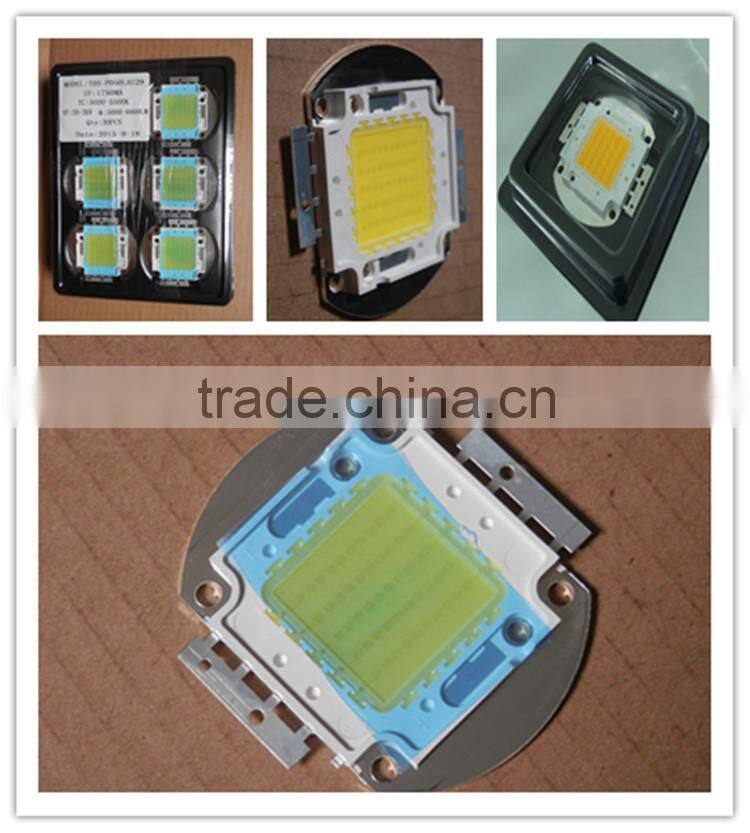

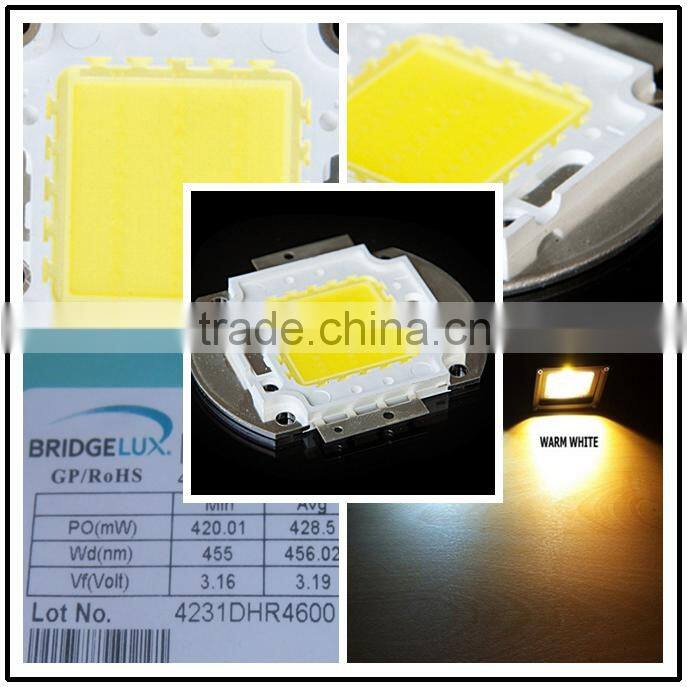

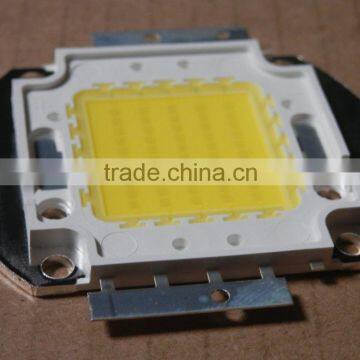

Max Brightness 150lm/w 50W COB Epistar LED Chip Source

Max Brightness 150lm/w 50W COB Epistar LED Chip Source thumbnail-3

Max Brightness 150lm/w 50W COB Epistar LED Chip Source thumbnail-4

Max Brightness 150lm/w 50W COB Epistar LED Chip Source photo-1

Max Brightness 150lm/w 50W COB Epistar LED Chip Source photo-2

Max Brightness 150lm/w 50W COB Epistar LED Chip Source photo-3

Max Brightness 150lm/w 50W COB Epistar LED Chip Source photo-4

US$ 6.5 - 10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Model Number:

TDS-P050LA Series

Chip Material:

InGaN

Emitting Color:

Natural White

Contact Supplier Request Quote Chat Now

Wuxi TDS Lighting Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Model Number TDS-P050LA Series

Chip Material InGaN

Emitting Color Natural White

Luminous Intensity 110 - 150lm/w

Luminous Flux(lm) 5000lm / 7500lm

Optical Attenuation(%) 0.0001

Power Other, 50W

Power Dissipation 0.005

Color Rendering Index(Ra) 80

Color Temperature 5000-7000K

Operating Temperature(℃) -30, 80

Storage Temperature(℃) -30, 120

Place of Origin Jiangsu, China

Brand Name TDS

Certification CE

Quick Detail

Name	Model	Color	Angle(°)	wave length/Color (IF=1.75A)		Luminous flux (IF=1.75A)		forward voltage (IF=1.75A)		DC12V 4.3A
				wave length/Color (IF=1.75A)		Luminous flux (IF=1.75A)		forward voltage (IF=1.75A)
				MIN	MAX	MIN	MAX	MIN	MAX
50W LED	TDS-P050LAO28	WHITE	160	2000K	3000K	4000	5000	30	36
	TDS-P050LAQ28	WHITE	160	3000K	4000K	4000	5000	30	36
	TDS-P050LAS29	WHITE	160	4000K	5000K	4000	5000	30	36
	TDS-P050LAU29	WHITE	160	5000K	6000K	4000	5000	30	36
	TDS-P050LAW29	WHITE	160	6000K	7000K	4000	5000	30	36
	TDS-P050LAY29	WHITE	160	7000K	8000K	4000	5000	30	36
	TDS-P050LAZ29	WHITE	160	8000K	9000K	4000	5000	30	36
	TDS-P050LGZ21	Green	160	520	530	4000	5000	30	36
	TDS-P050LRZ25	Red	160	620	630	1700	2000	20	30
	TDS-P050LBZ26	Blue	160	455	460	1000	1200	30	36

Attention: Warm White 3500-3800K Day / Natural White 6000-6200K / Cool white: >7000K

The Led Size has different Type. If you have request in its size, please contact our salesman.we will give you alternative Led Shape for your Selection.

Voltage alternative:

50W	48 Chips	2100mA	24-30V
	48 Chips	2800mA	18-22V
	50 Chips	1750mA	30-36V
	12V Battery Use	4300mA	12V

Packaging & Shipping

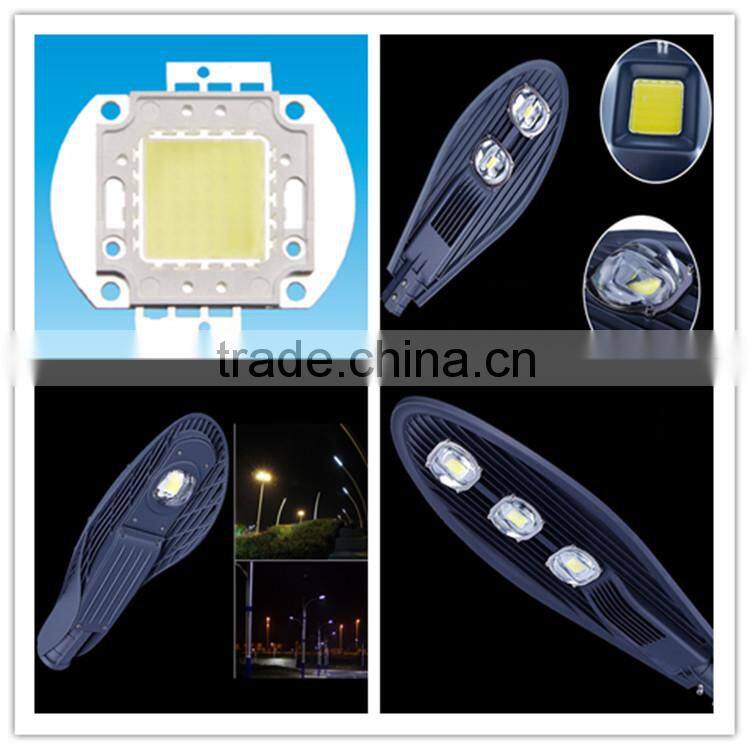

Application

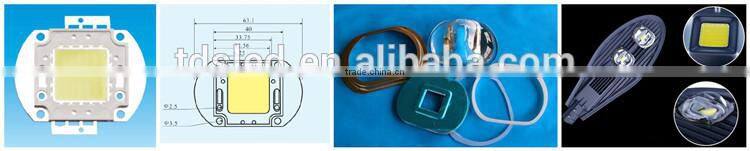

Material Show

FAQ

1. Prices conditions

Price can be FOB, CIF ,EXW, or With taxes.

2. What will be the delivery time ?

We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes

3. Shipment will be over sea or by air ?

Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn't too heavy for the transportation.

4. Could you please send me the sample ? Then i could see and analyze its quality?

Yes. We can send samples first, samples need to be charged if the value is higher.

5. Will there be any contract for this business or trade ?

Yes, there is a normal contract before the order is placed.

6. How will invoice be generated ?

Invoice can be generated with formal contract with company seals

7.payment:

T/T Company Bank , paypal , West union , MoneyGram , Visa master card , Cheque

If you always buy our led lasted in 2 years, we can give you 5000USD debt..You do not pay for them if the order is less than 5000USD. You can pay them 90 days after shipment.
