Home > Lights & Lighting > LED Encapsulation Series > High Power LED > 4500lm 7000 - 8000K Cool White 30W High Power LED Light 12VDC For Jerry's Light

4500lm 7000 - 8000K Cool White 30W High Power LED Light 12VDC For Jerry's Light

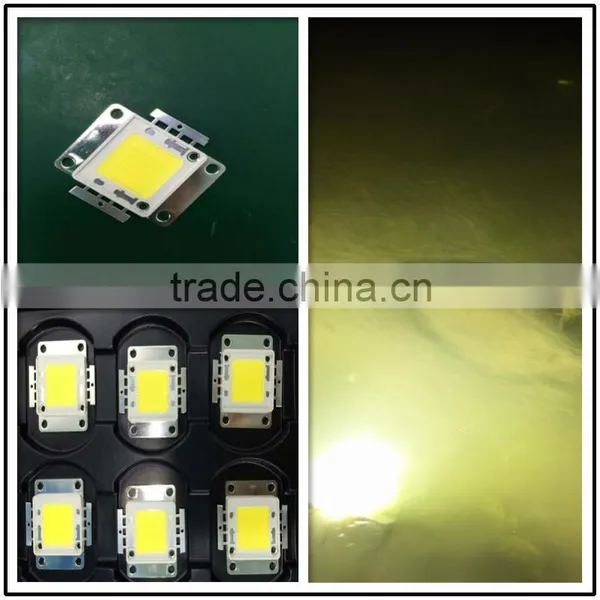

4500lm 7000 - 8000K Cool White 30W High Power LED Light 12VDC For Jerry's Light photo-1

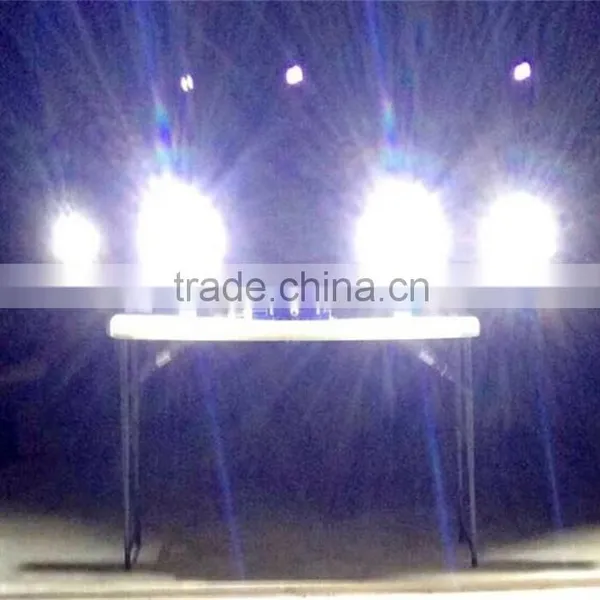

4500lm 7000 - 8000K Cool White 30W High Power LED Light 12VDC For Jerry's Light photo-2
4500lm 7000 - 8000K Cool White 30W High Power LED Light 12VDC For Jerry's Light photo-3
4500lm 7000 - 8000K Cool White 30W High Power LED Light 12VDC For Jerry's Light photo-4
4500lm 7000 - 8000K Cool White 30W High Power LED Light 12VDC For Jerry's Light photo-5
4500lm 7000 - 8000K Cool White 30W High Power LED Light 12VDC For Jerry's Light photo-6
US$ 5 - 10 MOQ: 6 Pieces
Key Specifications
Get Latest Price
Model Number:
TDS-P030LA Series
Chip Material:
InGaN
Emitting Color:
Other, Day White / Natural White/Cool white
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Model Number TDS-P030LA Series
Chip Material InGaN
Emitting Color Other, Day White / Natural White/Cool white
Luminous Intensity 110lm/w or 150lm/w
Luminous Flux(lm) 4500lm
Optical Attenuation(%) 0.0001
Power Other, 30W
Power Dissipation 0.005
Color Rendering Index(Ra) 80
Color Temperature 2000-25000K
Operating Temperature(℃) -30, 80
Storage Temperature(℃) -30, 120
Place of Origin Jiangsu, China
Brand Name TDS
Certification CE
Quick Detail

 Attention: Warm White 3500-3800K  Day / Natural White 6000-6200K / Cool white: >7000K

                     The Led Size has different Type. If you have request in its size, please contact                            our salesman.we will give you alternative Led Shape for your Selection.

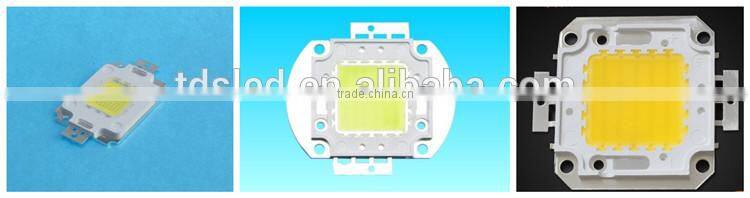

Remark:  There are 3 different of dimension for 30W LED Like Following:

4500lm 7000 - 8000K cool White 30W High Power LED Light 12VDC For Jerry's Light

Name

Model

Color

Angle(°)

wave length/Color     (IF=2.45A)

Luminous flux  (IF=2.45A)

forward voltage (IF=2.45A)




MIN

MAX

LM-1

LM-2

MIN

MAX



30W LED

TDS-P030LRC11

RED

160

620nm

625nm

500

600

12

13



TDS-P030LAD18

BLUE

160

460nm

465nm

400

550

12

13



TDS-P030LAF25

GREEN

160

520nm

525nm

3000

3100

12

13



TDS-P030LAO27

WHITE

160

2000K

3000K

3000

4500

12

13



TDS-P030LAQ27

WHITE

160

3000K

4000K

3000

4500

12

13



TDS-P030LAS27

WHITE

160

4000K

5000K

3000

4500

12

13



TDS-P030LAU27

WHITE

160

5000K

6000K

3000

4500

12

13



TDS-P030LAW27

WHITE

160

6000K

7000K

3000

4500

12

13



TDS-P030LAY27

WHITE

160

7000K

8000K

3000

4500

12

13



TDS-P030LAZ27

WHITE

160

8000K

9000K

3000

4500

12

13



TDS-P030L4RGB

RGB

160±5

R=40LM

G=100LM

B=25LM

As per Data sheet





Voltage alternative:



     30W LED281400mA20-26V
282450mA 12-15V
301750mA18-22V
302100mA15-18V
30900mA30-36V
4500lm 7000 - 8000K cool White 30W High Power LED Light 12VDC For Jerry's Light

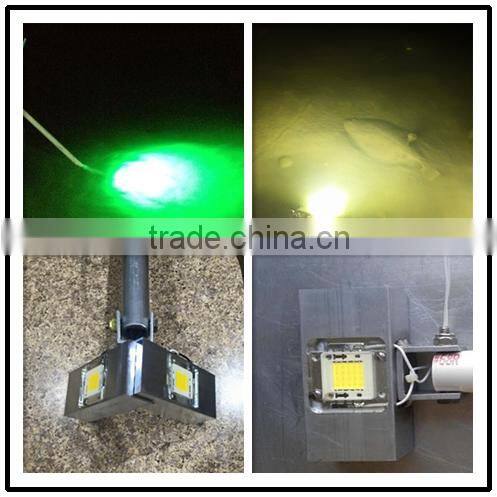

Application

 4500lm 7000 - 8000K cool White 30W High Power LED Light 12VDC For Jerry's Light

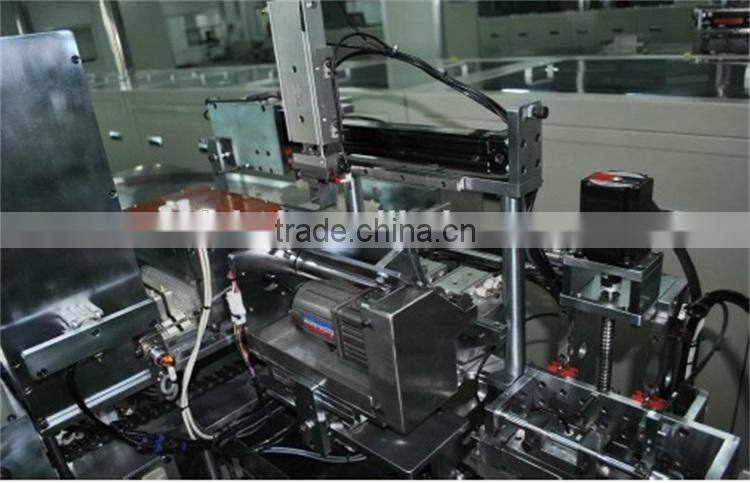

Material Show

 4500lm 7000 - 8000K cool White 30W High Power LED Light 12VDC For Jerry's Light

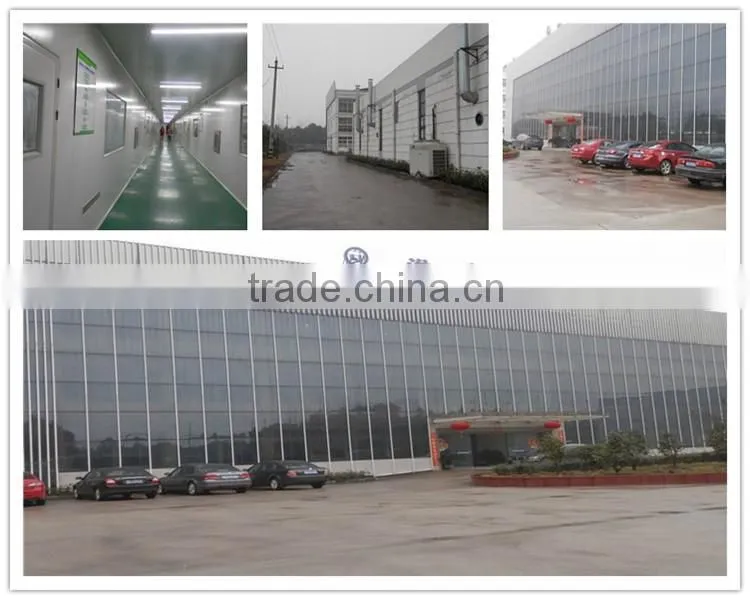

Company View

 4500lm 7000 - 8000K cool White 30W High Power LED Light 12VDC For Jerry's Light4500lm 7000 - 8000K cool White 30W High Power LED Light 12VDC For Jerry's Light

Related Product



T.D.S. is an Chinese company
T.D.S.main products is high power led which includes :1 watt led , 3 watt led, 3 watt RGB led , 5 watt led,

10 watt led ,15 watt led, 20 watt led, 30 watt led , 50 watt led , 60 watt led , 80 watt led , 100 watt led

 , 300W led. We also have 3mm led / 4.8mm / 5mm / 8mm led / 10mm led Led in all colors such

as red , green , blue , yellow , white , warm white , cool white , purple , pink , uv , amber. Our main led is

5mm round led , 5mm oval led, 5mm  strawhat

led , 5mm helmet led , 5mm blinking led , 5mm flash rgb led , 5mm screen display led , 5mm

concave  led , 5mm traffic light led , 5mm warning board led. The LED can be 3mm / 4.8mm

 / 5mm / 8mm / 10mm in various color and different viewing angle. Such as 5mm round led with 45 degree ,

5mm round led with 15 degree
