12V 30 W Led Fishing Chip Used for Led Fishing Lamp

12V 30 W Led Fishing Chip Used for Led Fishing Lamp thumbnail-1
12V 30 W Led Fishing Chip Used for Led Fishing Lamp thumbnail-2
12V 30 W Led Fishing Chip Used for Led Fishing Lamp thumbnail-3
12V 30 W Led Fishing Chip Used for Led Fishing Lamp thumbnail-4
12V 30 W Led Fishing Chip Used for Led Fishing Lamp thumbnail-5
12V 30 W Led Fishing Chip Used for Led Fishing Lamp thumbnail-6
12V 30 W Led Fishing Chip Used for Led Fishing Lamp photo-1
12V 30 W Led Fishing Chip Used for Led Fishing Lamp photo-2
12V 30 W Led Fishing Chip Used for Led Fishing Lamp photo-3
12V 30 W Led Fishing Chip Used for Led Fishing Lamp photo-4
12V 30 W Led Fishing Chip Used for Led Fishing Lamp photo-5

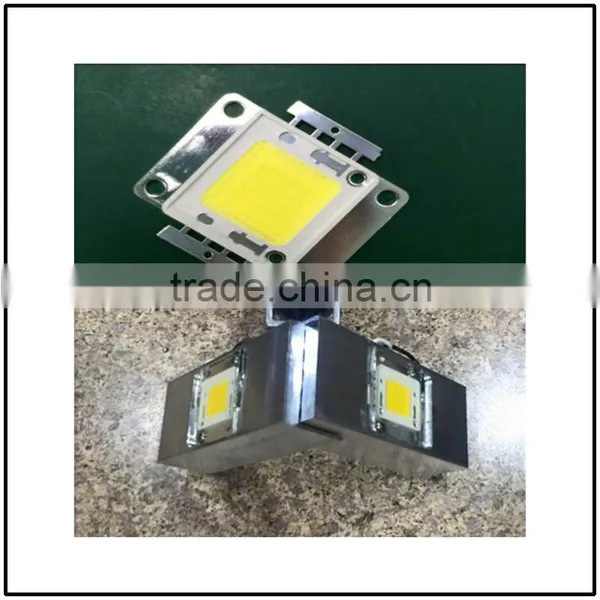

12V 30 W Led Fishing Chip Used for Led Fishing Lamp photo-6
US$ 6 - 10 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Model Number:
TDS-P030L
Chip Material:
InGaN
Emitting Color:
Other, Pure White / warm white
Contact Supplier Request Quote Chat Now
Wuxi TDS Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number TDS-P030L
Chip Material InGaN
Emitting Color Other, Pure White / warm white
Luminous Intensity 150lm/w
Luminous Flux(lm) 3000lm / 4500lm
Optical Attenuation(%) 0.0001
Power Other, 30W
Color Rendering Index(Ra) 80
Color Temperature 3000-3500K 6000K
Operating Temperature(℃) -30, 80
Storage Temperature(℃) -30, 120
Place of Origin Jiangsu, China
Brand Name TDS
Certification CE
Quick Detail

 12V 30 W Led fishing chip used for led fishing lamp

Attention: The 30W Fishing Light Can be 100-110lm/w  and 140-150lm/w in 3000-3500-3800K warm white  and 6000-6500K Natural White.(OEM Design is available)

Name

Model

Color

Angle(°)

wave length/Color     (IF=2.45A)

Luminous flux  (IF=2.45A)

forward voltage (IF=2.45A)




MIN

MAX

MIN

MAX

MIN

MAX



30W LED

TDS-P030LRC11

RED

160

620nm

625nm

300

400

12

13



TDS-P030LAD18

BLUE

160

460nm

465nm

400

550

12

13



TDS-P030LAF25

GREEN

160

520nm

525nm

1000

2200

12

13



TDS-P030LAO27

WHITE

160

2000K

3000K

2000

2800

12

13



TDS-P030LAQ27

WHITE

160

3000K

4000K

2000

2800

12

13



TDS-P030LAS27

WHITE

160

4000K

5000K

2000

3000

12

13



TDS-P030LAU27

WHITE

160

5000K

6000K

2000

3000

12

13



TDS-P030LAW27

WHITE

160

6000K

7000K

2000

3000

12

13



TDS-P030LAY27

WHITE

160

7000K

8000K

2000

3000

12

13



TDS-P030LAZ27

WHITE

160

8000K

9000K

2000

3000

12

13



TDS-P030L4RGB

RGB

160±5

R=40LM

G=80LM

B=25LM

As per Data sheet





Voltage alternative:



 Fishing Light 30W 28 1400mA 20-26V
28 2450mA  12-15V
30 1750mA 18-22V
30 2100mA 15-18V
30 900mA 30-36V

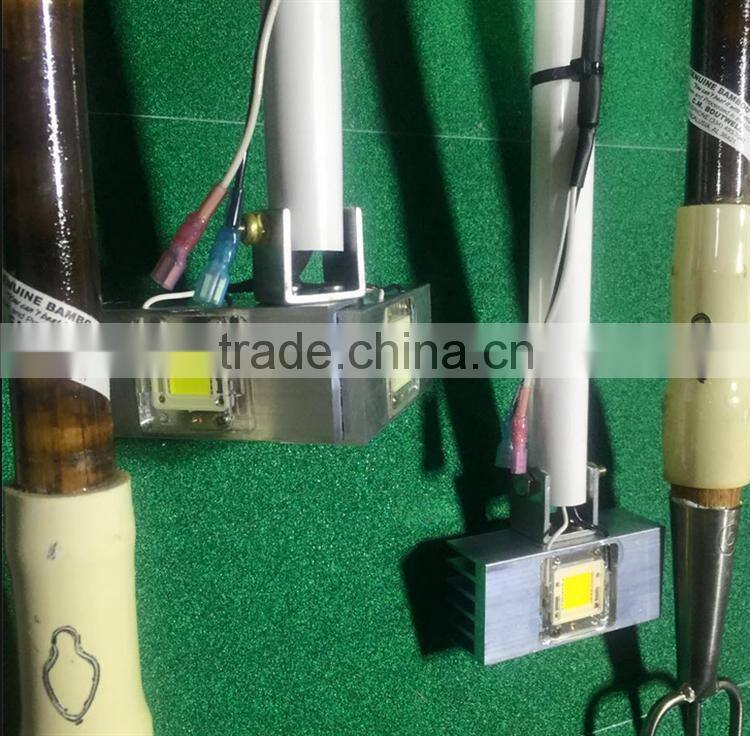

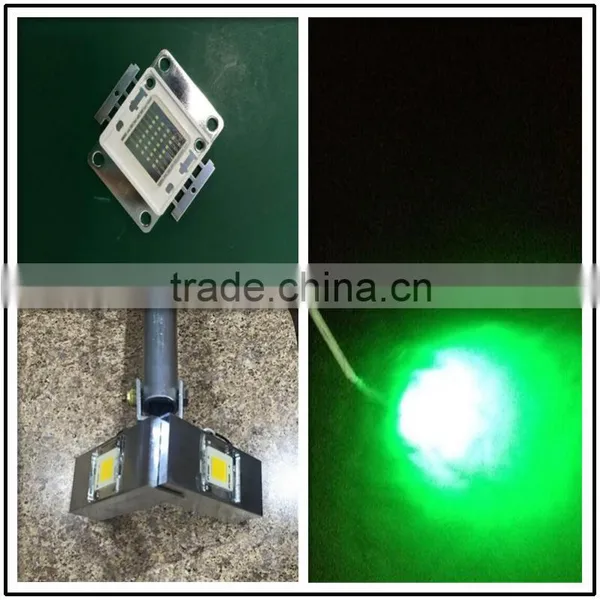

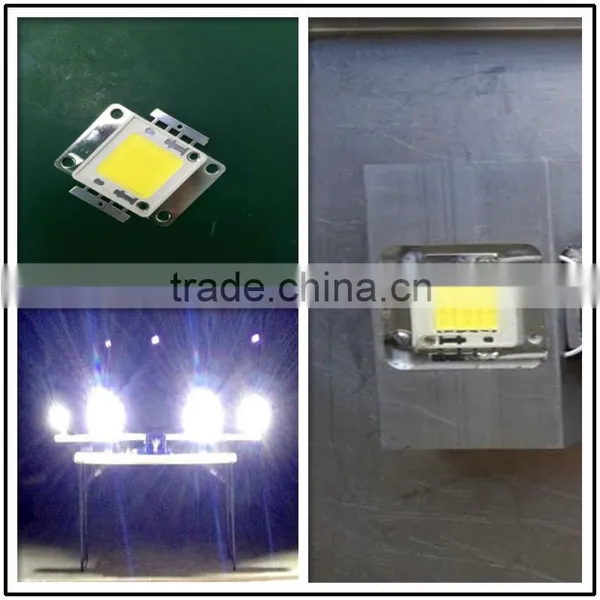

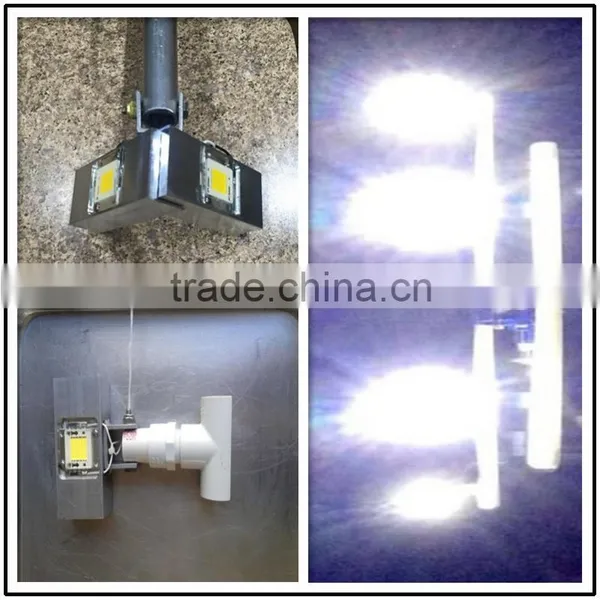

Application

12V 30 W Led fishing chip used for led fishing lamp

12V 30 W Led fishing chip used for led fishing lamp

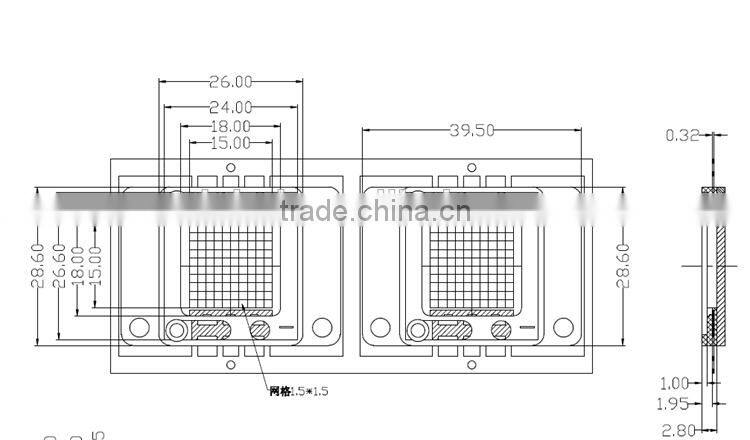

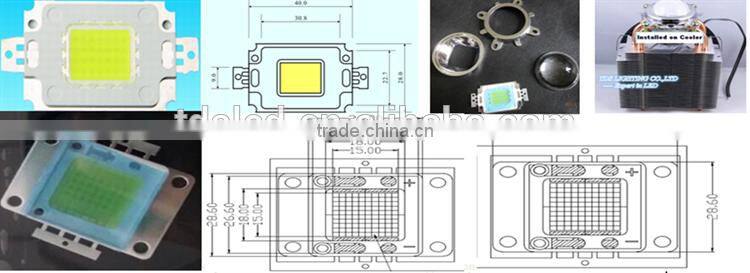

LED Dimension

 12V 30 W Led fishing chip used for led fishing lamp
