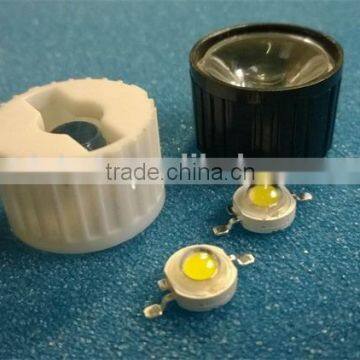

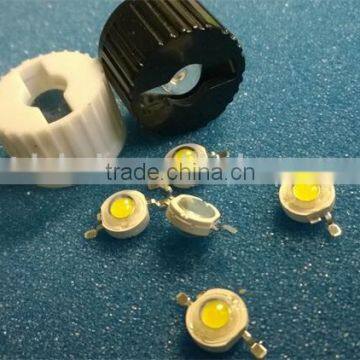

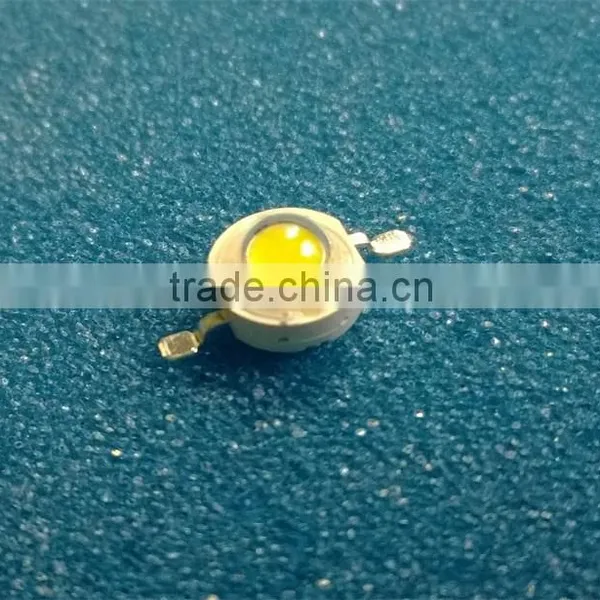

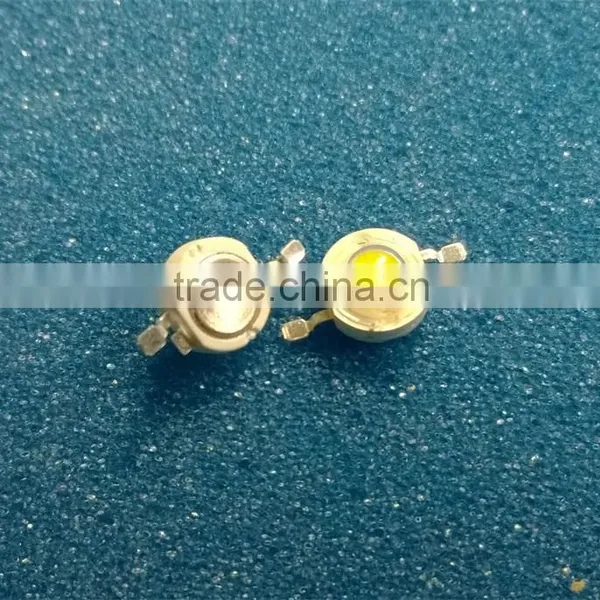

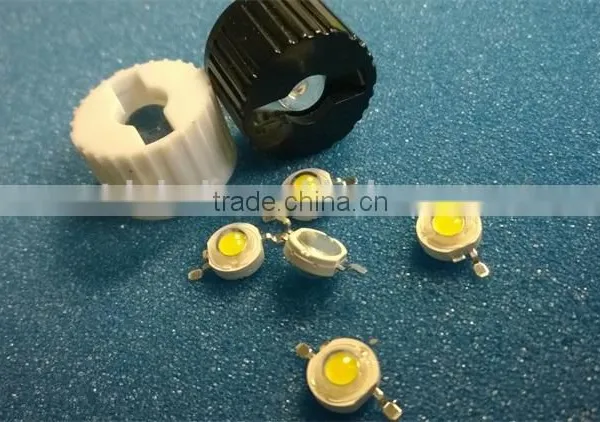

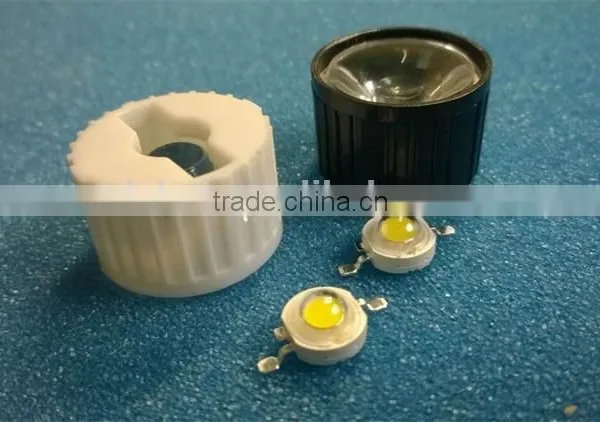

6000k - 6500k Day White 3 W LED Lighting Chip With Heatsink
US$ 0.28 - 0.33
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Model Number:
TDS-P003
Chip Material:
InGaN
Emitting Color:
Other, Warm/pure/cool white
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4500lm 7000 - 8000K Cool White 30W High Power LED Light 12VDC For Jerry's LightUS$ 5 - 10MOQ: 6 Pieces -
12V 30W Green LED Source for Fishing LightUS$ 5 - 10MOQ: 6 Pieces
-
200lm - 220lm 3 Watt High Power Led Light With HeatsinkUS$ 0.28 - 0.33MOQ: 50 Pieces
-
Epileds Chip 1W Led Chips in Green ColorUS$ 0.2 - 0.35MOQ: 20 Pieces
-
COB 150W High Power Led LightUS$ 28 - 35MOQ: 1 Piece
Model Number
TDS-P003
Chip Material
InGaN
Emitting Color
Other, Warm/pure/cool white
Luminous Intensity
80lm/w
Luminous Flux(lm)
200-220lm
Optical Attenuation(%)
0.0001
Power
Other, 1-3W, 3W
Power Dissipation
3
Color Rendering Index(Ra)
80
Color Temperature
2000-20000K
Operating Temperature(℃)
-30, 80
Storage Temperature(℃)
-30, 120
Place of Origin
Jiangsu, China
Brand Name
TDS
Certification
CE
Product Description
| Name | Model | Color | Angle(°) | wave length/Color (IF=700mA) | Luminous flux (IF=700mA) | forward voltage (IF=700mA) | |||
| MIN | MAX | MIN | MAX | MIN | MAX | ||||
| 3 W | TDS-P003L4M03 | RED | 90/120/140 | 620nm | 625nm | 80 | 100 | 2.5 | 2.6 |
| TDS-P003L4N03 | RED | 660NM | 60 | 70 | 2.5 | 2.6 | |||
| TDS-P003L4L03 | YELLOW | 590nm | 595nm | 80 | 90 | 2.8 | 3.2 | ||
| TDS-P003L4C04 | BLUE | 450nm | 460nm | 40 | 50 | 3.8 | 4.2 | ||
| TDS-P003L4C05 | BLUE | 440nm | 445nm | 40 | 50 | 3.8 | 4.2 | ||
| TDS-P003L4F07 | GREEN | 520nm | 525nm | 180 | 190 | 3.8 | 4.2 | ||
| TDS-P003L4O10 | WHITE | 2000K | 3000K | 200 | 220 | 3.8 | 4.2 | ||
| TDS-P003L4Q10 | WHITE | 3000K | 4000K | 200 | 220 | 3.8 | 4.2 | ||
| TDS-P003L4S10 | WHITE | 4000K | 5000K | 200 | 220 | 3.8 | 4.2 | ||
| TDS-P003L4U10 | WHITE | 5000K | 6000K | 200 | 220 | 3.8 | 4.2 | ||
| TDS-P003L4U11 | WHITE | 6300K | 6800K | 200 | 220 | 3.8 | 4.2 | ||
| TDS-P003L4U13 | WHITE | 7000K | 9000K | 200 | 220 | 3.8 | 4.2 | ||
| TDS-P003L4U14 | WHITE | 13000K | 15000K | 200 | 220 | 3.8 | 4.2 | ||
| TDS-P003LUV03 | UV | 390-400NM / 400-410NM / 410-420NM / 430-440NM | |||||||
| TDS-P003LUV02 | IR | 365NM | |||||||
| TDS-P003LIR05 | IR | 730NM 770NM | |||||||
| TDS-P003LIR06 | IR | 810NM 850NM 940NM | |||||||
Applications:
All general Indoor lighting and outdoor lighting:
Led Spotlight , Led bulb , under water lamp , under ground light , led fluorescent tube , Led ceiling light , Led down
light , Led garden light , Led decorative light , Led street light , high power led bay light , Led flood light , Led projector
, Led dancing light , Led surgery light , Led desk light , Led tunnel light , Led aquarium light , plant growing light ,
led sign board , Led traffic light and etc.

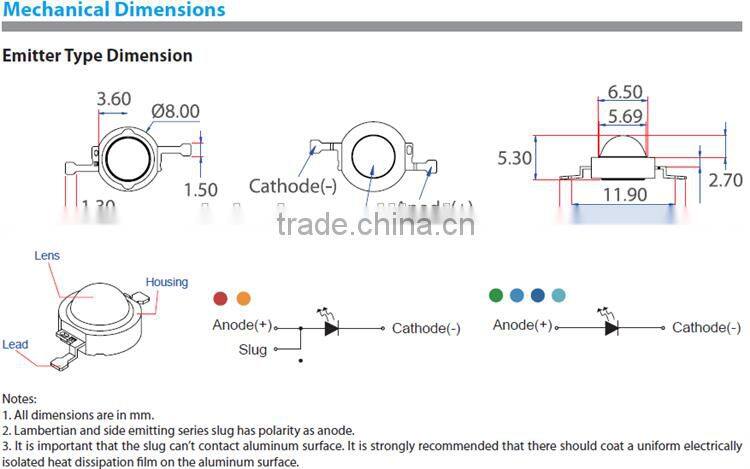

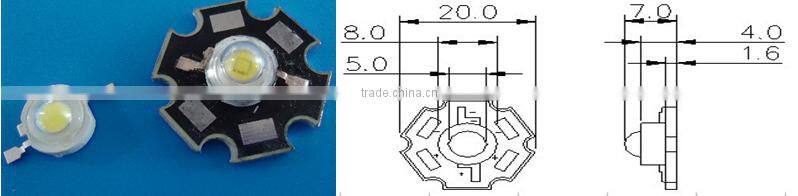

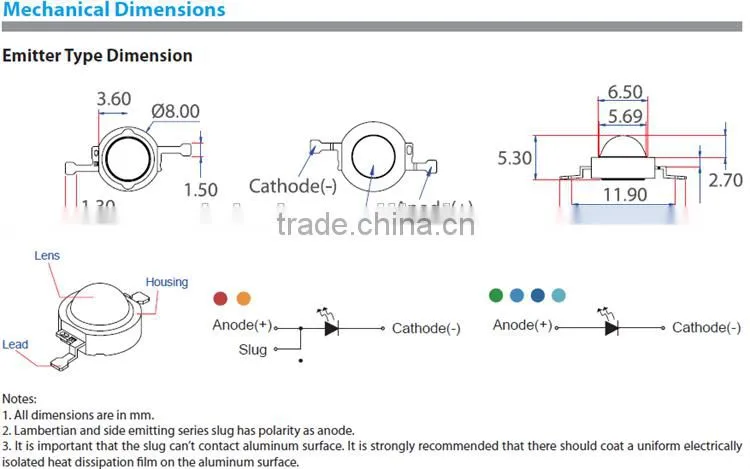

LED Dimension

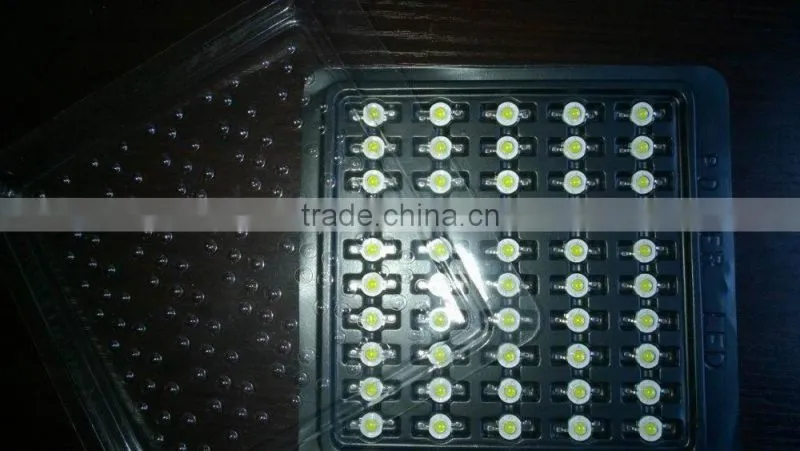

Packaging & Shipping
