Model:RZCRT-1410
Cutting Area: 1400 x 1000mm
Accuracy: 0.1 -1.0mm
Save 5%
ISO CE

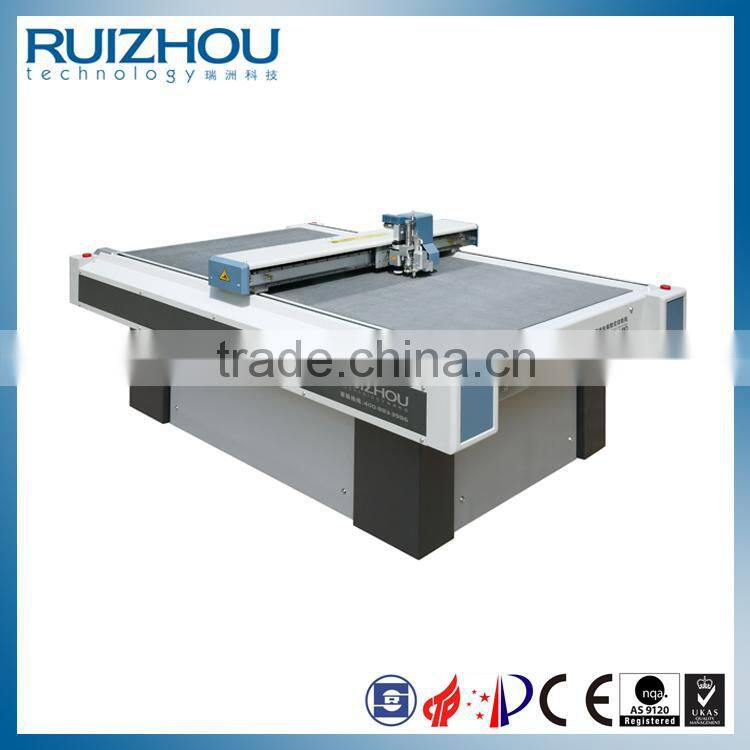

CNC Oscillating Blade Shopping Bag Making Machine
RUIZHOU RZCRT series cutting machines are very useful to cut both soft and hard materials, such as cloth, PU, fiber, corrugate board, honeycomb board, chipboard fiber board, acrylic, EVA, foam etc. RUIZHOU Computerized CNC Cutting Machine can be widely used in bag & suit case, footwear, apparel, garment, box, carton, package,airplane, furniture, lamp,color, print, packing, car upholstery,and other special applications.
Key Functions
1.Multi-functional cutting tool, be able to do complete cut, half cut, and dot cut;
2.A group of creasing wheels available for creating folding line on corrugated board with different thickness;
3.Different shapes of cutting blades available for cutting different materials;
4.Powerful vacuum system makes it possible to hold t small piece of material;
5.Accurate positioning through laser registration device;
6.V-cut is available.
1.Servo Motor, which guarantees the good quality, fast speed, stable function.

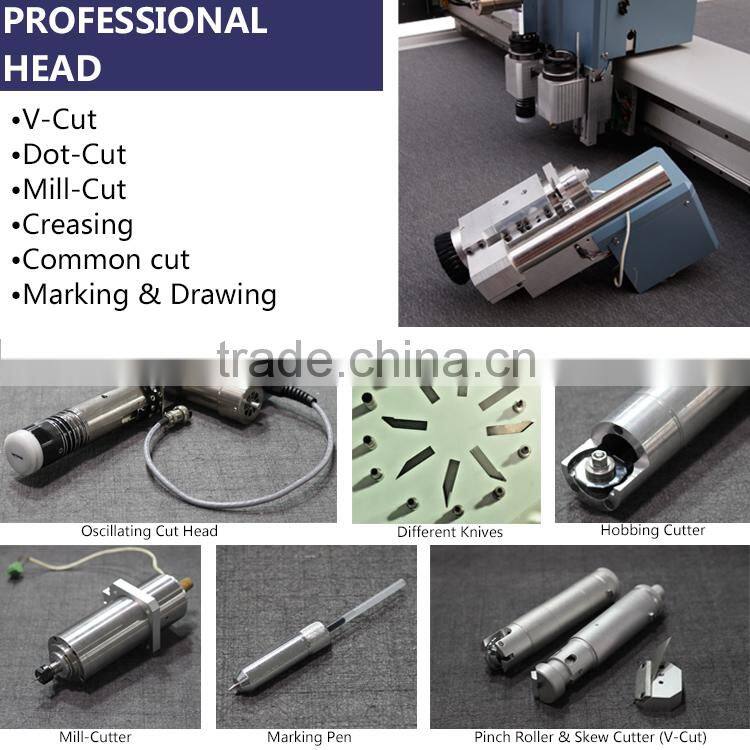

2.Professional Cutting Head. With one standard cutting head and two more optional cutting heads, the cutting
machines are speciallized in carton, box cutting.
3.Oscillatiing Cut Head. faster, more stable. Diffcult patterns, smooth lines.
4.Various cutting tools.

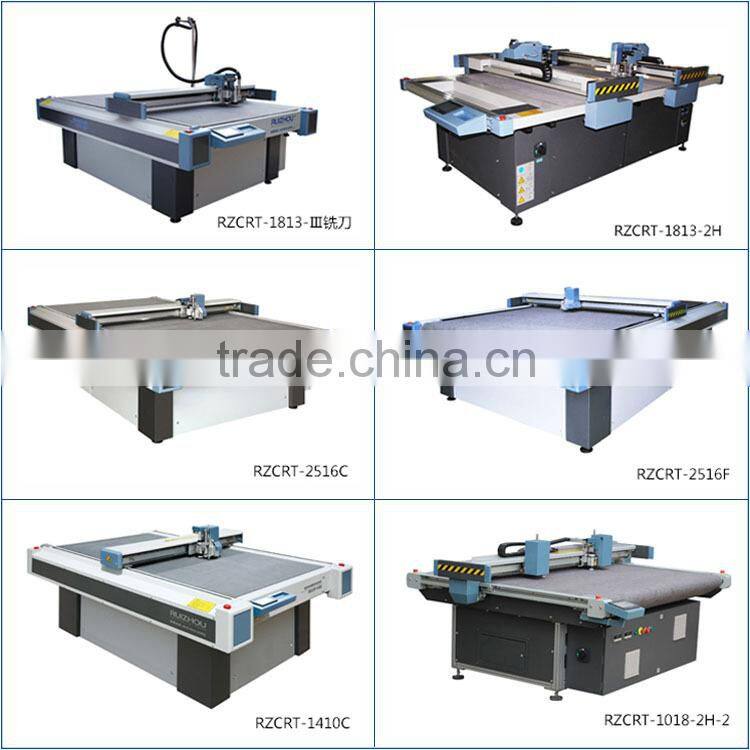

Models
| Model | Cutting Size | Cutting Head & Cutting Arm | Feeding (Rolling) System |
| RZCRT-1410C | 1400mm x 1000mm | 1 & 1 | No |
| RZCRT-1018-2H-2 | 1000mm x 1800mm | 2 & 1 |
Yes |
| RZCRT-1813C | 1800mm x 1300mm | 1 & 1 | No |
| RZCRT-1813-2H | 1800mm x 1300mm | 2 & 2 |
No |
| RZCRT-1813C-Ⅲ | 1800mm x 1300mm | 2 & 1 | No |
| RZCRT-2516C | 2500mm x 1600mm | 1 & 1 | No |
| RZCRT-2516F | 2500mm x 1600mm | 1 & 1 | YES |
| RZCRT-3016C | 3000mm x 1600mm | 1 & 1 | No |
Technical Parameter
| Mode | RZCRT-1410C | RZCRT-1813C | RZCRT-2516C |
| Cutting Area | 1400mm x 1000mm | 1800mm x 1300mm | 2500mm x 1600mm |
| Working Character | The cutting machine runs with the computer simultaneously, the data can be transfered fast, and can be used continuously. | ||
| Cutting Speed | 700-1200mm/s | ||
| Cutting Thickness | 0.4mm-55mm, can be adjusted according to the material and customers' requirement. | ||
| Cutting Materials | Corrugated paper, Honeycomb board, Plastic, Rubber board, Greyboard, Leather, PVC, PU, Acrylic, composite materials, etc. | ||
| Knife | Oscillating blade head, Milling Cutter, Hobbing Cutter, Creasing Wheel | ||
| Applicable Pen Type | Common signing pen, Oil pen, ball-point pen, Silver pen | ||
| Mesaure to Fix Material | Divisional vacuum absorption | ||
| Mechanical Resolution | 0.07mm | ||
| Software Resolution | 0.025mm, 0.01mm, 0.1mm (optional) | ||
| Interface of Transmission | Standard parellel and serial interface | ||
| Buffer Capability | Once fast transfer | ||
| Command | HP-GL and GP-GL compatible mode | ||
| Digital Control Panel | Liquid crystal display and touching button | ||
| Transimission Materials | Staight line guide track/ Synchronous belt/ Imported synchronous belt | ||
| Motor | Servo motor | ||
| Cutting Blade Rotate | Vibrational cutting head 18000r/min, milling spindle motor 4000-1000r/min | ||
| Machine Working Voltage | AC 220V ± 10%, 50HZ | ||
Air Pump working Voltage |
AC 380V ± 10%, 50 HZ |
||

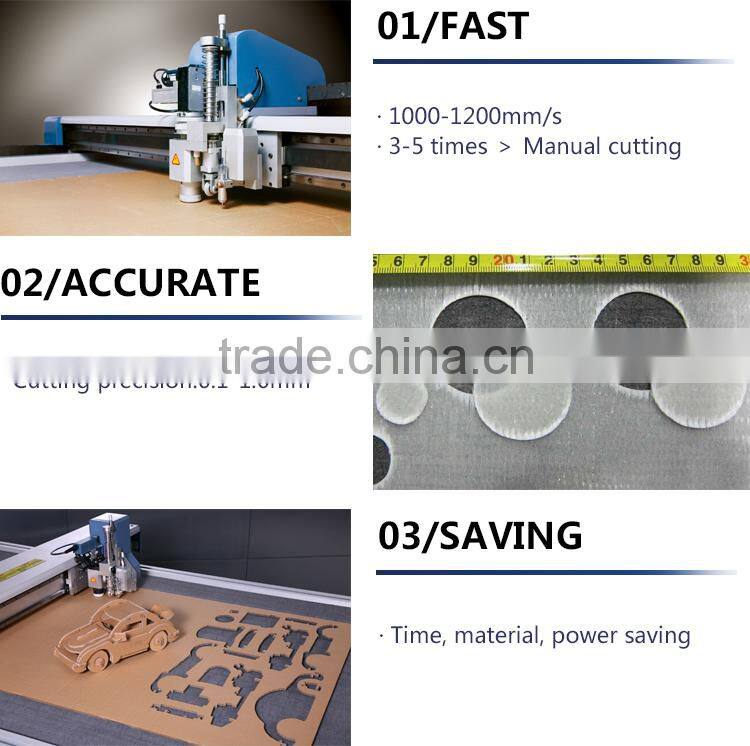

1.Fast
The cutting speed of Ruizhou carton cutting machine is 3 to 5 times the speed of traditional manual cutting, with
maximum cutting speed of 1000mm/s to 1200mm/s. It's more suitable for the customers who are receiving orders
with diverse styles and short lead time.
2. Accurate
All operations of Ruizhou box sample cutter are computerized to simulate the operation process exactly, which
rules out the interference from the factors of the workers' mood, knowledge, tiredness and other personal factors
happened in traditional cutting, thus avoid hidden waste and ensure the quality of product.
3.Saving
Ruizhou carton cutting machine is connectable to many CAD software. Customers can make timely correction to
the patterns during cutting, thus meeting the fast-changing market demands through quick sample making and
error correction. You are supposed to achieve 2-3 days of time advantage over your competitors in terms of
correction of the same kind of samples.
4.Smart
The cutting machine is a computerized CNC cutting machine. All the sharp turnings can be controlled on the machine.
The depth can be adapted to your needs. Nesting is more convenient and flexible.
The cutting knives can be changed.
Innovative Features
1.The new model complies with European Standard, whose major components are imported from Swiss, US,
JAPAN etc.
2.Adopting Swiss high speed vibrating cutting tool, available for any depth setting of the blades;
3.Directly control on all sharp turnings on the machine, convenient and easy to operate;
4.Separate setting on creasing pressure towards X and Y direction according to texture of corrugated board;
5.Special safety sensory device meets the European standard;
6.Configured vacuum muffler in order to lower noise to provide a quiet and comfort working environment.
1.Accurate
High requirement of ourselves and persistent striving for excellent, lead to high accuracy. With our laser location
device and other elaborate devices the cutting machine meets the cutting precision: 0.1mm to 1mm.
2.Smooth
The Oscillating Cutting Tool assures our cutting machines cut smoothly. Even very complex lines, irregular lines, can
be cut smoothly. And this cutting effects can hardly be done by laser cutting machine, die cutter or manual workers.
3.Diverse
Material -- It can cut nearly all of soft materials and some hard materials.
The Cutting thickness -- 0.4mm to 55mm, even larger, according to the material and your requirement.
Function -- complete cutting, half cutting, dot cutting, V- cutting; line folding; marking.
4.Delicate
The cutting machine is able to cut complex patterns with high precision and repeating precision.

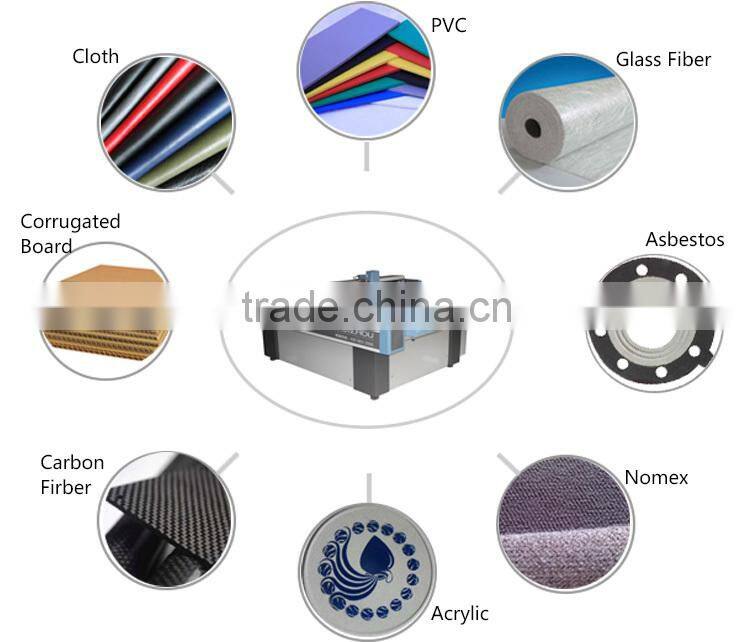

Cardboard, corrugated board, honeycomb board, chipboard, plastic corrugated board
Shoe insole, EVA,rubber,PE foam

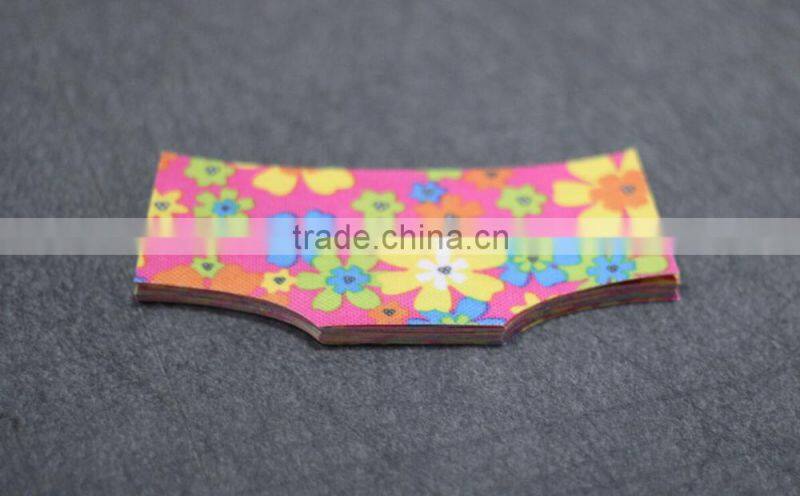

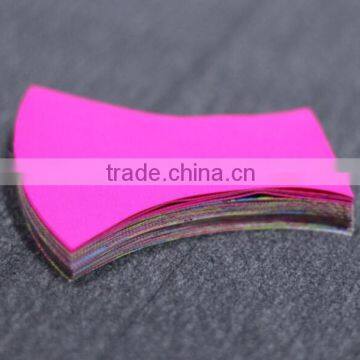

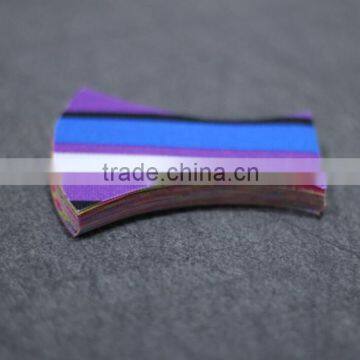

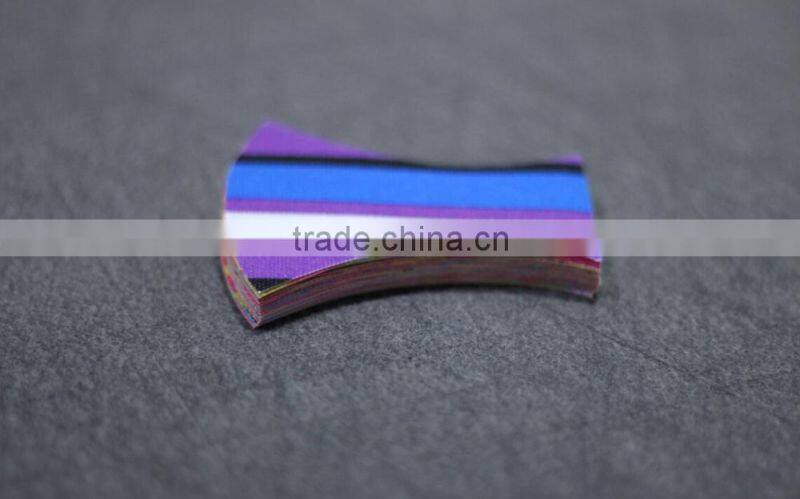

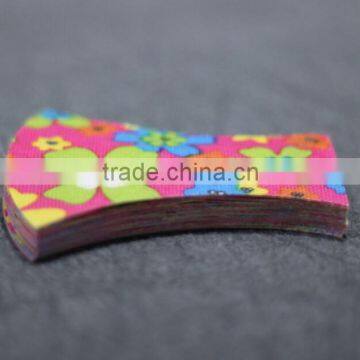

Cloth, mash, jean, fiber, many layers
Leather, PVC, PU+cloth
Car mats
Composite materials, plastic, acrylic, resin, etc.
RUIZHOU CRT series cutting machines are specialized in carton cutting. And that can also be used in a lot of other areas such as footwear, garment, bag & suit case, airplane, package,
advertisement, furniture, lamp, box, color print, packing, car mat, apparel, etc.
Now a lot of internationally famous firms has use our cutting machines.
RUIZHOU requite her customers with sincerity. She wins the market with good services, build brand with good quality, strive for excellence with technology. Over the past years, RUIZHOU has received trust and praise from our customers. Our product sold to European, Korea, India, Mexico, Malaysia, Vietnam, Hong Kong and Taiwan. The clients we have severed, at home and abroad, up to 5000 famous companies, includes: ST&SAT, BELLE, DAPHNE, NIKE, ADIDAS, Guangzhou Honda, Guangzhou TOYOTA, Goldlion and so on.

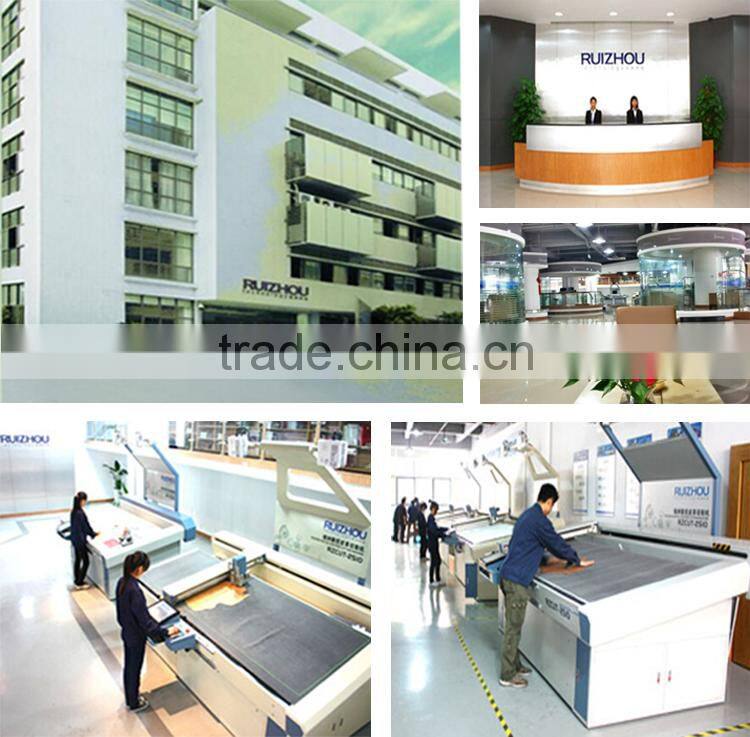

RUIZHOU technology is a famous company, specialized in cutting machines.
1. 20 years of experience in CNC cutting technology;
2. The first and biggest CNC cutting machine manufacturer in China;
3. We focus on the research and development of CNC knife-cutting technology and related CAD software over the
past 20 years;
4. HAAS and DMG machine tool are used to produce key components;
5. We imported Servo Motor from Panasonic and Straight-line guide rail from Germany;
6. The quality and service are regarded as the life of our corporation;
7. We will never be satisfied until you are satisfied;
8. Our engineering team never stop to improve our machine and upgrade our software;
9.Ruizhou is based in Foshan, aiming at the global market.
During the past 20 years development, RUIZHOU, with her persistent efforts, high tecnology, and good quality products, has won lots of precious awards. And the company and products meet high quality standards from both China and the world.Such as:CE, ISO, Utility model patent, Design Patent, Foshan Institute of Supervision & Test on Product Quality, etc.
1.One year guarantee for whole machine except of consumables such as knife blade, mat.
2.24 hours technical support
3.Calling or door-to-door service
4.Use friendly-English software, usual manual and detailed videos.
