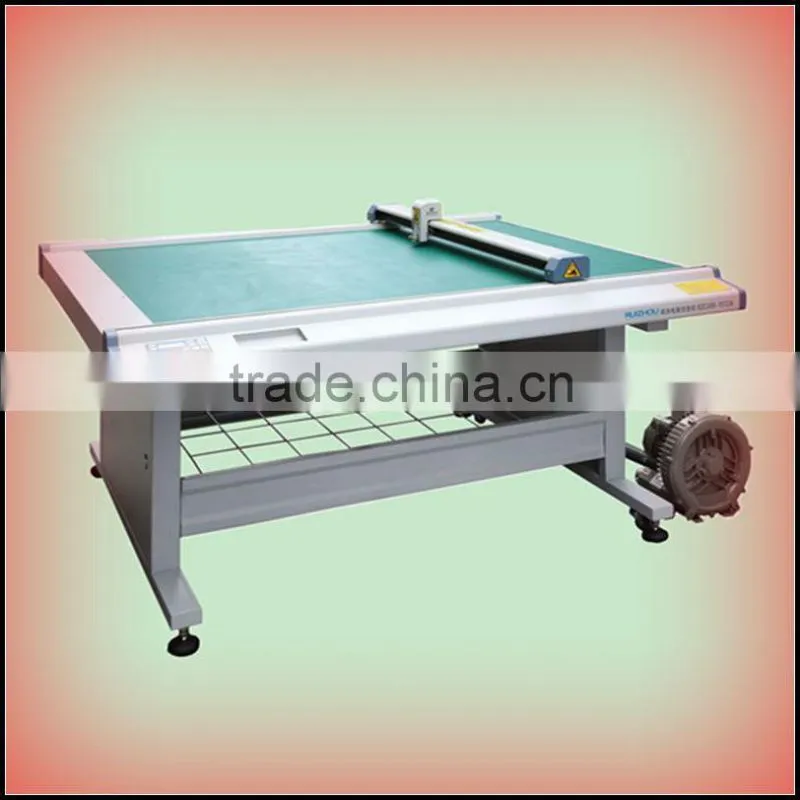

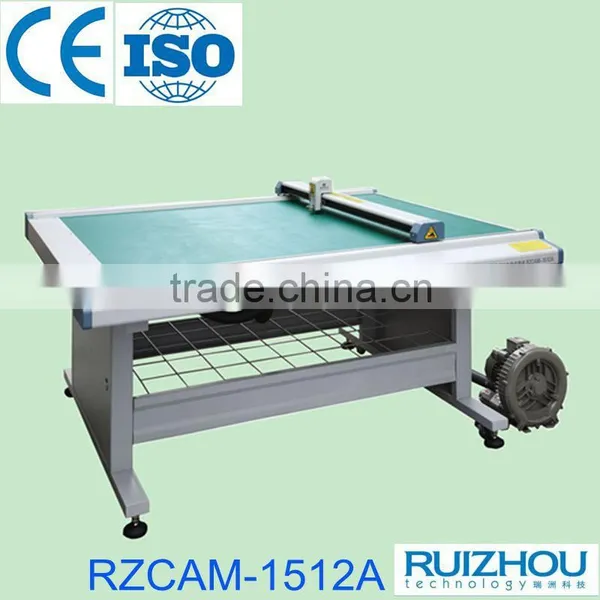

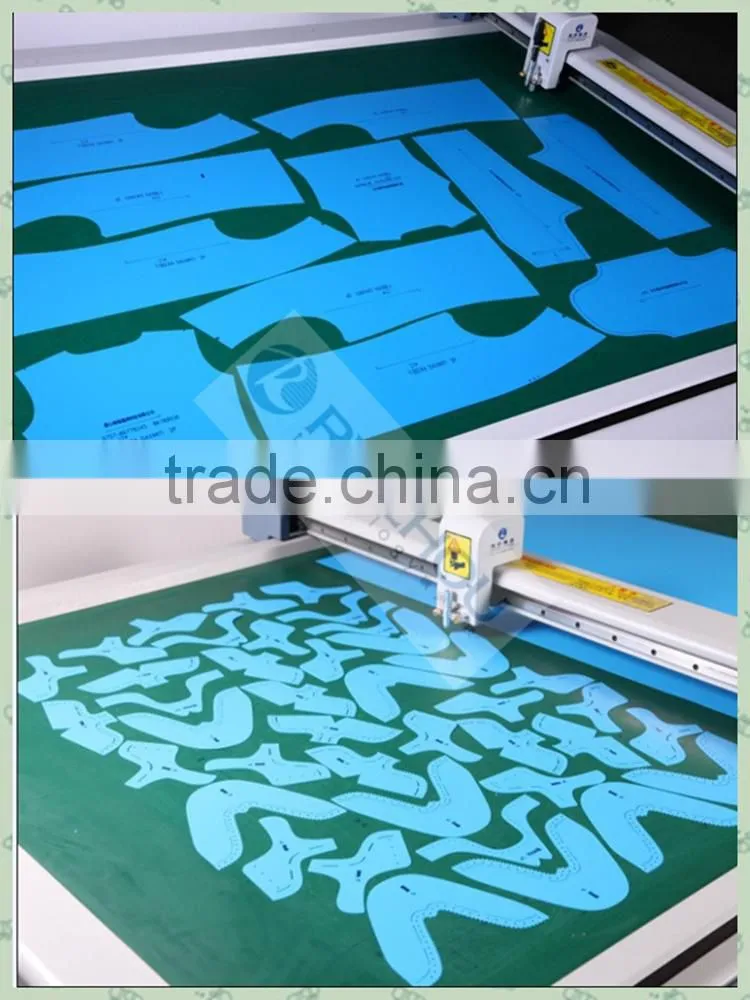

With working area of 1500*1200mm, it is widely used in bag&suicase industry for cutting paper patterns. We have relavant software too.
Features:
- Application of self-developed built-in digital control system, imported American CPU and precise electronic components make the machine system technologically take the lead both in stability and operability at home and abroad.
- Combination of imported linear tracks and synchronous belt in the machine make the cutting precision up to zero error of shuttle origin completely.
- Double-line LCD display clearly and digital control interface facilitate operation.
- Standard I/O interface and HP-GL and GP-GL formats; cutting speed ranges from 60cm/s to 90cm/s with high stability and security.
- Unique page-flipping cutting function among the home-made cutting machines.

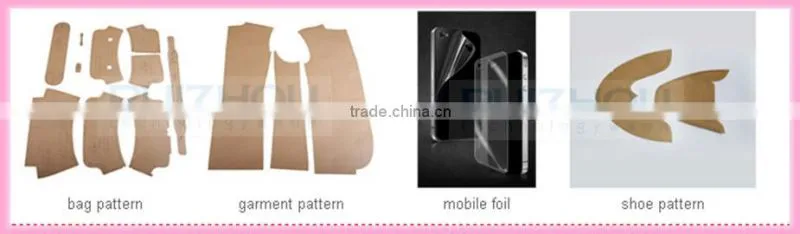

- Connectable to any CAD software, widely used for design and manufacture of footwear, apparel, suitcases, bags, lamps and automobile leather wares.
Machine Description:

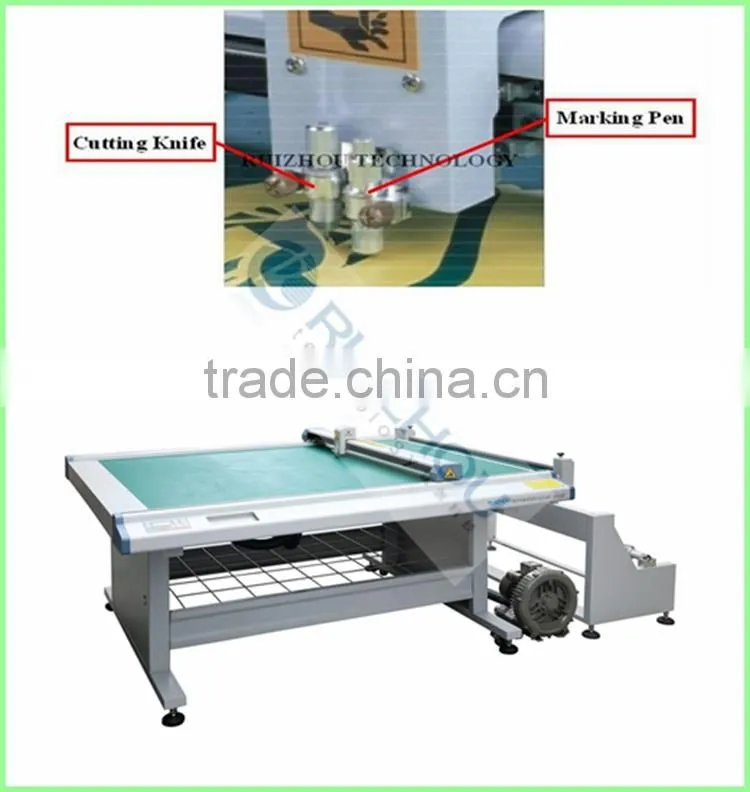

Tool Head
A dual function tool head incorporating a trailing knife and pen, which is especially suited for cutting pattern paper
and up to 2mm cardboard.
The spare parts of the tool head
Blade:the complex-or of blade can turn around full-circle,it can do various cutting according to your specific requirement.
Pen:Available pen types like ball-point pen,ink pen,silver pen choosed depending on your material properties,and they can do marking and writing on the material.
Cutting tool:The blade put into the tool,then can be fixed tightly.
Compatibility
Connectible to common CAD software, widely used for design and manufacture of footwear, apparel, suitcases, bags,lamps and automobile leatherwares.
User interface :
All processes can be completed by using the following interface,it is easy to learn and operate.

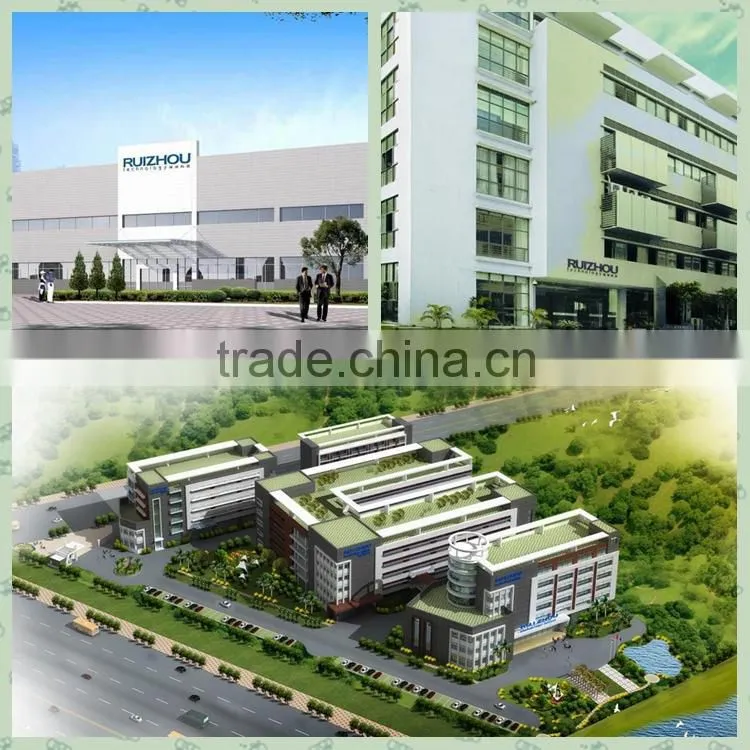

Head-office of Ruizhou Technology
Technical Parameter:
