Specifications

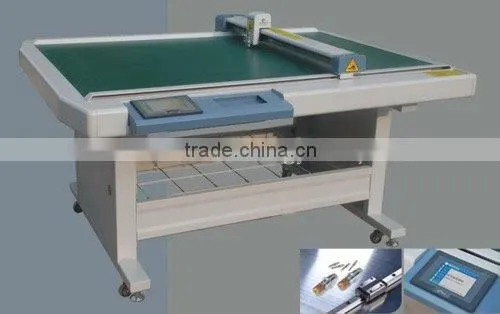

Ruizhou bag paper sample cutting plotter is able to create beautiful paper/PVC samples for bag, footwear, garment industries.Ruizhou bag paper sample cutting plotter is specially developed cutting solution for footwear and garment industry. Introducing vacuum suction technology, it is able to create accurate footwear and garment patterns on standard pattern paper, cardboard, or PVC sheet.
Features:
- Application of self-developed built-in digital control system, imported American CPU and precise electronic components reach the technologically leading level at home and abroad in stability and operability.
- Joint use of imported linear tracks and synchronous belt in the machine makes the cutting precision up to the zero error of shuttle origin completely.
- Touch control LCD display and digital control interface facilitate operation.
- Standard I/O interface and HP-GL and GP-GL formats; cutting speed of 80-120cm/s.
- Exceptional form-feed cutting function from the home-made cutting machine.
- Connectible to random CAD software, it is widely used in such industries as apparel, shoe-making, suitcases, bags and lamps.
Technical Parameters:
Available Model |
RZCUT-0906 |
RZCUT-1209 |
RZCUT-1509 |
RZCUT-1512 |
Cutting Area |
910*620mm |
1200*920mm |
1500*920mm |
1500*1200mm |
Working Character |
The computer operation and the machine work concurrently; the speed of data transmission is fast and it can be stored and re-used. |
|||
Cutting Materials |
White paper board, Brown paper, Red hard paper board, Plastic board, Fiber middle & bottom board |
|||
Working Performance |
Cutting Speed: 80-120cm/s (Max.) |
|||
Cutting Thickness: 0.5 - 2mm | ||||
Mechanical Resolution: 0.1mm | ||||
Pen Quantity |
Eight kinds of different pen shape, setup of full and half blade |
|||
Applicable Pen Type |
Common signing pen, Oil pen and ball-point pen |
|||
Mat. hold-down method |
Vacuum Suction |
|||
Software Resolution |
0.025mm, 0.01mm, 0.1mm optional |
|||
Command System |
Standard parallel port or serial port |
|||
Transmission Interface |
HP-GL and GP-GL compatible mode |
|||
Buffer Size |
Form-feed cutting through once-and-for-all speed transmission |
|||
Control Panel |
Touch control LCD display |
|||
Transmission Materials |
Straight line guide track/Synchronous belt/Imported synchronous belt |
|||
Power Consumption |
200W AC 220±10%,50HZ |
|||
Feeding Mode |
Manual feeding/Auto-feeding |
|||
Specification of Fuse |
6A |
|||
