Specifications
coal dust grinding mill1)capacity: 0.65-90t/h
2)motor powder:18.5-800kw
3)energy saving and resonable price

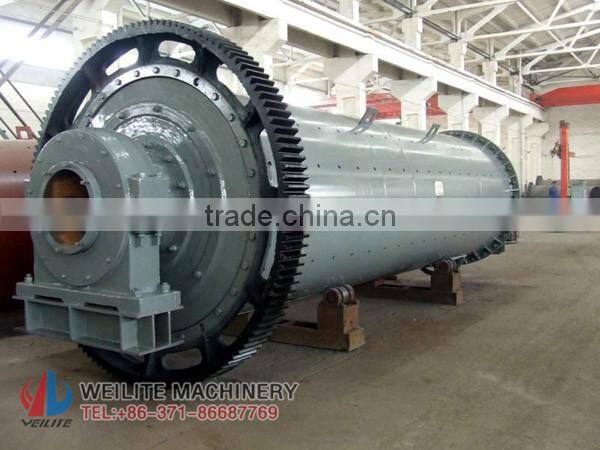

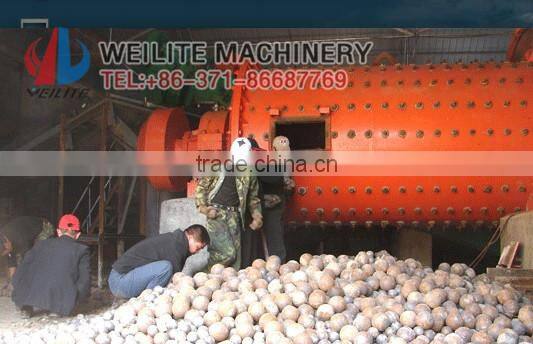

Coal Dust Grinding Mill
1 Breif introduction of coal dust grinding mill
Coal dust grinding mill is an important auxiliary equipment for coal-powder furnace, and it has three methods to crush the coal lump and grind them into powder,like crushing, impacting and grinding.Air swept coal mill is the main equipment in cement plant for both drying and grinding of the powders. Compared with the ordinary ball mill, it has advantages of higher capacity, more convenient operation, safer usage, and more reliable performance.
2 Features of coal dust grinding mill
- This coal dust grinnding mill is of wide scope of application , simple structure and easy maintenance.
- This coal dust grinding mill has a big processing capacity, the advantages of continuous operation is obvious .
- Cylinder liner and grinding media can use a variety of materials, corrosion resistance is strong, and use is wide.
- This coal dust grinding mill is of convenient installation and commissioning , easy to operate.
- This coal dust grinding mill productivity is high, the cost of use is low.

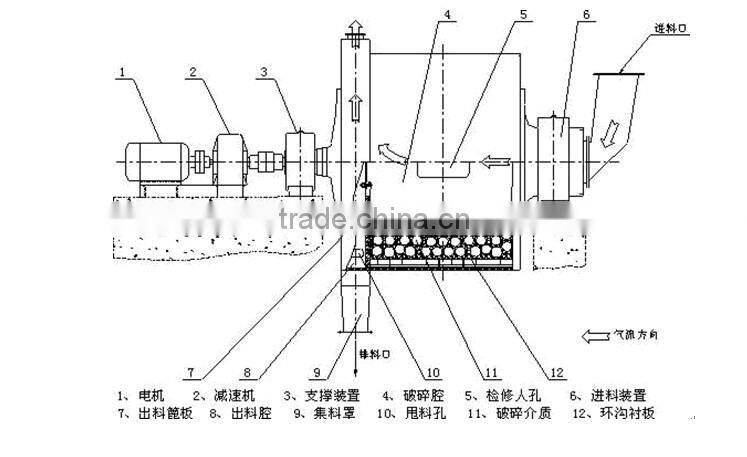

3 Working principle of coal dust grinding mill

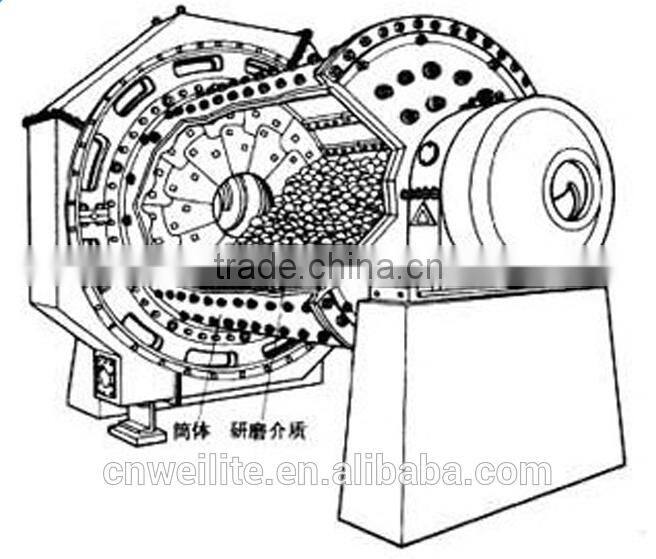

This machine is a horizontal type cylinder rotary device and outside the cylinder there is drive gear which drives the cylinder to rotate during the working process. Materials spirally and evenly go into the first cabin of the grinding machine through the feeding hollow shaft from the feeding device, and inside the first cabin, there are ladder lining boards or ripple lining board in which there are many steel balls with different specifications. The cylinder rotates and produces eccentric force to bring the steel balls to a certain height, and then the steel balls will fall down to impact and grind the materials. After being coarsely ground in the first cabin, the materials will go through the single layer partition board and into the secondary cabin in which there are flat lining board, and in the lining board there are steel balls to further grind the materials. Finally the powdery materials will be discharged from the discharging grating bar to complete the powder grinding process.
4 Main technical parameters of coal dust grinding mill
Model |
Ball load (t) |
Feeding size (mm) |
Discharging size (mm) |
Capacity (t/h) |
Motor power (kw) |
900*1800 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
1200*2400 |
3 |
≤25 |
0.075-0.6 |
1.5-4.8 |
30 |
1500*3000 |
7.5 |
≤25 |
0.074-0.4 |
2-5 |
75 |
1830*4500 |
15 |
≤25 |
0.074-0.4 |
4.5-12 |
155 |
2100*3000 |
15 |
≤25 |
0.074-0.4 |
6.5-36 |
210 |
2200*7500 |
35 |
≤25 |
0.074-0.4 |
15-30 |
380 |
2700*4000 |
40 |
≤25 |
0.074-0.4 |
12-80 |
400 |

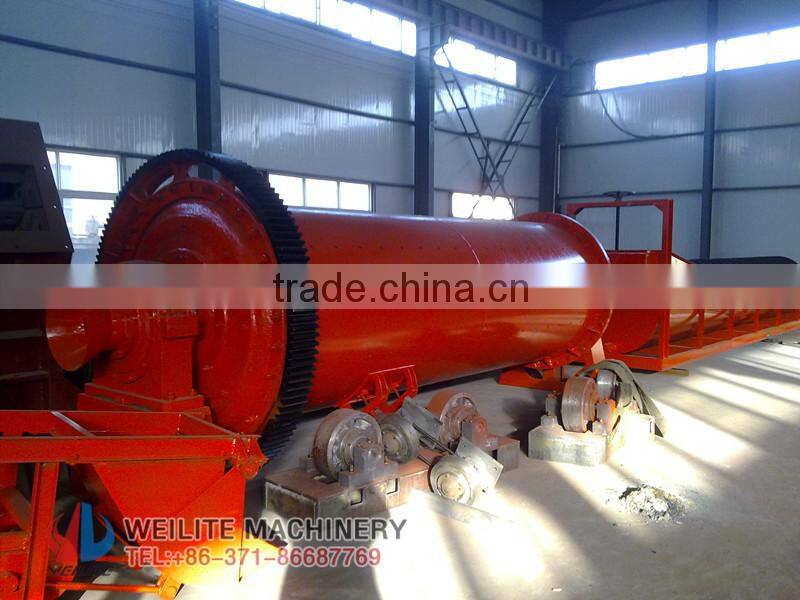

5 The installment pictures of coal dust grinding mill

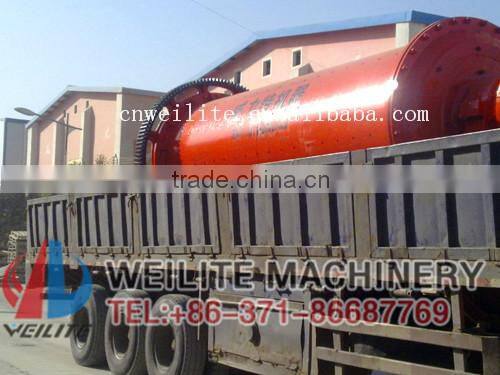

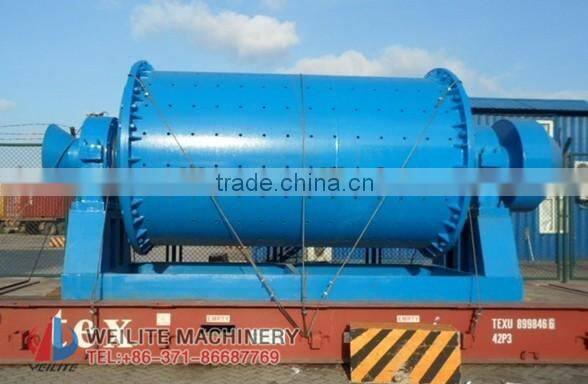

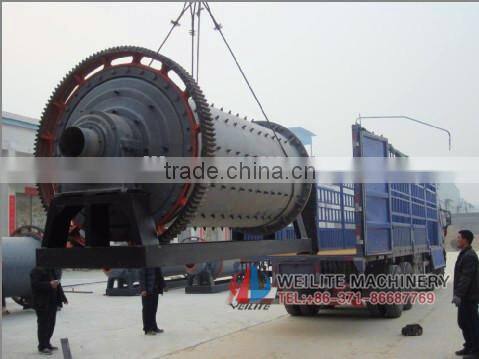

1. Bare the main body of the machine
2.Motors and other small spare parts are packaged in wooden cases
3.Or as your requirements
(1) Pre-sale Service:
Suitable-design products and resonable price will be supplied to you to meet your need. We can also offer experiment to test the equipment that the customer need.
(2) After-sale Service:
On the spot guidance for installation by our engineers, and the buyer is responsible for the expense. We have a perfect after-sales service system and team with professional.
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /
1 What's the mainly purpose of this coal dust grinding mill ?
Answer: It is a key equipment which is using for crushing after the materials have been crushed one time
2 What's the maximum feeding size of the material to the iron ore ball mill ?
Answer: Usually the max feeding size is 25mm, but some machines are suitable for materials less than 20mm.
3 What's the discharging size of the iron ore ball mill ?
Answer: Uaually the size between 0.074 and 0.4.
Contact person: Cara
Tel:+86 (0)371 86687769
Skype:Cara-Weilite
