Specifications
beiquette making machine1)Width:250-650mm
2)Diameter:360-1250mm
3)Motor power:7.5-130kw
Beiquette Making Machine
1 Brief introduction of beiquette making machine
Briquette making machine is used for making coal fines, coke fines, charcoal powder, carbon black, iron ore fines, mineral powder, metal dust, cast iron dust, mill scale, manganese ore fines, fluorite powder, gypsum powder,ferrosilicon powder, and phospho gypsum powder, nickel alloy, blast furnace ash, converter dust, coal gangue, Kaolin clay, MgO, NPK, graphite, oil shale, potash fertilizer, urea fertilizer, sea sand powder etc. into briquettes. These briquettes can be designed of oval shape, egg shape, pillow shape etc. This machine is widely used in coal industry, metallurgy industry, chemical industry etc.
2 Fetures of beiquette making machine
Briquetting making machine shows the features of high capacity, low energy consumption, compact and durable. This coal briquette machine is designed according to the medium and small-scale scope of the enterprise in China by our company. This coal briquette machine is adopted the oblique iron type pressing, strong pressure, easy to operate, convenient maintenance, reliable operating etc.
3The Main Technical Parameters of beiquette making machine
Model |
WLXM-290 |
WLXM-360 |
WLXM-400 |
WLXM-500 |
WLXM-650 |
WLXM-750 |
WLXM-850 |
WLXM-1250 |
|
Capacity (t/h) |
1-2 |
2-4 |
6-8 |
8-11 |
13-18 |
18-25 |
25-35 |
40-70 |
|
Motor power (kw) |
5.5 |
7.5 |
11-15 |
18.5-22 |
20-30 |
45 |
75 |
130 |
|
Roller width (mm) |
220 |
250 |
280 |
300 |
336 |
400 |
500 |
650 |
|
Roller diameter (mm) |
290 |
360 |
400 |
500 |
650 |
750 |
850 |
1250 |
Roller material |
65Mn |
65Mn |
65Mn |
65Mn |
65Mn |
65Mn |
65Mn |
65Mn |
4 Working priciple of briquetting plant
This series of briquette making machine will pass the powder on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.

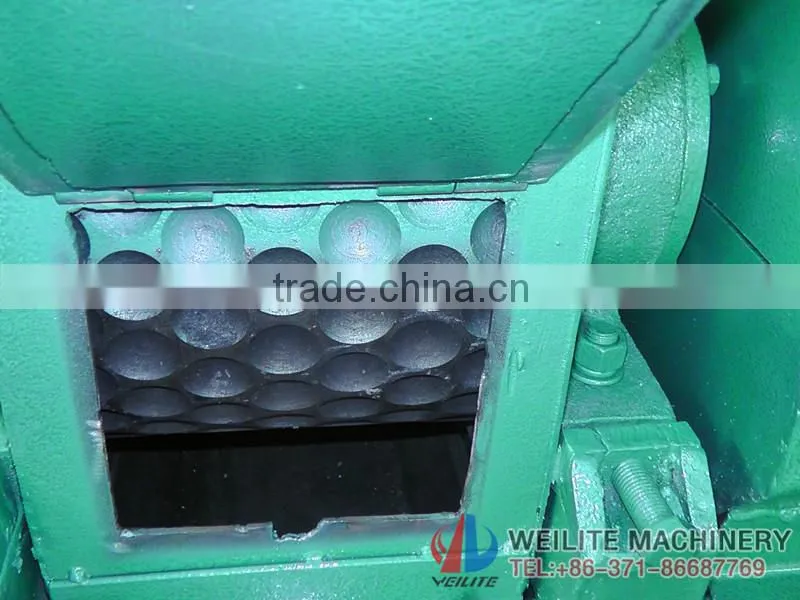

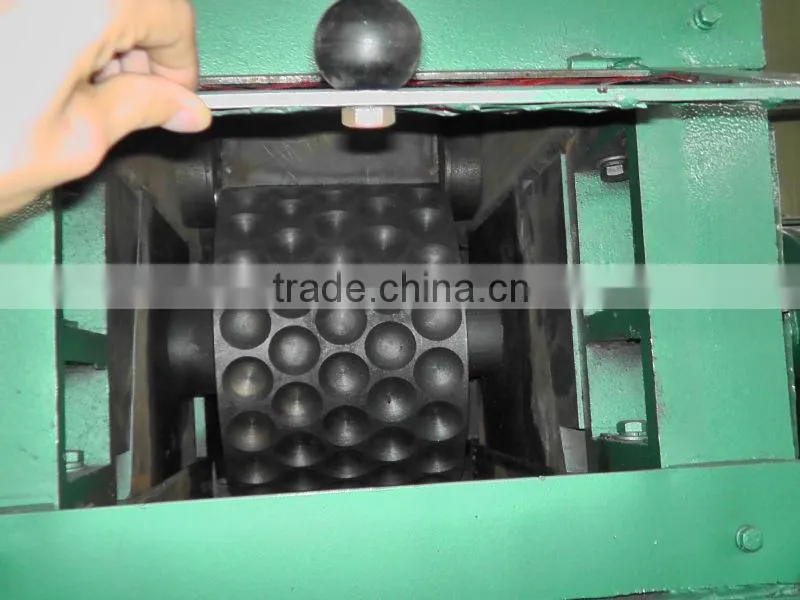

5 Spare parts of briquette making machine

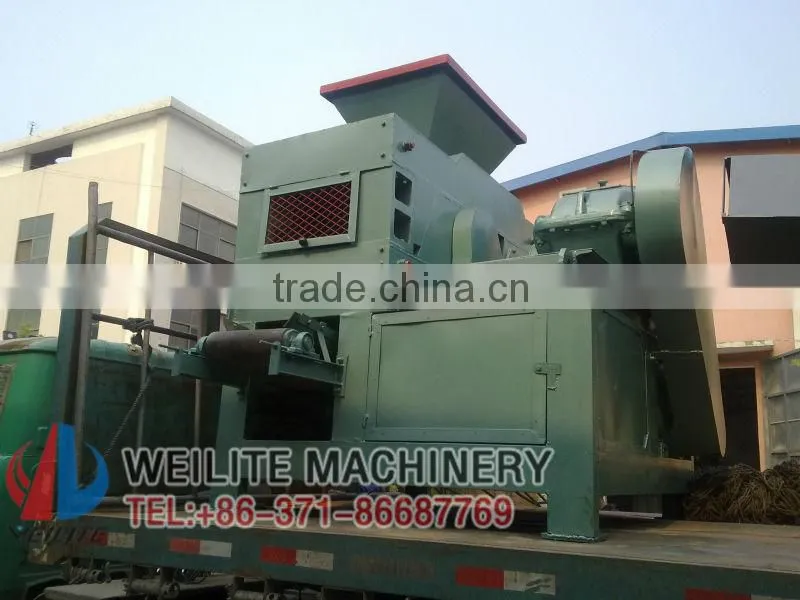

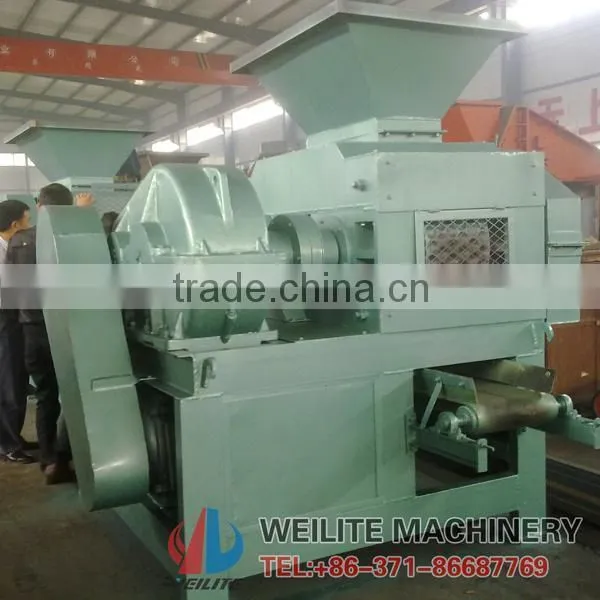

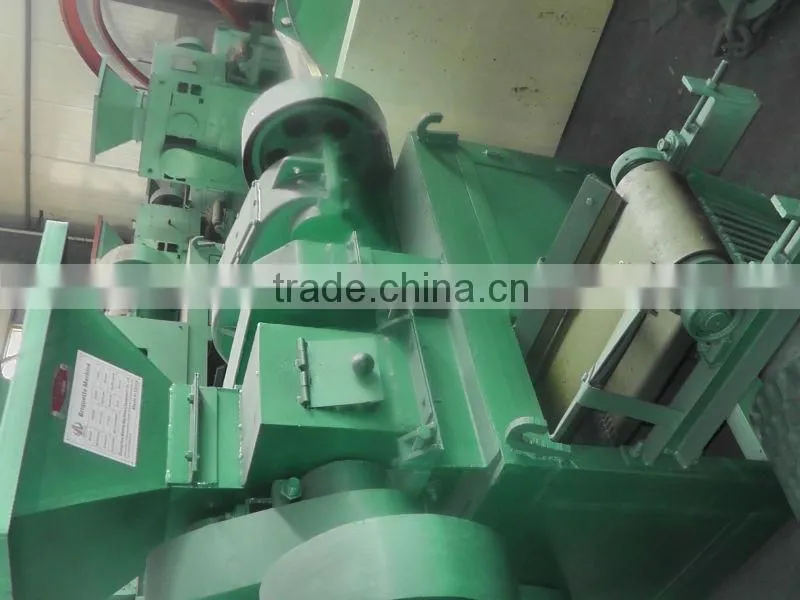

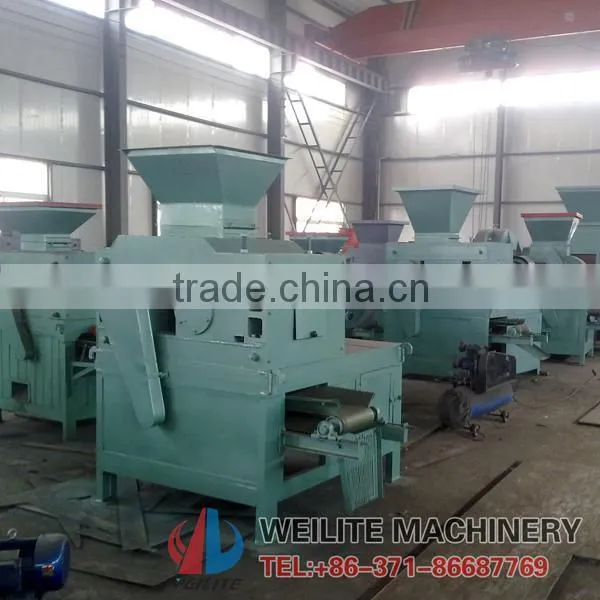

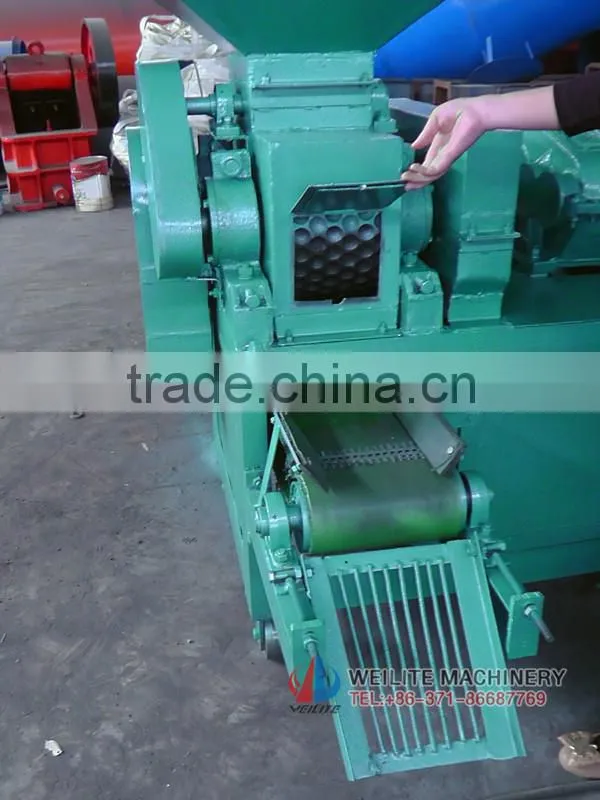

6 More pictures about beiquette making machine

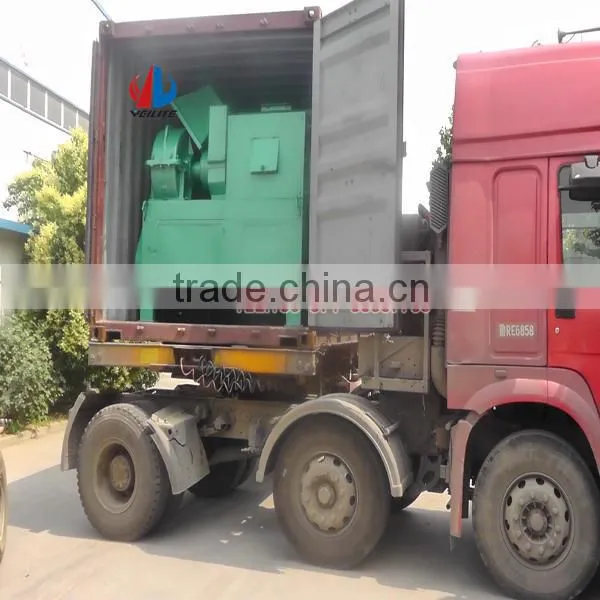

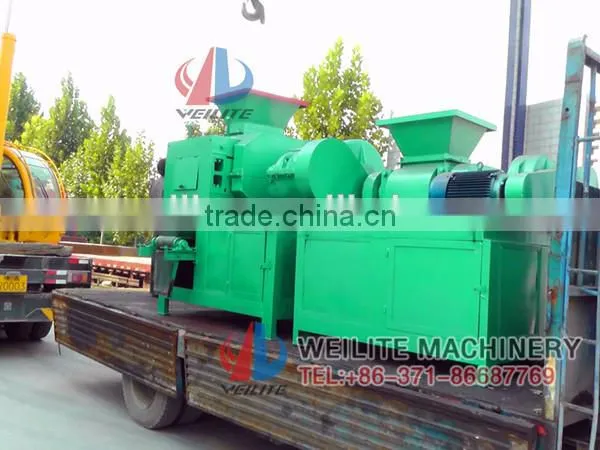

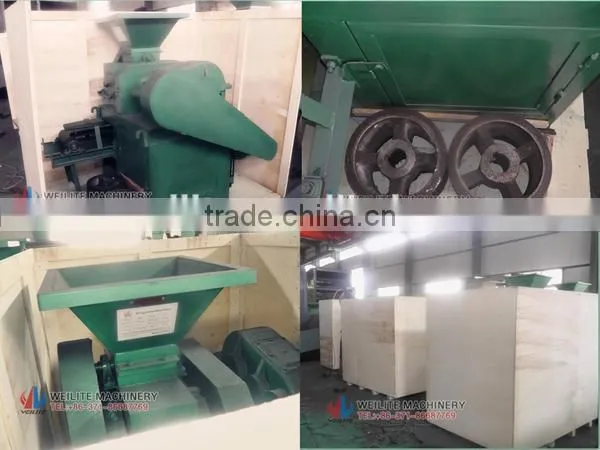

1. Bare the main body of the machine
2.Motors and other small spare parts are packaged in wooden cases
3.Or as your requirements
a). If any interest in our beiquette making machine ,please feel free to contract me and let me know your requirement on capacity and material size.
b). We are professional machine manufacturer, we will help to choose the most suitable machine for you.
c). Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
d). If you need, we will dispatch professional engineer for installation, trail and worker training.
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /
1.What's the best moisture of raw material for the beiquette making machine ?
Answer:10%-12%. If material moisture is larger, we had better dry it firstly.
2.What's the max feeding size for beiquette making machine ?
Answer:5mm.If larger, the crusher will be used.
3.What's the brquette size can be made by your beiquette making machine ?
Answer:Normally the briquette diameter is between 30-60mm. We also can custom made the briquette size according the customer's requirement.
4.Will this used beiquette making machine requires binder?
Answer:Yes, in order to make sure the briquette strength, we will need binder.
5.Will we need water?
Answer:It depends on the raw material moisture.
