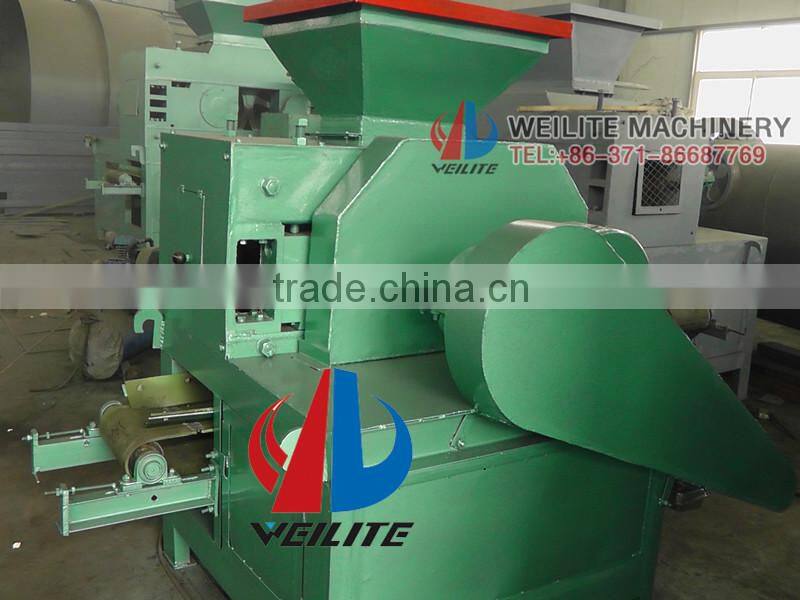

High Performance Coke Powder Briquette Machine

High Performance Coke Powder Briquette Machine photo-1

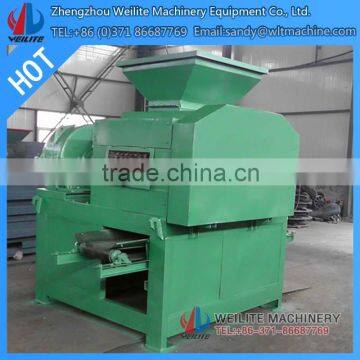

High Performance Coke Powder Briquette Machine photo-2

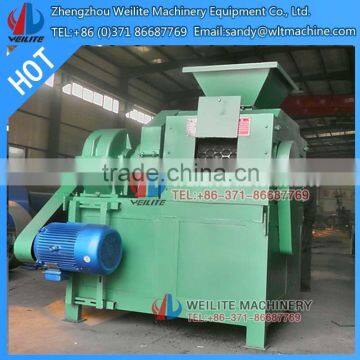

High Performance Coke Powder Briquette Machine photo-3

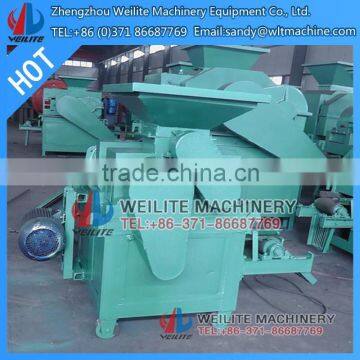

High Performance Coke Powder Briquette Machine photo-4

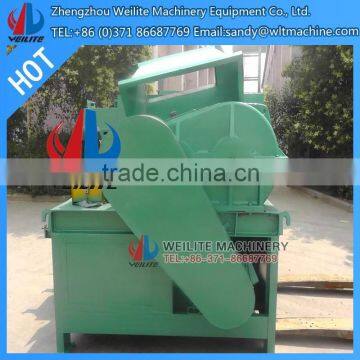

High Performance Coke Powder Briquette Machine photo-5
High Performance Coke Powder Briquette Machine photo-6
US$ 3,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
0.3-70 t/h
Motor Type:
AC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port china and main china ports
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Production Capacity 0.3-70 t/h
Motor Type AC Motor
Power(W) 5.5-130kw
Place of Origin Henan, China
Brand Name Weilite
Model Number WLXM
Dimension(L*W*H) 1350x1060x1400mm
Certification ISO9001:2000
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

coke powder briquette machine
1)Model :WLXM
2)width:250-650mm
3)Diameter :360-1250mm

Coke Powder Briquette Machine


Product Description
1.Coke Powder Briquette Machine Description
The production of our company has its special quality, with its easily operation,the briquette machine has a good reputation in the costumers side. The final product shapes could be different with different molds.The moisture of raw material is between 8%-12%.

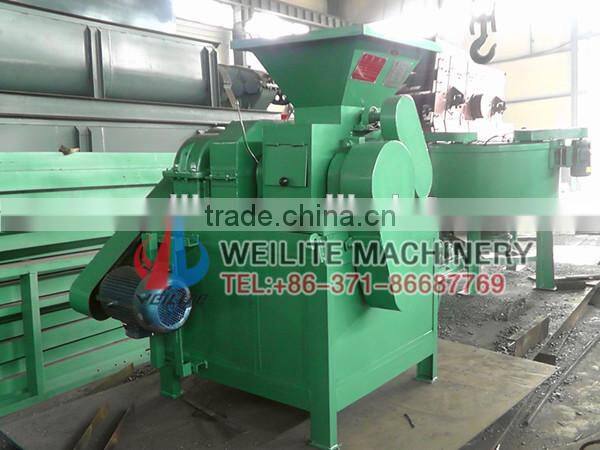

High Performance Coke Powder Briquette Machine

High Performance Coke Powder Briquette Machine

High Performance Coke Powder Briquette Machine



Some features about the coke powder briquette machine

1) High quality and effiency

2) Long service life and less dust with simple operation

3) Low-consumption and energy saving

High Performance Coke Powder Briquette Machine



2.The Main Technical Parameters of Coke Powder Briquette Machine



Model

WLXM-290

WLXM-360

WLXM-400

WLXM-500

WLXM-650

WLXM-750

WLXM-850

WLXM-1250

Capacity

(t/h)

1-2

2-4

6-8

8-11

13-18

18-25

25-35

40-70

Motor power

(kw)

5.5

7.5

11-15

18.5-22

20-30

45

75

130

Roller width

(mm)

220

250

280

300

336

400

500

650

Roller diameter

(mm)

290

360

400

500

650

750

850

1250

Roller material

65Mn

65Mn

65Mn

65Mn

65Mn

65Mn

65Mn

65Mn



 3. Working Priciple Picture
This series of briquette machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.
High Performance Coke Powder Briquette Machine

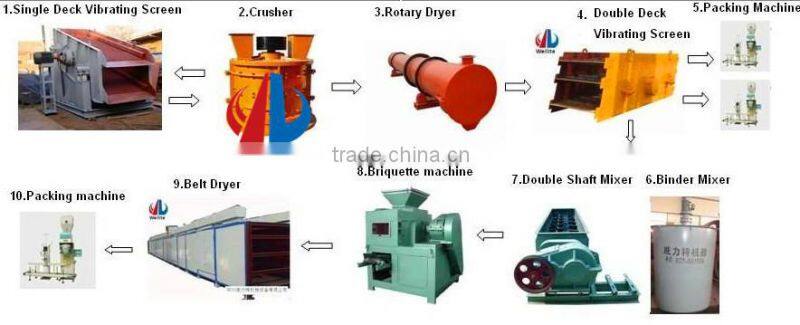

The production line of coke powder briquette machine
High Performance Coke Powder Briquette Machine




Packaging & Shipping

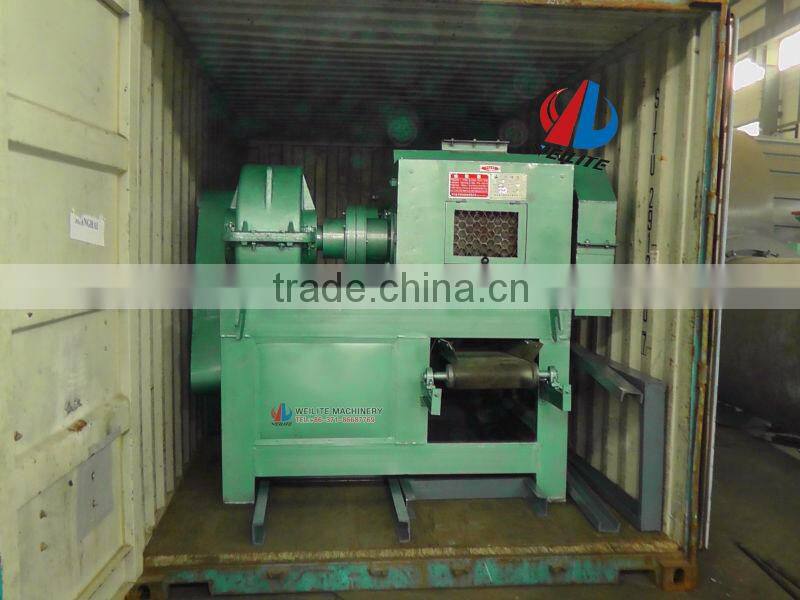

1.Bare the main body of the machine
High Performance Coke Powder Briquette Machine

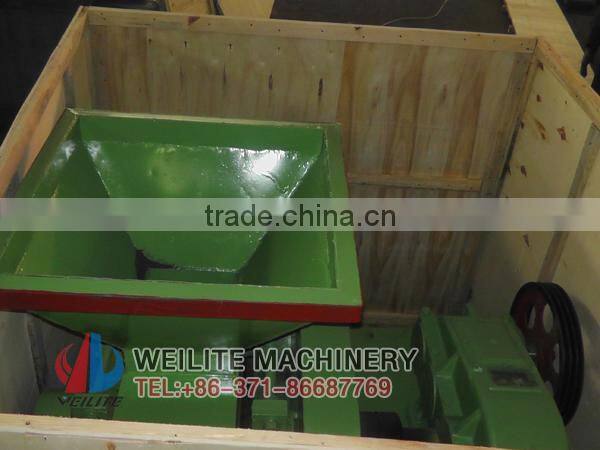

2.Motors and other small spare parts are packaged in wooden cases

3.Or as your requirements




Our Services for Coke Powder Briquette Machine



a). If any interest in our coke powder briquette machine,please feel free to contract me and let me know your requirement on capacity and material size.
b). We are professional machine manufacturer, we will help to choose the most suitable machine for y ou.
c). Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
d). If you need, we will dispatch professional engineer for installation, trail and worker training.




Company Information

   Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc.  Website:  High Performance Coke Powder Briquette Machine





FAQ of coke powder briquette machine



1.What's the best raw material moisture for the coke powder briquette machine?
Answer:10%-12%. If material moisture is larger, we had better dry it firstly.


2.What's the max. feeding size for coke powder briquette machine ?
Answer:5mm.If larger, we will need crusher.


3.What's the brquette size can be made by your coke powder briquette machine?
Answer:Normally the briquette diameter is between 30-60mm.We also can custom made the briquette size according the customer's requirement.


4.Will this coke powder briquette machine requires binder?
Answer:Yes, in order to make sure the briquette strength, we will need binder.


5.Will we need water?
Answer:It depends on the raw material moisture.
