Specifications
peat briquette press1)Width:250-650mm
2)Diameter:360-1250mm
3)Motor power:7.5-130kw
peat briquette press
1 Brief introduction of peat briquette press
1)Raw Materials
a.Raw material size should be smaller than 3mm.(If larger, crusher will be used).
b.The best moisture for briquetting is 6-10%. (If the raw material can not meet requirements, please contact us and our technician will help.)

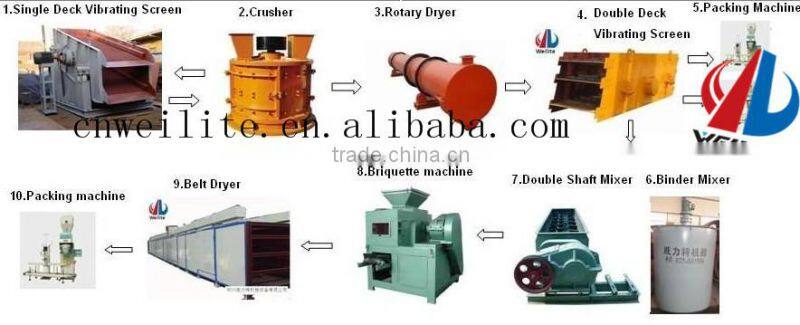

2)production line
1.Single deck vibrating screen
2.Crusher
3.Rotary dryer
4.Double deck vibrating screen
5.Packing machine
6.Binder mixer
7.Double shaft mixer
8.Briquette machine
9.Belt dryer
10.Packing machine
2The Main Technical Parameters of Peat Briquette Press
Model |
WLXM-290 |
WLXM-360 |
WLXM-400 |
WLXM-500 |
WLXM-650 |
WLXM-750 |
WLXM-850 |
WLXM-1250 |
|
Capacity (t/h) |
1-2 |
2-4 |
6-8 |
8-11 |
13-18 |
18-25 |
25-35 |
40-70 |
|
Motor power (kw) |
5.5 |
7.5 |
11-15 |
18.5-22 |
20-30 |
45 |
75 |
130 |
|
Roller width (mm) |
220 |
250 |
280 |
300 |
336 |
400 |
500 |
650 |
|
Roller diameter (mm) |
290 |
360 |
400 |
500 |
650 |
750 |
850 |
1250 |
Roller material |
65Mn |
65Mn |
65Mn |
65Mn |
65Mn |
65Mn |
65Mn |
65Mn |
3 Working Priciple Picture
This series of briquette plant will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.

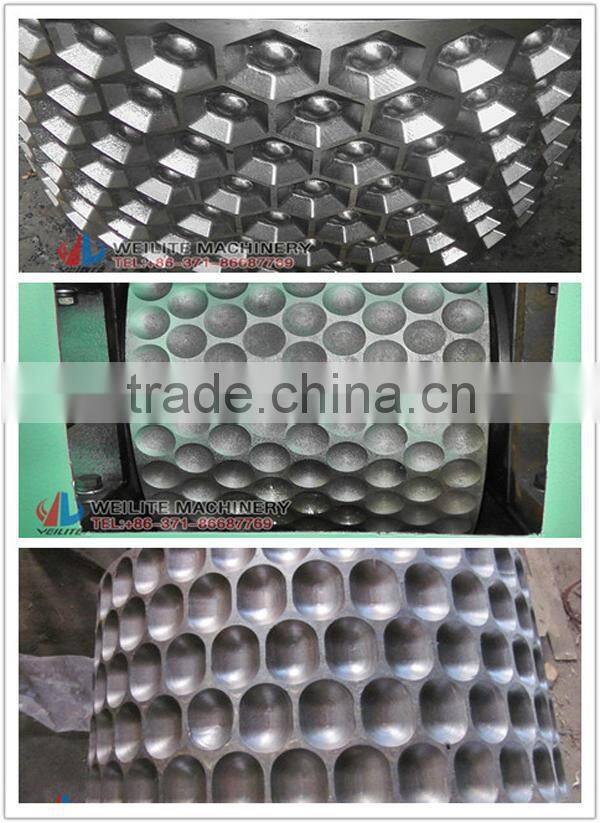

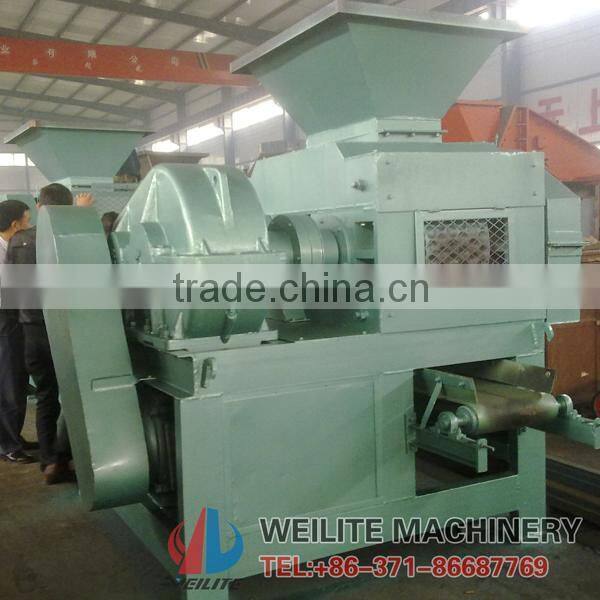

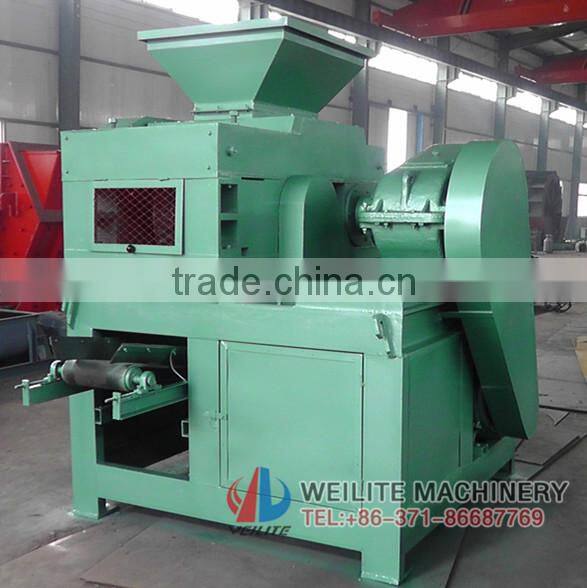

4 More pictures about peat briquette press
1. Bare the main body of the machine

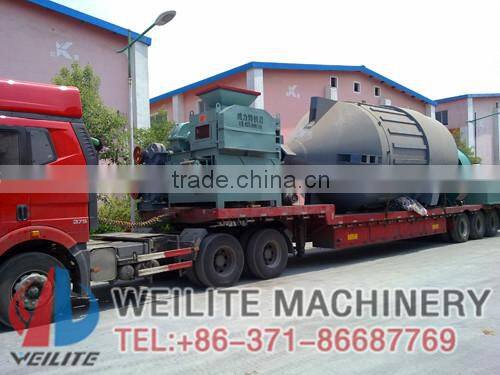

2.Motors and other small spare parts are packaged in wooden cases
3.Or as your requirements
a). If any interest in our peat briquette press ,please feel free to contract me and let me know your requirement on capacity and material size.
b). We are professional machine manufacturer, we will help to choose the most suitable machine for y ou.
c). Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
d). If you need, we will dispatch professional engineer for installation, trail and worker training.
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /
1.What's the best raw material moisture for the peat briquette press?
Answer:10%-12%. If material moisture is larger, we had better dry it firstly.
2.What's the max feeding size for peat briquette press ?
Answer:5mm.If larger, the crusher will be used.
3.What's the brquette size can be made by your peat briquette press ?
Answer:Normally the briquette diameter is between 30-60mm. We also can custom made the briquette size according the customer's requirement.
4.Will this peat briquette press requires binder?
Answer:Yes, in order to make sure the briquette strength, we will need binder.
5.Will we need water?
Answer:It depends on the raw material moisture.
