Dust Ash Briquette Machine / Dust Ash Briquette Making Machine / Dust Ash Briquette Press

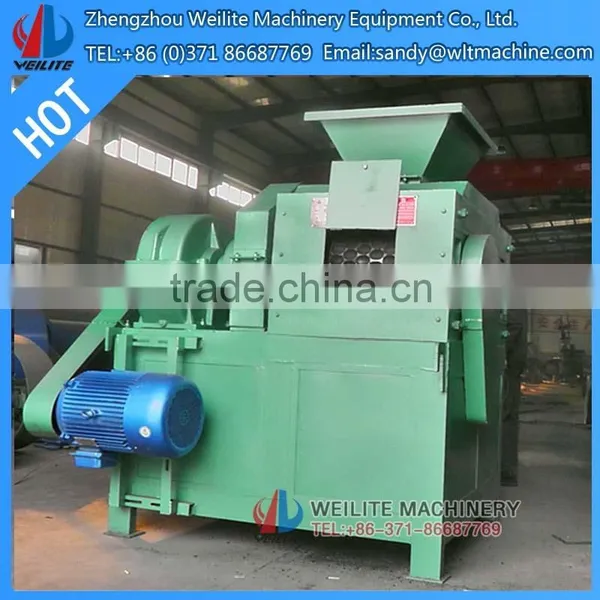

Dust Ash Briquette Machine / Dust Ash Briquette Making Machine / Dust Ash Briquette Press photo-1

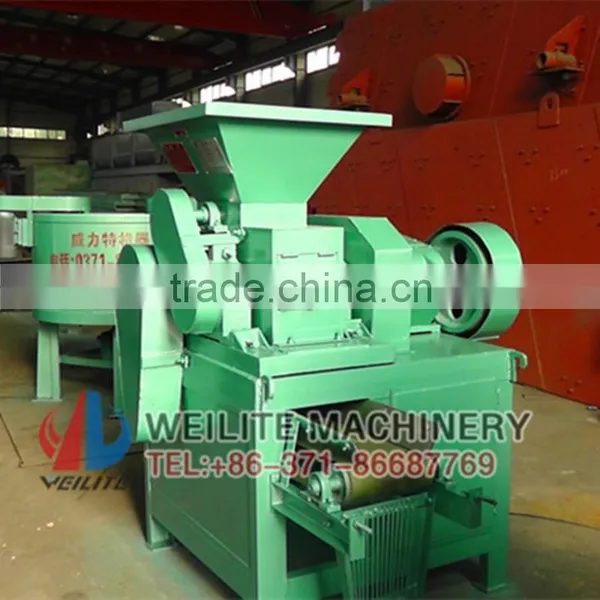

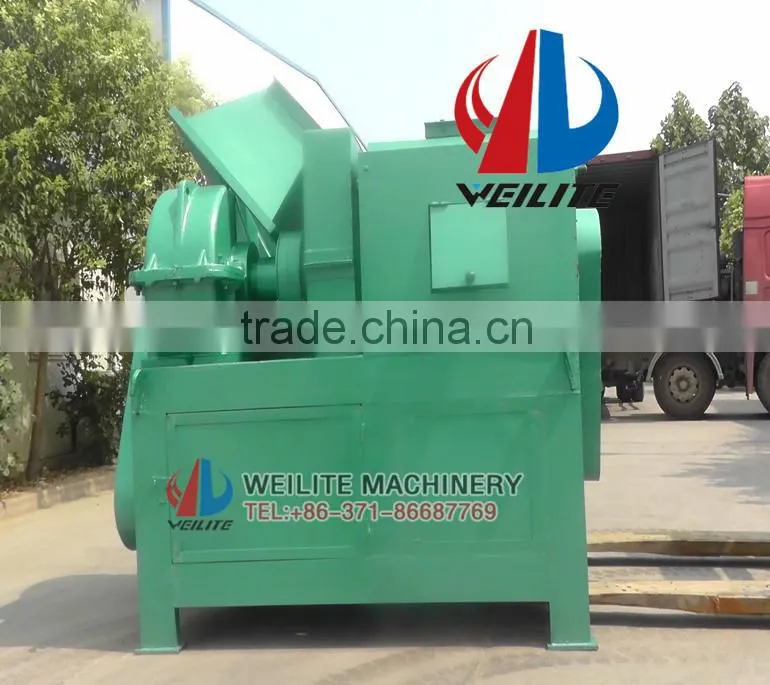

Dust Ash Briquette Machine / Dust Ash Briquette Making Machine / Dust Ash Briquette Press photo-2

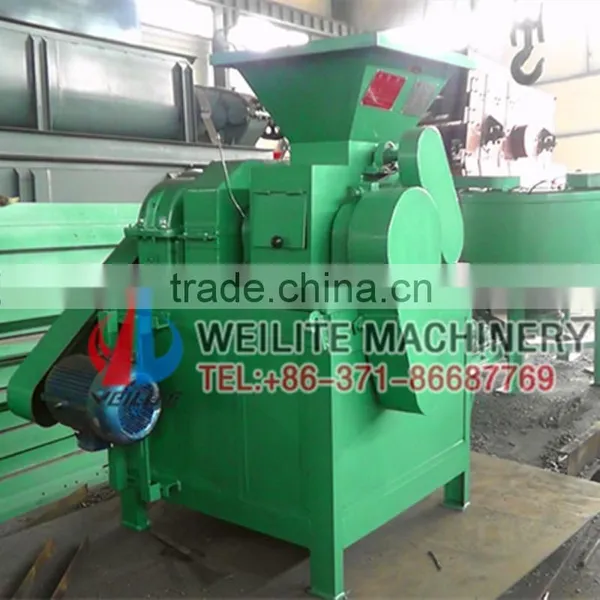

Dust Ash Briquette Machine / Dust Ash Briquette Making Machine / Dust Ash Briquette Press photo-3
Dust Ash Briquette Machine / Dust Ash Briquette Making Machine / Dust Ash Briquette Press photo-4

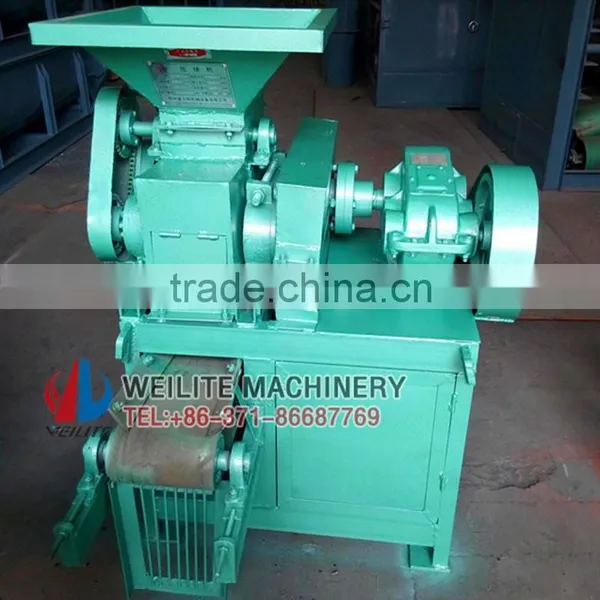

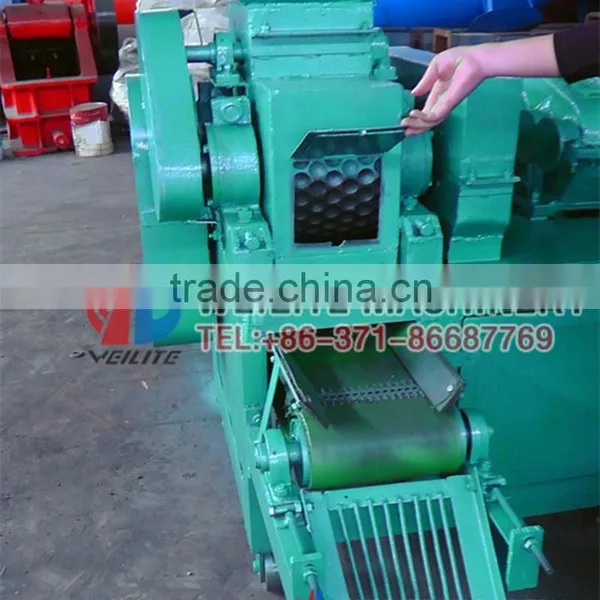

Dust Ash Briquette Machine / Dust Ash Briquette Making Machine / Dust Ash Briquette Press photo-5

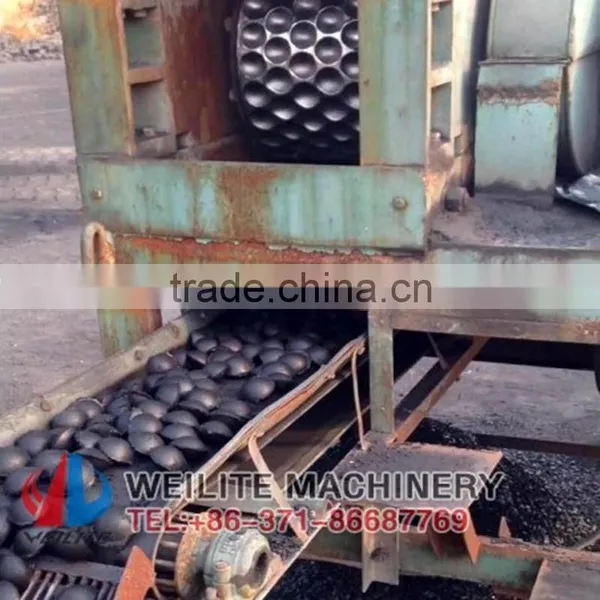

Dust Ash Briquette Machine / Dust Ash Briquette Making Machine / Dust Ash Briquette Press photo-6
US$ 3,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
0.3-70t/h
Motor Type:
AC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China and Main China ports
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Production Capacity 0.3-70t/h
Motor Type AC Motor
Power(W) 5.5-130kw
Place of Origin Henan, China
Brand Name Weilite
Model Number WLXM
Dimension(L*W*H) 1350x1060x1400mm
Certification ISO9001:2000
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

dust ash briquette press
1)Width:250-650mm
2)Diameter:360-1250mm
3)Motor power:7.5-130kw

          Dust Ash Briquette Press



Product Description

1. Brief introduction of dust ash briquette press

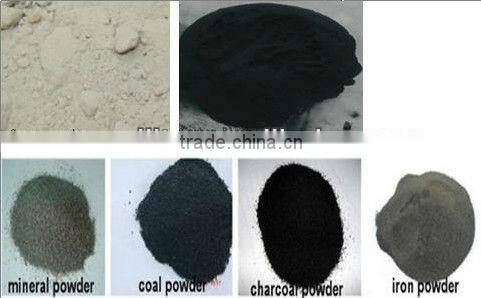

1)Raw Materials
a.The size of raw materials should be less than 3mm.(If larger, the crusher will be used)
b.The moisture for briquetting should be 6-10%. (If wetter,the dryer will be used)

Dust Ash Briquette Machine / Dust Ash Briquette Making Machine / Dust Ash Briquette Press

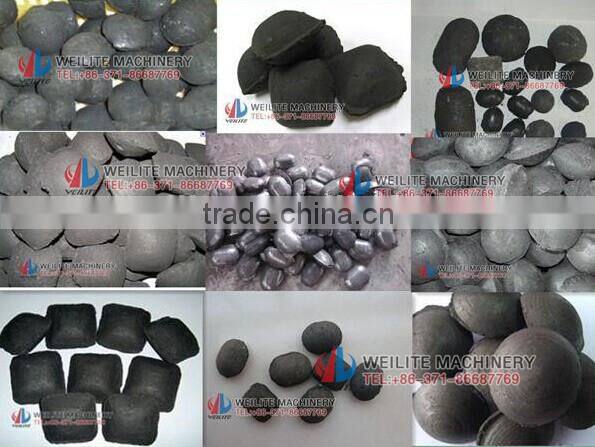

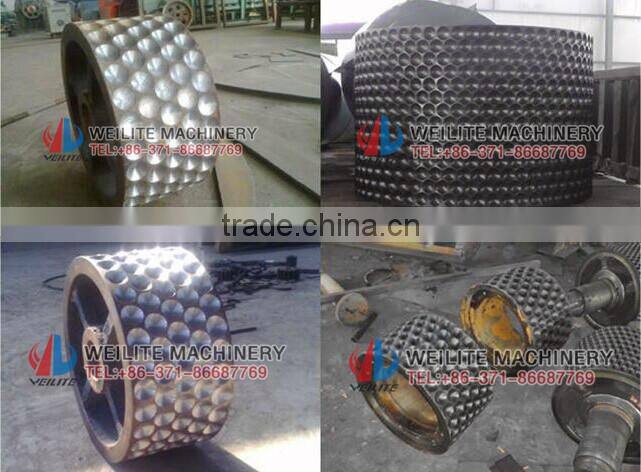

2)Finished products and rollers for briquetting press system
a.Briquette Size:30-60mm or customer requests
b.Briquette Shape:oval, square, pillow, hexagonal or customer designs
c.We use hard material to make the rollers of the pellet machine to extend the roller life for 3times.

Dust Ash Briquette Machine / Dust Ash Briquette Making Machine / Dust Ash Briquette Press

Dust Ash Briquette Machine / Dust Ash Briquette Making Machine / Dust Ash Briquette Press



2. Features of dust ash briquette press

1) High capacity

2) Low erengy consumption

3) Strong structure

4) Long serivce-life

 Dust Ash Briquette Machine / Dust Ash Briquette Making Machine / Dust Ash Briquette Press



3.The Main Technical Parameters of  dust ash briquette press



Model

WLXM-290

WLXM-360

WLXM-400

WLXM-500

WLXM-650

WLXM-750

WLXM-850

WLXM-1250

Capacity

(t/h)

1-2

2-4

6-8

8-11

13-18

18-25

25-35

40-70

Motor power

(kw)

5.5

7.5

11-15

18.5-22

20-30

45

75

130

Roller width

(mm)

220

250

280

300

336

400

500

650

Roller diameter

(mm)

290

360

400

500

650

750

850

1250

Roller material

65Mn

65Mn

65Mn

65Mn

65Mn

65Mn

65Mn

65Mn

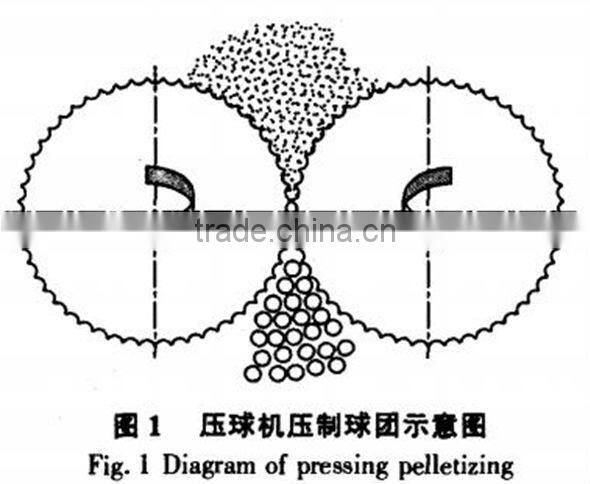

 4. Working Priciple Picture

This series of briquette plant will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.

Dust Ash Briquette Machine / Dust Ash Briquette Making Machine / Dust Ash Briquette Press

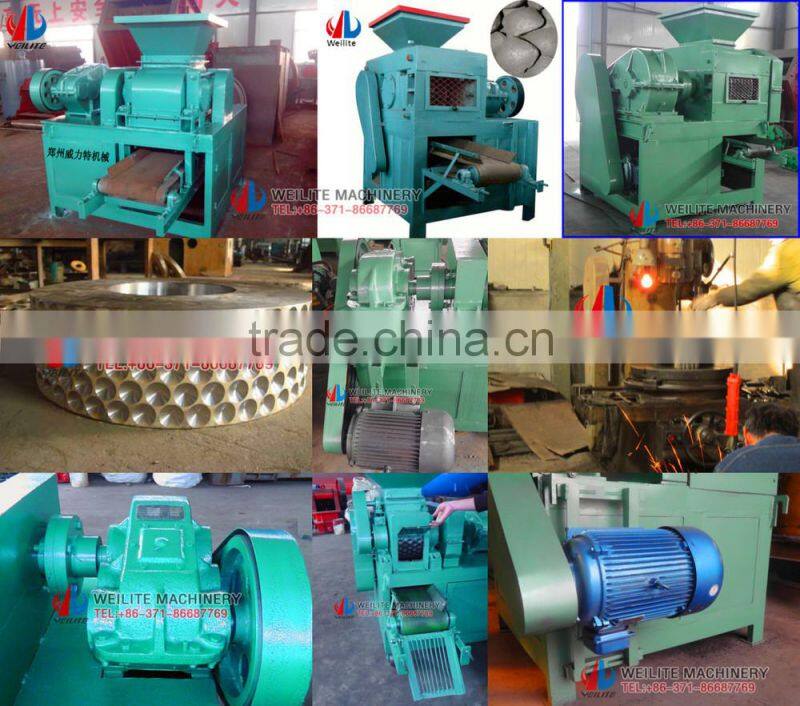

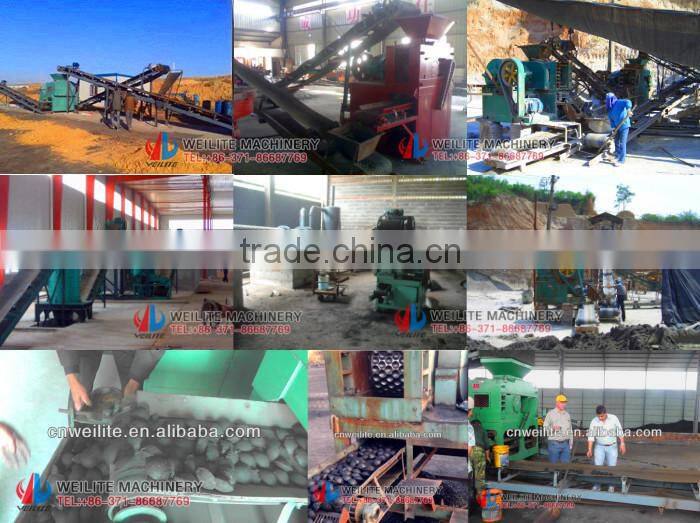

5. More pictures about dust ash briquette press

Dust Ash Briquette Machine / Dust Ash Briquette Making Machine / Dust Ash Briquette PressDust Ash Briquette Machine / Dust Ash Briquette Making Machine / Dust Ash Briquette Press



Packaging & Shipping

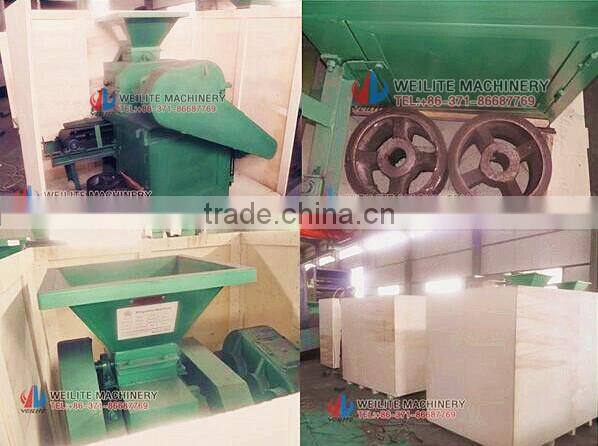

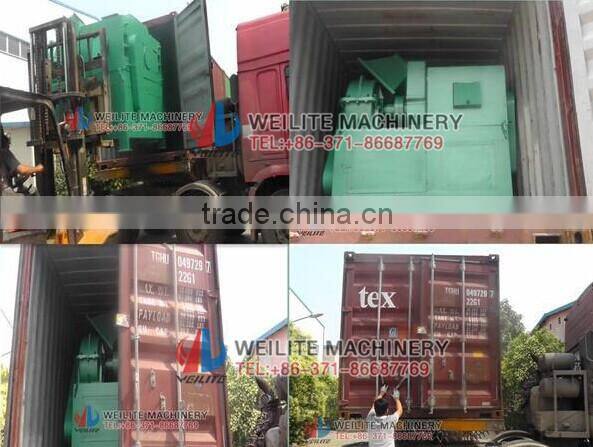

Dust Ash Briquette Press Packaging And Shipping

 1. Bare the main body of the machine

2.Motors and other small spare parts are packaged in wooden cases

3.Or as your requirements

Dust Ash Briquette Machine / Dust Ash Briquette Making Machine / Dust Ash Briquette PressDust Ash Briquette Machine / Dust Ash Briquette Making Machine / Dust Ash Briquette Press



Our Services

Our Services For Dust Ash Briquette Press

a). If any interest in our dust ash briquette press ,please feel free to contract me and let me know your requirement on capacity and material size.
b). We are professional machine manufacturer, we will help to choose the most suitable machine for y ou.
c). Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
d). If you need, we will dispatch professional engineer for installation, trail and worker training.

Company Information

Company Information

Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc.  Website:  /

FAQ

FAQ About Dust Ash Briquette Press

 1.What's the best raw material moisture for the dust ash briquette press ?

  • Answer:10%-12%. If material moisture is larger, we had better dry it firstly.



2.What's the max. feeding size for dust ash briquette press ?

  • Answer:5mm.If larger, we will need crusher.



3.What's the brquette size can be made by your dust ash briquette press  ?

  • Answer:Normally the briquette diameter is between 30-60mm. We also can custom made the briquette size according the customer's requirement.



4.Will this dust ash briquette press requires binder?

  • Answer:Yes, in order to make sure the briquette strength, we will need binder.



5.Will we need water?

  • Answer:It depends on the raw material moisture.

 Dust Ash Briquette Machine / Dust Ash Briquette Making Machine / Dust Ash Briquette PressDust Ash Briquette Machine / Dust Ash Briquette Making Machine / Dust Ash Briquette Press
