Help CenterHigh Efficiency Iron Powder Rotary Dryer
Related Products
-
Dust Ash Briquette Machine / Dust Ash Briquette Making Machine / Dust Ash Briquette PressUS$ 3,000 - 50,000MOQ: 1 Set -
Pefect Quality Peat Briquette Press With Resonable PriceUS$ 3,000 - 50,000MOQ: 1 Set
-
New Design Gas Dryer / Gas Rotary DryerUS$ 5,000 - 168,000MOQ: 1 Set
-
Briquette Machine For Lime Powder / Lime Powder Briquetting Press MachineUS$ 3,000 - 50,000MOQ: 1 Set
-
Cylinder Rotary Drying Equipment / Cylinder Dryer MachineUS$ 5,000 - 168,000MOQ: 1 Set
Specifications
iron powder rotary dryer1)professional design
2)low energy consumptoin
3)simple structure
Iron Powder Rotary Dryer
1 Performance Characteristics of Iron Powder Rotary Dryer
1) Fast drying speed; drying area of material liquid is significantly increased after spraying;
2) In the hot air flow, moisture can be evaporated 95%-98% instantaneously, drying time only need 10 seconds to tens of seconds;
3) It is especially suitable for drying thermal sensitive materials.
4) All products are spherical particles with uniform granularity, good liquidity, good solubility, high purity and good quality.
5)Wide using range and strong adaptability of materials.
6)Simple and stable operation, easy to control and realize automation operation.
2 The application of iron powder rotary dryer
The indirect heat transfer dryer made by our company can be used in building materials, metallurgy, chemical industry, cement plant for drying of limestone slag, coal powder, slag, clay stone. This dryer is formed of rotary body, lifting blade, driving device, supporting device and sealing ring.
3 Main technical parameters
|
Model (mm) |
Gradient (%) |
Rotational (r/min) |
Inlet Air temperature |
Power (kw) |
Production capacity (t/h) |
Weight (t) |
600*6000 |
3-5 |
3-8 |
≤700 |
3 |
0.5-1.5 |
2.9 |
800*8000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.0 |
3.5 |
800*10000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.5 |
4.5 |
1000*10000 |
3-5 |
3-8 |
≤700 |
5.5 |
1.0-3.5 |
5.6 |
1200*10000 |
3-5 |
3-8 |
≤700 |
7.5 |
1.8-5 |
14.5 |
1200*12000 |
3-5 |
3-8 |
≤700 |
11 |
2-6 |
14.8 |
1500*12000 |
3-5 |
2-6 |
≤800 |
15 |
3.5-9 |
17.8 |
1800*12000 |
3-5 |
2-6 |
≤800 |
18 |
5-12 |
25 |
2200*12000 |
3-5 |
1.5-6 |
≤800 |
18.5 |
6-15 |
33 |
2200*18000 |
3-5 |
1.5-6 |
≤800 |
22 |
10-18 |
53.8 |
2200*20000 |
3-5 |
1.5-6 |
≤800 |
30 |
12-20 |
56 |
2400*20000 |
3-5 |
1.5-5 |
≤800 |
37 |
18-30 |
60 |
3000*20000 |
3-5 |
1.5-5 |
≤800 |
55 |
25-35 |
78 |
3000*25000 |
3-5 |
1.5-5 |
≤800 |
75 |
32-40 |
104.9 |
4 Working principle of iron powder rotary dryer
This product uses the sleeve sets out the structure can be doubled to reduce the length of the dryer, due to significant reduction of the cooling surface, resulting in decreased heat consumption, while doubling the heat exchange surface to greatly enhance thermal efficiency. Materials that can not touch tobacco, multi-drum rotary dryer provided in the inside and outside the cylinder, respectively, within the smoke pipe and circular pipe, the flue pipe of communication between the radial, the same energy efficient. It is obvious that on the hot and cold media in terms of material, this machine a sleeve-type rotary cooler.

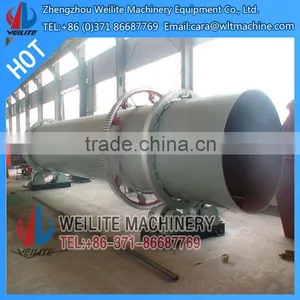

5 More pictures about iron powder rotary dryer
(1) Pre-sale Service:
Suitable-design products and resonable price will be supplied to you to meet your need. We can also offer experiment to test the equipment that the customer need.
(2) After-sale Service:
On the spot guidance for installation by our engineers, and the buyer is responsible for the expense. We have a perfect after-sales service system and team with professional.
1.Bare the the main body of the machine
2.Motors and other small spare parts are packaged in wooden cases
3.Or as your requirement.
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /
1.What's the raw material that can be dried?
- Answer:Any kind of meal and mineral material can be dried by our machine.
2.What kind of fuel can be used with the dryer?
- Answer:Gas, Diesel, Coal, Wood and other solid fuels.
3.What's the drying type of your dryer?
- Answer:Hot Air Drying Type.
4.Can we adjust the drying temperature?
- Answer:Yes, we can adjust the drying temperature by adjusting the hot air inlet volume.
