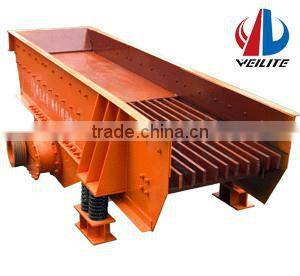

mineral vibrating feeder
Vibrating Feeder (Vibratory feeder) is used to transfer the large size materials and granular materials from hopper to receiving device uniformly, periodically and continuously in the production flow and to feed materials into the crusher continuously and uniformly also to screen the materials in the sandstone production line. The vibrating feeder is widely used to match the crushing and sieving equipments in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, grinding, etc.
In the Sand-Stone production line. The feeder machine can send materials to crusher evenly and continuously and at the same time, it can screen materials roughly. The feeder machine can be used in these areas such as metallurgical industry, coal mining industry, mining-selecting, building, chemical and grinding industry, etc.

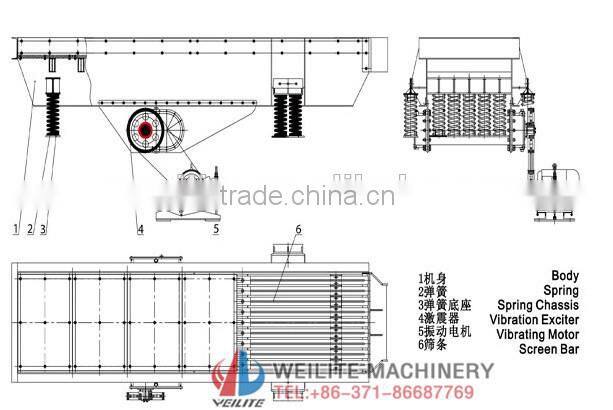

Feeding machine structure pictures
Main technical parameters
| Model | Funnel size(mm) | Maximum feeding granularity(mm) | Capacity(t/h) | Powder(kw) | Weight(kg) | Size(mm) |
| GZD-800x3000 | 850x3000 | 400 | 80-120 | 1.5x2 | 3895 | 3110x1800x1600 |
| GZD-960x3800 | 960x3800 | 500 | 120-210 | 2.2x2 | 3980 | 3850x1950x1630 |
| GZD-1100x4200 | 1100x4200 | 580 | 200-430 | 3.7x2 | 5570 | 4400x2050x1660 |
| GZD-1100x4900 | 1100x4900 | 580 | 280-500 | 5.5x2 | 6520 | 5200x2050x1700 |
| GZD-1300x5200 | 1300x4900 | 650 | 450-600 | 7.5x2 | 8200 | 5200x2350x1750 |
1. Pre-sales services:
1) Select proper equipment model;
2) Design and manufacture products according to clients' special requirement;
3) Arrange for visiting our factory, assist them to handle relative procedure, such as visa.
2. Services during the sale:
1) Make sure goods prepared within delivery time;
2) Pre-check and accept products ahead of delivery;
3) Prepare documents required to help customer pass customs clearance;
4) Help clients to make Project evaluation and feasibility analysis and draft solving plans.
3. After-sales services:
1) Assist clients to prepare for the first construction scheme;
2) Install, debug and examine the equipment;
3) Train technical personnel the first-line operators;
4) Provide technical exchanging
5) Offer spare parts at a best price for long term.
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /
1. What is the capacity you need? (Tons per hour)
2.What is the max size of the stone (mm/inch)?
3.What is the output size you need? 0-5-10-15mm?
4.What is the stone type? Granite, marble or others?

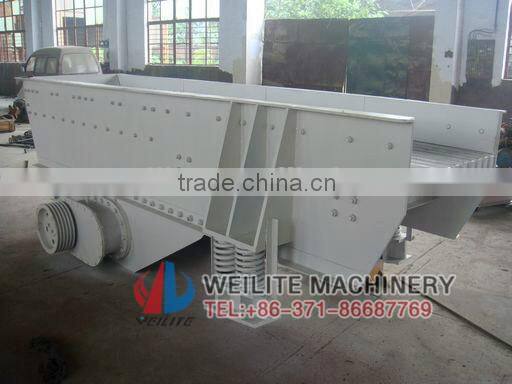

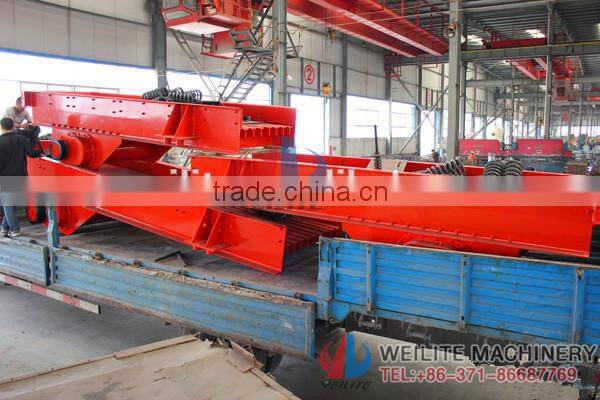

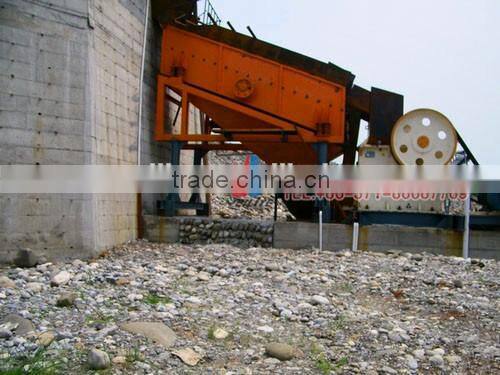

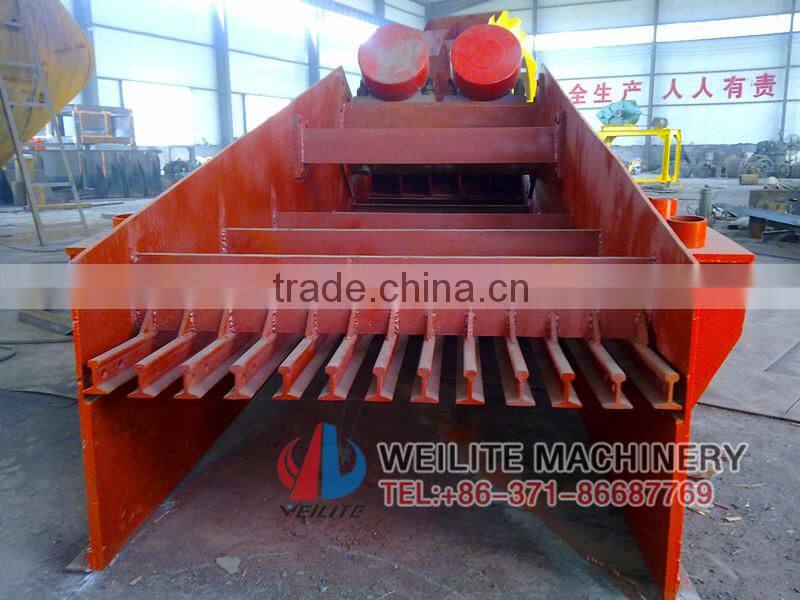

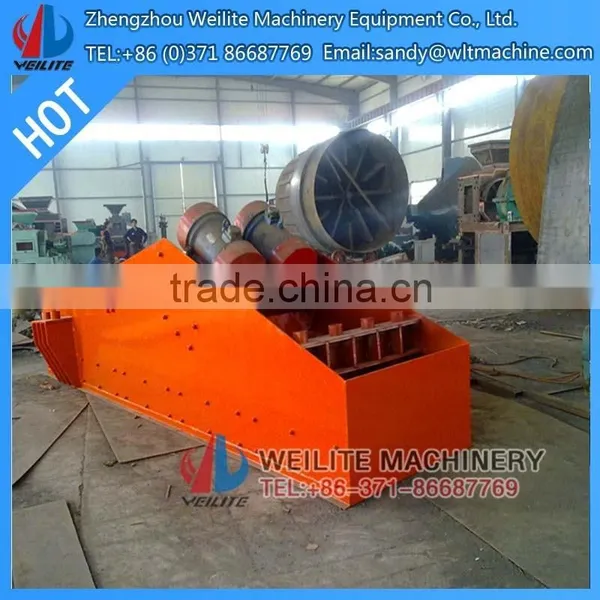

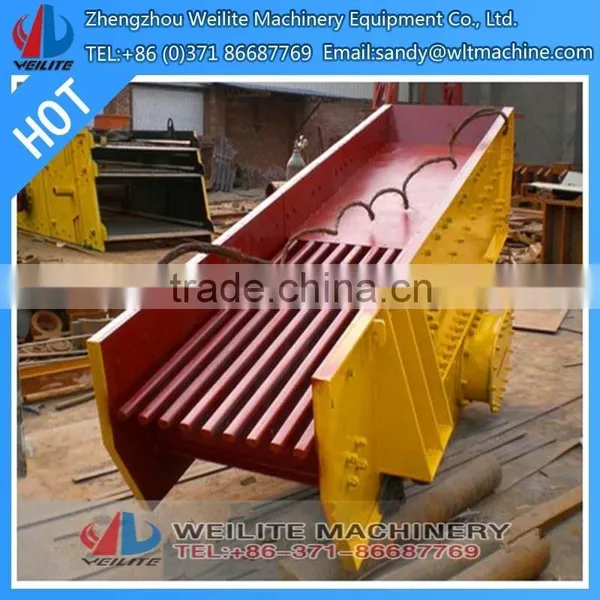

Pictures of mineral vibrating feeder
Note:
We can design the machine according to your special requirement, so if the specification is not listed , please contact me directly!
Tel. +86 371 86687769
