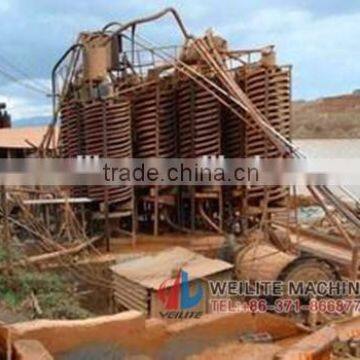

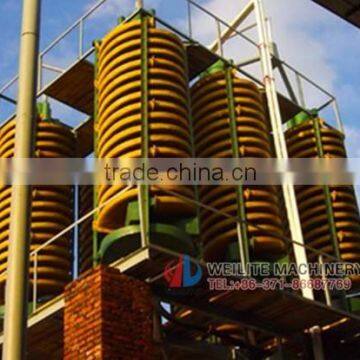

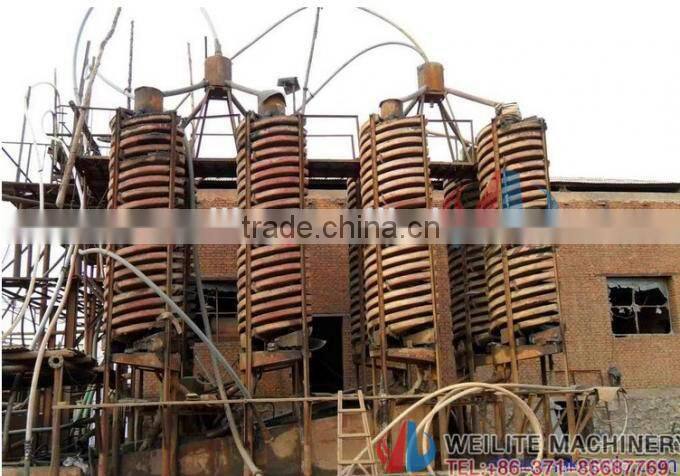

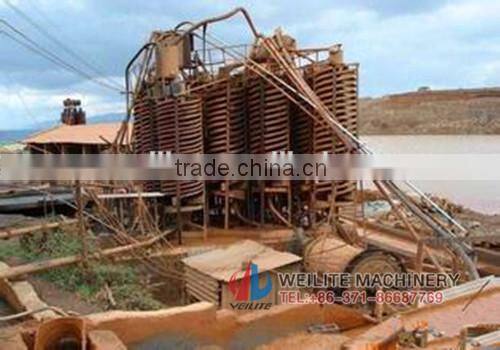

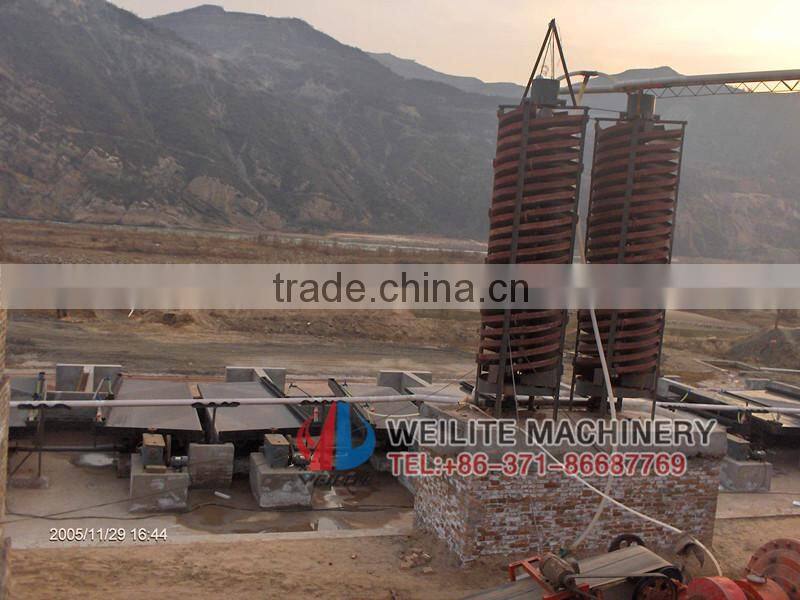

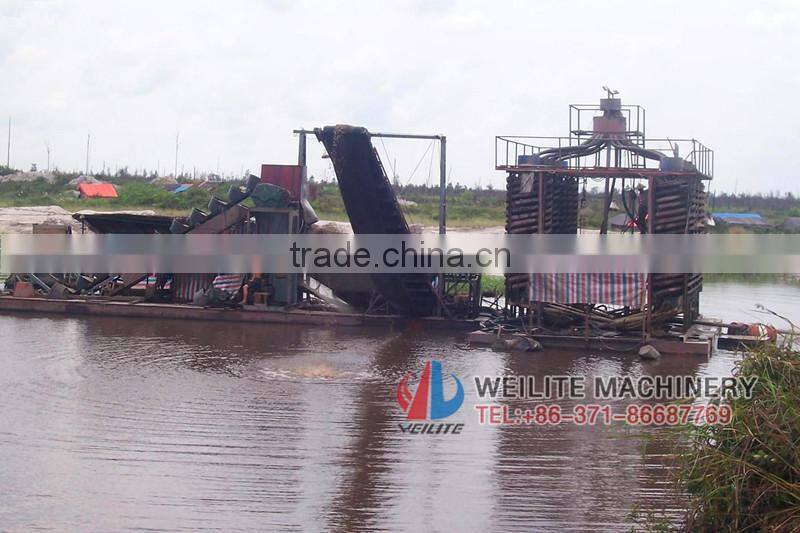

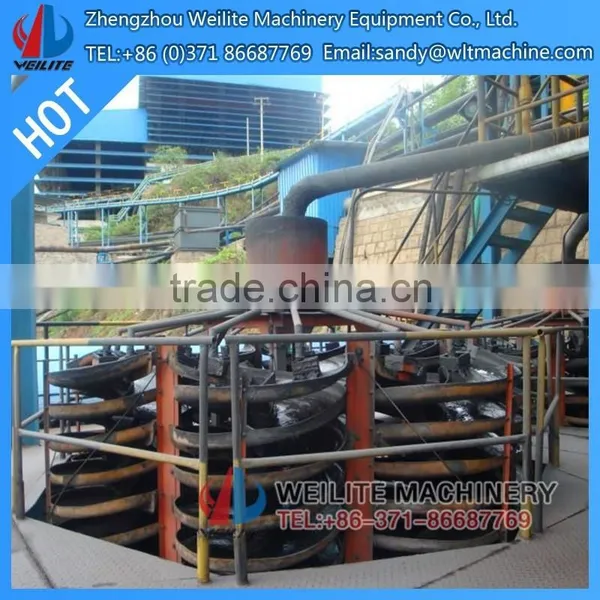

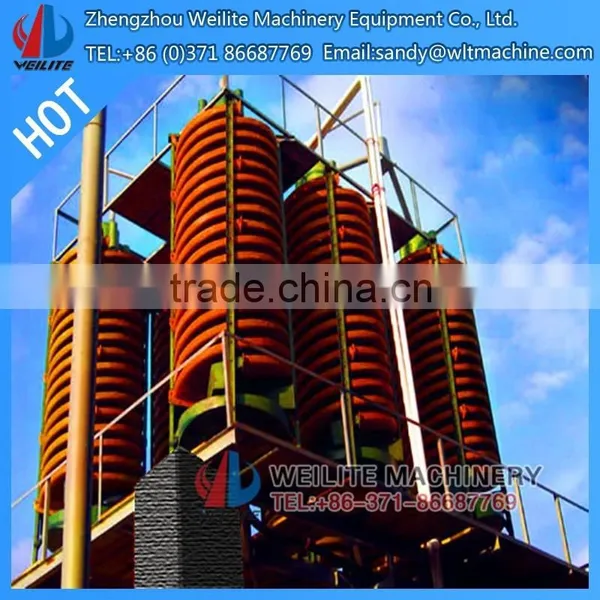

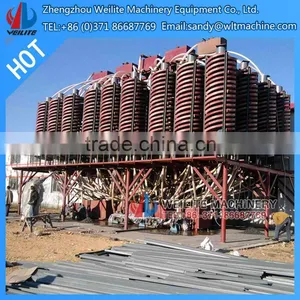

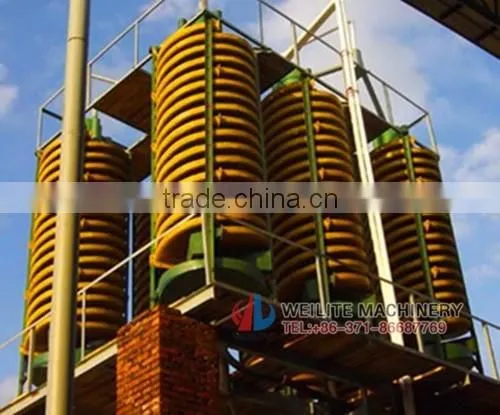

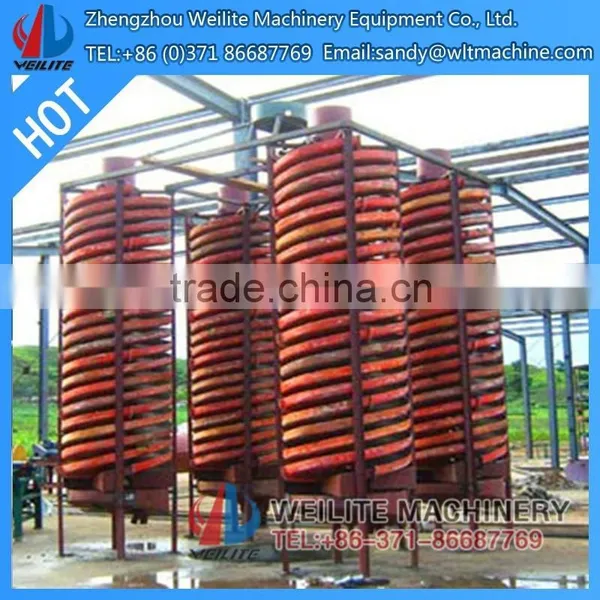

ore concentrate separating machine
- This applies to sorting size 0.3-0.02 mm thin material of ore,ilmenite,chromite,pyrite,zircon,rutile,monazite,tungsten ore,and niobium mine,as well as other non-ferrous metals.Precious metals and non-metallic mineral with the proportion differences.
- The process of sorting equipment is stable,easy to control,to allow changes in the thinckness of ore concentration,concentration is high,high recovery,small footprint,less water consumption,simple structure,no driving force,big capacity,simple to install,convenient operation,small investment and so on advantages.
Main technical parameters of ore concentrate separating machine
| Model | DI2000 | DI1500 | DI1200 | DI900 | DI600 | DI400 |
| Outside diameter | 2000 | 1500 | 1200 | 900 | 600 | 400 |
| Inside diameter | 2000 | 1500 | 1200 | 900 | 600 | 400 |
| Pitch of screw | 1200 | 900 |
720 540 |
540 360 |
390 360 |
180 |
| Rate | 0.6 | 0.6 | 0.6 | 0.4 0.6 | 0.4 | 0.45 |
| Gradient(°) | 9 | 9 | 9 | 9 | 9 | 9 |
| Number of threads | 2-4 | 2-4 | 2-4 | 2-3 | 1-2 | 1-2 |
| Number of turns | 3.5 | 4 | 4-5 | 4-5 | 4-5 | 4-5 |
| Max.feed size(mm) | 0.04-4 | 0.03-0.3 | 0.03-0.3 | 0.03-0.3 | 0.02-0.2 | 0.02-0.2 |
| Mine density(%) | 20-40 | 20-45 | 30-50 | 30-50 | 30-50 | 30-50 |
| Capacity L/h-1 | 15-45 | 10-25 | 4-6 | 2-3 | 0.8-12 | 0.5-0.2 |
| Area(m²) | 5, 7 | 5, 8 | 2 | 1 , 2 | 0.5 | 0.25 |
| Heigh(m) | 6.8 | 6.1 | 5.23 | 4 | 2.6 | 1.3 |
1).If any interest in our machine, please feel free to contact me and let me know your requirement on capacity and material size.
2).We are professional machine manufacturer, we will help to choose the most suitable machine for you.
3). Whole plant design and drawings are free after set order.
4). Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
5).If you need, we will dispatch professional engineer for installation, trail and worker training.
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /
Note:
We can design the machine according to your special requirement, so if the specification is not listed , please contact me directly!
I`m Sandy,Tel. +86 371 86687769
