Vibrating Feeder ,Vibrating Feeding Machine ,Vibrating Feeder for Mining

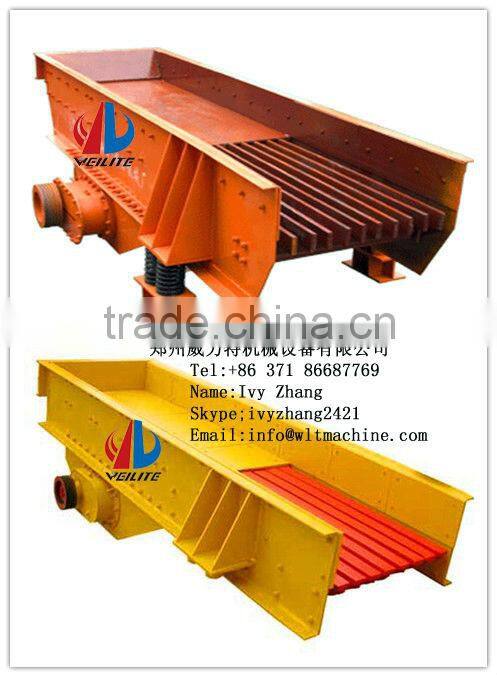

Vibrating Feeder ,Vibrating Feeding Machine ,Vibrating Feeder for Mining thumbnail-1

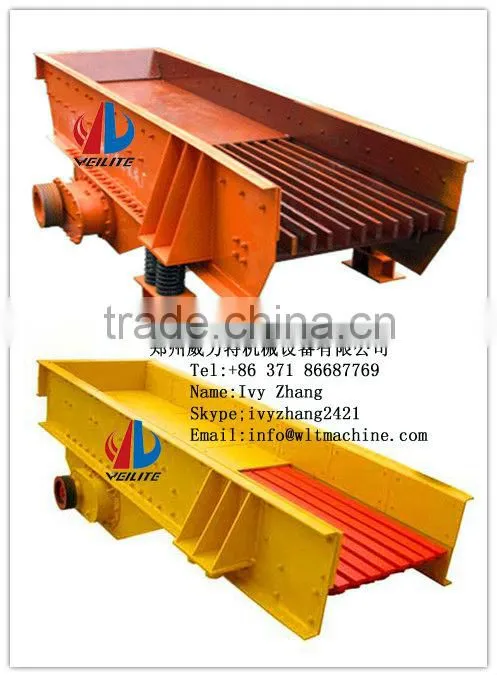

Vibrating Feeder ,Vibrating Feeding Machine ,Vibrating Feeder for Mining photo-1
US$ 1,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Metallurgical coal dressing building materials chemical abrasive, Vibration in mining
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Zhengzhou Weilite Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Metallurgical coal dressing building materials chemical abrasive, Vibration in mining
Power Type Electric
Capacity(t/h) 80-600T/H
Place of Origin Henan, China
Brand Name WEILITE
Model Number GZD
Power(W) 3-15 kw
Dimension(L*W*H) 4400*2050*1660 mm
Weight 3.9-8.2 tons
Certification ISO9001.2000
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

vibrating feeder for mining
1, vibration, stable and reliable.
2, the trash rack adjustable gap to prevent material clogg

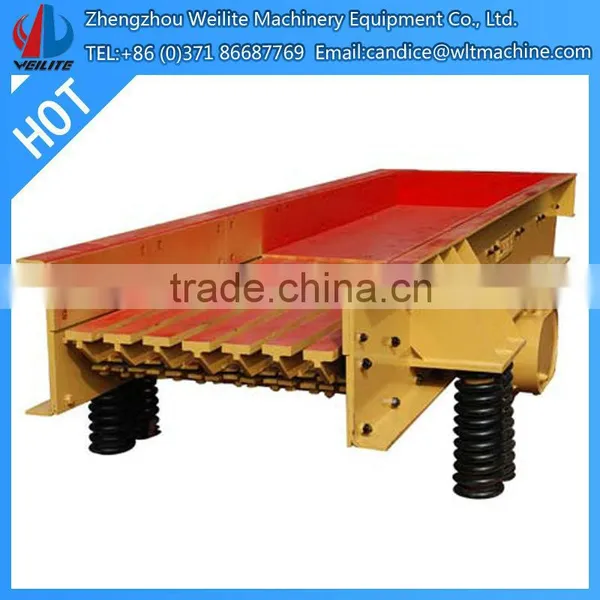

                                        Vibrating Feeder For MiningVibrating feeder ,Vibrating Feeding Machine ,Vibrating feeder for mining

 Product Description

Vibrating Feeder For Mining Application

It is a kind of linear direction feeding equipment. It features smooth vibrating, reliable operation, long service life and being suitable for feeding. They are widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants. In the Sand-Stone production line, it can send materials to crusher evenly and continuously and at the same time, it can screen materials roughly. It can be used in these areas such as metallurgical industry, coal mining industry, mining-selecting, building, chemical and grinding industry, etc.

Vibrating feeder ,Vibrating Feeding Machine ,Vibrating feeder for mining

Vibrating Feeder For Mining Work Principle

Vibrating feeder is to use the vibrator in the centrifugal force produced by the rotation of eccentric block, cause the sieve, vibrators and other moving parts as the compulsory or approximate the continuous circular movement. Vibrating feeder is composed of feeding tub, vibrator, spring bearing, gear, etc. Tank vibration feeding solutions of vibration source is vibrator, vibrator is made up of two eccentric shaft (master, passive) and gears, drive shaft, driven by a motor through the triangle again by gear meshing driven shaft rotation on the drive shaft, the main, driven shaft rotate reverse at the same time, make the tub vibration, a continuous flow of material, to achieve the purpose of conveying material.

 Vibrating feeder ,Vibrating Feeding Machine ,Vibrating feeder for mining

Vibrating Feeder For Mining  Structure

It consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign.

 Vibrating feeder ,Vibrating Feeding Machine ,Vibrating feeder for mining

Vibrating Feeder For Mining  Features and Advantages

1. stable and long span life

2. easy to adjust

3. reliable operation.

4. easy maintenance.

5. no pollution.

Vibrating feeder ,Vibrating Feeding Machine ,Vibrating feeder for mining

Vibrating Feeder For Mining Technical Parameter

Model  Funnel size(mm)  Maximum feeding granularity(mm)  Capacity(t/h)  Powder(kw)  Weight(kg)  Size(mm)
GZD-800x3000  850x3000  400  80-120  1.5x2  3895  3110x1800x1600
GZD-960x3800  960x3800  500  120-210  2.2x2  3980  3850x1950x1630
GZD-1100x4200  1100x4200  580  200-430  3.7x2  5570  4400x2050x1660
GZD-1100x4900  1100x4900  580  280-500  5.5x2  6520  5200x2050x1700
GZD-1300x5200 1300x4900  650  450-600  7.5x2  8200  5200x2350x1750

 Vibrating feeder ,Vibrating Feeding Machine ,Vibrating feeder for mining

 Our Services

Our Service
(1) Pre-sale Service:
Suitable-design products and resonable price will be supplied to you to meet your need. We can also offer experiment to test the equipment that the customer need.
(2) After-sale Service:
On the spot guidance for installation by our engineers, and the buyer is responsible for the expense. We have a perfect after-sales service system and team with professional.

Sales Picture

Our mahcine have a good market in The Philippines, Pakistan, India, Malaysia, Australia, England, French, South Korea and the United States. And welcome to visit our factory!

 Vibrating feeder ,Vibrating Feeding Machine ,Vibrating feeder for mining

Machine Installation Vibrating feeder ,Vibrating Feeding Machine ,Vibrating feeder for mining

Vibrating feeder ,Vibrating Feeding Machine ,Vibrating feeder for mining

 Company Information

Company Introduction

Zhengzhou Weilite Machinery Equipment Co., Ltd is a manufacturer and exporter of mining machinery in China. Our main products are feeder, crusher, grinding mill, dryer, briquetting machine and so on. They are excellent quality and enjoy good reputation both in China and overseas. Welcome to visit and purchase from us!
