Help CenterLarge Capacity Iron Ore Ball Mill / Ball Mill For Iron Ore Grinding
Related Products
-
Factory Direct Sale Activated Carbon Making MachineUS$ 1,200 - 68,000MOQ: 1 Set -
Calcite Rocks Grinding Machine / Calcite Rocks Grinding MachineryUS$ 5,000 - 80,000MOQ: 1 Set
-
High Quality Mineral Grinding Mill For SaleUS$ 5,000 - 80,000MOQ: 1 Set
-
Feldspar Raymond Pulverizer / Feldspar Rollers of Raymond PulverizerUS$ 5,000 - 80,000MOQ: 1 Set
-
High Quality Vertical Roller Grinding Mill For SaleUS$ 1,200 - 68,000MOQ: 1 Set
Ball mill for iron ore grinding as a general-purpose equipment, is widely used in mineral dressing, building materials and chemical industry, iron ore ball mill and change the traditional ball mill bulky heavy, high energy consumption, low yield, the noise big shortcoming, offer you is a kind of light weight, low cost, power consumption province, low noise, low steel consumption, high productivity, a new type of ball mill.
Ball Mill For Iron Ore Grinding Working Theory
The main body of the overflow mine ball miller is a low-speed rotary cylinder mounted on two large bearings horizontally. The ball miller’s rotary part is driven at reducing speed by motor through speed reducer and gear weheel or by low-speed synchronous motor through gearwheel. Inside the cylinder feed proper grinding medium-steel balls. The medium will be lifted to certain height under the action of centrifugal force and friction and drop or fall. The material to grind is fed to the cylinder in succession and crushed by grinding medium, then discharged through overflow and continual feeding force, and enter the next procedure.
More Ball Mill For Iron Ore Grinding Pictures
1).Ball Mill For Iron Ore Grinding In Workshop

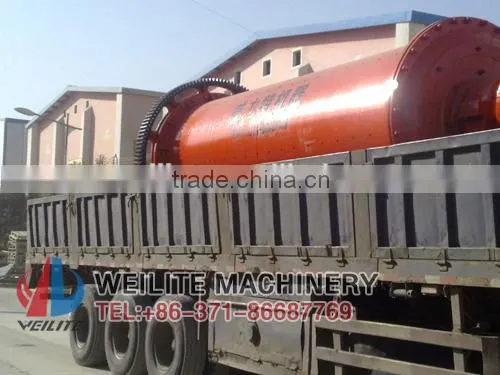

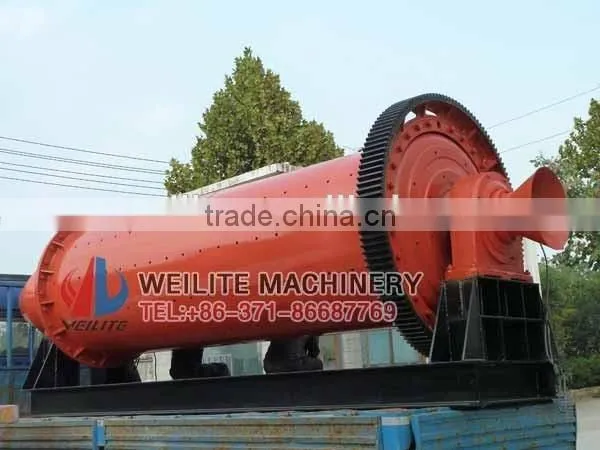

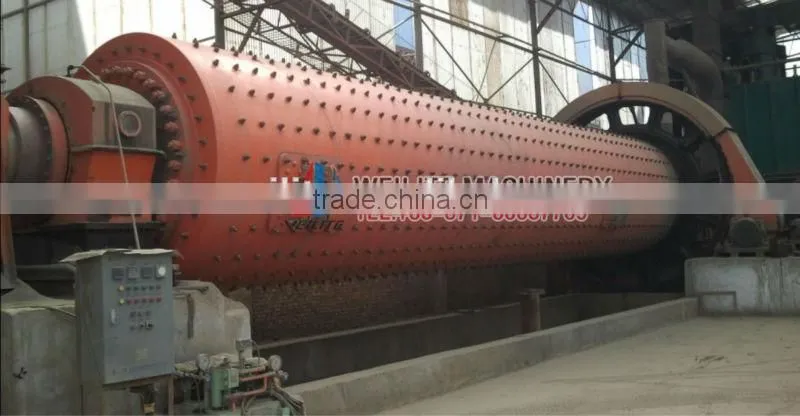

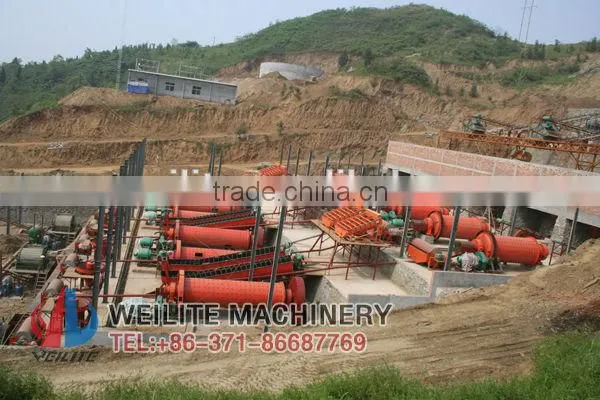

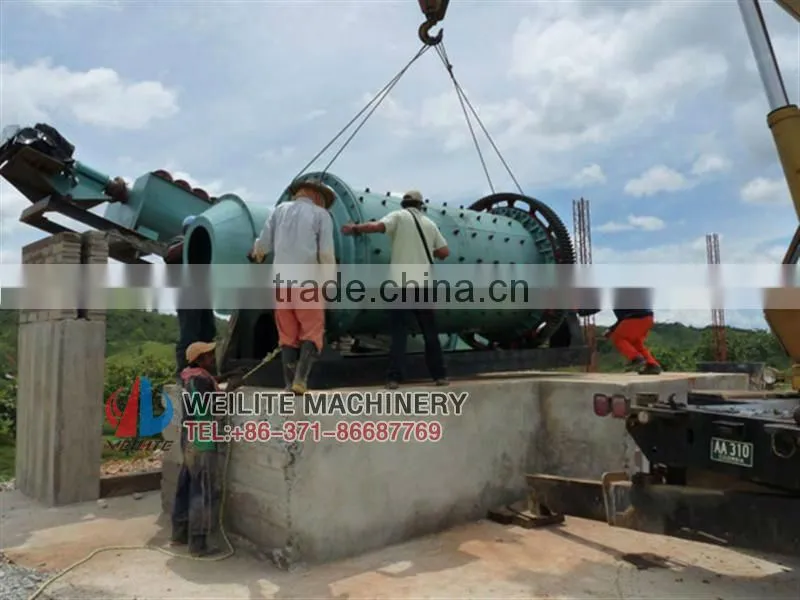

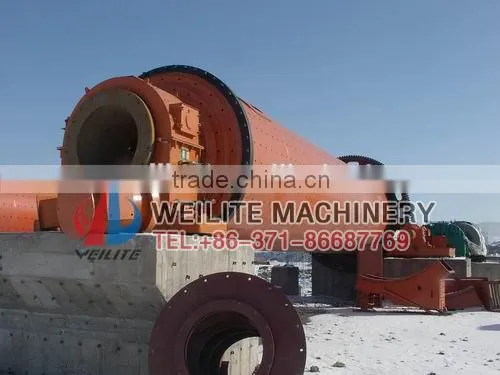

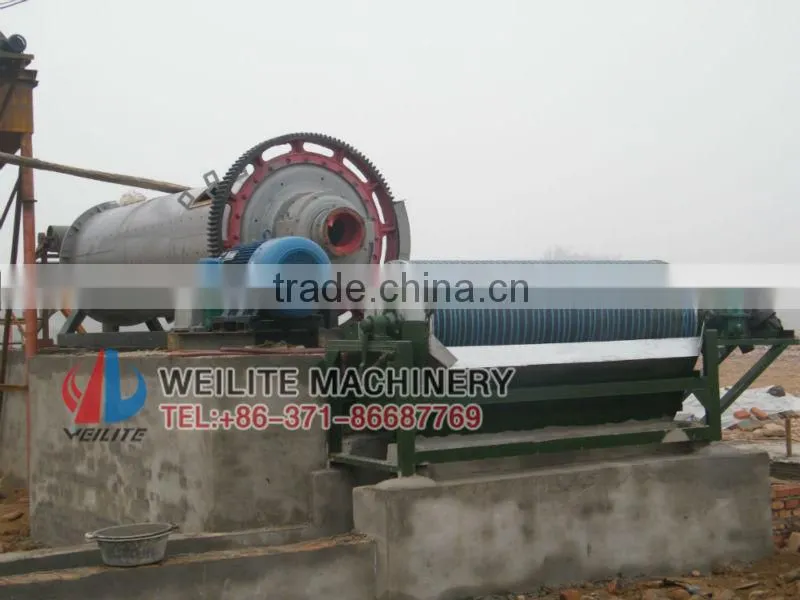

2).Ball Mill For Iron Ore Grinding Installation Pictures
Ball Mill For Iron Ore GrindingTechnical Datas
Type |
Shaft Rotation Speed |
Ball Load (t) |
Feeding Size |
Discharging Size |
Capacity (t/h) |
Motor Power |
Weight(t) |
MQJ900×1800 |
38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
3.6 |
MQJ900×3000 |
38 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
4.6 |
MQJ1200×2400 |
32 |
3.8 |
≤25 |
0.075-0.6 |
1.5-4.8 |
45 |
12.5 |
MQJ1200×3000 |
32 |
5 |
≤25 |
0.074-0.4 |
1.6-5 |
45 |
12.8 |
MQJ1200×4500 |
32 |
7 |
≤25 |
0.074-0.4 |
1.6.5.8 |
55 |
13.8 |
MQJ1500×3000 |
27 |
8 |
≤25 |
0.074-0.4 |
2-5 |
90 |
17 |
MQJ1500×4500 |
27 |
14 |
≤25 |
0.074-0.4 |
3-6 |
110 |
21 |
MQJ1500×5700 |
27 |
15 |
≤25 |
0.074-0.4 |
3.5-8 |
132 |
24.7 |
MQJ1830×3000 |
24 |
11 |
≤25 |
0.074-0.4 |
4-10 |
180 |
28 |
MQJ1830×4500 |
25.4 |
15 |
≤25 |
0.074-0.4 |
4.5-12 |
155 |
32 |
MQJ1830×6400 |
24 |
23 |
≤25 |
0.074-0.4 |
6.5-15 |
210 |
34 |
MQJ1830×7000 |
24 |
25 |
≤25 |
0.074-0.4 |
7.5-17 |
245 |
36 |
MQJ2100×3000 |
23.7 |
15 |
≤25 |
0.074-0.4 |
6.5-36 |
210 |
34 |
MQJ2100×4500 |
23.7 |
24 |
≤25 |
0.074-0.4 |
8-43 |
245 |
42 |
MQJ2100×7000 |
23.7 |
26 |
≤25 |
0.074-0.4 |
8-48 |
280 |
50 |
MQJ2200×4500 |
21.5 |
27 |
≤25 |
0.074-0.4 |
9-45 |
280 |
48.5 |
MQJ2200×6500 |
21 |
31 |
≤25 |
0.074-0.4 |
14-26 |
380 |
52.8 |
MQJ2200×7000 |
21.7 |
35 |
≤25 |
0.074-0.4 |
15-28 |
380 |
54 |
MQJ2200×7500 |
21.7 |
35 |
≤25 |
0.074-0.4 |
15-30 |
380 |
56 |
MQJ 2400×4500 |
21 |
30 |
≤25 |
0.074-0.4 |
8.5-60 |
320 |
65 |
MQJ 2700×4000 |
20.7 |
40 |
≤25 |
0.074-0.4 |
12-80 |
400 |
94 |
MQJ 2700×4500 |
20.7 |
48 |
≤25 |
0.074-0.4 |
12-90 |
430 |
102 |
MQJ 3200×4500 |
18 |
65 |
≤25 |
0.074-0.4 |
Set According to the Technology |
800 |
137 |
a). If any interest in our ball mill for iron ore grinding, please feel free to contact me and let me know your requirement on capacity and feeding and discharging material size.
b). We are professional machine manufacturer, we will help to choose the most suitable machine for you.
c). Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
d). If you need, we will dispatch professional engineer for installation, trail and worker training.
Zhengzhou Weilite Machinery Equipment Co., Ltd is a manufacturer and exporter of mining machine in China. Our main products are crusher, grinding mill, dryer, briquette plant and so on. Welcome to visit and purchase from us!
1).What's the max. feeding material size for the ball mill for iron ore grinding?
- Answer:25mm.If larger, we will need crusher.
2).What's the discharging material size for the ball mill for iron ore grinding?
- Answer:Discharging material size varies from 125mesh to 325mesh.
3).What kind of material can be grinded by the ball mill for iron ore grinding?
- Answer:Iron Ore,Cement Clinker, Coal,Gypsum,Steel Slag,Chrome Ore,etc.
4).Do you provide production line design service?
- Answer:Yes, we are professional machine manufacturer. So we can provide production line design service.
If any interest in our ball mill for iron ore grinding , please contact me for details.
