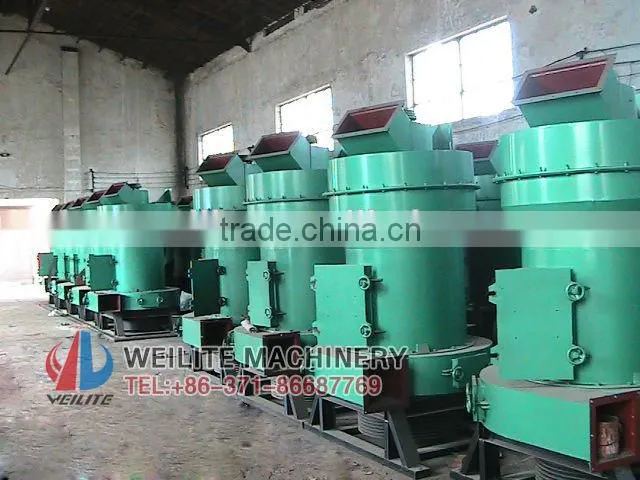

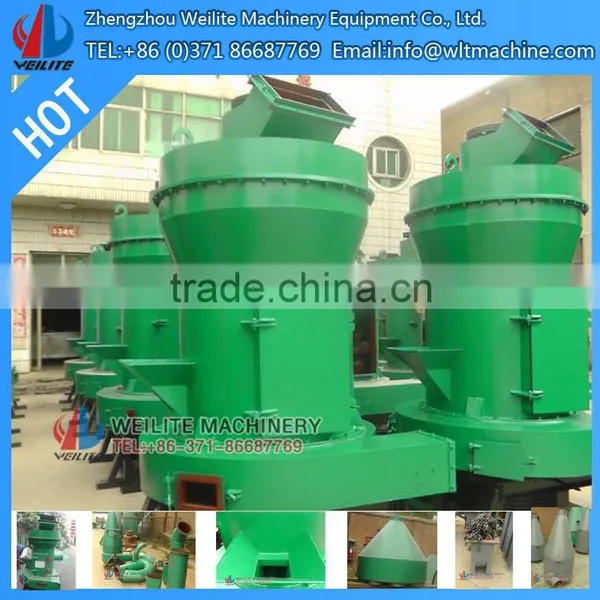

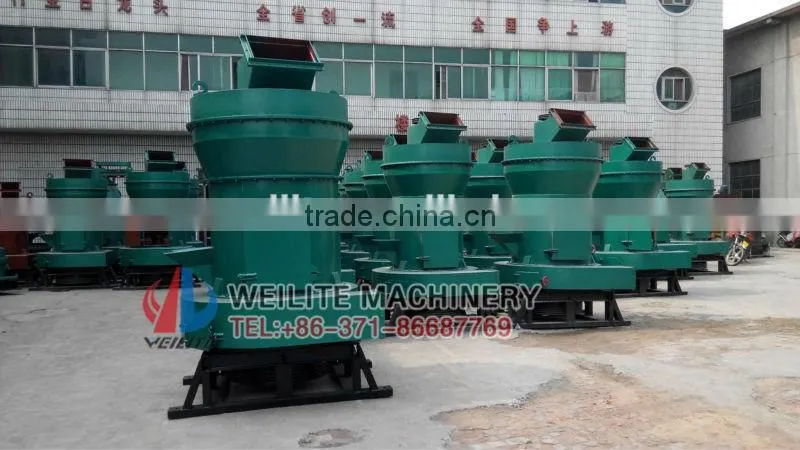

Calcite Rocks Grinding Machinery

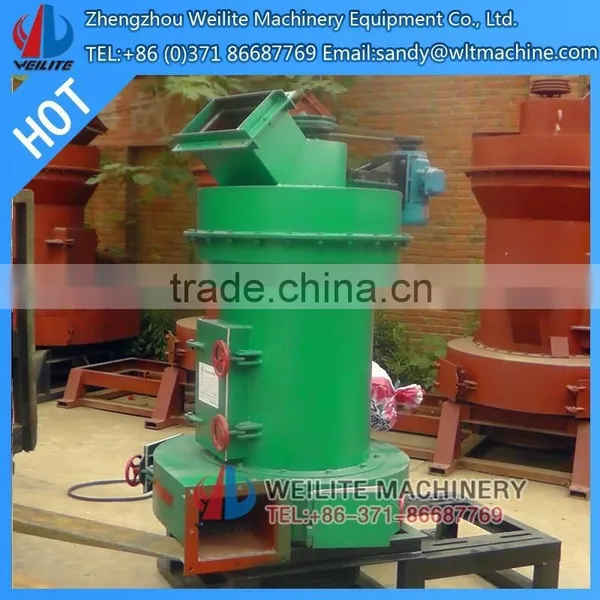

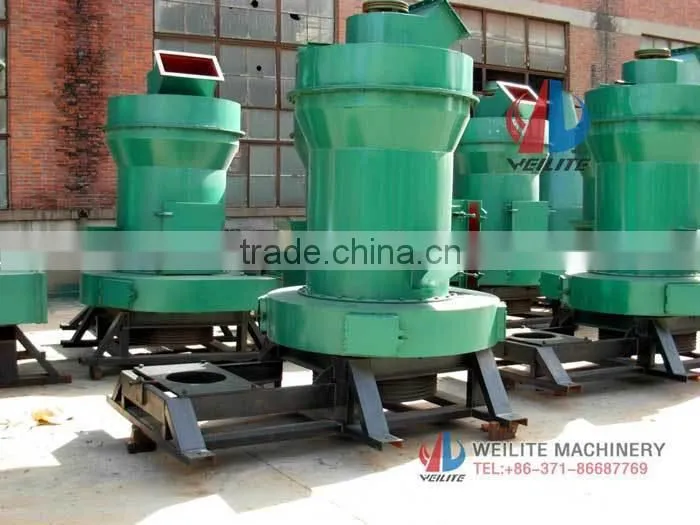

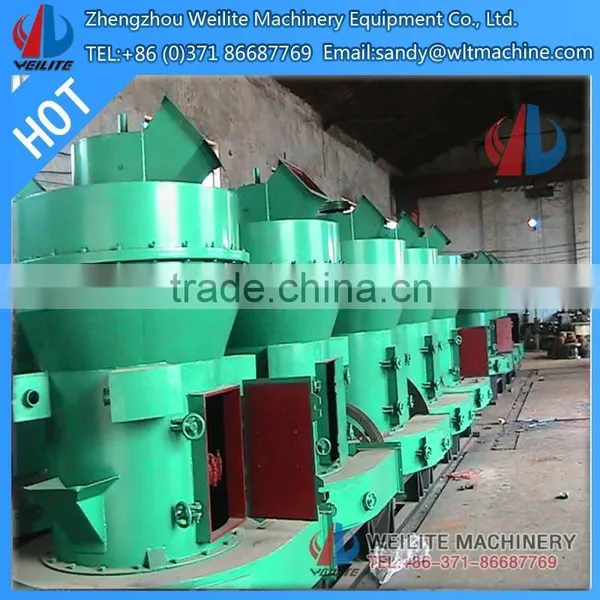

1.Calcite Rocks Grinding Machinery Introduction
Calcite Rocks Grinding Machinery is designed for grinding raw material into powder. It is suitable for grinding calcite, feldspar, calcium carbonate, silicate, sand, limestone, dolomite, chrome ore, new-type building material, refractory material, ferrous metal and non-ferrous metal, glass ceramics, etc. It is widely used in cement industry, mining industry, refractory material making industry,etc. The discharging size varies from 60-1250mesh.

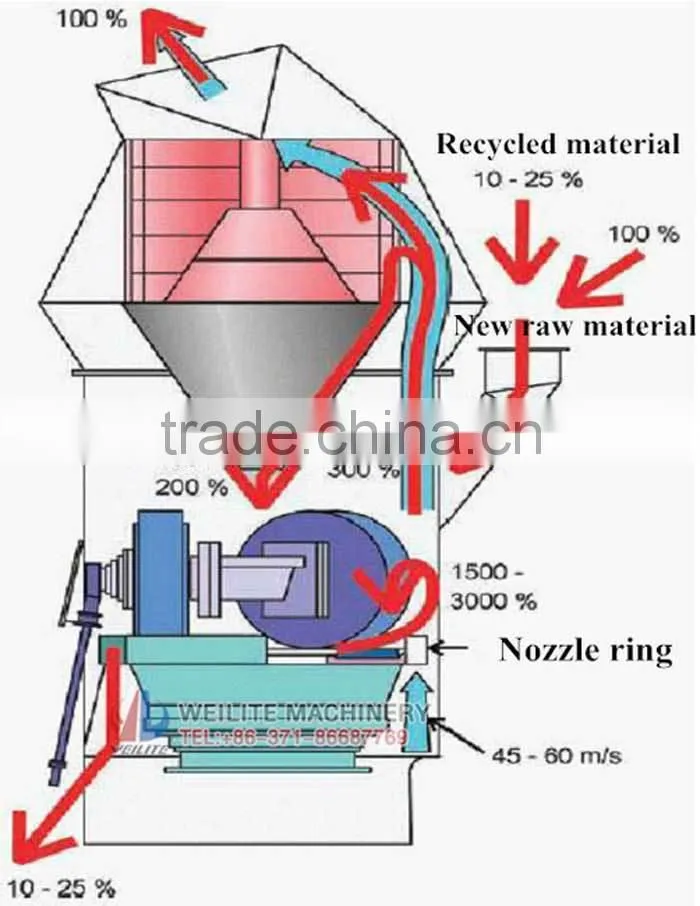

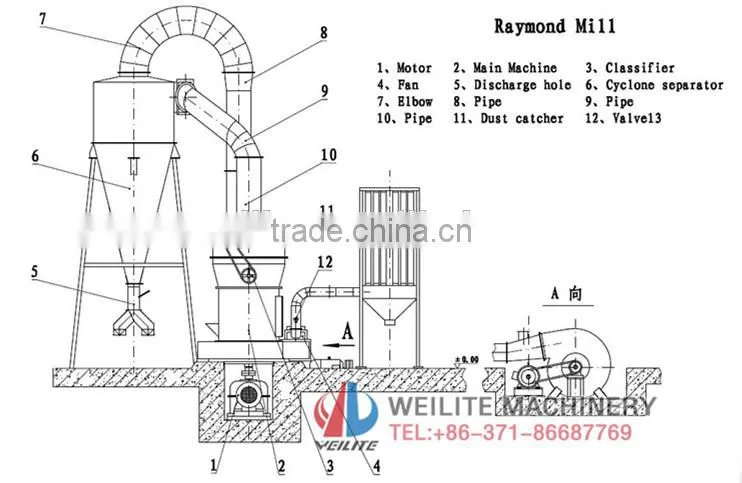

2.Calcite Rocks Grinding Machinery Working Principle
Firstly, raw material is crushed by jaw crusher to the size required, then the crushed materials are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder, evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind.
After this, the ground stuff are carried by the air from the blower into the separator for screening. The fine powers are blow into the cyclone collector and are poured out through the output-powder valve as the final products and the rough stuff after the screening will be recycled back into the grinding chamber for regrinding. The set’s airflow system is closely sealed up and circulated under condition of negative and positive pressure.

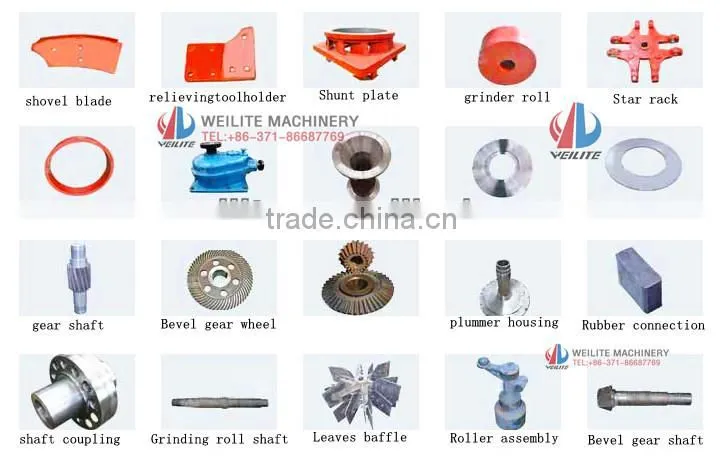

3.Calcite Rocks Grinding Machinery Spare Parts

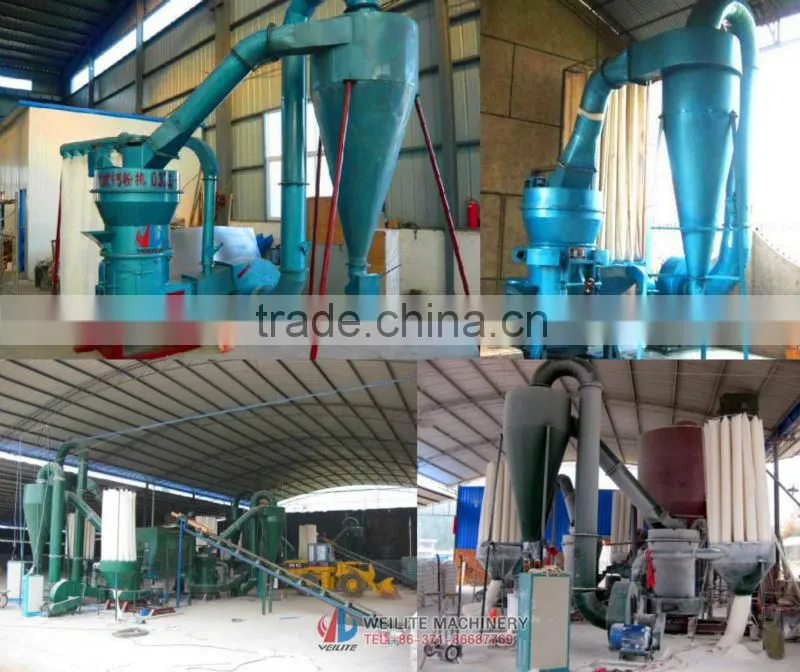

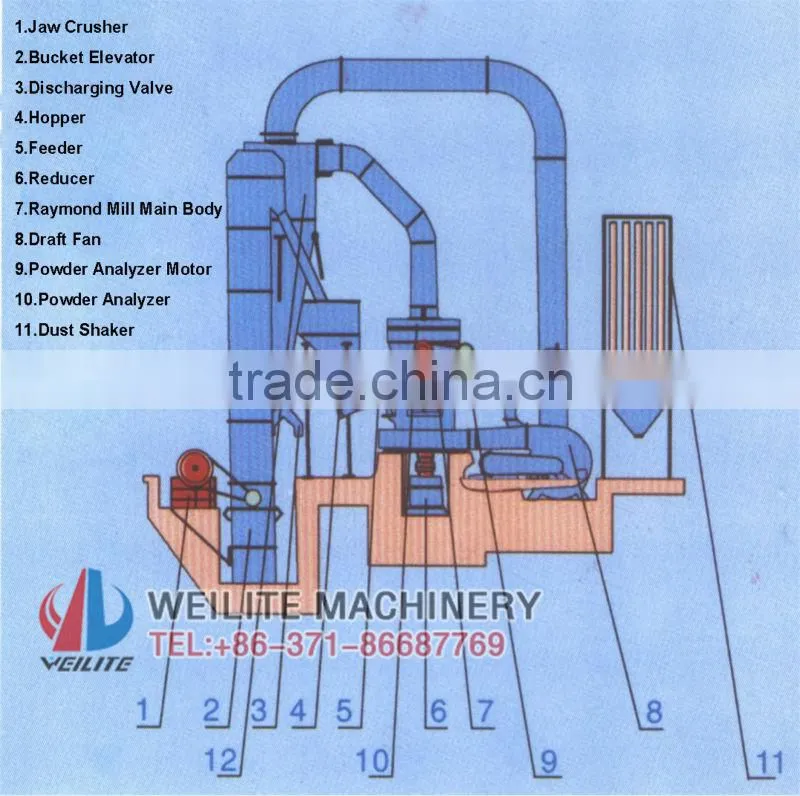

4.Calcite Rocks Grinding Machinery Production Line Design Drawing
Firstly, the raw material will be crushed by jaw crusher if size is larger than 25mm, and then the crushed materials are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder evenly and continuously into the grinding chamber for powder-processing. The rollers of raymond pulverizer oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind.
5.Calcite Rocks Grinding Machinery Line Introduction

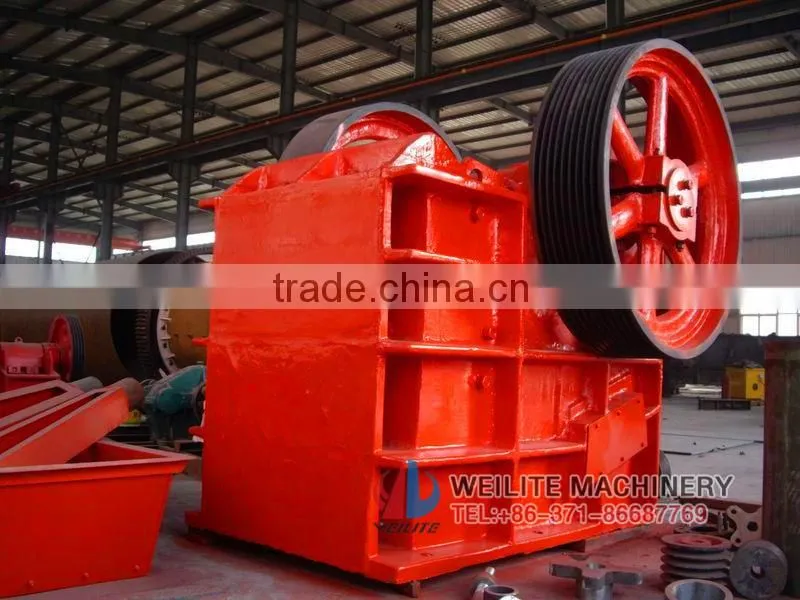

1).Jaw Crusher: It is used for crushing raw material whose size is larger than 25mm. Please let us know the raw material size. So we will help to design if you need crusher or not.

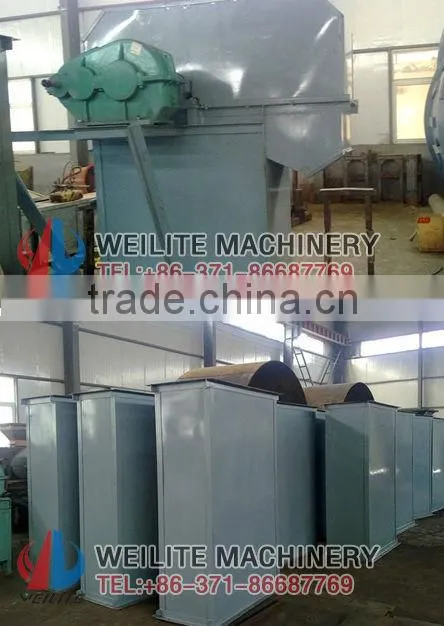

2).Bucket Elevator:It is used to carry material into storage bin.

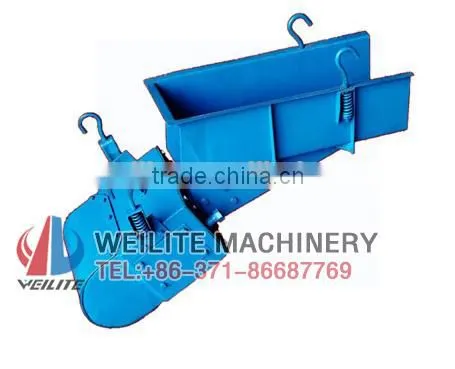

3).Electromagnetic Vibrating Feeder: It is used to feed the material into raymond mill evenly.

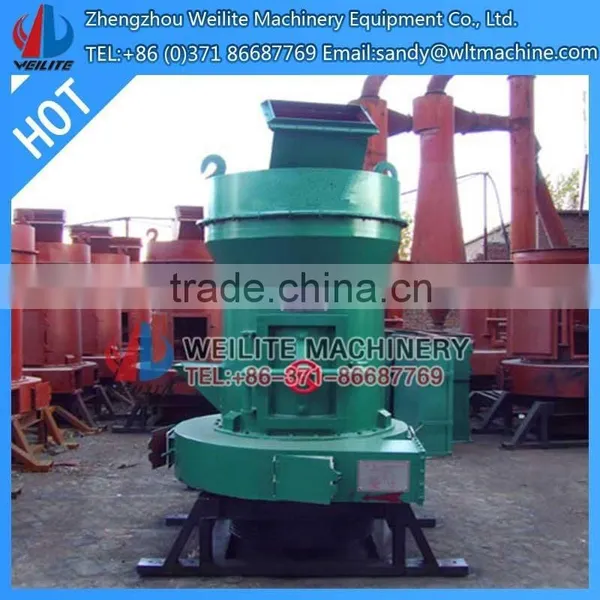

4).Raymond Pulverizer: It is used to grind material into fine powder. If you need this machine, please tell us your requirement on discharging size. So we will help to choose the most suitable machine.
6.Calcite Rocks Grinding Machinery Technical Data
Model |
3R1410 |
3R1815 |
3R2115 |
3R2615 |
3R2715 |
3R3016 |
4R2715 |
4R3016 |
4R3216 |
5R4119 |
|
Max feeding size (mm) |
10-15 |
10-15 |
10-15 |
15-20 |
15-20 |
20-25 |
15-20 |
20-25 |
20-25 |
20-30 |
|
Output size (mesh) |
60-325 |
|||||||||
|
Shift output (t/8h) |
1-10 |
1.3-14 |
1.5-16 |
2-24 |
2-29 |
3-34 |
2-31 |
3-35 |
3-39 |
5-66 |
|
Roller diameter (mm) |
140 |
180 |
210 |
260 |
270 |
300 |
270 |
300 |
320 |
410 |
|
Main power (kw) |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
22 |
30 |
37 |
75 |
|
Blower power (kw) |
5.5 |
7.5 |
11 |
18.5 |
18.5 |
22 |
18.5 |
22 |
30 |
75 |
|
Analyzer power (kw) |
1.1 |
1.5 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
5.5 |
7.5 |

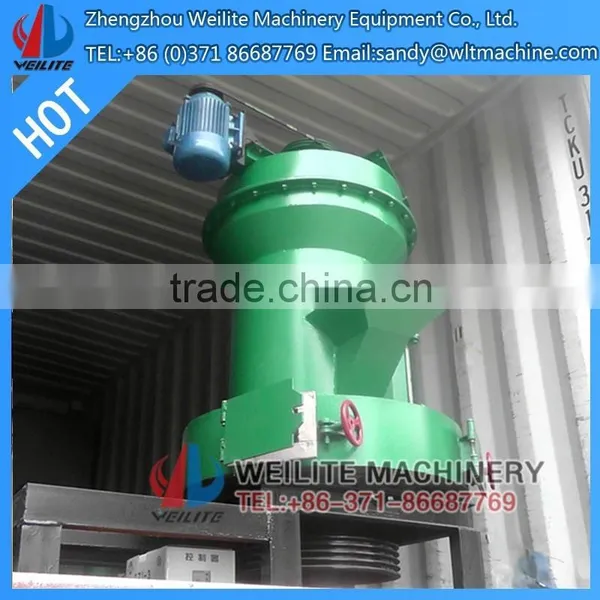

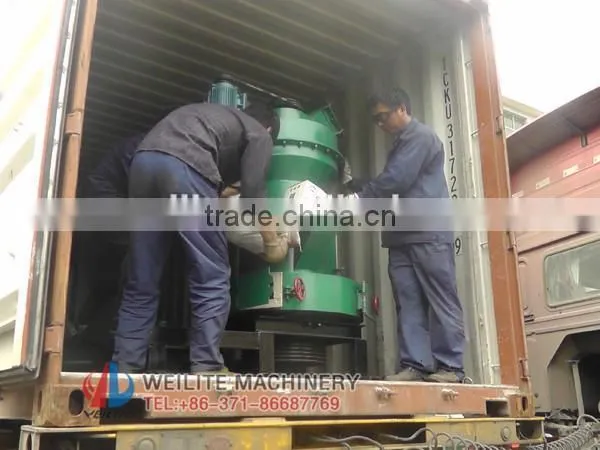

7.Calcite Rocks Grinding Machinery Packaging And Shipping
8.Our Services For Calcite Rocks Grinding Machinery
1). If any interest in our Calcite Rocks Grinding Machinery, please feel free to contact me and let me know your requirement on capacity,feeding material size and discharging material size.
2). We are professional machine manufacturer, we will help to choose the most suitable machine for you.
3). Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
4). If you need, we will dispatch professional engineer for installation, trail and worker training.
9.About Us--Zhengzhou Weilite Machinery
Zhengzhou Weilite Machinery Equipment Co., Ltd is a manufacturer and exporter of mining machine in China. Our main products are crusher, grinding mill, dryer, briquette machine and so on. They are excellent quality and enjoy good reputation both in China and overseas. Welcome to visit and purchase from us!
10.FAQ About Calcite Rocks Grinding Machinery
1).What's the max. feeding material size for the Calcite Rocks Grinding Machinery?
- Answer:25mm. If larger, crusher will be used.
2).What's the discharging material size for the Calcite Rocks Grinding Machinery?
- Answer:Discharging material size varies from 30mesh to 1250mesh.
3).What kind of material can be grinded by your Calcite Rocks Grinding Machinery?
- Answer:Feldspar, Gold, Calcium Carbonate, Calcite, Bentonite, Clay, Cement Clinker, Coal,Gypsum,Steel Slag,Iron Ore,Chrome Ore,etc.
4).Do you provide production line design service for the Calcite Rocks Grinding Machinery?
- Answer:Yes, we are professional machine manufacturer. So we can provide production line design service.
