Specifications
gypsum powder grinder mill1)usually output size: 60-325mesh
2)main powder: 7.5-75kw
3)high effiency and resonable price
Gypsum Powder Grinder Mill
1.Brief introduction of gypsum powder grinder mill
- The structure of R-type Raymond mill has been improved after years of practicing and continuous improvement, now the machine has advantages of high efficiency, low energy consumption, small footprint, low capital investment and environmental pollution.
- Which is widely used in the grinding process metallurgy, building materials, chemicals, mining minerals in areas such as materials, suitable for processing the following seven Mohs hardness, various non-explosive mineral humidity below 6%, such as gypsum, talc , calcite, limestone, marble, feldspar, barite, dolomite, granite, kaolin, bentonite, stone, bauxite, iron oxide red, iron ore, finished fineness 613 microns to 440 microns (0.613 mm -0.44 mm) between the machine and by the joint function from the fan and analyzer , the machinecan meet requirements of different users.
2.Advantages of gypsum powder grinder mill
1.Three-dimensional structure
2.The screen-passing rate can reach 99%
3.Lower oil and power consumption
4. Unique design more effective than traditional machines
5.The transmission device of mainframe adopts airtight gear case and zonal wheel
6. Centralized control for the electric system, convenient to operate
7. Higher productivity and capacity utilization
8. Meet the latest environmental standard
3.Working principle of gypsum powder grinder mill
Raw material which has been crushed to the size specified is elevated into a hopper from which the stuff is loaded. And then through the vibrating feeder ,the materials will transferred evenly and continuously into the raymond mill grinding chamber for powder-processing. After this,the ground stuff is carried by the air from the blower into the classifer for regrinding.The set's airflow system is closely sealed up and circulated under the condition of negative and positive pressure. The raymond mill is driven by rotation of the central axle through decelerator ,with the up end of the axle connecting to a quincunx-rack upon which the grinding equipment is fixed. The whole set equipment turns together with the axle along the grinding ring while the rollers rotate driven by the fractional force .A set of shovel are installed at the lower end of the quincunx-rack.While turning together with the rollers ,the shovels shed the stuff onto the gap between the rollers and the ring ,and that's where the stuff layer forms .The rotating rollers ,while turning together with the ring ,grind the stuff layer into powder. The turning speed of the impeller can be adjusted to the requirement of the fineness of powder products .Raymond mill plays an important role in ensuring the function of the grinder . As the high-speed revolving air current mixed with ground stuff is flown into the cyclone-collector ,the ground stuff is separated from the air-current.
4.Main technical parameters of gypsum powder grinder mill
Model |
3R1410 |
3R1815 |
3R2115 |
3R2615 |
3R2715 |
3R3016 |
4R2715 |
4R3016 |
4R3216 |
5R4119 |
|
Max feeding size (mm) |
10-15 |
10-15 |
10-15 |
15-20 |
15-20 |
20-25 |
15-20 |
20-25 |
20-25 |
20-30 |
|
Output size (mesh) |
60-325 |
|||||||||
|
Shift output (t/8h) |
1-10 |
1.3-14 |
1.5-16 |
2-24 |
2-29 |
3-34 |
2-31 |
3-35 |
3-39 |
5-66 |
|
Roller diameter (mm) |
140 |
180 |
210 |
260 |
270 |
300 |
270 |
300 |
320 |
410 |
|
Main power (kw) |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
22 |
30 |
37 |
75 |
|
Blower power (kw) |
5.5 |
7.5 |
11 |
18.5 |
18.5 |
22 |
18.5 |
22 |
30 |
75 |
|
Analyzer power (kw) |
1.1 |
1.5 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
5.5 |
7.5 |

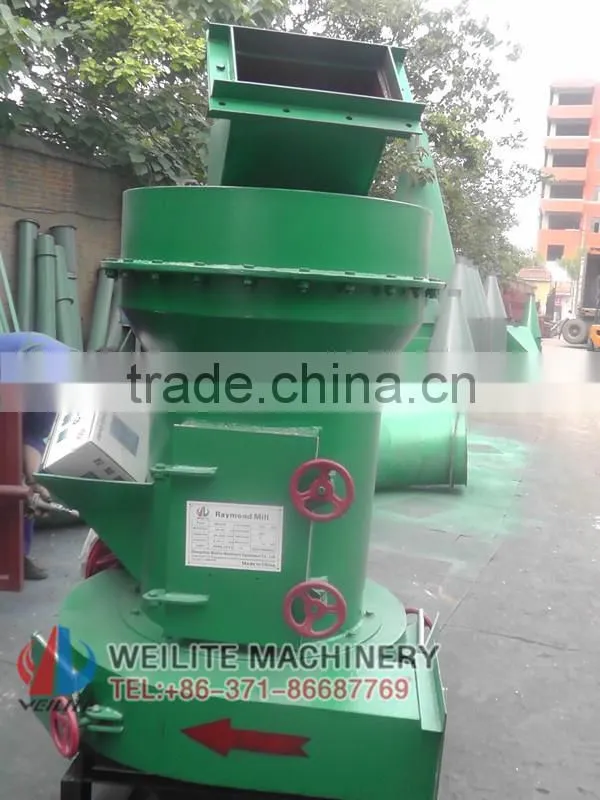

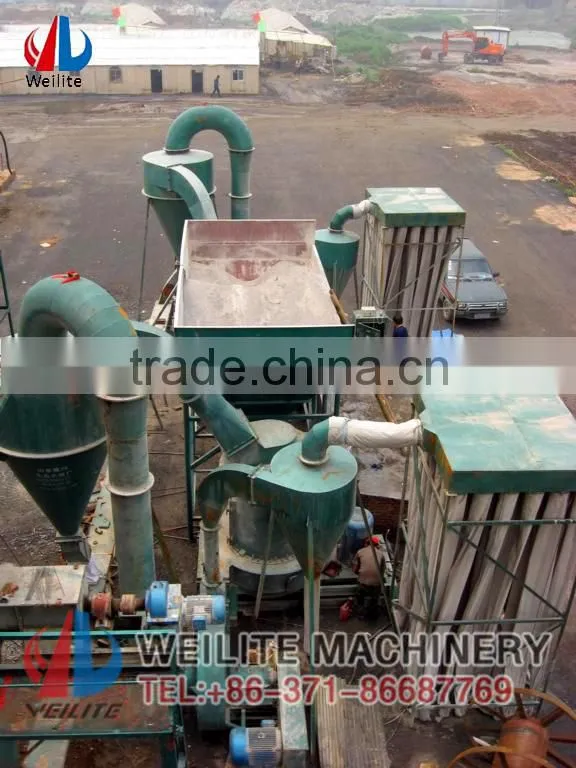

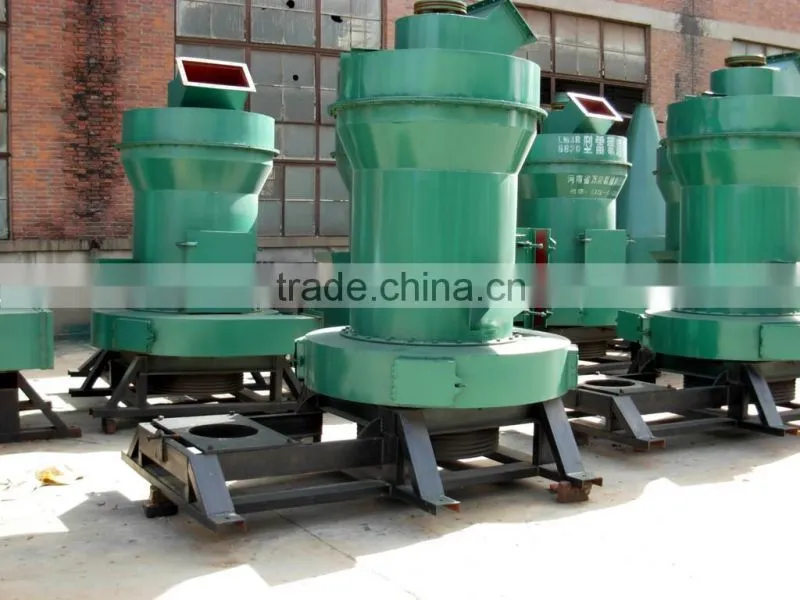

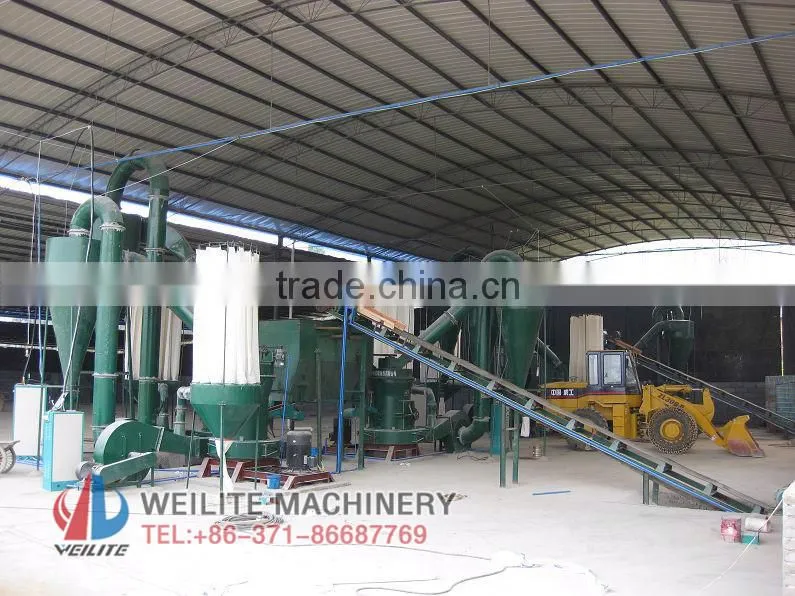

5.More pictures about gypsum powder grinder mill
1.Bare the the main body of the machine
2.Motors and other small spare parts are packaged in wooden cases
3.Or as your requirement.
1)Pre-sale services: Enthusiasm
- We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2)Sale services: Servant
- Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3)After-sale services: Faithfulness
- To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4)We provide one-year warranty to make sure your machine runs consistently.
- We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /
1 What's the range of application of the gypsum powder grinder mill ?
Answer: It applies in all kinds of mineral powder preparation and coal powder preparation.
2 What's the scale of the hardness of the gypsum powder grinder mill ?
Answer: There are two kinds, one is the absolute hardness and another is relative one.
3 What's the operation sequence about the gypsum powder grinder mill?
Answer: Hoist --crusher → Analyzer → fan → Host → machine feeder.
