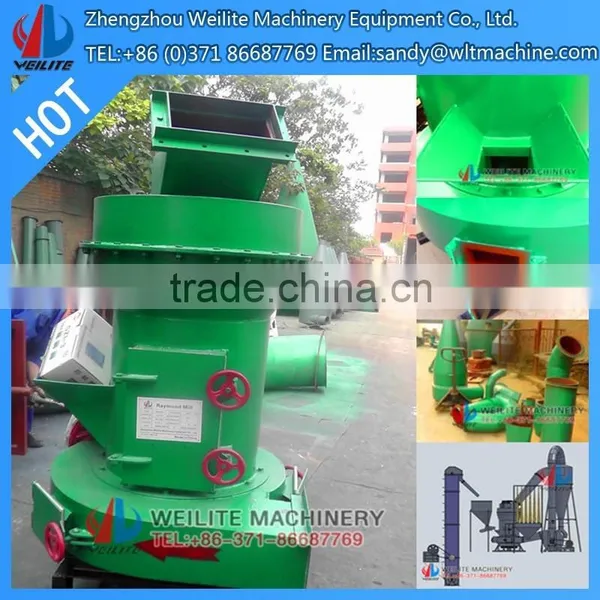

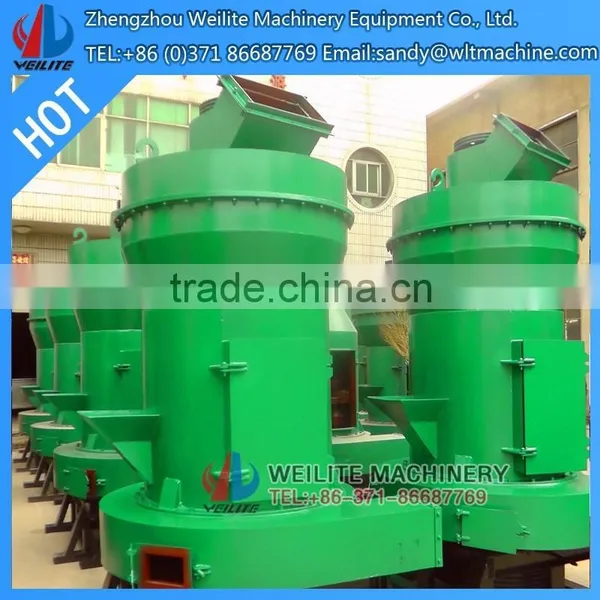

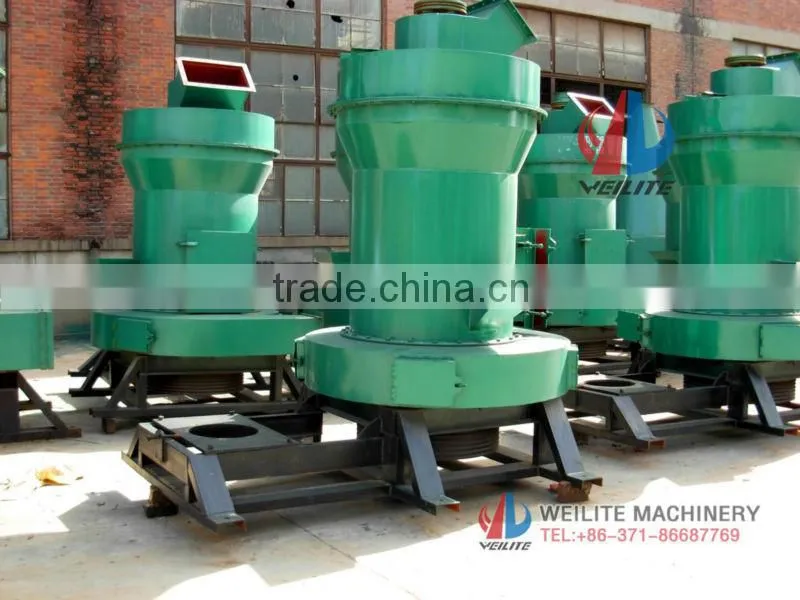

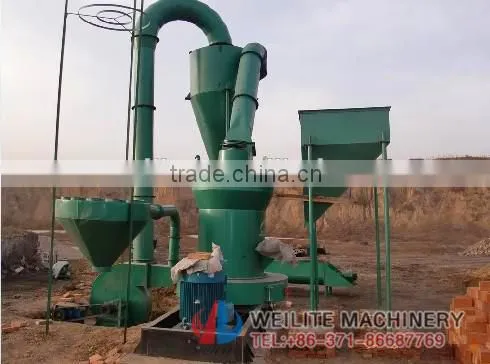

stone mill for steatit stone powder making
Stone mill is used for grinding the barite, limestone, kaolin, cerames, ahd slags, etc, below scale 9.3 of Mohs hardness and 280-odd sorts of non-inflammable and non-explosive stuff in the trades of mining, metallurgical industrial, chemical engineering and building material for high fine powder generation and processing.

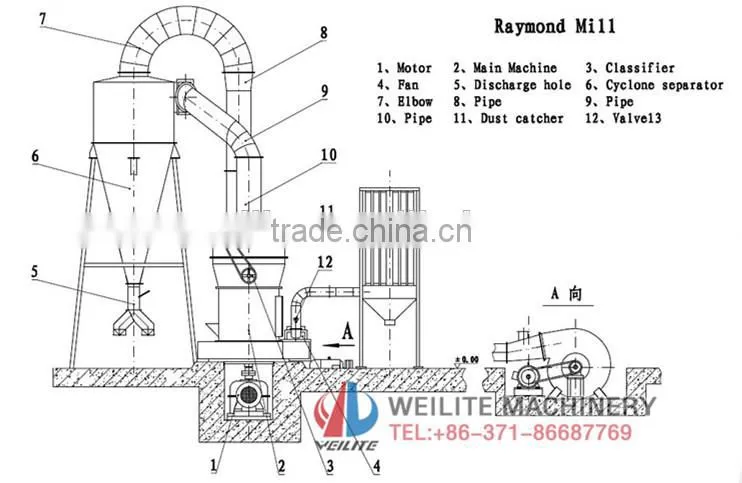

Working Principle Of Stone Mill
Firstly, raw material is crushed by jaw crusher to the size required, and then the crushed materials are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder evenly and continuously into the grinding chamber for powder-processing. The rollers of raymond pulverizer oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind.
Main Technical Parameters Of Stone Mill
Model |
3R1410 |
3R1815 |
3R2115 |
3R2615 |
3R2715 |
3R3016 |
4R2715 |
4R3016 |
4R3216 |
5R4119 |
|
Max feeding size (mm) |
10-15 |
10-15 |
10-15 |
15-20 |
15-20 |
20-25 |
15-20 |
20-25 |
20-25 |
20-30 |
|
Output size (mesh) |
60-325 |
|||||||||
|
Shift output (t/8h) |
1-10 |
1.3-14 |
1.5-16 |
2-24 |
2-29 |
3-34 |
2-31 |
3-35 |
3-39 |
5-66 |
|
Roller diameter (mm) |
140 |
180 |
210 |
260 |
270 |
300 |
270 |
300 |
320 |
410 |
|
Main power (kw) |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
22 |
30 |
37 |
75 |
|
Blower power (kw) |
5.5 |
7.5 |
11 |
18.5 |
18.5 |
22 |
18.5 |
22 |
30 |
75 |
|
Analyzer power (kw) |
1.1 |
1.5 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
5.5 |
7.5 |
1)Pre-sale services: Enthusiasm
- We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2)Sale services: Servant
- Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3)After-sale services: Faithfulness
- To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4)We provide one-year warranty to make sure your machine runs consistently.
- We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /
1).What's the max. feeding material size for the stone mill for steatit stone powder making?
- Answer:25mm.
2).What's the discharging material size?
- Answer:Discharging material size varies from 125mesh to 1250mesh.
3).What kind of material can be grinded by your plant?
- Answer:Calcite, Bentonite, Clay, Cement Clinker, Coal,Gypsum,Steel Slag,Iron Ore,Chrome Ore,etc.
4).Do you provide production line design service?
- Answer:Yes, we are professional machine manufacturer. So we can provide production line design service.
Note:
If you didn't get the suitable machine in this page , please email me you detailed requirement . We are the manufacturer with over 30 years working experience . We can help you in this matter .
