Help CenterFactory Direct Sale Fluorite Powder Rotary Dryer
Related Products
-
Low Cost Continuous Wood Rotary Drum DryerUS$ 8,000 - 230,000MOQ: 1 Set -
High Quality Professional Drying Tunnel CharcoalUS$ 4,000 - 158,700MOQ: 1 Set
-
High Quality Three Drum Rotary Dryer With ISO CertificateUS$ 8,000 - 230,000MOQ: 1 Set
-
Professional Rotary Coal Drying OvenUS$ 5,000 - 168,000MOQ: 1 Piece
-
Iron Powder Pellet Belt Dryer , Charcoal Pellet Belt Dryer , Coal Pellet Belt Dryer , Pellet Mesh Belt Dryer , Pellet Belt DryerUS$ 5,000 - 70,000MOQ: 1 Set
Specifications
fluorite powder rotary dryer1)professional design
2)low energy consumptoin
3)simple structure
Fluorite Powder Rotary Dryer
1.Characterstics Of Fluorite Powder Rotary Dryer
1) The machine's design is reasonable, have reliable performance, high efficiency, dry and heat uniform, maintenance is convenient.
2) Equipment adopts self-aligning type tug structure, the tug and with good tire-roller, greatly reduces the wear and tear of power consumption.
3) Resistance to overload ability, cylinder smooth operation and high reliability.
4) Drying machine has the characteristics of high temperature resistant, high temperature hot air can be used for a rapid drying of material.
5) Rotary dryer processing capacity, fuel consumption, dry low cost less.
2.The Application Of Fluorite Powder Rotary Dryer

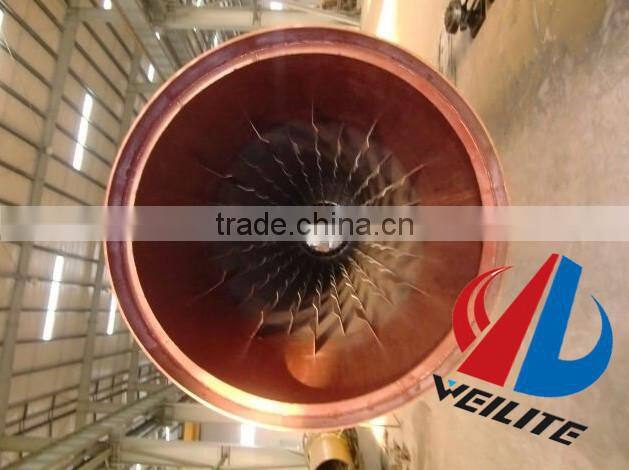

The indirect heat transfer dryer made by our company can be used in building materials, metallurgy, chemical industry, cement plant for drying of limestone slag, coal powder, slag, clay stone. This dryer is formed of rotary body, lifting blade, driving device, supporting device and sealing ring.
3. Main technical parameters
|
Model (mm) |
Gradient (%) |
Rotational (r/min) |
Inlet Air temperature |
Power (kw) |
Production capacity (t/h) |
Weight (t) |
600*6000 |
3-5 |
3-8 |
≤700 |
3 |
0.5-1.5 |
2.9 |
800*8000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.0 |
3.5 |
800*10000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.5 |
4.5 |
1000*10000 |
3-5 |
3-8 |
≤700 |
5.5 |
1.0-3.5 |
5.6 |
1200*10000 |
3-5 |
3-8 |
≤700 |
7.5 |
1.8-5 |
14.5 |
1200*12000 |
3-5 |
3-8 |
≤700 |
11 |
2-6 |
14.8 |
1500*12000 |
3-5 |
2-6 |
≤800 |
15 |
3.5-9 |
17.8 |
1800*12000 |
3-5 |
2-6 |
≤800 |
18 |
5-12 |
25 |
2200*12000 |
3-5 |
1.5-6 |
≤800 |
18.5 |
6-15 |
33 |
2200*18000 |
3-5 |
1.5-6 |
≤800 |
22 |
10-18 |
53.8 |
2200*20000 |
3-5 |
1.5-6 |
≤800 |
30 |
12-20 |
56 |
2400*20000 |
3-5 |
1.5-5 |
≤800 |
37 |
18-30 |
60 |
3000*20000 |
3-5 |
1.5-5 |
≤800 |
55 |
25-35 |
78 |
3000*25000 |
3-5 |
1.5-5 |
≤800 |
75 |
32-40 |
104.9 |
4. Working principle of fluorite powder rotary dryer
This product uses the sleeve sets out the structure can be doubled to reduce the length of the dryer, due to significant reduction of the cooling surface, resulting in decreased heat consumption, while doubling the heat exchange surface to greatly enhance thermal efficiency. Materials that can not touch tobacco, multi-drum rotary dryer provided in the inside and outside the cylinder, respectively, within the smoke pipe and circular pipe, the flue pipe of communication between the radial, the same energy efficient. It is obvious that on the hot and cold media in terms of material, this machine a sleeve-type rotary cooler.

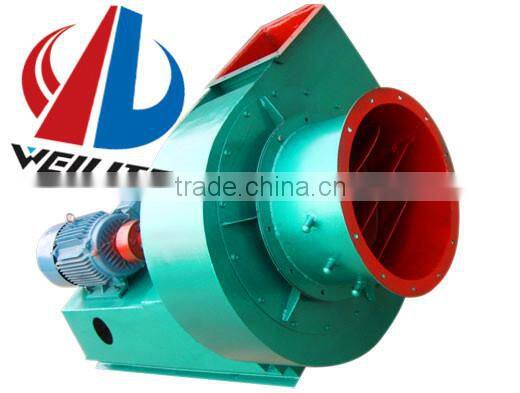

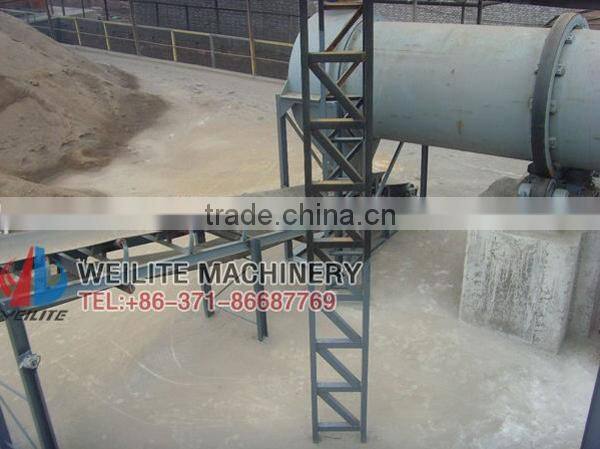

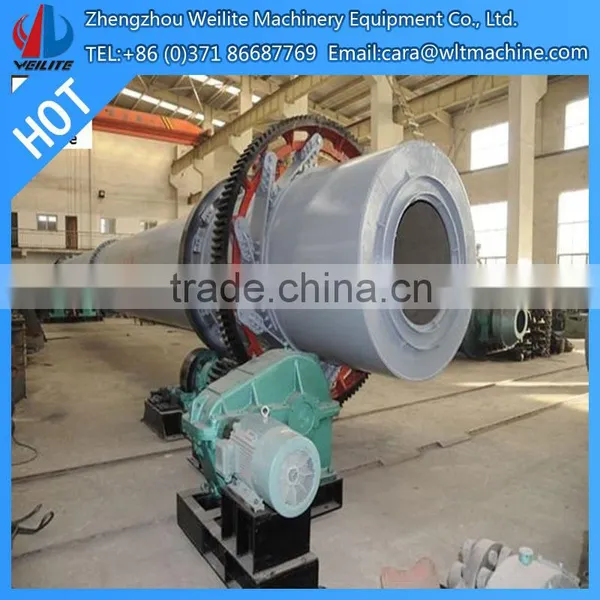

5. More pictures about fluorite powder rotary dryer
1)Pre-sale services: Enthusiasm
- We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2)Sale services: Servant
- Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3)After-sale services: Faithfulness
- To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4)We provide one-year warranty to make sure your machine runs consistently.
- We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.

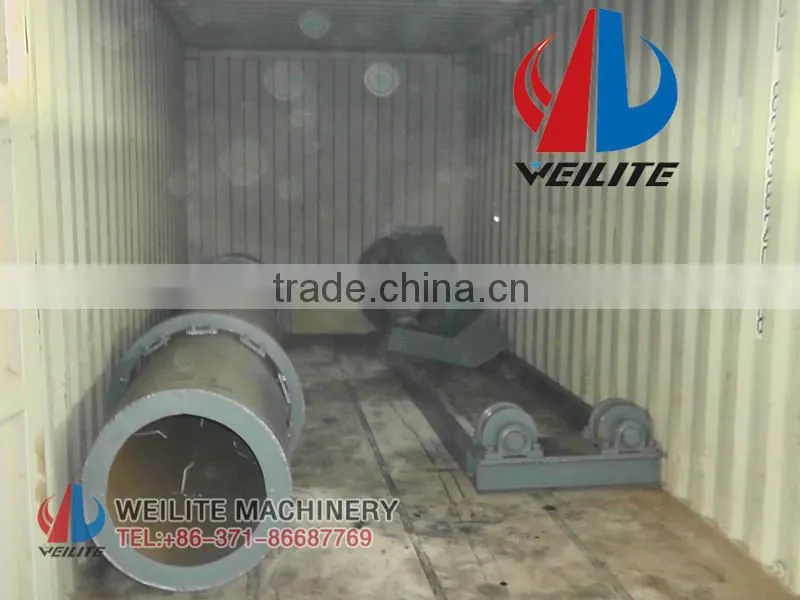

1.Bare the the main body of the machine
2.Motors and other small spare parts are packaged in wooden cases
3.Or as your requirement.
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /
1.What's the raw material that can be dried?
Answer:Any kind of meal and mineral material can be dried by our machine.
2.What kind of fuel can be used with the dryer?
Answer:Gas, Diesel, Coal, Wood and other solid fuels.
3.What's the drying type of your dryer?
Answer:Hot Air Drying Type.
4.Can we adjust the drying temperature?
Answer:Yes, we can adjust the drying temperature by adjusting the hot air inlet volume.
Contact person: Sandy Shi
Tel:+86 (0)371 86687769
Mobil:+86 15639260527
Send Inquiry to This Supplier
