High Quality Three Drum Rotary Dryer With ISO Certificate

High Quality Three Drum Rotary Dryer With ISO Certificate photo-1
High Quality Three Drum Rotary Dryer With ISO Certificate photo-2
High Quality Three Drum Rotary Dryer With ISO Certificate photo-3
High Quality Three Drum Rotary Dryer With ISO Certificate photo-4
High Quality Three Drum Rotary Dryer With ISO Certificate photo-5
High Quality Three Drum Rotary Dryer With ISO Certificate photo-6
US$ 8,000 - 230,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drying Equipment
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or as customer's requirement
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Rotary Drying Equipment
Place of Origin Henan, China
Brand Name Weilite
Model Number ZDH series
Voltage 220v,380v or custom made
Power(W) 3-75kw
Dimension(L*W*H) 6000*600*600mm
Weight 2.9-104.9t
Certification ISO9001
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

three drum rotary dryer

Part one:three drum rotary dryer introduction

Three drum rotary dryer is a kind of processing large amounts of material drying machine. Due to the reliable operation, good adaptability, high yield, widely used in metallurgy, building materials, food, chemicals, coal, medicine and other materials. Sand dryer belong to rotating cylinder dryer. Commonly adapted to the powder and granular materials, can also use the mixing material approach drying viscous paste-like material or high water content materials.

High Quality Three Drum Rotary Dryer With ISO Certificate

High Quality Three Drum Rotary Dryer With ISO Certificate



three drum rotary dryer working principle

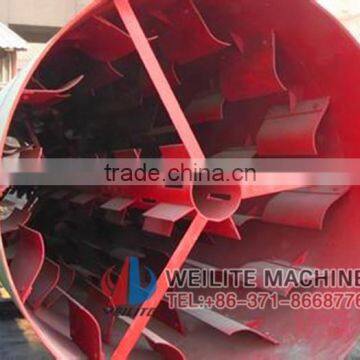

Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator. The barrel is installed with slope to horizontal line. Materials enter the barrel from the higher side, and hot air enters the barrel from the lower side, materials and hot air mix together. Materials go to the lower side by gravity when the barrel rotates. Lifters on the inner side of barrel lift materials up and down to make materials and hot air mix completely. So drying efficiency is improved.

High Quality Three Drum Rotary Dryer With ISO Certificate



three drum rotary dryer work site pictures

High Quality Three Drum Rotary Dryer With ISO CertificateHigh Quality Three Drum Rotary Dryer With ISO Certificate



Main technical parameters of three drum rotary dryer

Specification

φ2.0×4

φ2.5×5

φ3.0×6

φ3.6×8

Diameter (mm)

2000

2500

3000

3600

Length (m)

4

5

6

8

Cubage   (m3)

12. 6

24.5

42.4

81.4

Modality of shovelling  plate

Spiral pushing type

Filling  rate

10-20%

Materials

Heat-resistant steel,stainless steel

Usage temperature

≤700C°

Evaporation intensity

20-80Kg water /m3.h

Heating method

down-flow,direct radiator

Heat source

coal,oil,electricity,gas,biofuel

Revolving speed

4-10 r/min

Transmission power

5.5 Kw

11 Kw

15 Kw

22 Kw

Corollary equipment

Conveying equipment,Cowper stove,separating equipment,dusting  equipment ,induced draft fan and so on.



Part two:Packaging and Shipping for three drum rotary dryer

High Quality Three Drum Rotary Dryer With ISO CertificateHigh Quality Three Drum Rotary Dryer With ISO Certificate



Part three:Our serices for three drum rotary dryer



1)Pre-sale services: Enthusiasm

  • We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.

2)Sale services: Servant

  • Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

3)After-sale services: Faithfulness

  • To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.

4)We provide one-year warranty to make sure your machine runs consistently.

  • We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.

  Part four:Company information-Zhengzhou Weilite Machinery

Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines such as crusher, ball mill, rotary dryer,belt dryer,briquette machine,mixer, etc.  Website: /

High Quality Three Drum Rotary Dryer With ISO Certificate



 Part five:FAQ about three drum rotary dryer



1.What's the raw material that can be dried?

  • Answer:Any kind of chips and lump material can be dried by our machine.

2.What kind of fuel can be used with the three drum rotary dryer?

  • Answer:Gas, Diesel, Coal, Wood and other solid fuels.

3.What's the drying type of your dryer?

  • Answer:Hot Air Drying Type.

4.Is the belt speed adjustable?

  • Answer:Yes.

5.Can we adjust the drying temperature?

  • Answer:Yes, we can adjust the drying temperature by adjusting the hot air inlet volume.
