rotary coal drying oven
1.Coal Dryer Machine Introduction
1).Dryer Introduction
Rotary dryer also named as Drying Machine and Rotary Drier.Dryer is mainly consist of rotary main body,material feeding plate, driving and supporting device,discharging device,etc.
2).Dryer Application
Rotary dryer can be used to dry most kind of powder and lump material such as wood sawdust, coal powder, lump coal, sand, charcoal powder, wood chips, slag, clay, limestone and other materials.

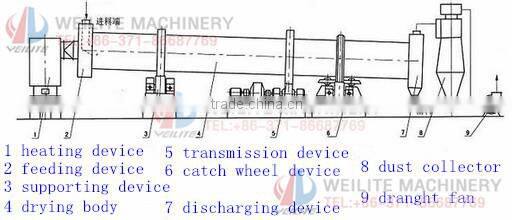

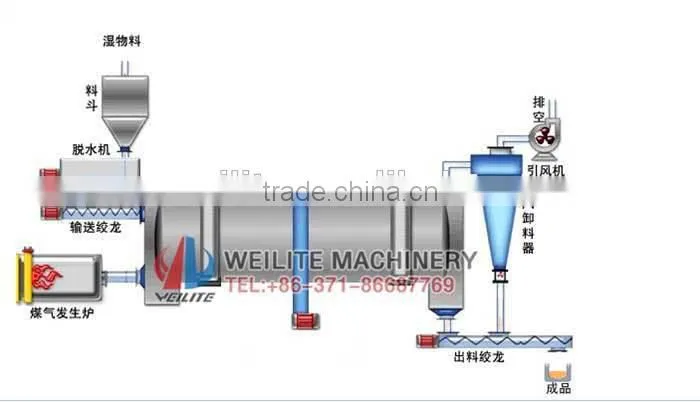

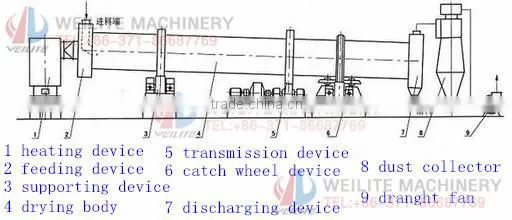

2.Working Theory Picture of rotary coal drying oven

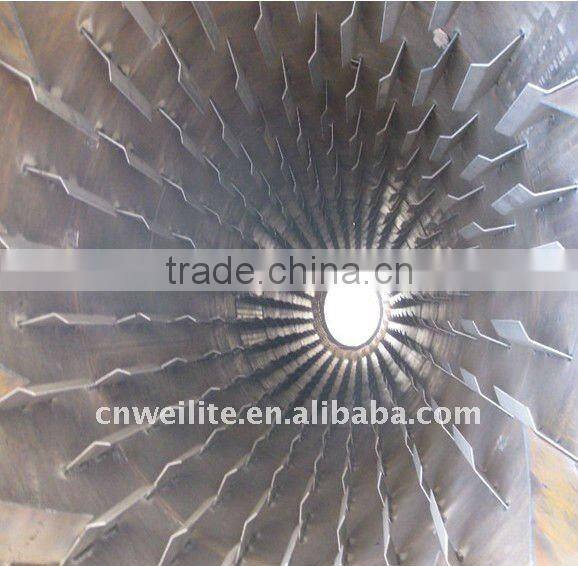

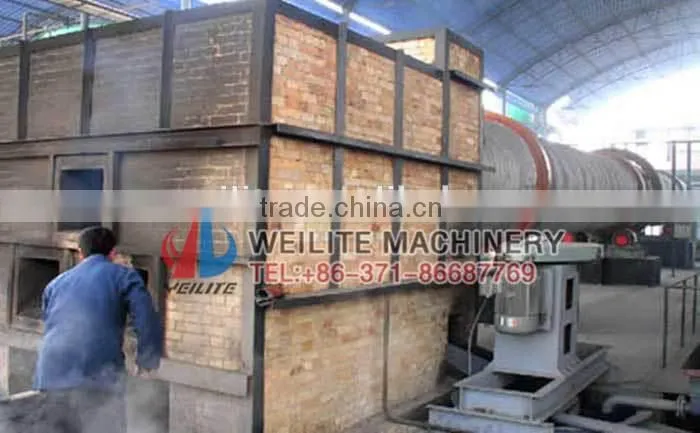

The auto-combustion device provides heat resource for our rotary drier, which adopts down-flow heating method. When the mineral materials are fed into the cylinder, it flows down as a result of gravity. Meanwhile, they are repetitively scattered in the air so that they are in full contact with the hot air. The material dried gradually.
3.Technical Parameter of rotary coal drying oven
| Model (mm) | Inclination (%) |
Rotate speed (r/min) |
Air inlet temperature (°C) | Power (kw) | Production capacity(t/h) | Weight (t) |
| Φ600x6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
| Φ800x8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
| Φ800x10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
| Φ1000x10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
| Φ1200x10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
| Φ1200x12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
| Φ1500x12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
| Φ1800x12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
| Φ2200x12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
| Φ2200x18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
| Φ2200x20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
| Φ2400x20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
| Φ3000x20000 | 3-5 | 1.5-5 | ≤800 | 55 | 25-35 | 78 |
| Φ3000x25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-40 | 104.9 |
Our company is manufacturer. We provide design service. If the type you need is not mentioned above. Please let me know your requirement on capacity, raw material moisture and requirement on discharging moisture. Our professional engineer will help to design for you.

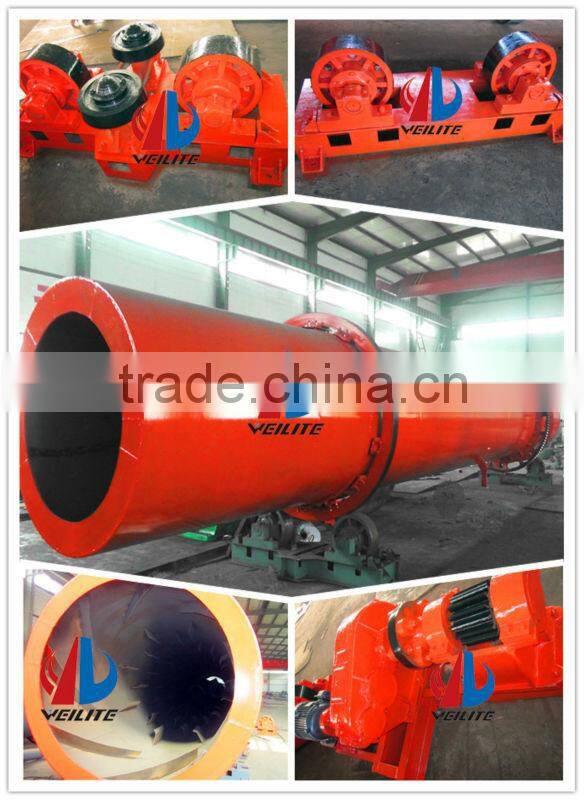

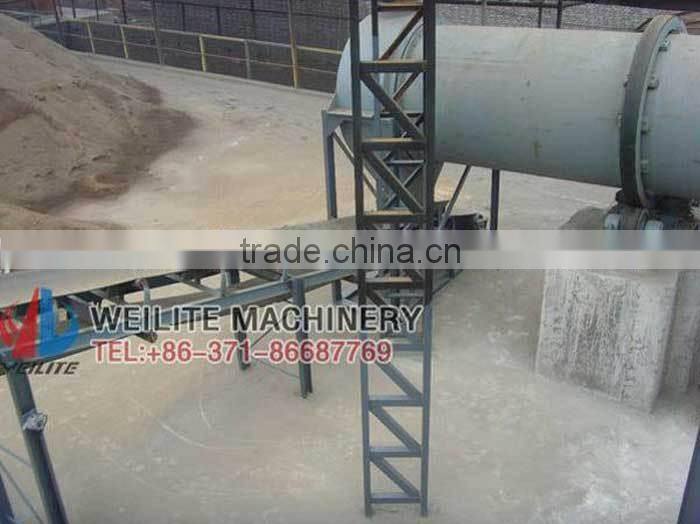

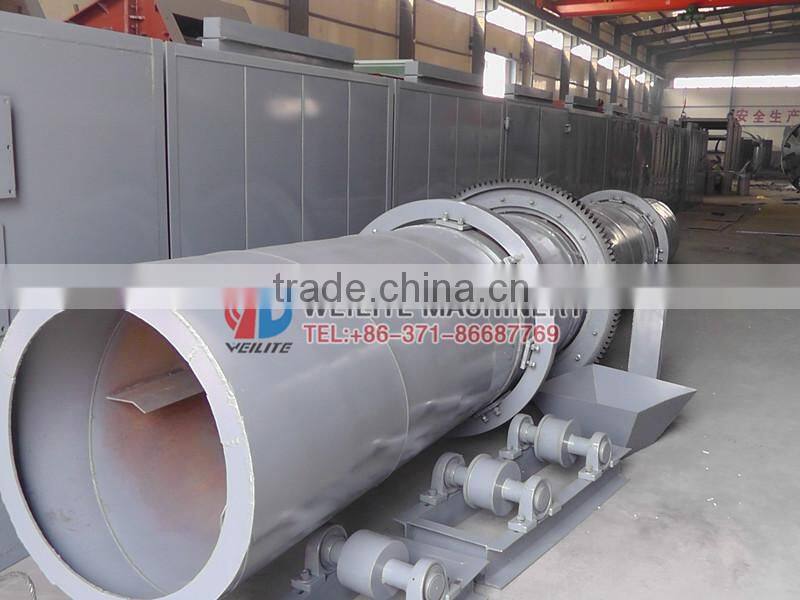

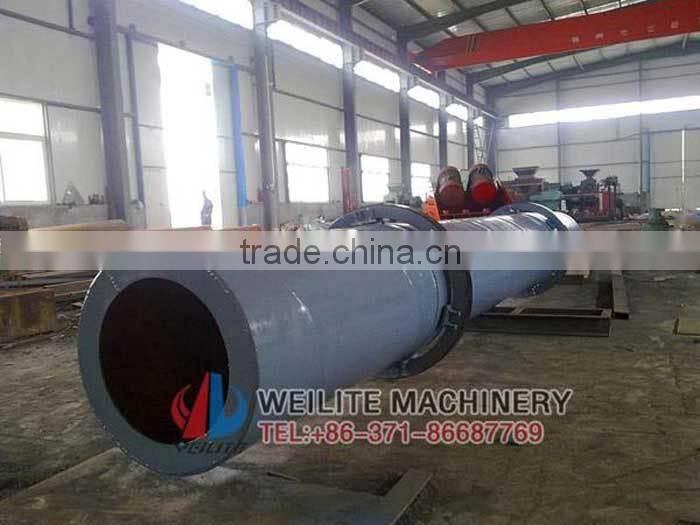

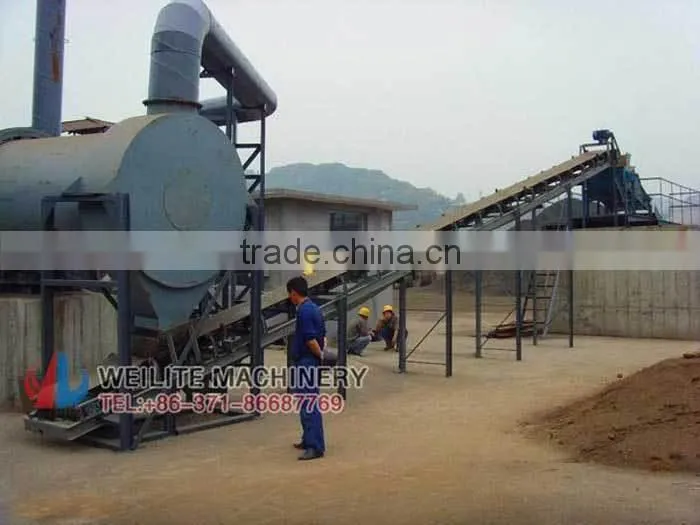

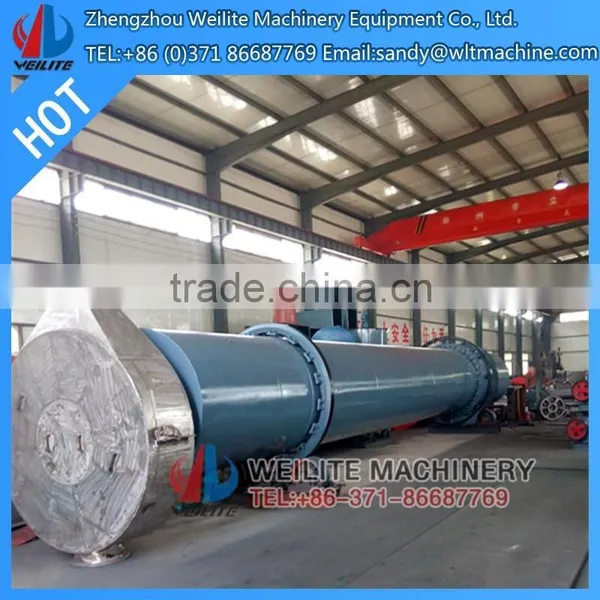

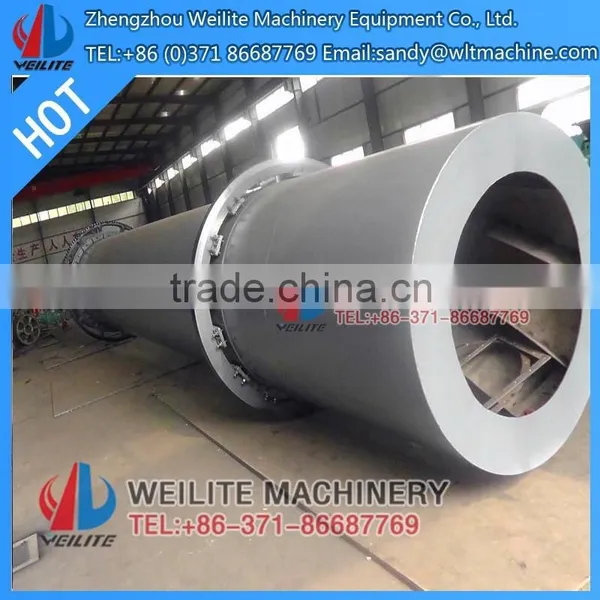

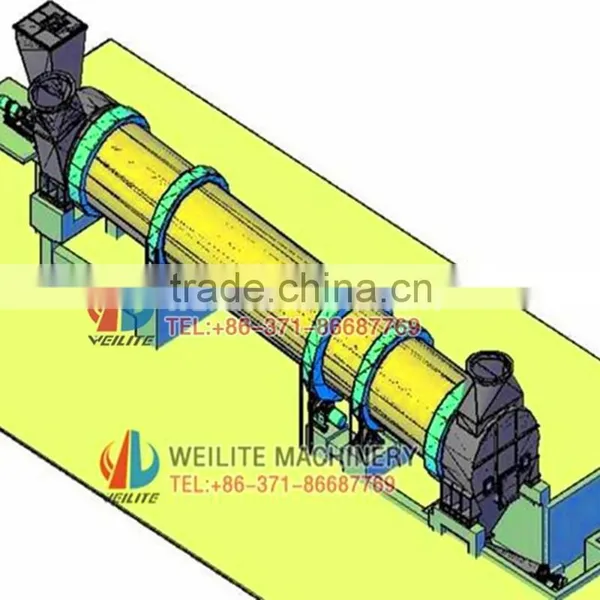

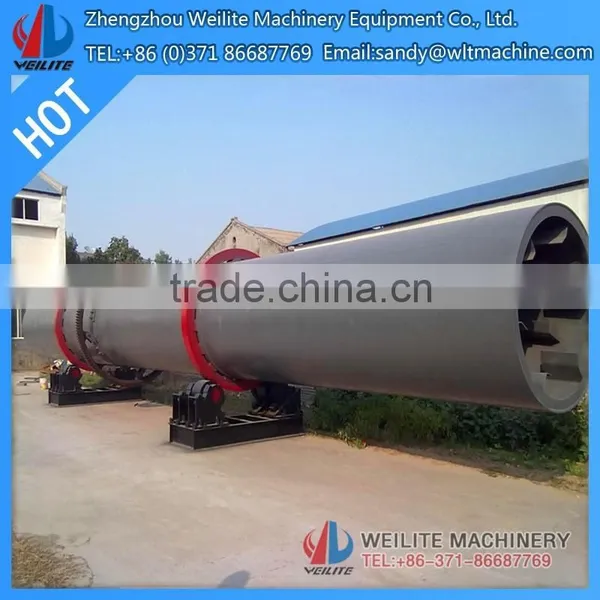

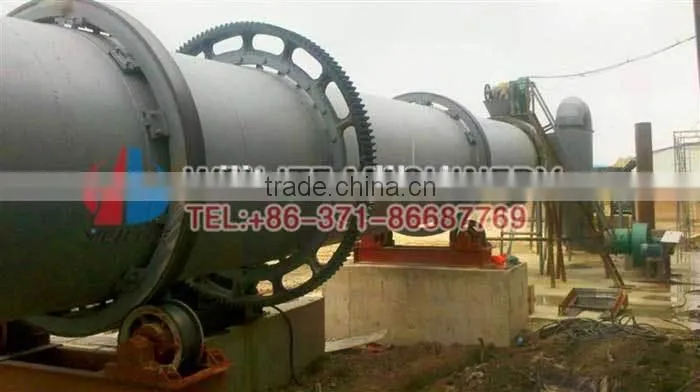

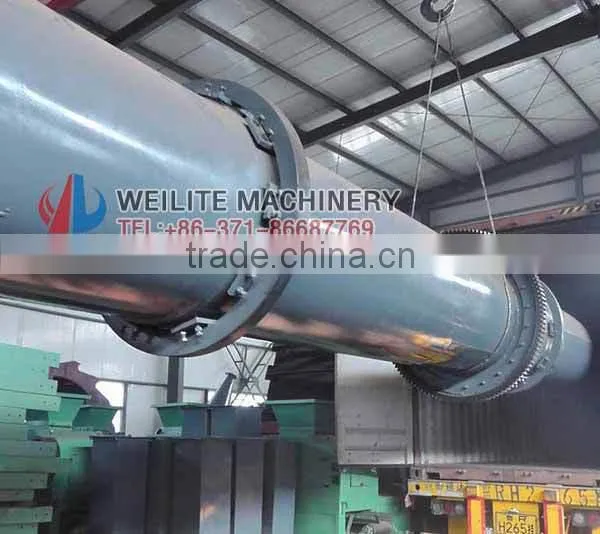

4.Rotary Coal Drying Oven Pictures
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines such as crusher, ball mill, belt dryer,briquette machine,mixer, etc.Website: /
If any need, please contact me for details.
Tel:+86 (0)371 86687769
Cell Phone:+86 15137145403
Contact Name:Ms. Ivy Zhang
