Specifications
Low gradient magnetic separator1.Magnetism durable
2.Magnetism durable
3.easy to be repaired
4.low cost

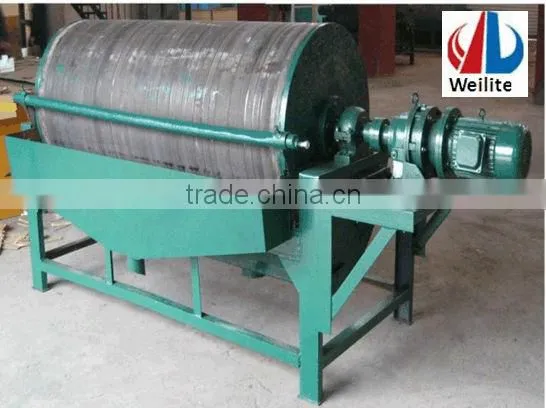

Low gradient magnetic separator
1.About us
Zhengzhou Weilite Machinery Equipment Co., Ltd is a manufacturer and exporter of mining machinery in China. Our main products are crusher, grinding mill, dryer, briquetting machine and so on. All of them are ISO9001:2000 confirmed. They are excellent quality and enjoy good reputation both in China and overseas. Welcome to visit and purchase from us!

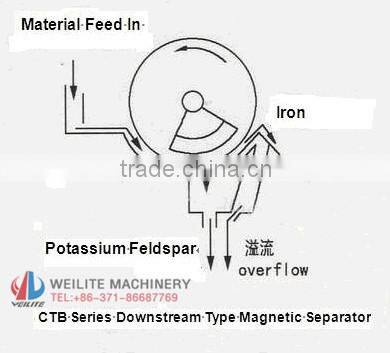

2 Low gradient magnetic separator Working Principle:
1. The equipment consists of main frame, magnet separator, wind power device system, speed reducer, field regulator and main control box.
2. Parallel design of external arc face of roller corresponding to magnet separator-wind injecting device system: wind is conveyed by wind pump to wind duct, then injected through quincunx nozzle on the duct and evenly scattered and sprayed to the roller of magnetic separation, thereby meeting the purpose of wind magnetic separation of iron ore.
3.Advantage of Low gradient magnetic separator
Simple installation and adjustment, easy to operate
The use of permanent magnetism reduces the cost of using and maintenance
Wet and dry dual-use, wide range of application
Easy to move, and convenient in connecting with other equipments
4.Magnetic Separator Technical Parameter
| Model | magnetic field strength(oe) | working capacity(t/h) | Motor Power(kw) | Weight(kg) |
| CTB600X1200 | 1450 | 8-15 | 1.5 | 910 |
| CTB600X1800 | 1500 | 15-25 | 2.2 | 1340 |
| CTB750X1800 | 1550 | 30-45 | 3 | 2050 |
| CTB900X1800 | 1650 | 35-60 | 4 | 3000 |
| CTB1050X2400 | 1650 | 60-95 | 5.5 | 5020 |
| CTB1200X3000 | 1650 | 80-150 | 7.5 | 7800 |
| CTB1500X3000 | 1650 | 120-200 | 11 | 9600 |
If you want to know more details or any other related machines ,
Pleasedon't hesitate to add my trademanager directly! I am always online for you.
