Specifications
Highly Efficiency Magnetic Separator1)high efficiency
2)low cost
3)long life

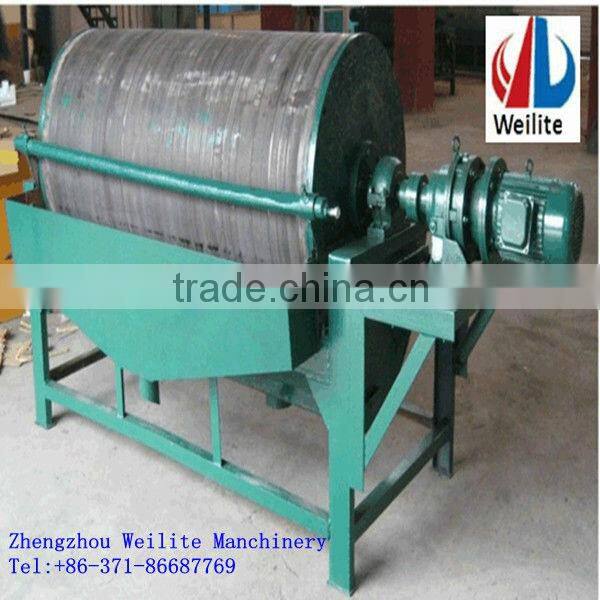

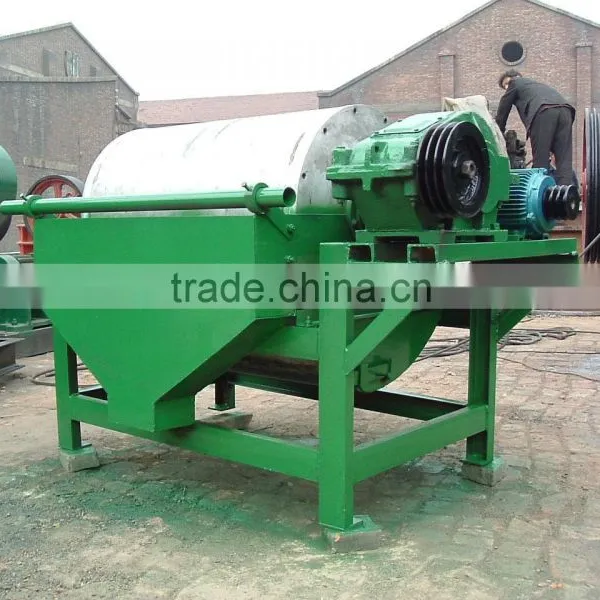

Magnetic Separator
Highly Efficiency Magnetic Separator Application:
Magnetic Ore Separator can separate the raw materials with different magnetic rigidities. The machine works under the magnetic force and machine force. Magnetic Separators are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency. The Magnetic Separators are available in cyclic design with process vessel diameters from 600 mm to 1,050 mm.
Highly Efficiency Magnetic Separator Working Principle:
Magnetic Ore Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, ilmenite, and tantalum-niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nephline. Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix. It possesses the following advantages: short magnetic circuit, little magnetic flux leakage, high magnetic intensity, low energy consumption, fine beneficiating results, simple structure and easy to maintain. They have been found widely used in more than 20 mineral processing plants of China.
Highly Efficiency Magnetic Separator Technical Parameter:
| Model | Magnetic field strength(oe) | Working capacity(t/h) | Motor power(kw) | Weight(kg) |
| CTB600X1200 | 1450 | 8-15 | 1.5 | 910 |
| CTB600X1800 | 1500 | 15-25 | 2.2 | 1340 |
| CTB750X1800 | 1550 | 30-45 | 3 | 2050 |
| CTB900X1800 | 1650 | 35-60 | 4 | 3000 |
| CTB1050X2400 | 1650 | 60-95 | 5.5 | 5020 |
| CTB1200X3000 | 1650 | 80-150 | 7.5 | 7800 |
| CTB1500X3000 | 1650 | 120-200 | 11 | 9600 |
Please note that :
If you did not find suitable separator in this page , please don't hesitated to give us a call and you can call us at +86 371 86687769.
