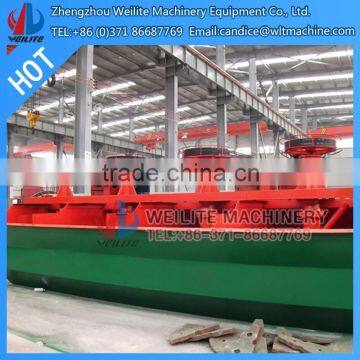

Mineral Process Flotation
Application Of Mineral Process Flotation
The mineral product Mineral Process Flotation widely applied in the copper,the plumbum ,the zinc,the nickel,the molybdenum, non-ferrous metal and non-ferrous metal mineral rough sizing,selection and counter-flotation process.
Mineral Process Flotation Introduction
Mineral Process Flotation for sorting colored black metal, but also for non-metal, such as: coal fluorite, talc sorting. The flotation machine drive belt driven by a motor rotating the impeller, a centrifugal vacuum formed, while the intake air is mixed with sufficient slurry, while stirring the slurry is mixed with the drug, while refined foam adhesive foam on top of fossil , then float to the surface to form a slurry bubble mineralization. Ram height adjustment, control surface, so useful foam is scraped scraper.
In the Mineral Process Flotation , the pulp was added after the chemical treatment, by stirring inflated, so some of the mineral particles are selectively fixed on top of the bubble; float to the surface of the slurry formed was scraped off the foam product, and the rest is retained in the pulp in order to achieve the purpose of separation of the mineral.
Feature Of Mineral Process Flotation
1 This series flotation machine with mechanical agitation, innovative and unique way of feeding pulp, pulp flow reasonable state, large capacity;
2 inflatable high efficiency, wide tuning range, flotation speed. The boot state, are free to adjust the feed rate.
3 stirring mechanism for steady flow impeller with radial plate with a curved blade, make coal slurry circulation and inflation moderate;
4 for coal, grain size, different concentrations, fluid dynamics to optimize the design parameters of the high-density and coarse grained coal also get a good separation efficiency.
5 compact structure, light weight, reliable operation. Flotation fast, fine-grained level of selectivity, good coarse flotation effect.
6. low energy consumption and drug consumption, installed capacity and actual consumption of power is less than the same type flotation machine specifications.
7 reasonable structure parameters, small footprint, taking into account the compatibility with older devices.
8 running high reliability, easy operation and maintenance, pulp level single point of control, can automatically adjust, you can manually.

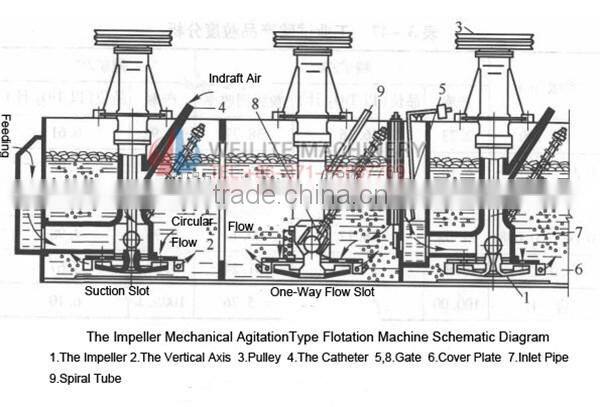

Mineral Process Flotation Working Principle
When within the flotation tank impeller scroll, centrifugal force made up in the impeller child covered with pulp was thrown while generating a negative pressure within the impeller, the sleeve and the hollow shaft of the intake air and the pharmacy, and then from top to bottom impeller cover reincarnation suction hole plate pulp. Under the rotation of the impeller, three-phase continuous mixing and throw out the negative bubble mineralization. Mineralization by the steady flow of bubbles rise to the surface plate effect, form a foam layer. Mineralized material may not be re-entering the impeller reincarnation, or go to the next tank flotation.
Mineral Process Flotation Main Technical Parameters:
| Model | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 | SF8 |
| Trough capacity(m³) | 0.37 | 0.7 | 1.2 | 2.8 | 4 | 8 |
| Blade diameter | 300 | 350 | 450 | 550 | 650 | 760 |
| Production capacity(m³/min) | 0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 | 4-8 |
| Blade rotation speed(r/min) | 352 | 400 | 312 | 268 | 238 | 191 |
| Model(Motor) | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y180L-6 | Y250M-8 |
| Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 | Y100L-6 | |
| Power(Motor)kw | 1.5 | 3 | 5.5 | 11 | 15 | 30 |
| 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 | |
| Dimensions(mm) | 700X700X750 | 900X820X950 | 1100X1100X1100 | 1700X1600X1150 | 1850X2050X1200 | 2200X2900X1400 |
| Single trough weight(kg) | 468 | 600 | 1373 | 2338 | 2660 | 4130 |
Packing And Shipping
Our Service
1) Pre-sale Service:
Suitable-design products and reasonable price will be supplied to you to meet your need. We can also offer experiment to test the equipment that the customer need.
2) After-sale Service:
On the spot guidance for installation by our engineers, and the buyer is responsible for the expense. We have a perfect after-sales service system and team with professional.
