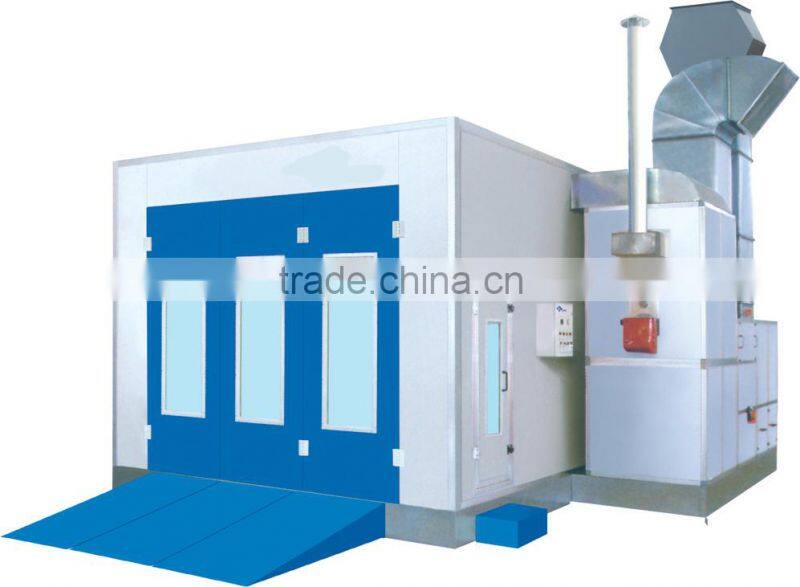

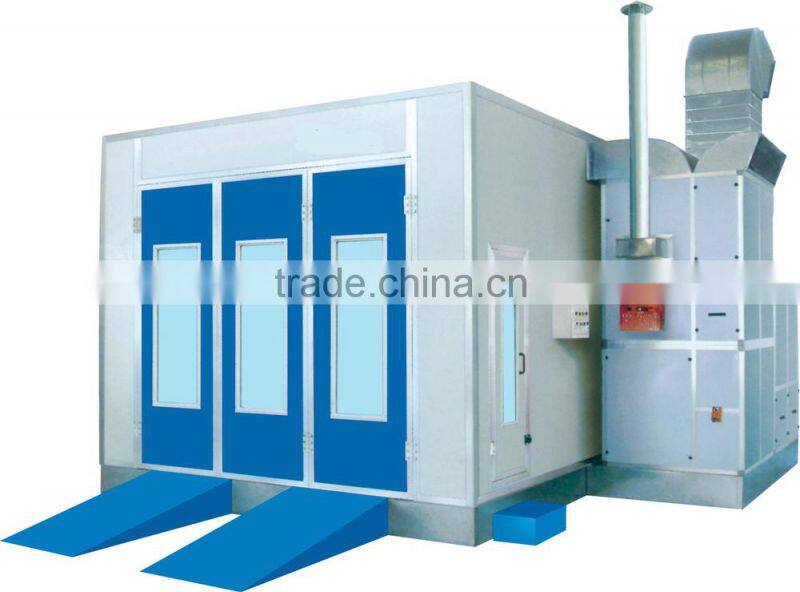

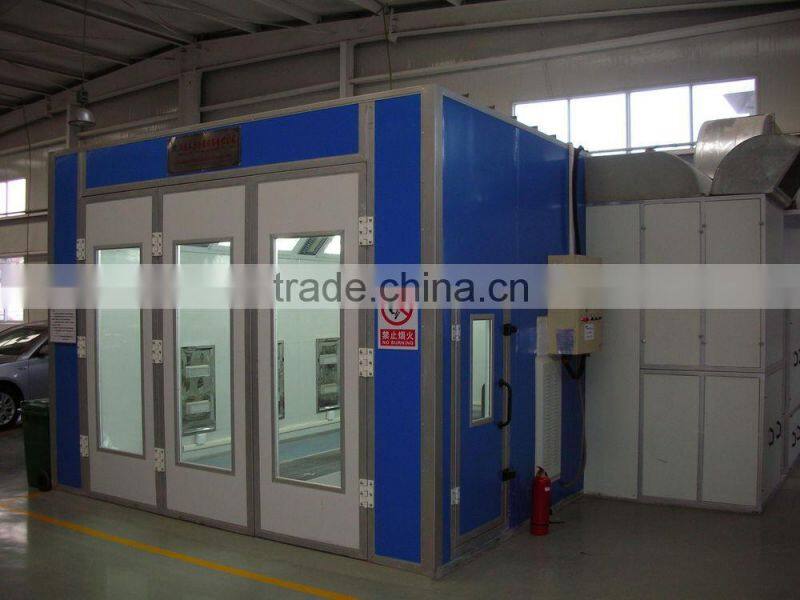

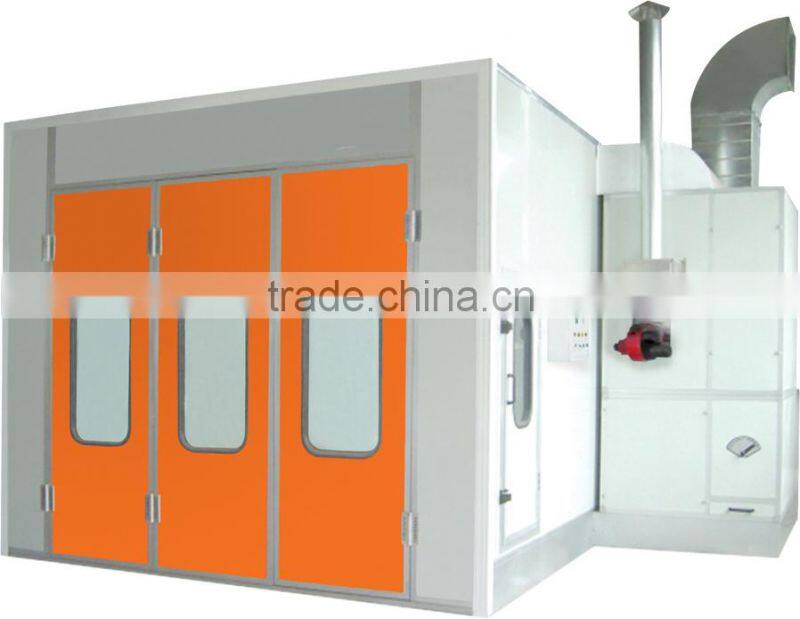

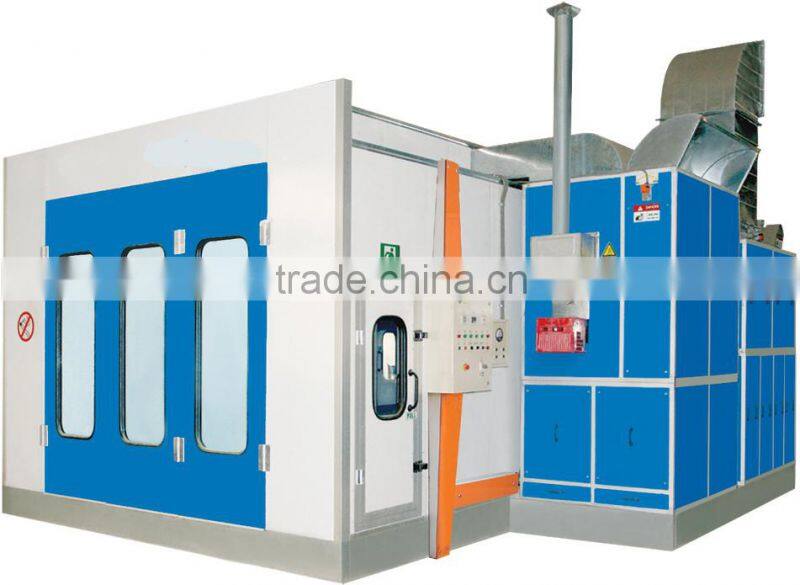

Car Spray Booth

Model

PE-69-39-B

Inside Size

L*W*H=6900*3900*2650mm

Outside Size

L*W*H=7000*5300*3400mm

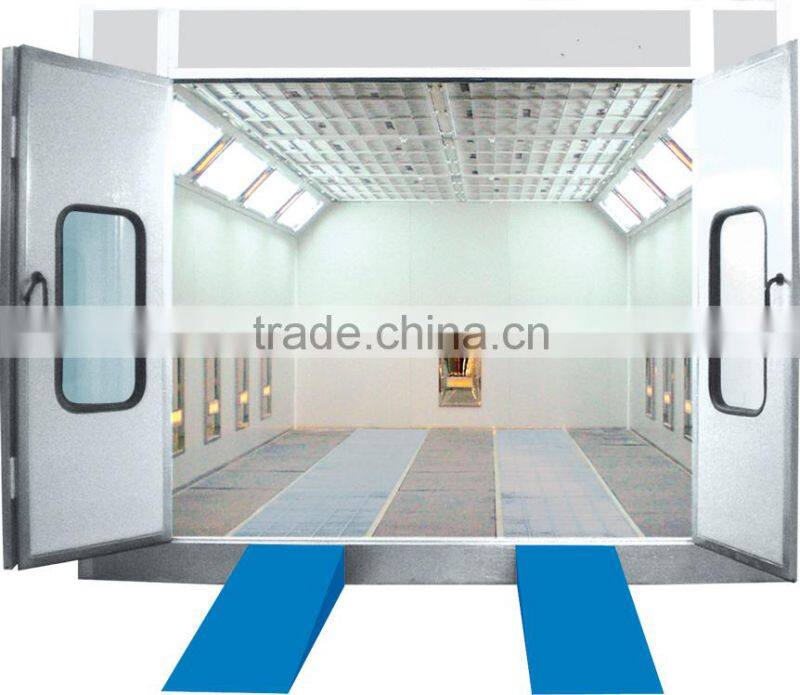

Entrance Door

3-win main entrance door, 3000*2600mm (W*H), thickness of inside outside pre-coated steel:0.4mm

Personnel Door

one pc of personnel door, 800x2000mm (W*H), with pressure latch

Wall Panels

Thickness of wall panel: 50mm; Pre-coated steel sheet with thickness of 0.326mm, double skinned with polystyrene(EPS) insulation inside, tongue and groove structure

Roof Panels

Zinced steel sheet, single layer with thickness of 0.6mm

Basement and Floor

300mm high raised metal-base with 2 drive in ramps (each 750 x2000mm), floor with 2 rows gratings and 3 rows indented plates

Lighting

8 sets of upper inclined ceiling lights, 4 x 36w light tubes /set; (side wall lights are optional)

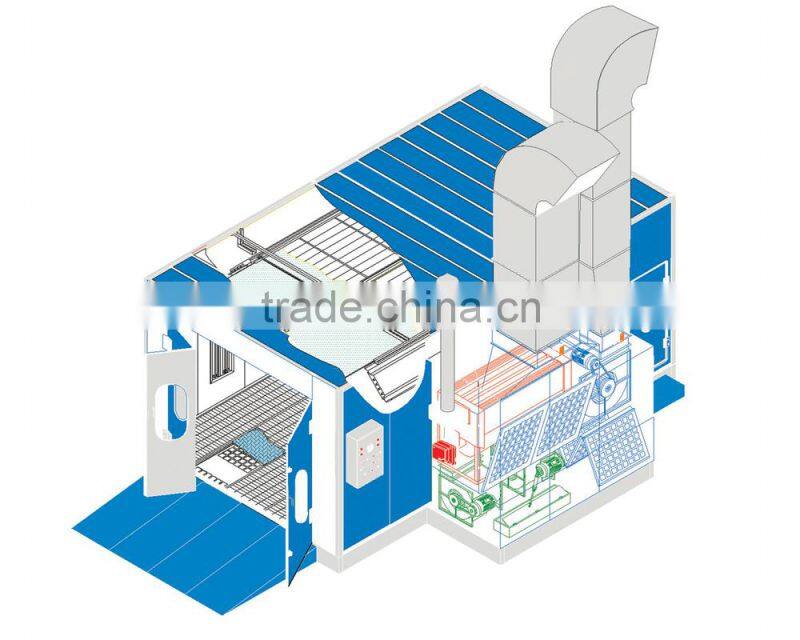

Air Plant Structure

Tube steel & angle steel structure, zinced steel plate

Intake

1 backward inclined turbo fan, capacity 20000cmh, direct drive, 1 x 5.5kw motor

Extract

Extract fan optional

Heating System

Stainless steel heat exchanger, 80 degree working temperature. Italy Riello G20S oil burner, capacity 200000Kcal/h

By-pass

Pneumatic damper from spraying to baking cycle

Filter System

3 sorts of filters: prefilter, ceiling filter, floor paint-stop filter

Control System

Reliable components, digital temperature readout, spray and bake temperature settings, bake timer,spray and bake switch
