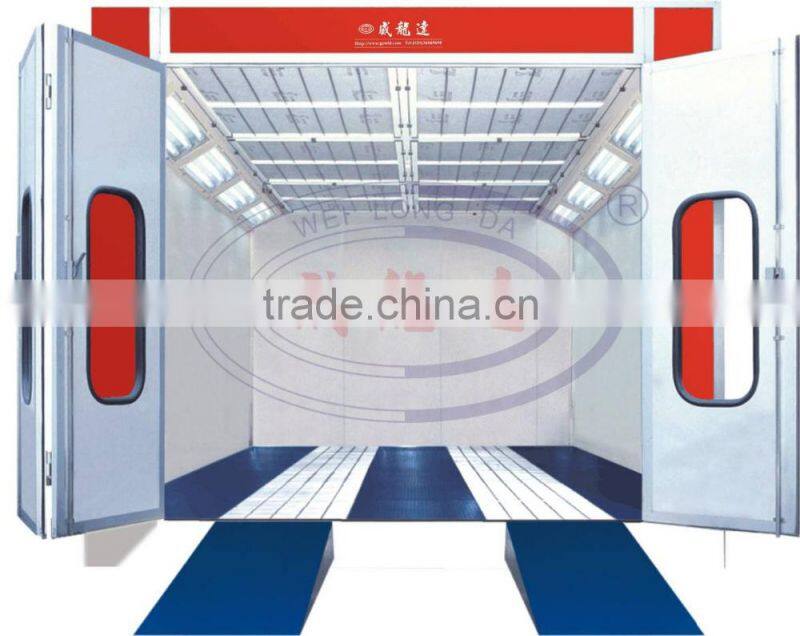

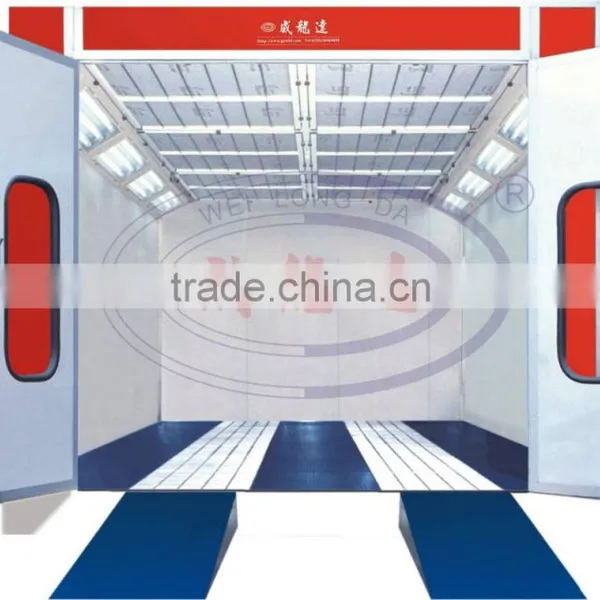

WLD7100 Common Car Spraying Booth, Car Baking Booth, WLD7100 Car Paint Booth, Spray Booth machine WLD7100, 2015 Hot Sale Spray Booth WLD7100, China car painting drying booth WLD7100, Car Painting spraying oven, Car Painting Oven, Vehicle Painting Booth WLD7100, Car Painting Booth, Spray Booth, Weilongda Spray Booth, WLD7100 CE Certificated Water Based Car Paint Booth, Car Painting House, Car Painting Room, Car Spray Room, Car Spray House, Car Spray Cabin, cabina de pintura, cabine de pintura, semburan gerai, spuitcabine, kabina lakiernicza, stendat e llak, sproeikamer, Car Painting House, Car Painting Booth
WhatsApp/Mobile: +86-13738082939, Skype: wikimachine, Tel.: +86-571-82136157
| External Size:(mm) | 7000x5450x3480 |
Front Door:(mm) Aluminum Frame |
3000(w)x2750(h) |
| Internal Size:(mm) | 6900x3900x2800 | Total Power:(kw) | 10 |
| Cabin System | Wallboard |
Fire-retardant composite molding Sandwich style EPS (epispastics polystyrene) (Rock wool and PU are optional )50mm |
|
| Basement | Galvanized steel sheet and square steel pipe construction. Full grids, |
||
| Door | 3 pieces of aluminum front doors. Size: 3000(w)*2750(h). 1 piece of emergency door. | ||
| Air Circulation System | Intake Fan |
2x4kw intake fan. BELIMO 20N electric damper. Siemens technology production, large air volume and low noise. |
|
| Air Pipe |
Made of Galvanized steel sheet consisted of 4 pieces of straight pipe 750*750*1000, and 1piece of elbow. |
||
| Filtering |
Dual filtering structure. The primary filter can capture granules larger than10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reach 98%. |
||
| Heating System | Burner |
Italy Riello G10 diesel burner, 100000Kcal/h. The heating time 7-9min (20-60°C). Max temperature at 80°C. Fuel consumption is 4-5kg/ vehicle. |
|
| Heat Exchanger | Made of stainless steel. The heat exchange rate reaches 85%. | ||
| Air make up cabinet | The surface plate is powder coated galvanized plate, rust force strong, beautiful; The frame is made of high-quality hot-dip galvanized sheet repressionr , anti-rust and strong, more durable than ordinary surface treatment, more beautiful, nodes with no damage spot, rigidity. | ||
| Oil tank support | Tank carefully made of high quality steel, the powder coating treatment, beautiful and durable. | ||
| Fume pipe | Fume pipe made of galvanized pipe, diameter of 190mm, 4 pieces of 1000mm long straight pipe, two 90 ° elbows. | ||

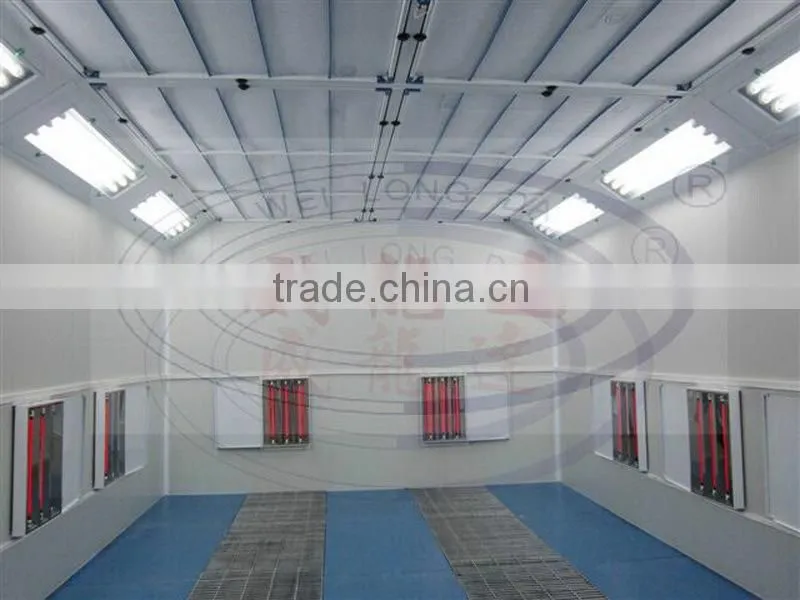

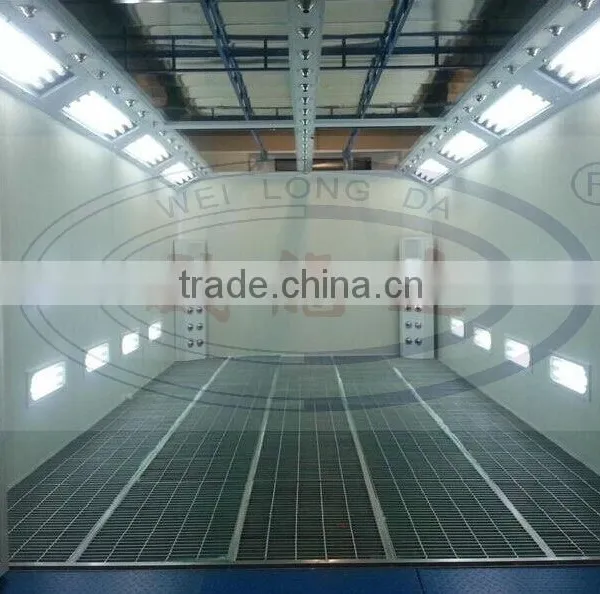

| Lighting System | Light tube | Ceiling light has 24 pieces of 36w lamps.800 Lux. the grade of lighting box’s dustproof and waterproof reach IP54 grade. | |
| Light box |
Welded galvanized plate, by the spray treatment, stiffness, repeated disassembly easy deformation, surface brightness, color uniformity, |
||
| Filtering System | Primary filter |
Grade G2 plate type fiber glass filter ; Dual filtering structure. The primary filter can capture granules larger than 10μm. |
|
| Celing filter | EU5 grade high efficient filter; Ceiling filter capture granules bigger than 5μm.The air cleanliness in the working environment can reaches 98%. | ||
| Floor filter |
Multilayer glass Fiber. The air cleanliness in the working environment can reach 98%. |
||
| Ceiling filter support |
made of tube steel frame, thickness of 1.2mm, epoxy powder coating, rust and strong, rigid, beautiful and durable, can be repeated disassembly,not easy to damage, easy to replace filter cotton. |
||
| Pollution Control System | Multi-layer fiberglass filter | ||

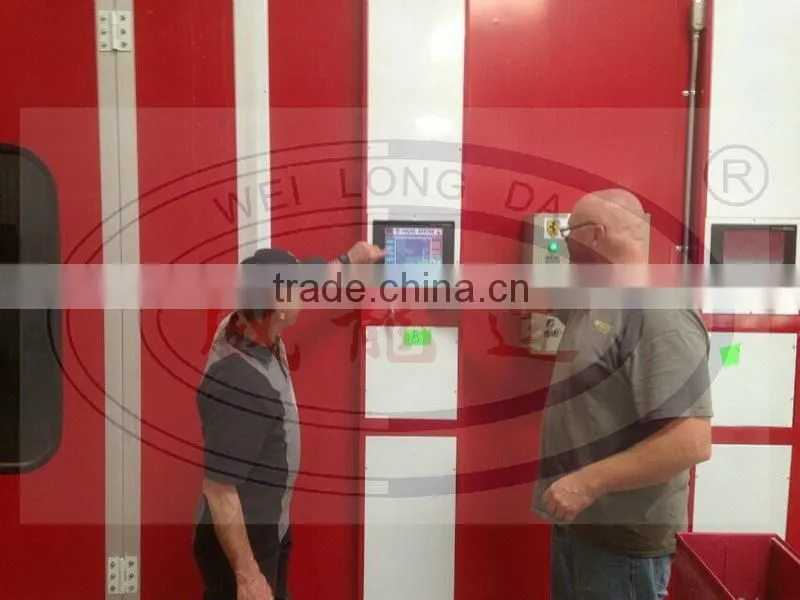

| Control system | Control panel | Standard control system | |
| Function |
Painting, constant temperature painting , drying, lighting, painting time and drying time setting ;emergency stop switch, failure indication, over-temperature alarm indication |
||

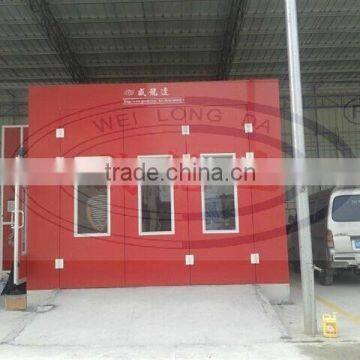

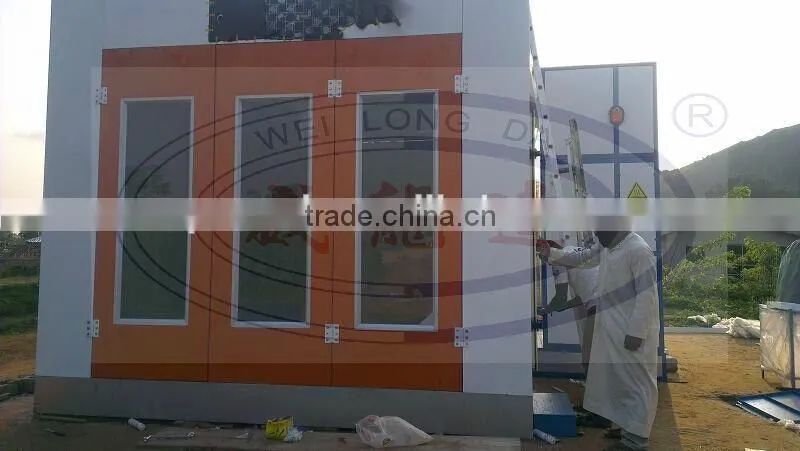

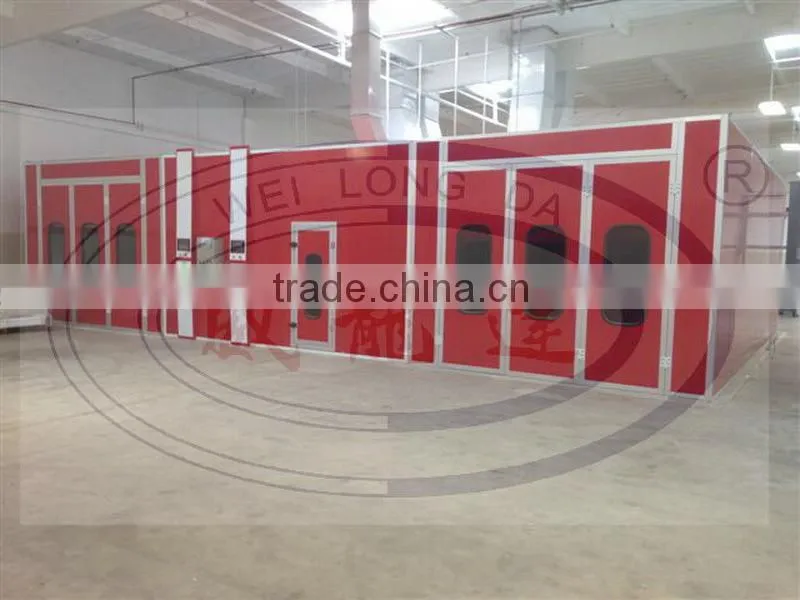

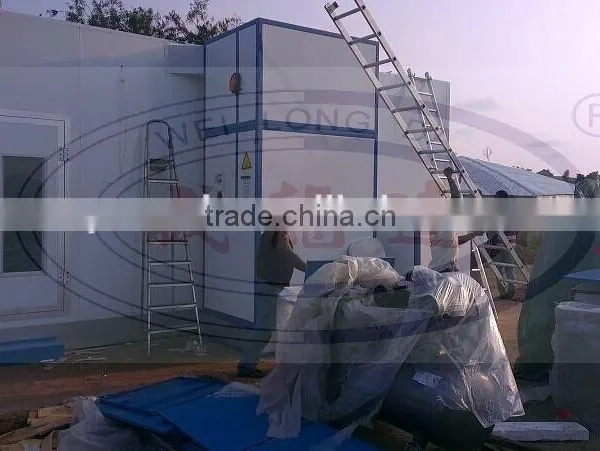

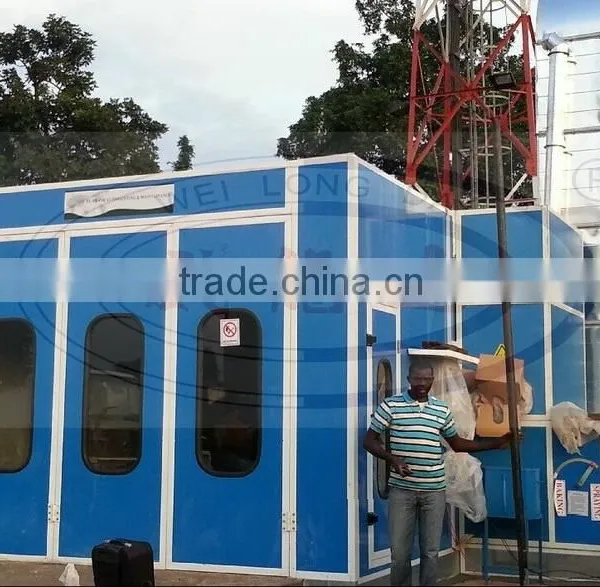

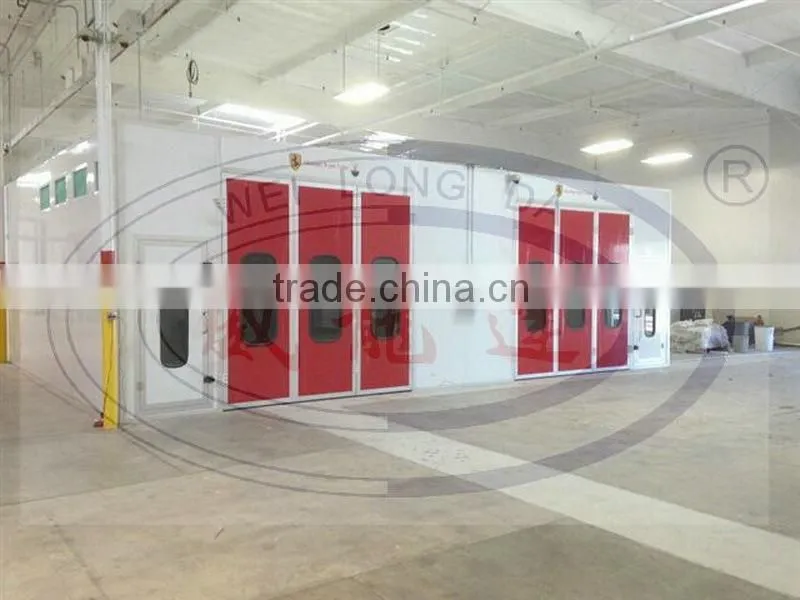

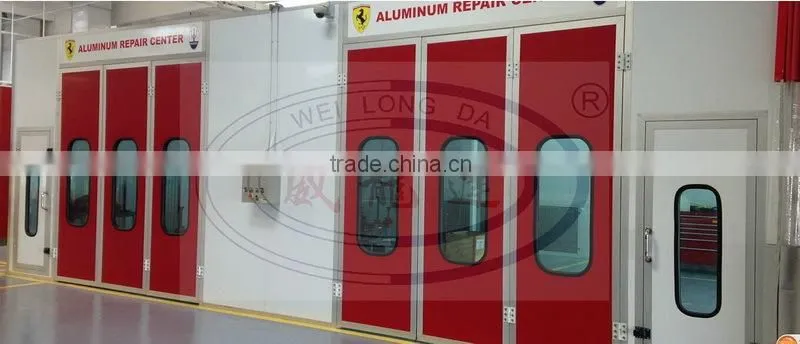

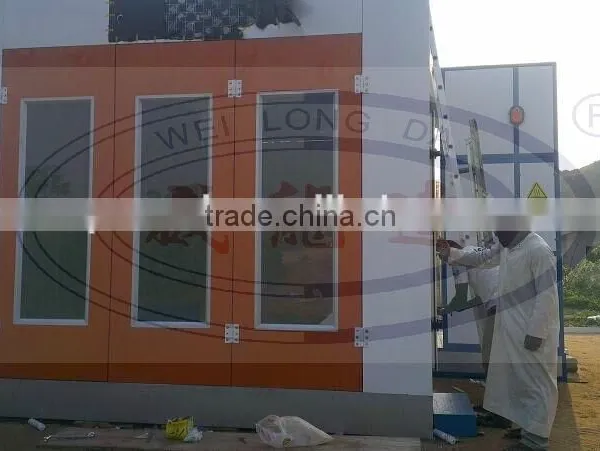

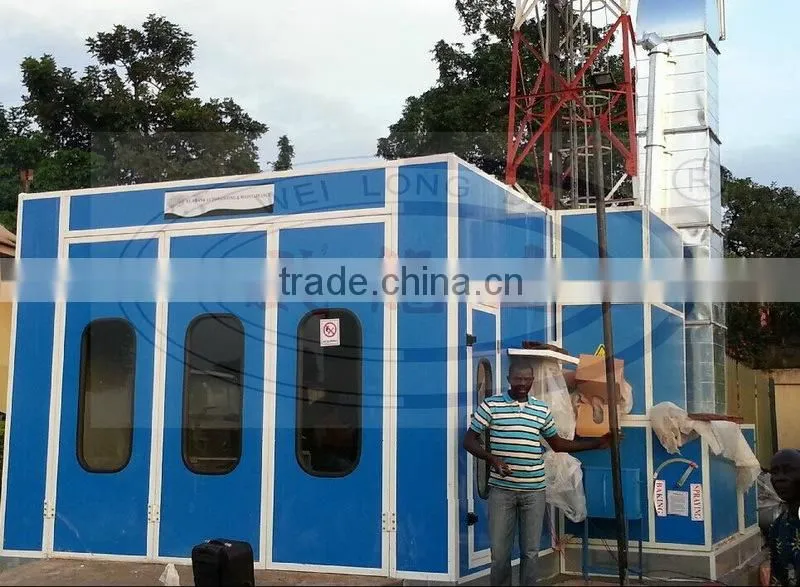

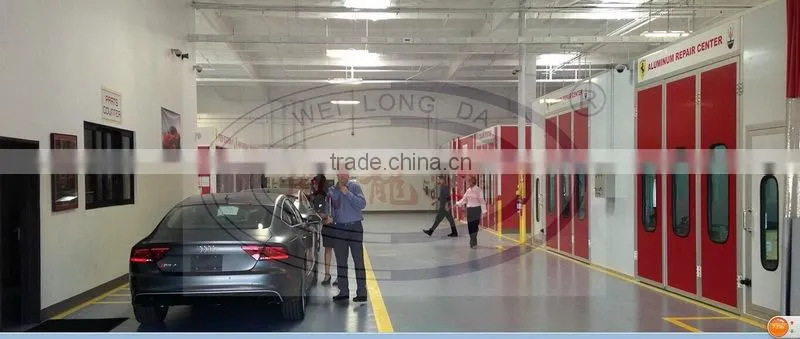

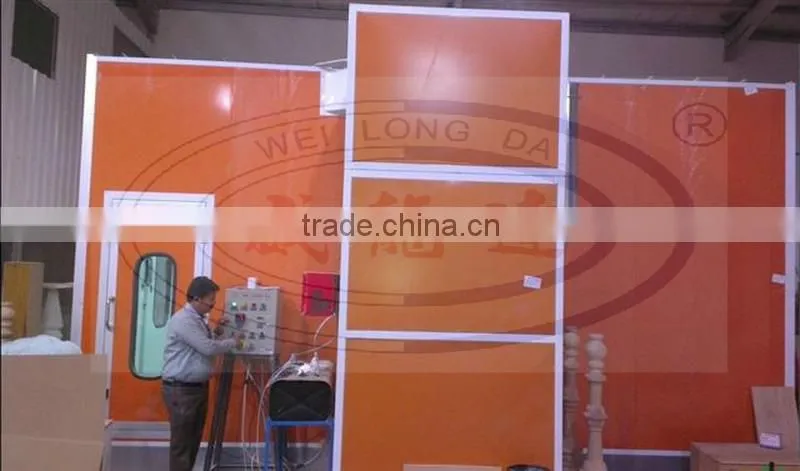

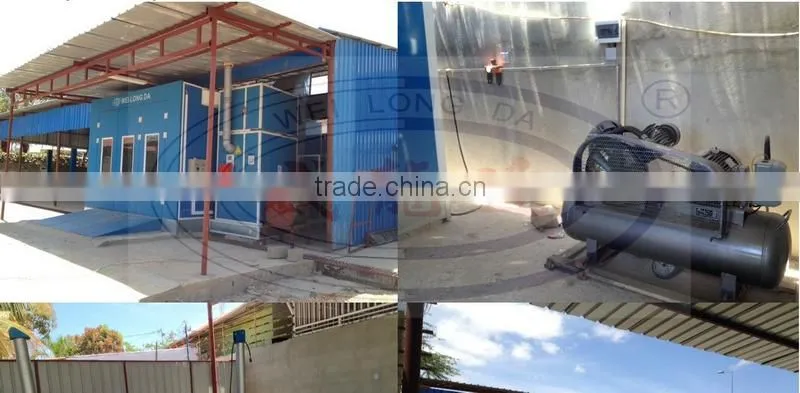

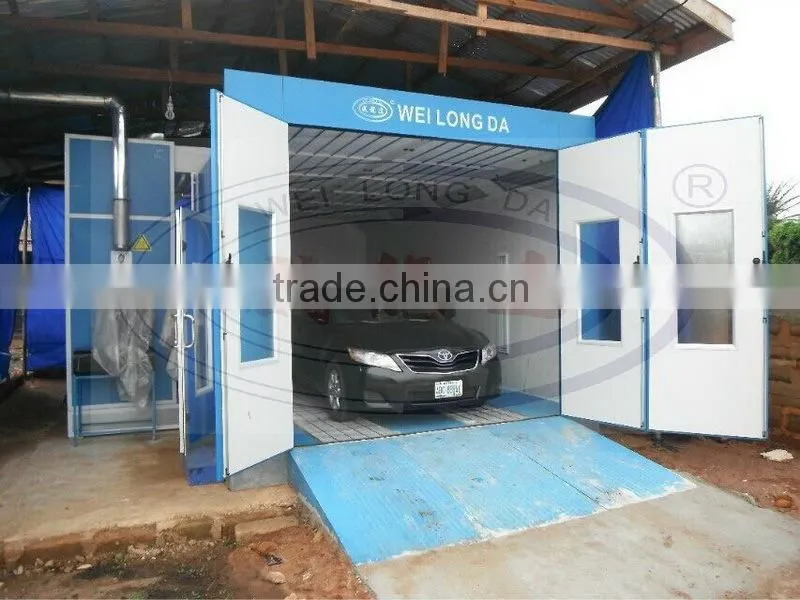

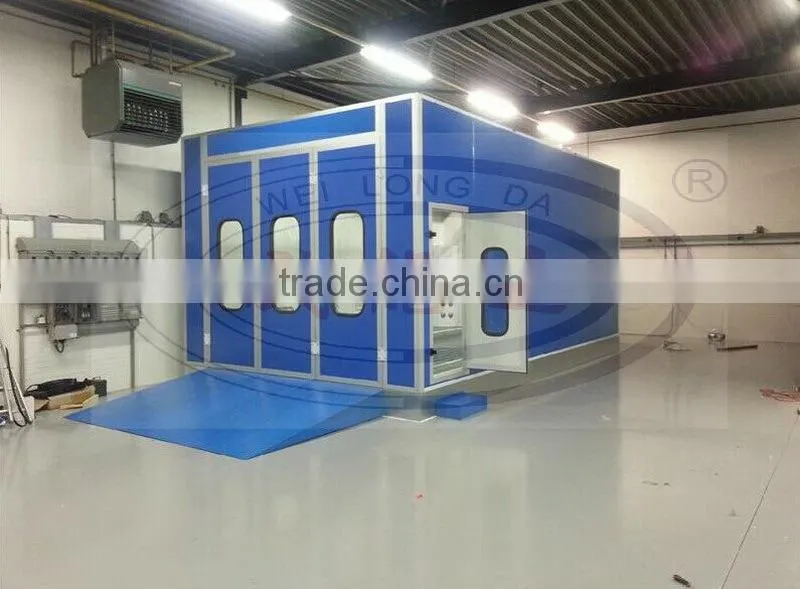

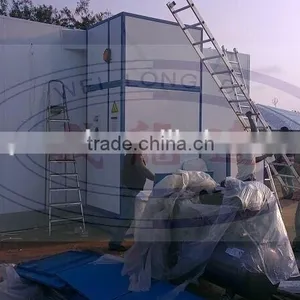

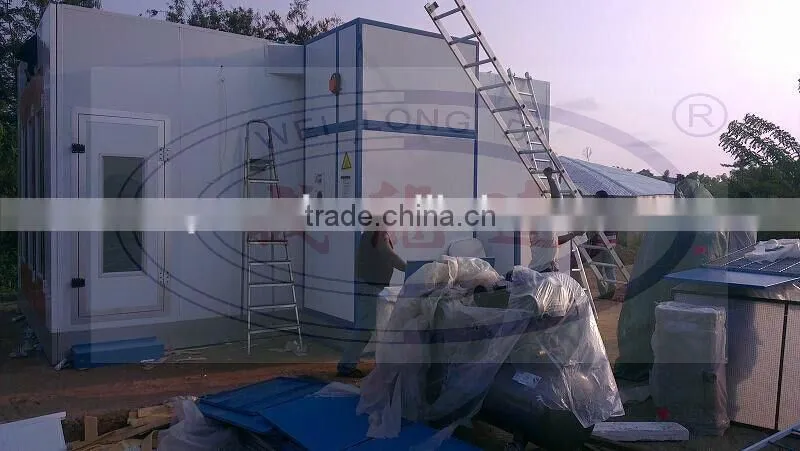

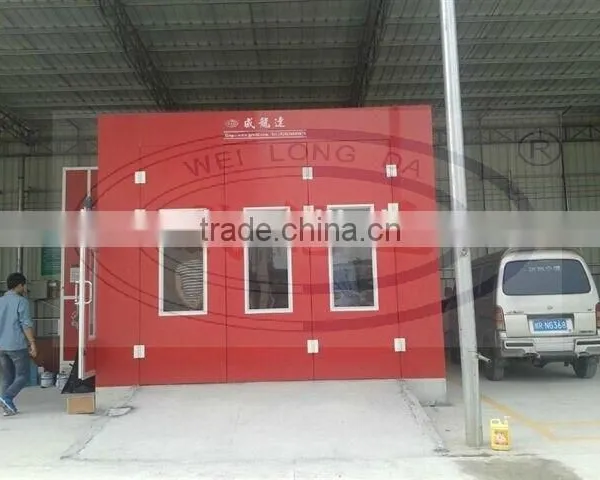

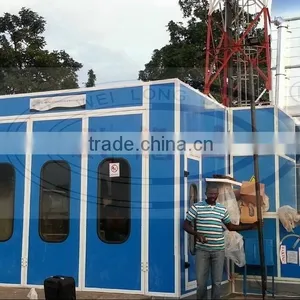

User Case
