Specifications
1.Laser lifetime: 100,000 hours2.Marking speed: 7,000mm/s
3.Free from maintenance
4.Machine power less than 800w
5.CE/FDA
Fiber laser metal marking machine
1.Brief Introduction:
This laser marking machine is widely used in hardware products, tools, accessories, electronic components,
integrated circuits, instruments and other material marking.

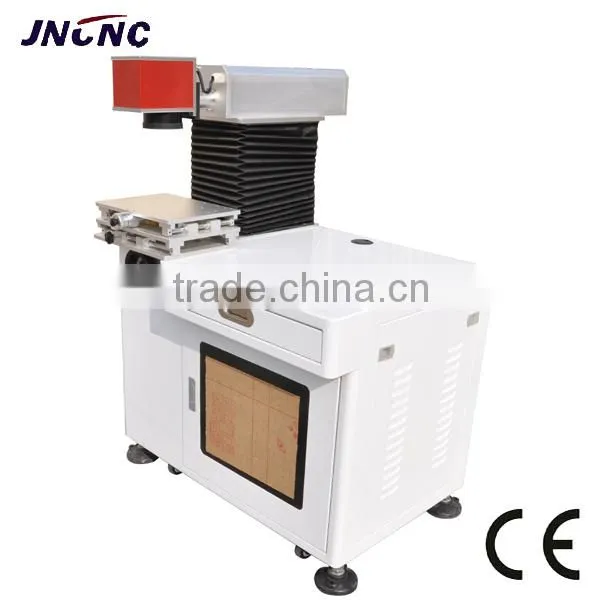

2.Picture of marking machine:
3. Technical parameter:
Model |
marking machine |
Laser Power |
20W |
Standard Marking Area |
100x100mm |
Optional Marking Area |
150X150mm |
Laser Wavelength |
1064nm |
Laser Repetition Frequency |
20-80KHZ |
Cooling System |
Water Cooling |
Reposition Accuracy |
≤±0.001mm |
Marking Depth |
≤0.3mm(According to the material) |
Marking Linear Speed |
≤15000mm/s |
Marking Linear Width |
0.01mm |
Minimum Character |
0.25mm |
Working Voltage |
AC220V±10% 50HZ 15A/20A/25A |
Consuming Power |
≤800W |

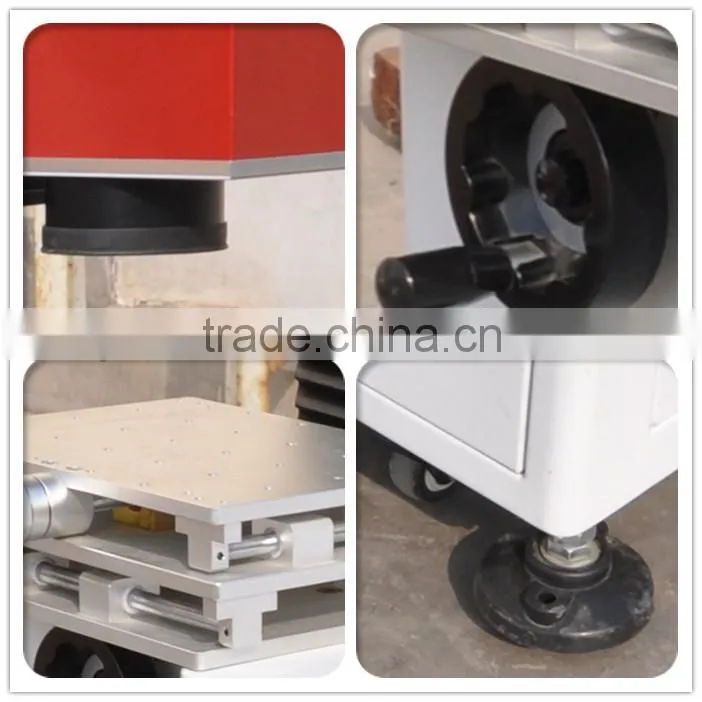

4.Main parts picture of marking machine:
5.Application fields:
1, Electronic Components: Resistance, capacitance, chips, printed circuit boards, computer keyboard.
2, Apparatus and Meter: Panel signs, precision equipment, etc.
3,Hardware tools: Knives, tools, measuring tools, cutting tools, etc
4, Automobile Parts: Fistons, piston rings, gears, shafts, bearings, clutch lights, etc

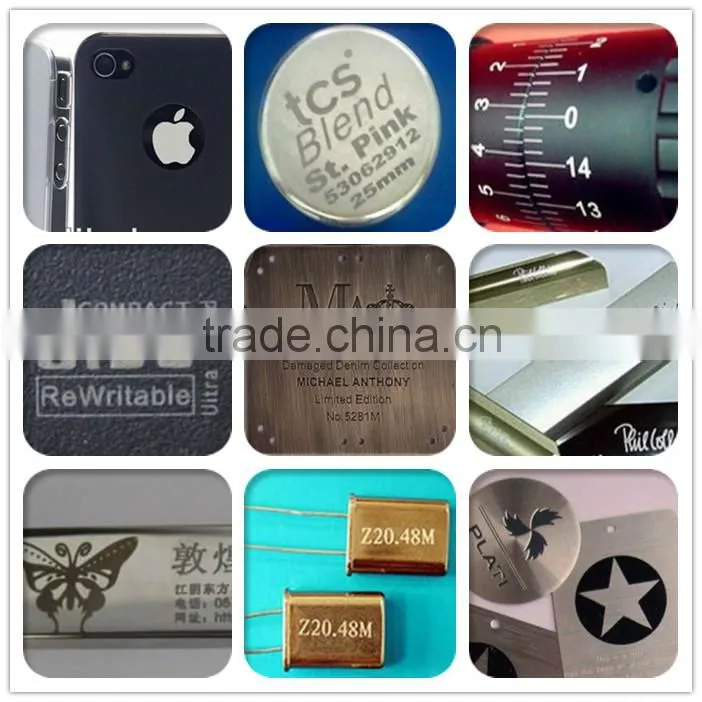

6.Sample pictures of marking machine:
7,Features:
1) Easy Operating: Afford specific marking software based on Windows, which can adjust the laser
power and pulse frequency. You can make input and output by computer according to edit in both of
the specific marking software and graphic software such as AutoCAD, CorelDRAW and Photoshop.
2) Low Running Cost: No wearing part. Free maintaining.
3) It also can mark automatic code, sequence number, batch number, date, bar code and
two-dimensional code, and the software can mark the figures on the opposite side.

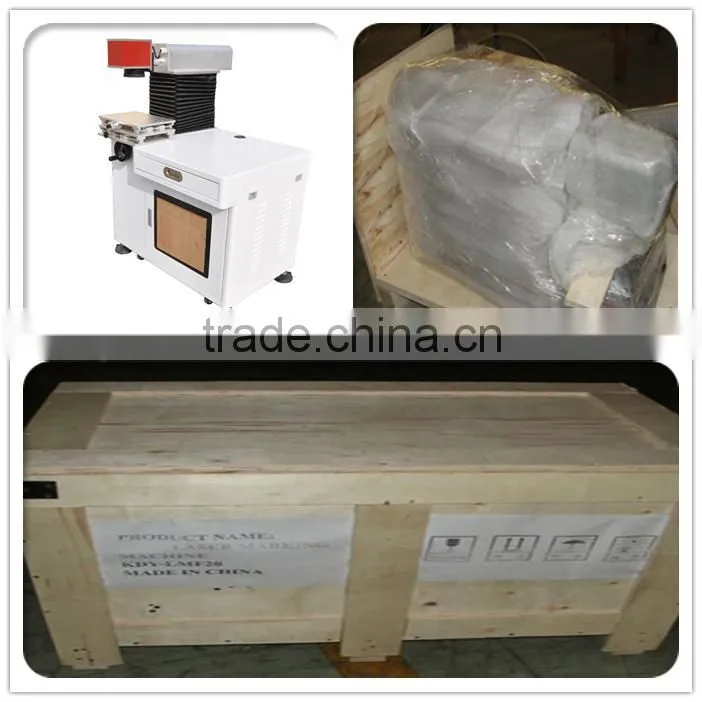

8.Packing Show:
9,Exhibition show:
10.Warranty and After-sale Service:
1).12 months warranty for the whole machine
2).24 hours technical support by e-mail
3).Use friendly English software, user manual and detailed Videos/CD
